SpeedyBee F405 WING APP Fixed Wing Flight Controller
by Speedybee
5.00 out of 5
(4 customer reviews)
Easy Installation, Wireless Configuration, and Features to help you Soar!
$89.99
or 6 weekly interest free payments of NZD $14.99 with
In Stock at KiwiQuads
Ships from our Tauranga warehouse
SKU: 1453
Categories: Flight Controllers, Wing & Plane Flight Controllers
Description
Specifications

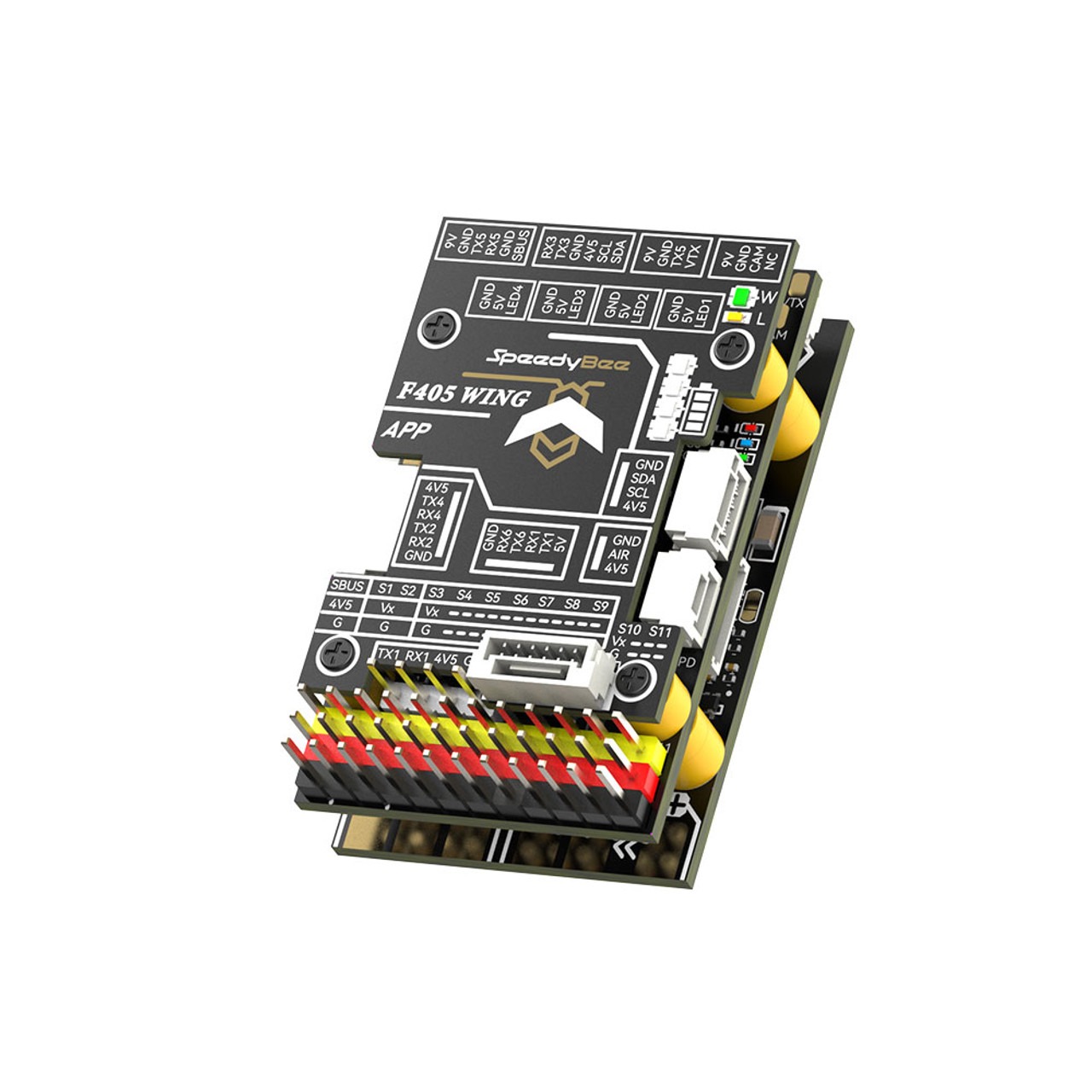

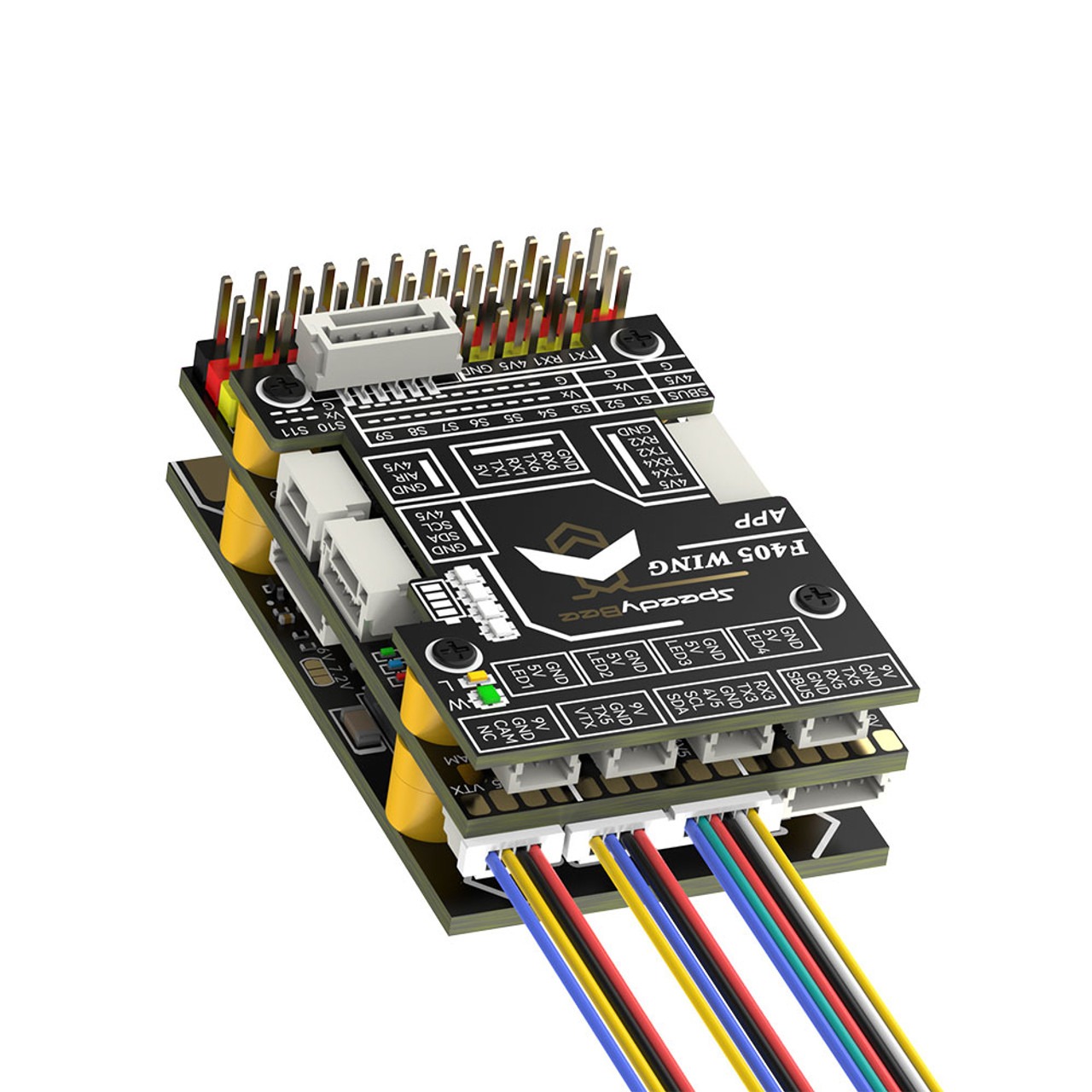

- Product Name SpeedyBee F405 WING FC board
- MCU STM32F405,168MHz,1MB Flash
- IMU(Gyro&Accelerometer) ICM-42688-P
- Barometer SPL006-001
- OSD Chip AT7456E
- Blackbox MicroSD Card Slot

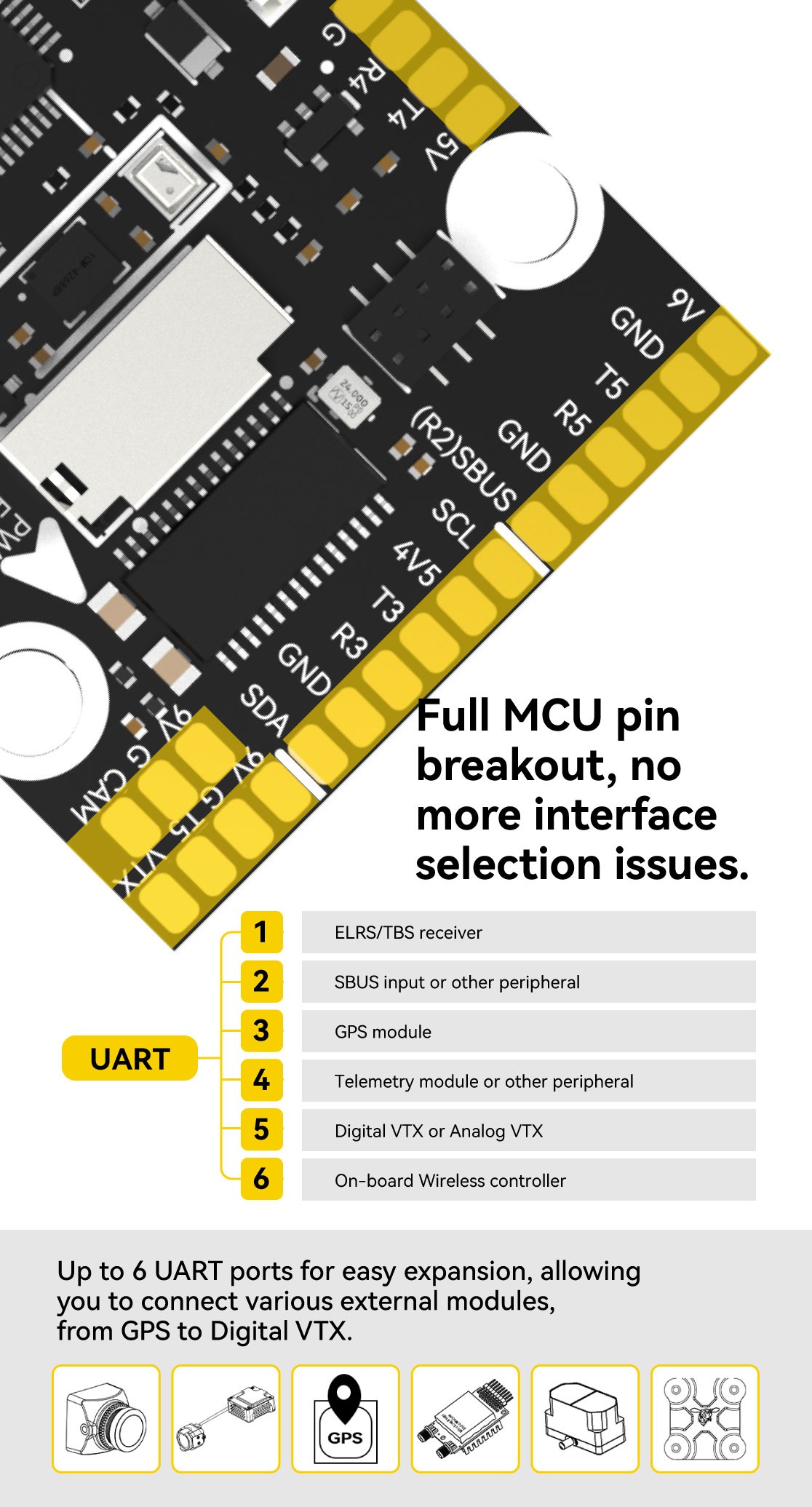

- UART 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
- I2C 1x Used for magnetometer, digital airspeed sensor
- ADC 4x (VBAT, Current, RSSI, Analog AirSpeed)

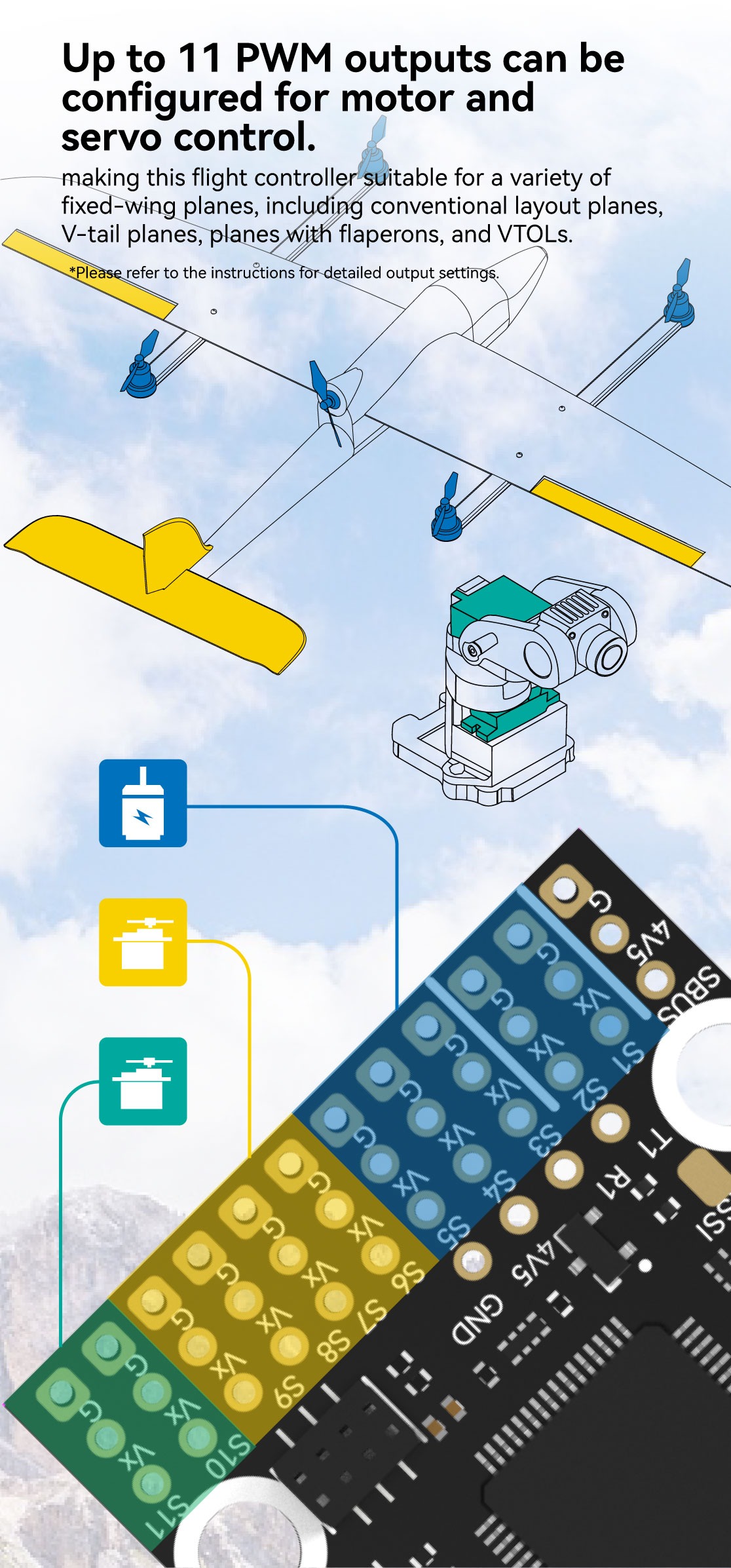

- PWM 12x (11+1“LED”pad)

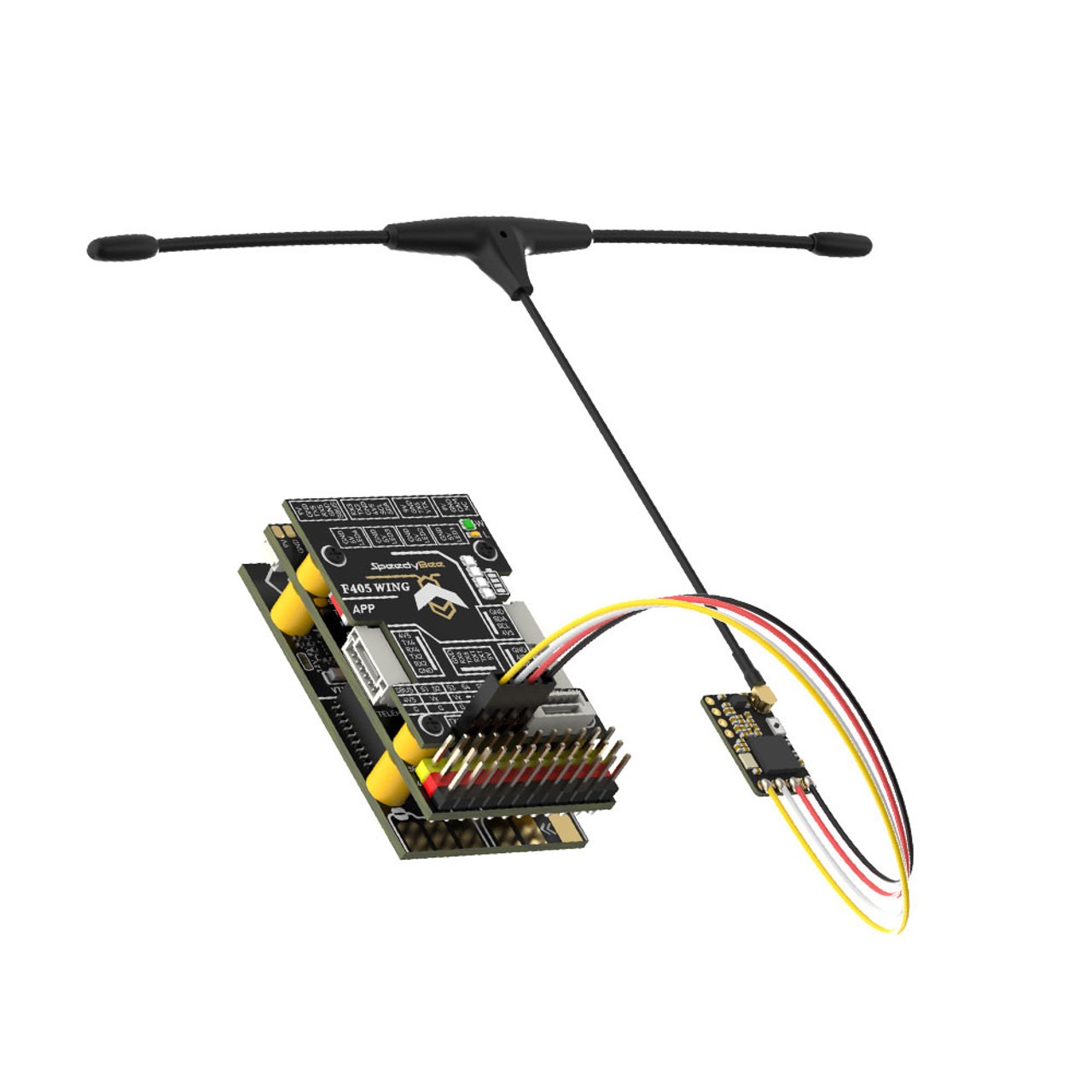

- ELRS/CRSF receiver Supported,connected to UART1
- SBUS Built in inverter for SBUS input (UART2-RX)
- LED 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
- RSSI Supported,Named as RS .
- Supported FC Firmware INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING
- Weight 8.9g

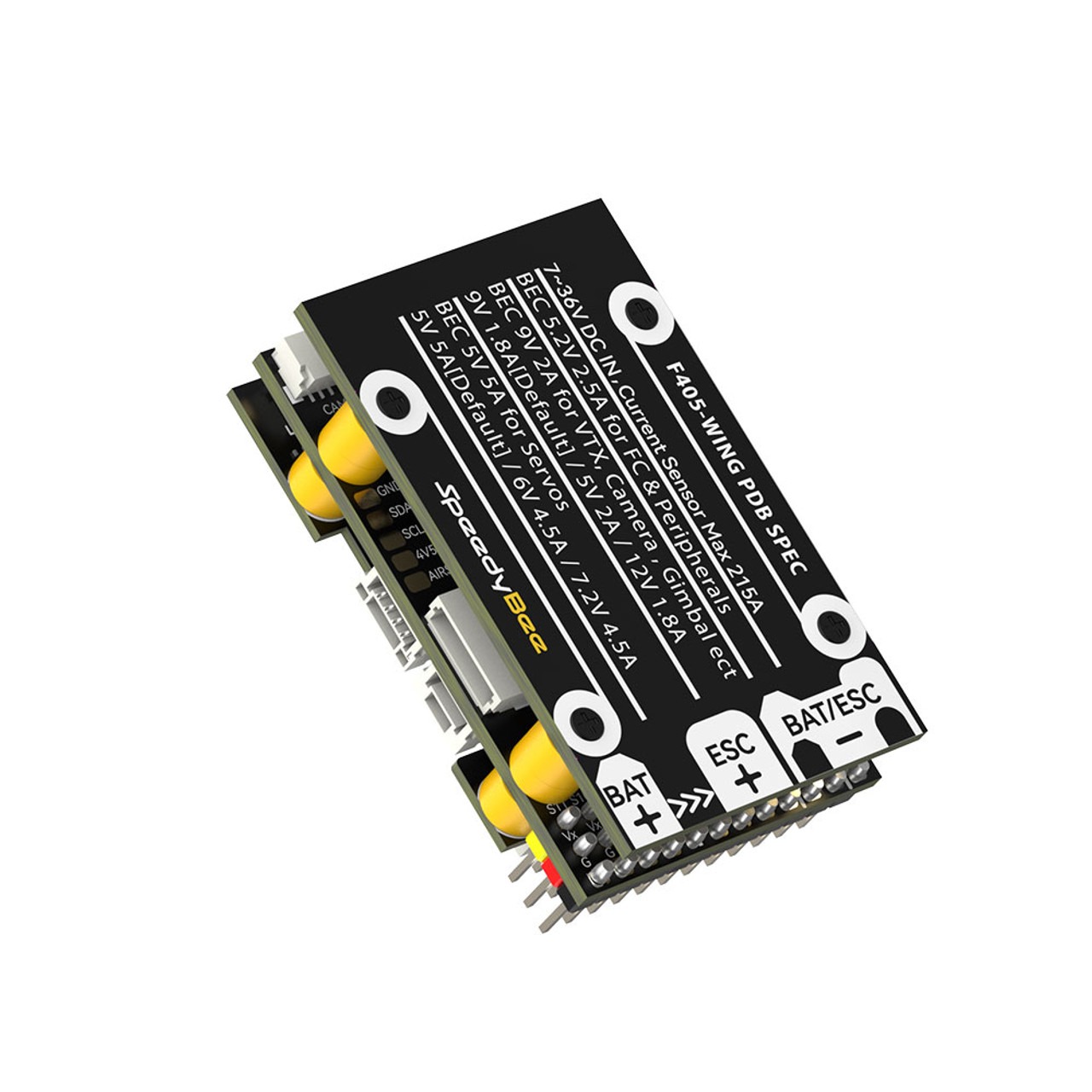

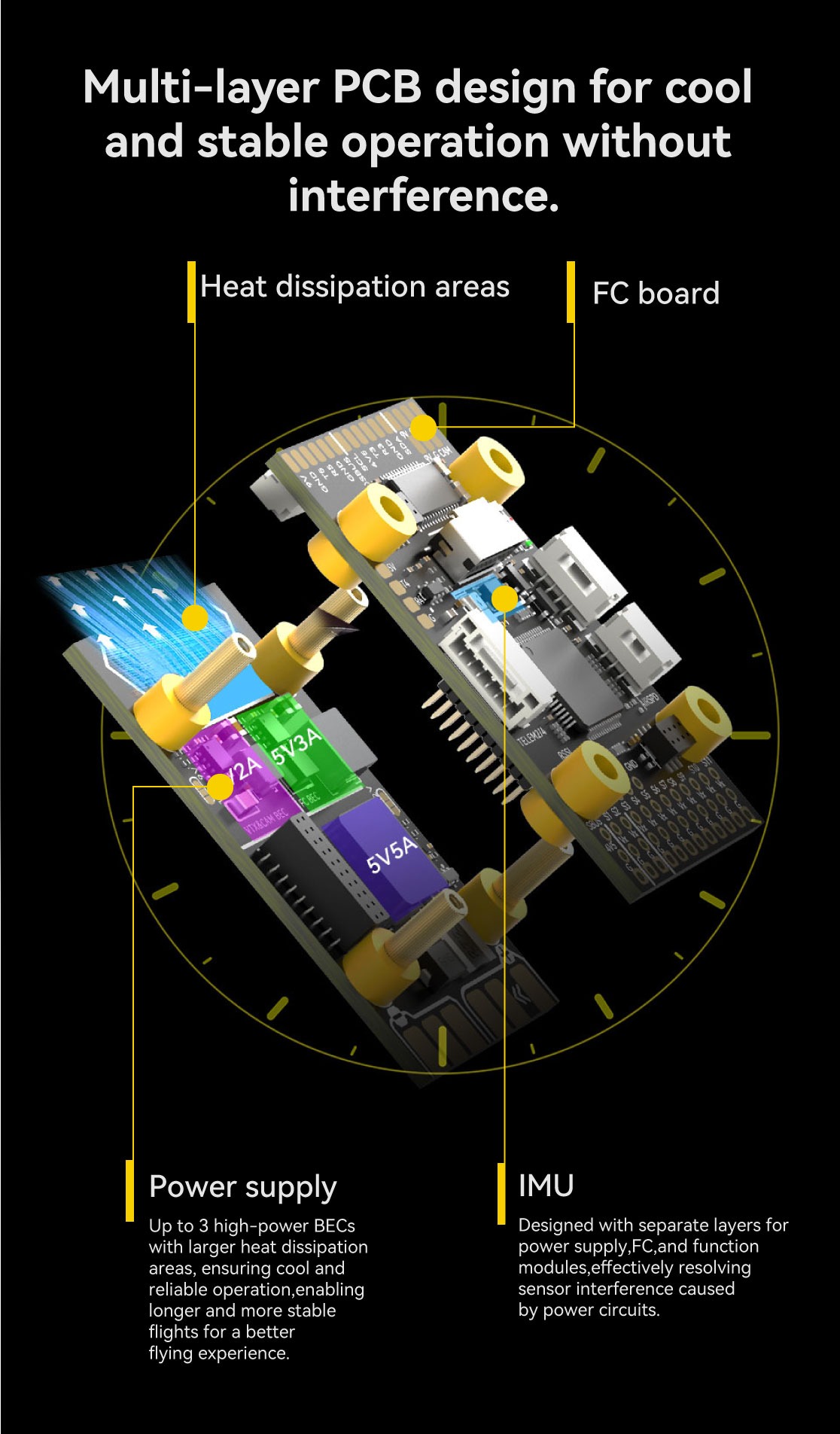

- Product Name SpeedyBee F405 WING PDB board
- Input voltage range 7~36V (2~6S LiPo)
- Battery Voltage Sensor Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
- Battery Current Sensor 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
- TVS Protective diode Yes
- FC BEC output Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
- VTX BEC output Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog
- Video Transmitter,Digital Video Transmitter, Camera.
- Servo BEC output Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for
- Servos.
- Weight 11.4g
- Product Name SpeedyBee F405 WING Wireless board
- Wireless Configuration (long press BOOT button for 6 seconds to switch modes) BLE mode, connect to Speedybee APP
- Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
- LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) 4x WS2812 LED strip connectors, adjustable colors and flashing modes
- Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads

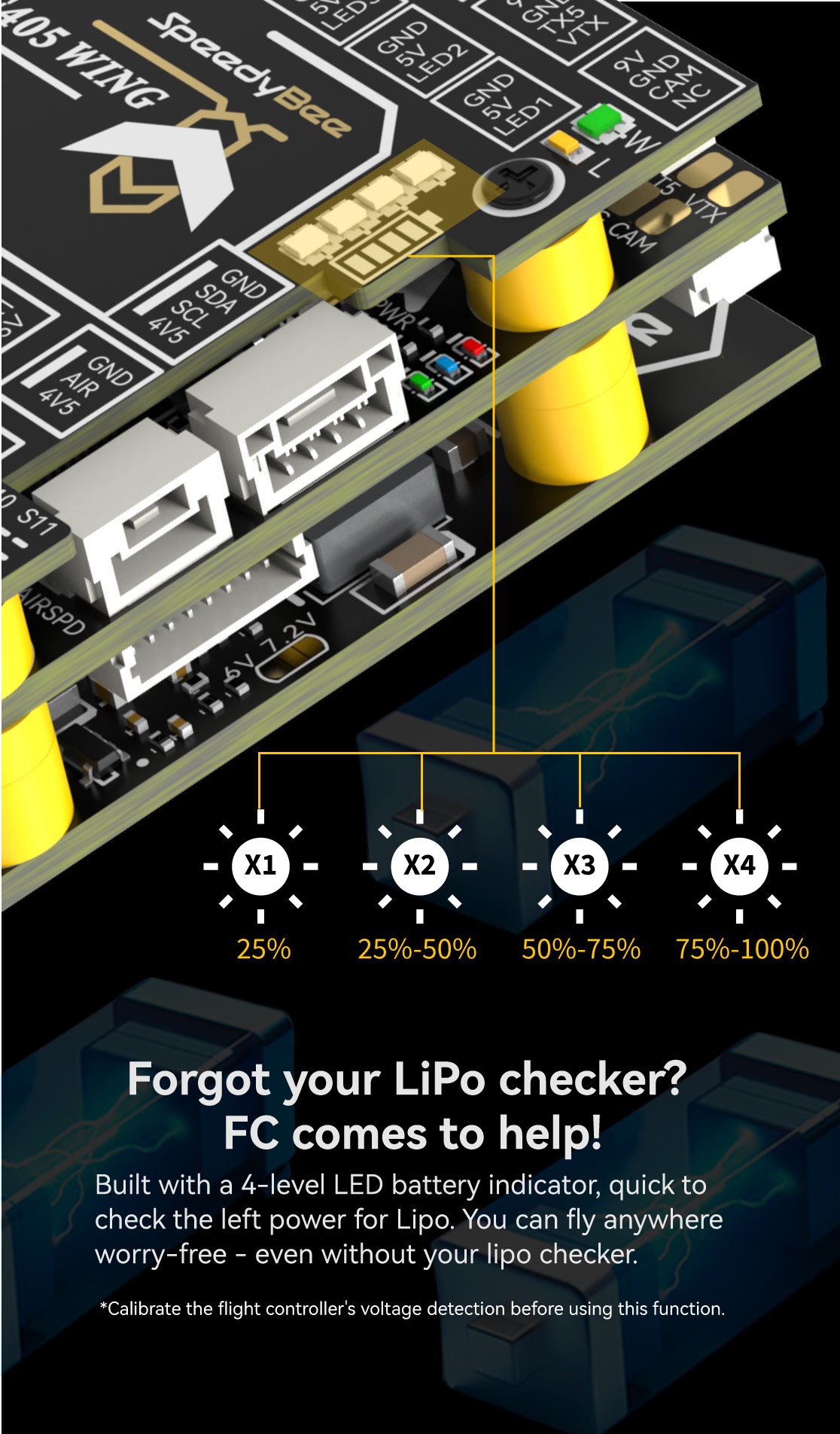

- On-board battery level indicator 4x RGB indicator LED for battery level display by number of lights
- Weight 4.2g
