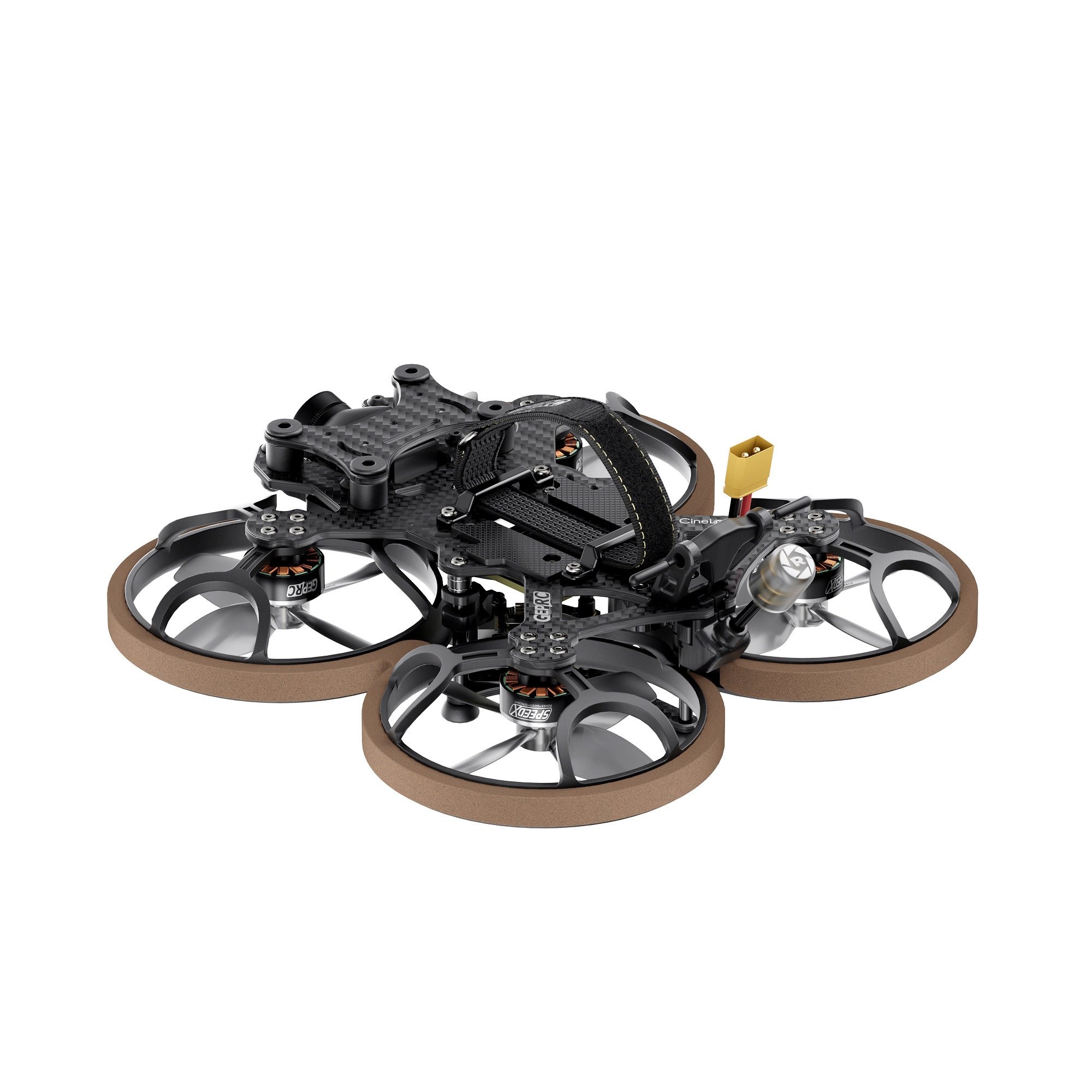

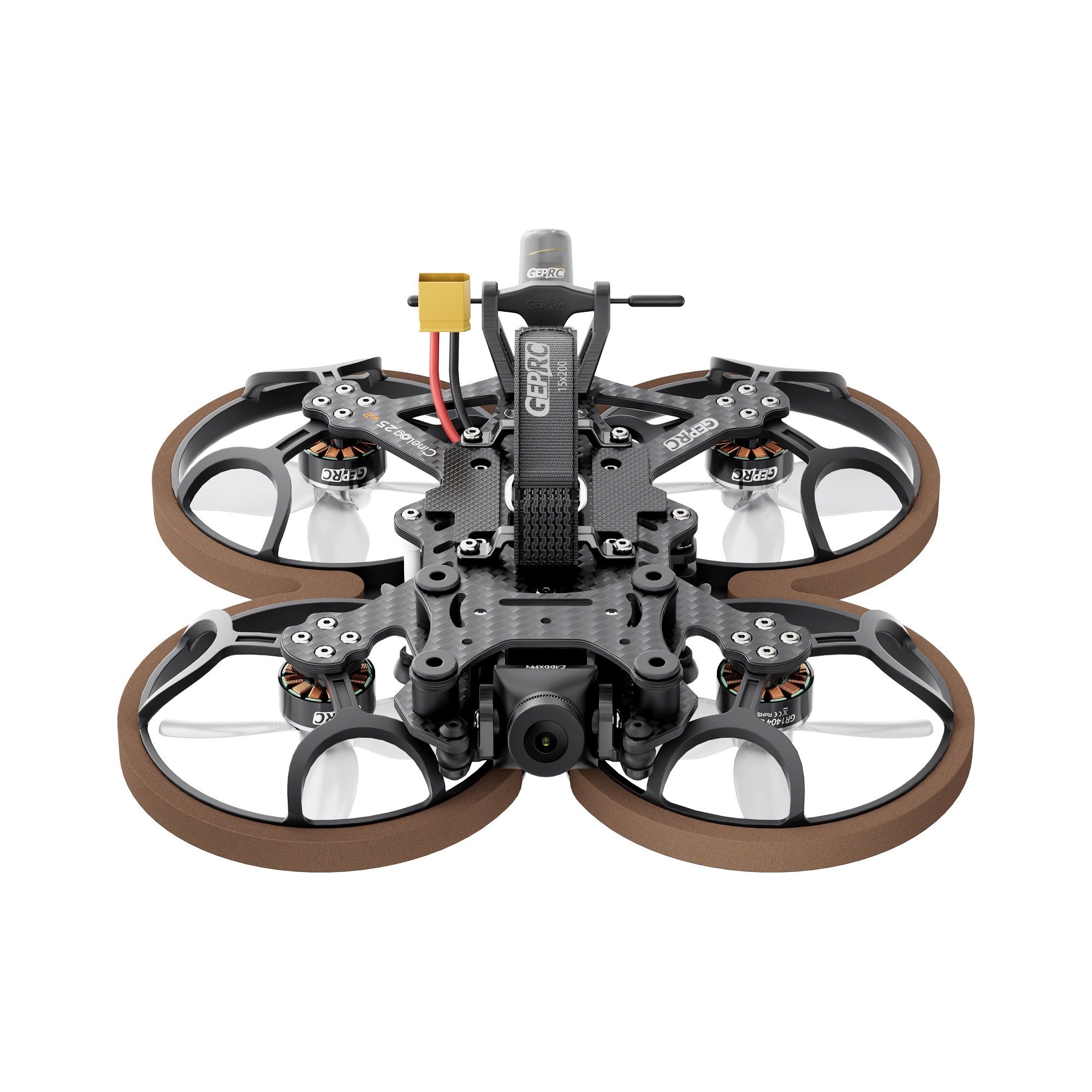

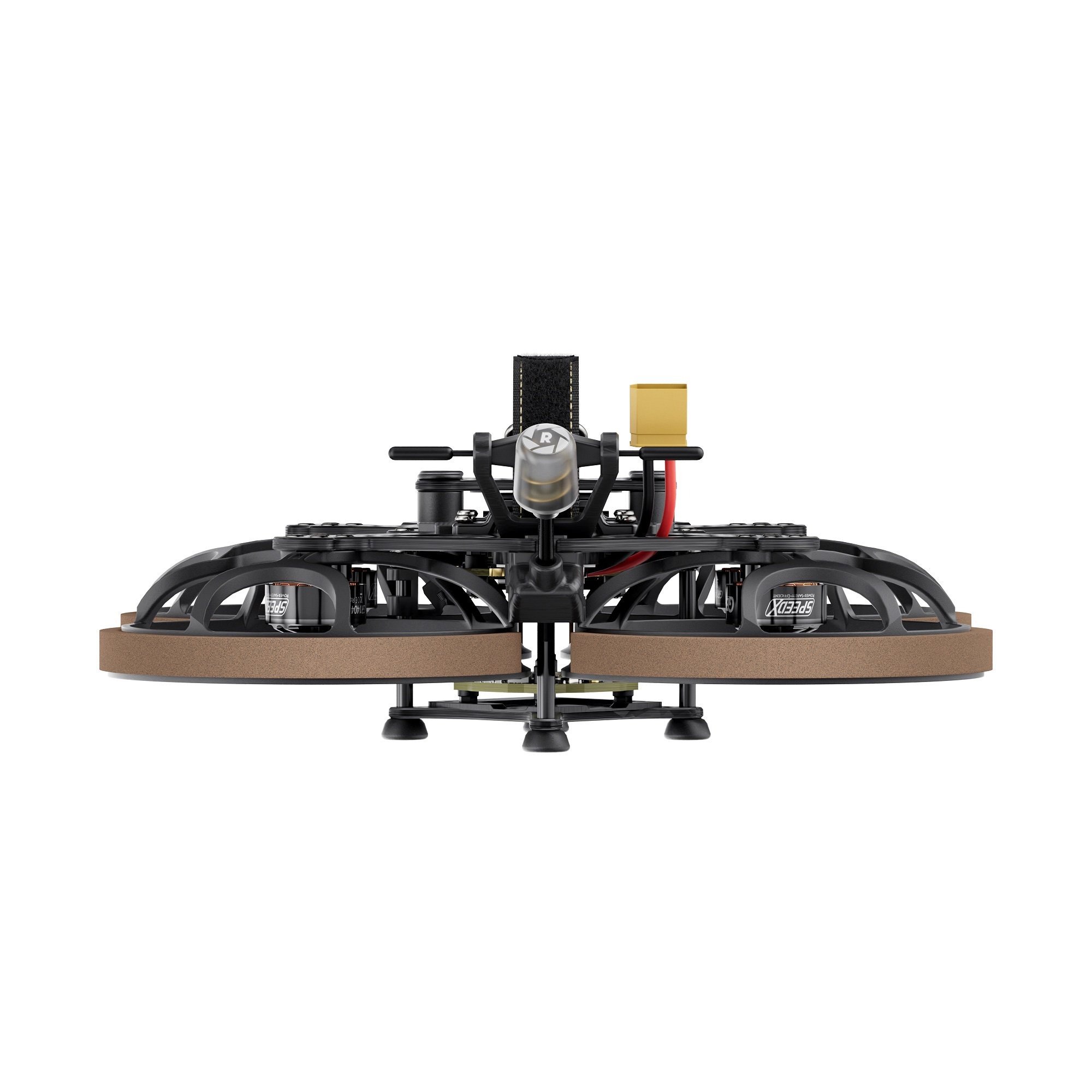

GEPRC CineLog25 V2 Cinewhoop Analog + GPS – PNP

Description

Please note: this is the PNP version where you can choose your receiver.  We also have BNF ExpressLRS available here: GEPRC CineLog25 V2 Cinewhoop Analog + GPS – BNF ExpressLRS

From progress to evolution, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.

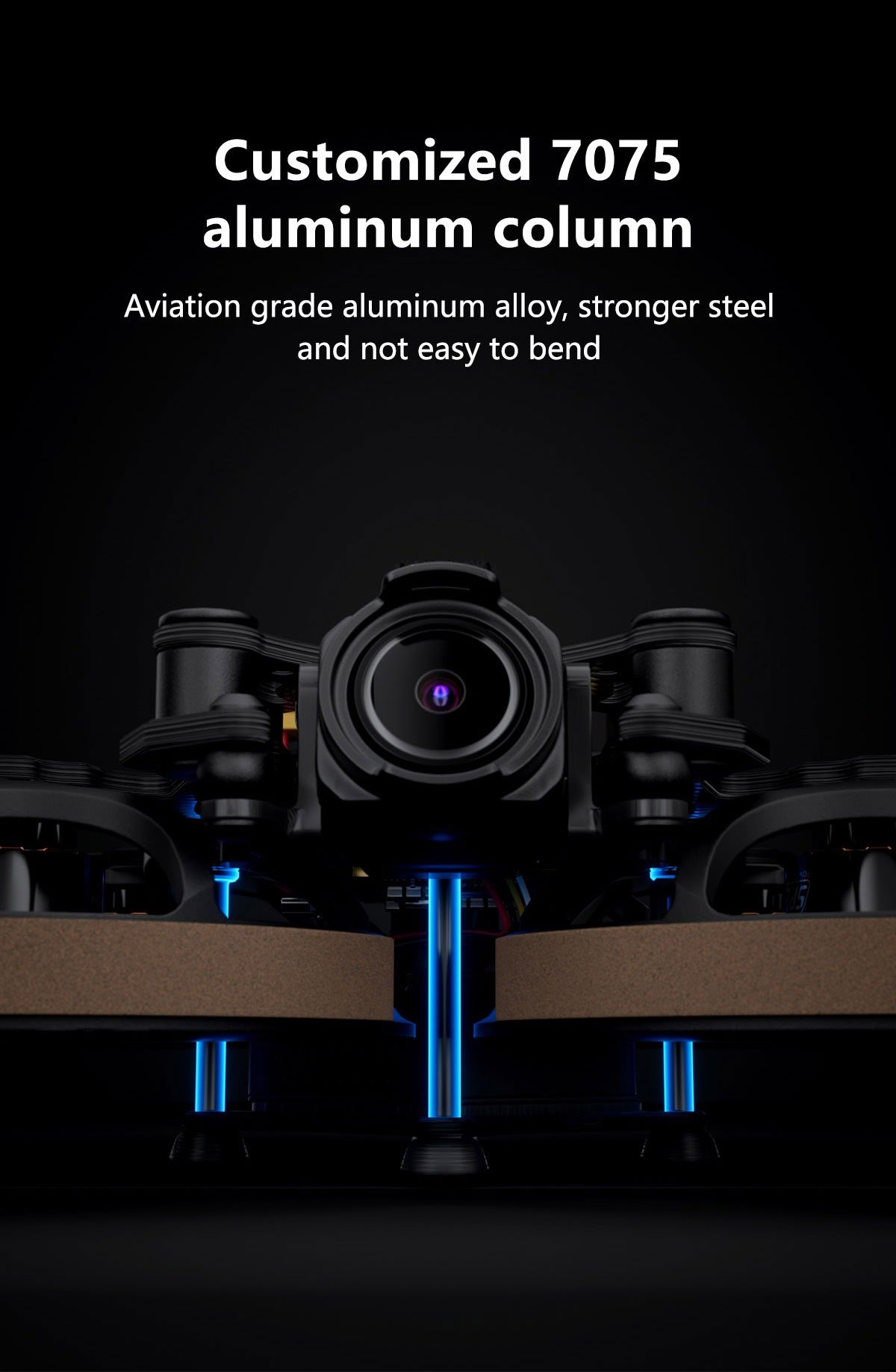

It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance.Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.

Cinelog25 V2 is a 2.5-inch FPV that integrates indoor and outdoor flying. Developed by the GEPRC team,the flight feels delicate and the experience is good.

Feature

1. Designed aluminum parts with cable ties to facilitate the change of batteries.
2. Use the new TAKER G4 35A AIO, has better computing power.ESC over-current protection makes it stable and reliable.

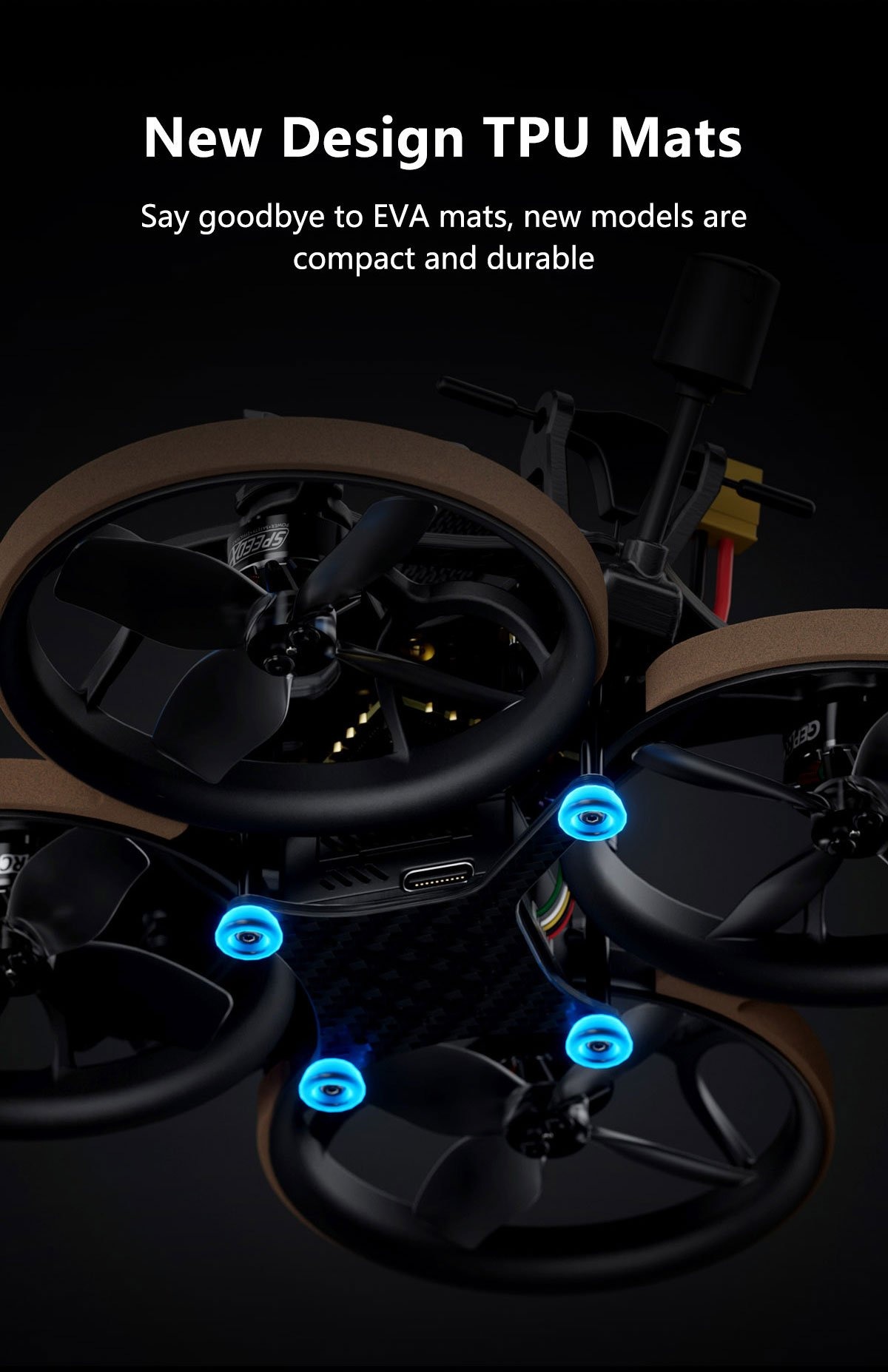

3. Design propeller guard, which can effectively prevent people from flight mistakes.

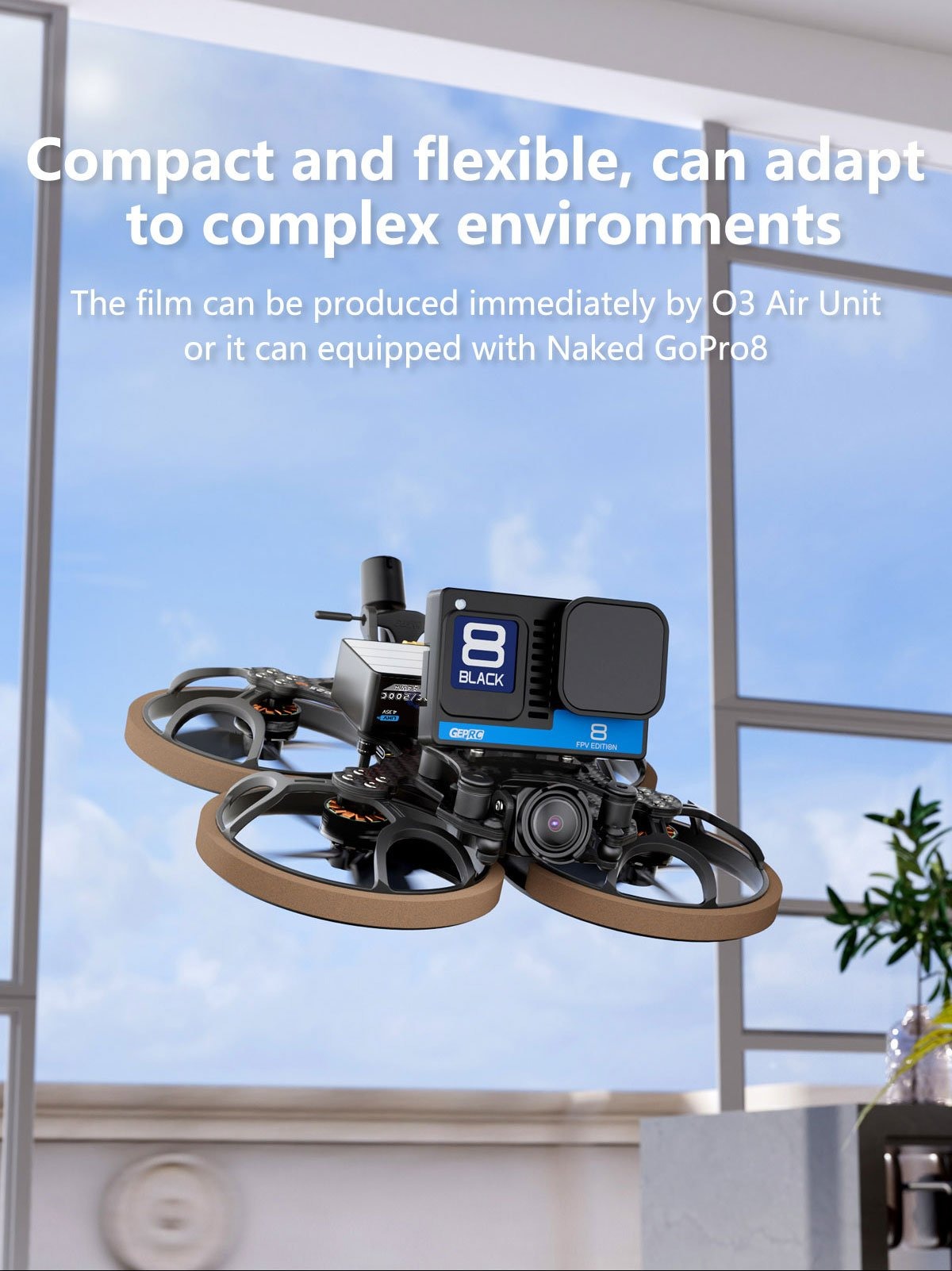

4. The fuselage is small and compact, suitable for indoor and outdoorMounting Naked GoPro8 to shoot beautiful videos.

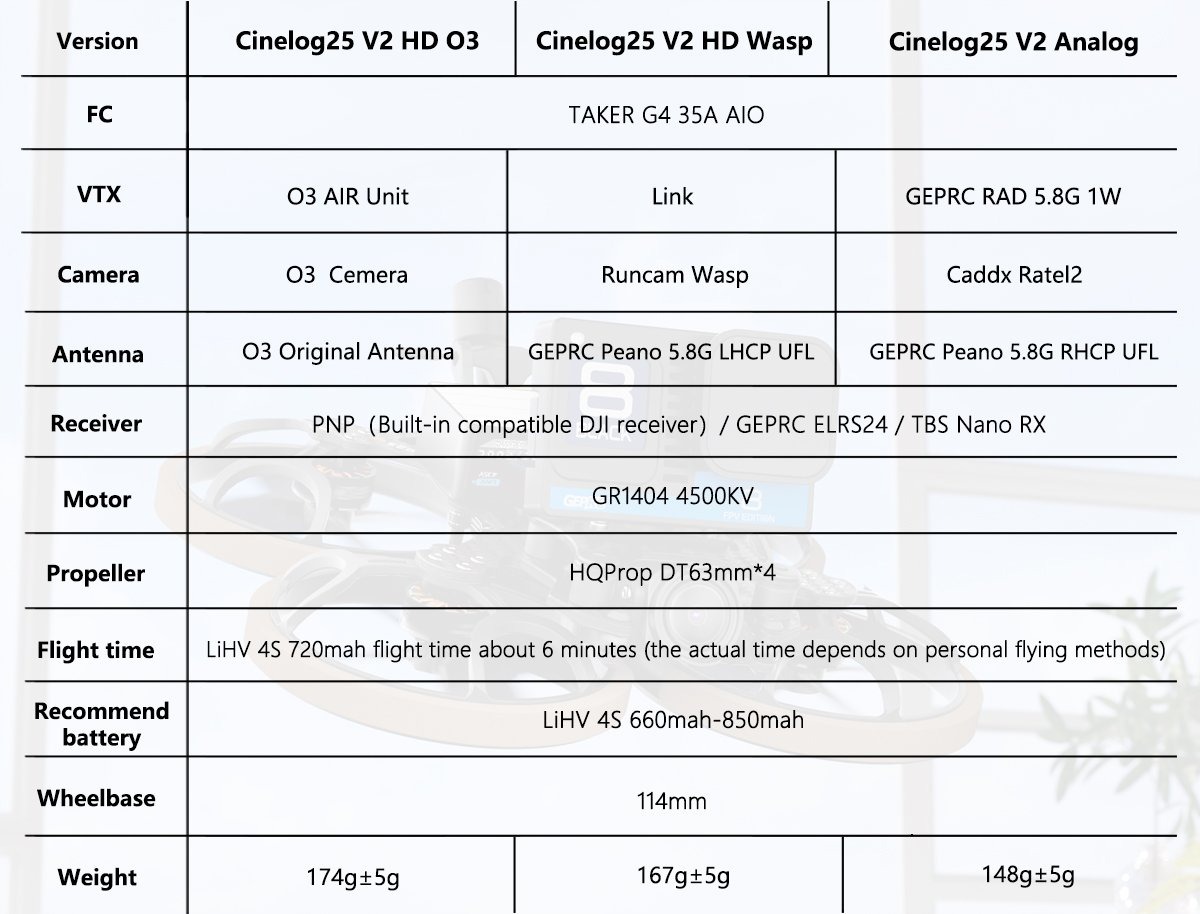

Specifications

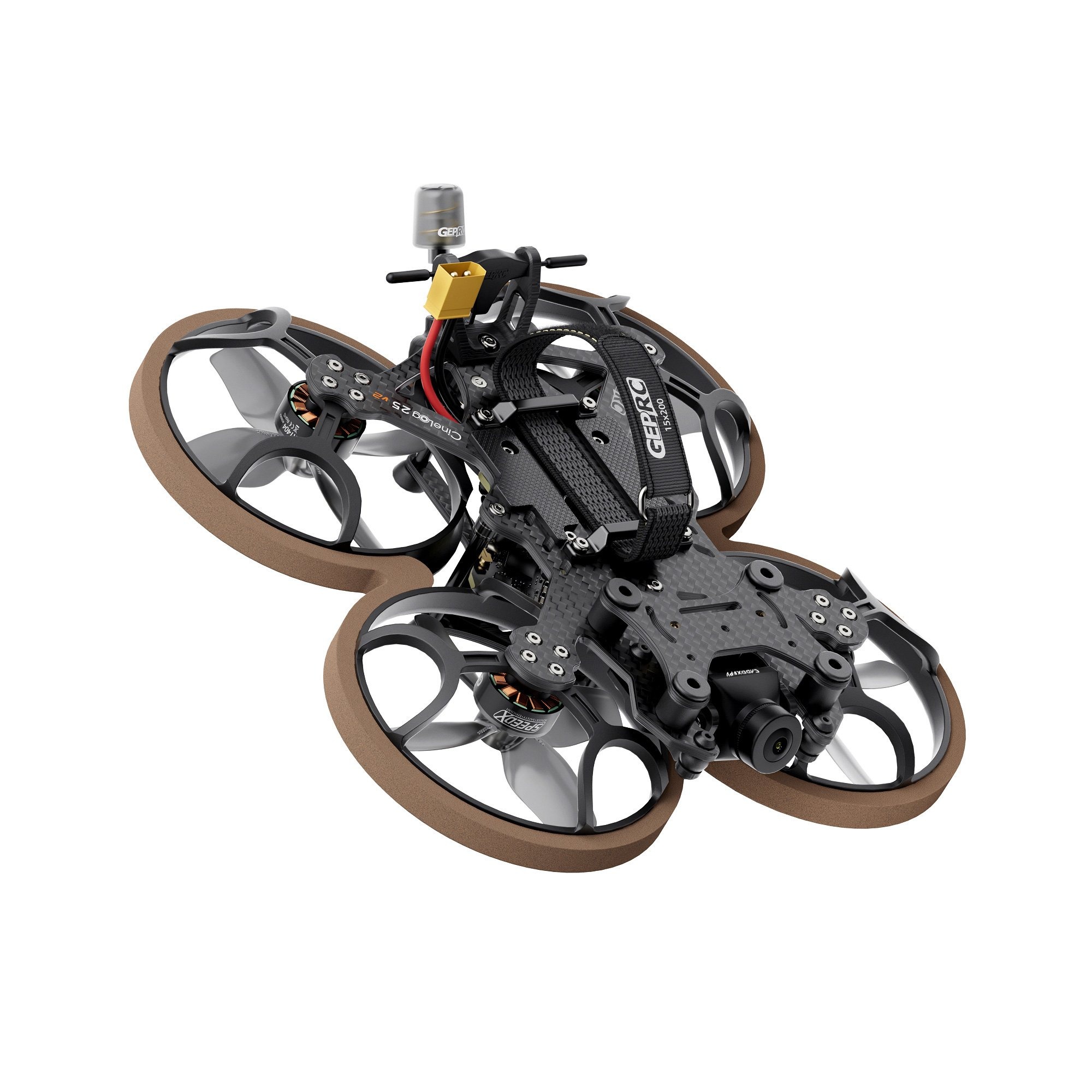

• Model:Cinelog25 V2 Analog Quadcopter
• Frame: GEP-CL25 V2
• Wheelbase: 114mm
• Gimbal plate: 2.0mm
• Top plate: 2.5mm
• Bottom plate: 2.0mm

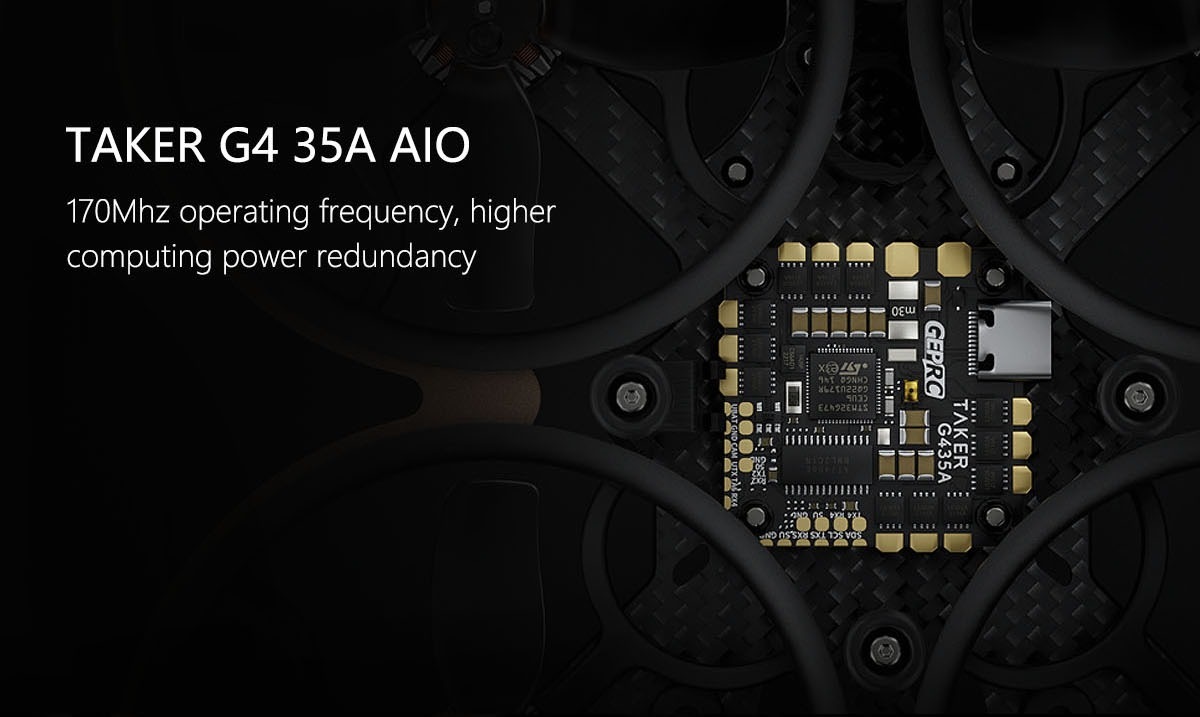

• FC system: TAKER G4 35A AIO
• MCU：SMT32G473CEU6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E
• ESC: 8Bit 35A

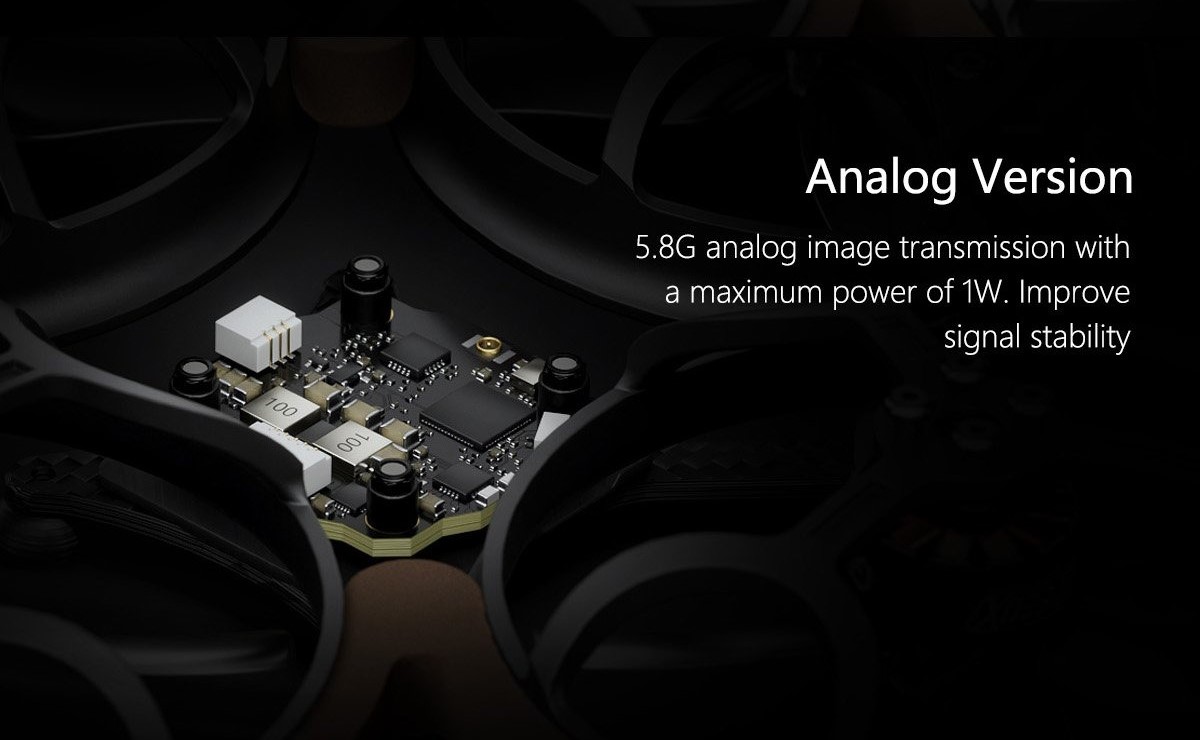

• VTX: GEPRC RAD 5.8G 1W (UFL)

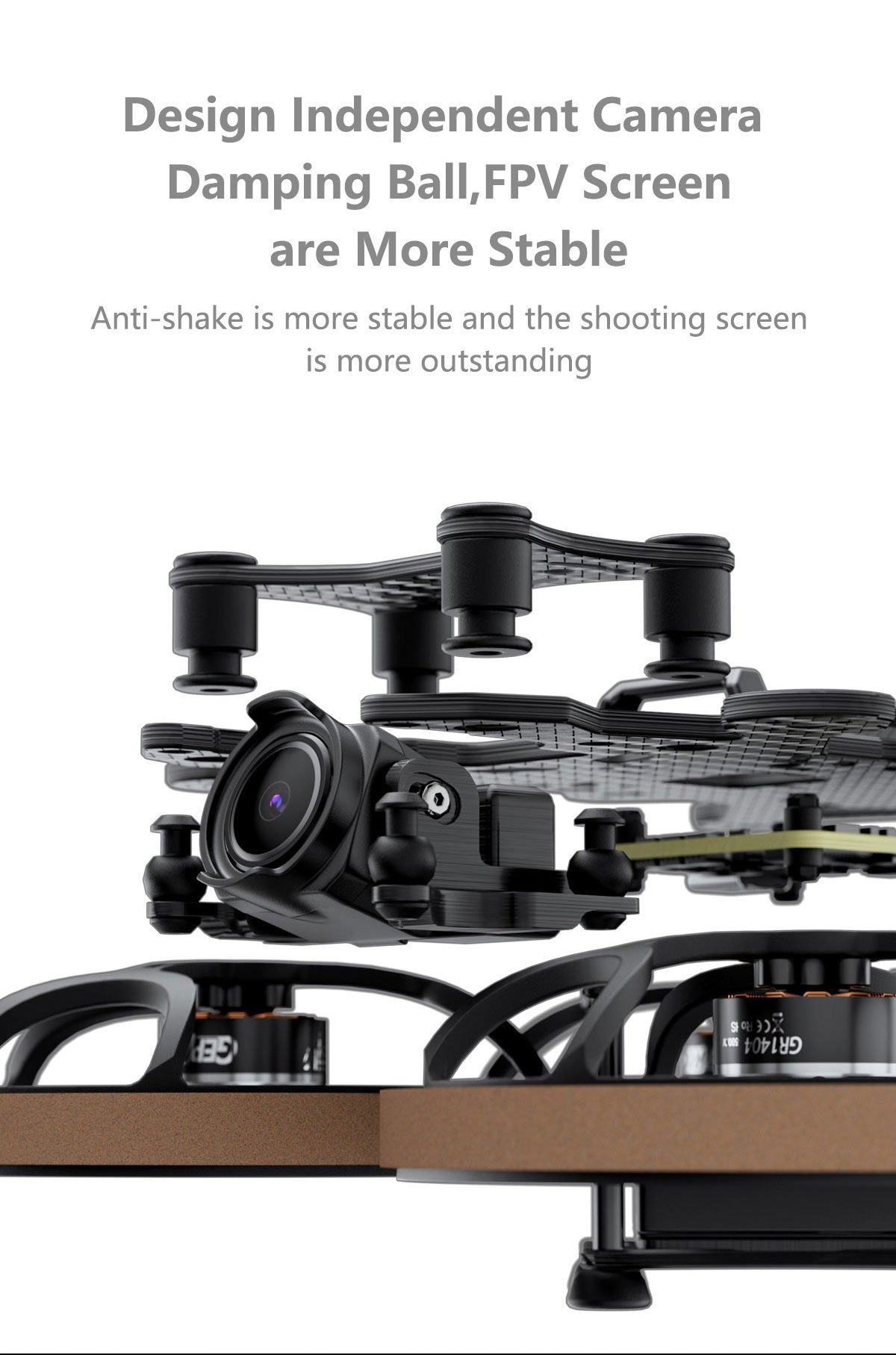

• Camera: Caddx Ratel2
• Antenna: GEPRC Peano 5.8G RHCP UFL
• Motor: SPEEDX 1404 4500KV
• Propeller: HQProp DT63mm*4

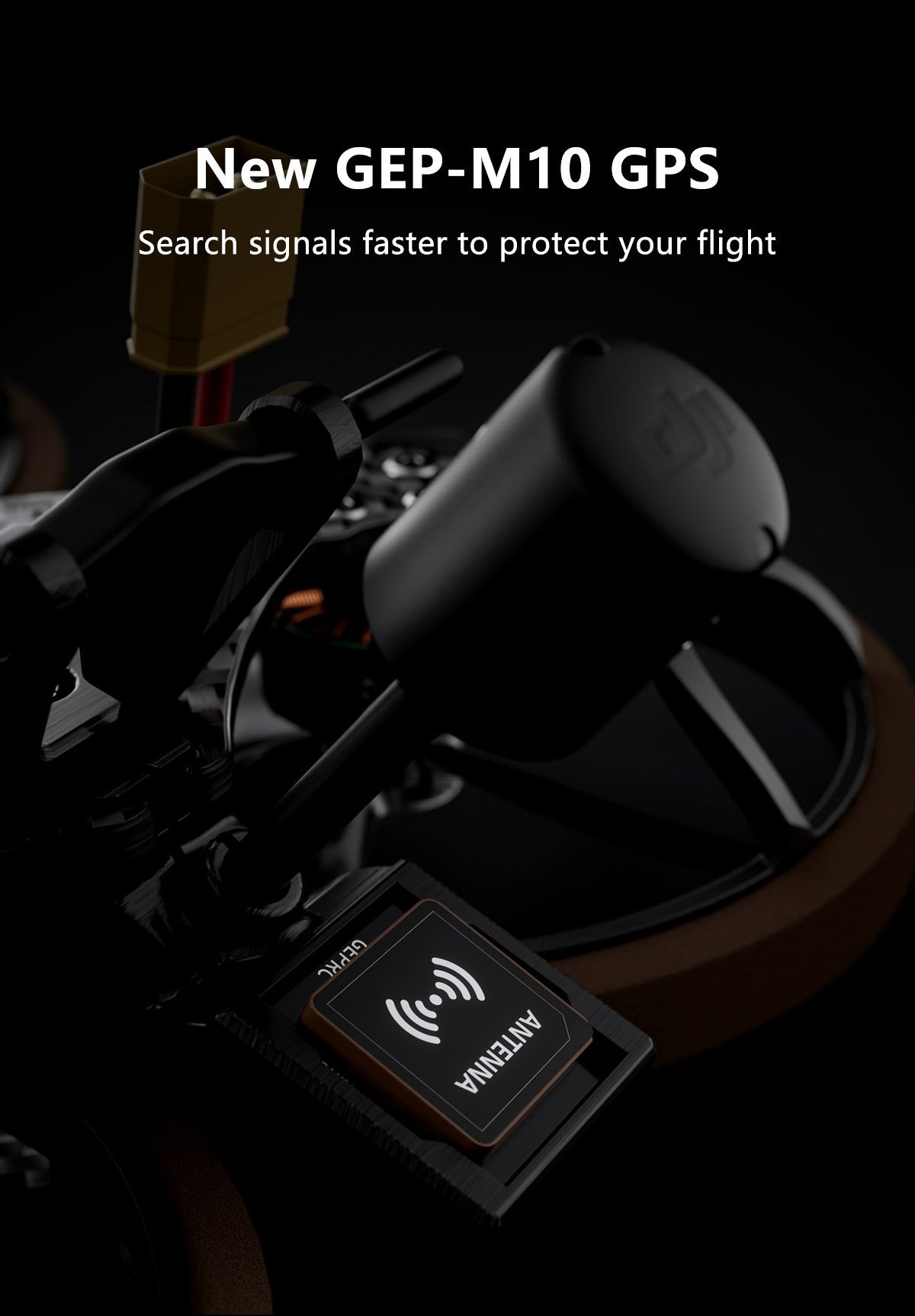

• GPS:M10 nano (optional)

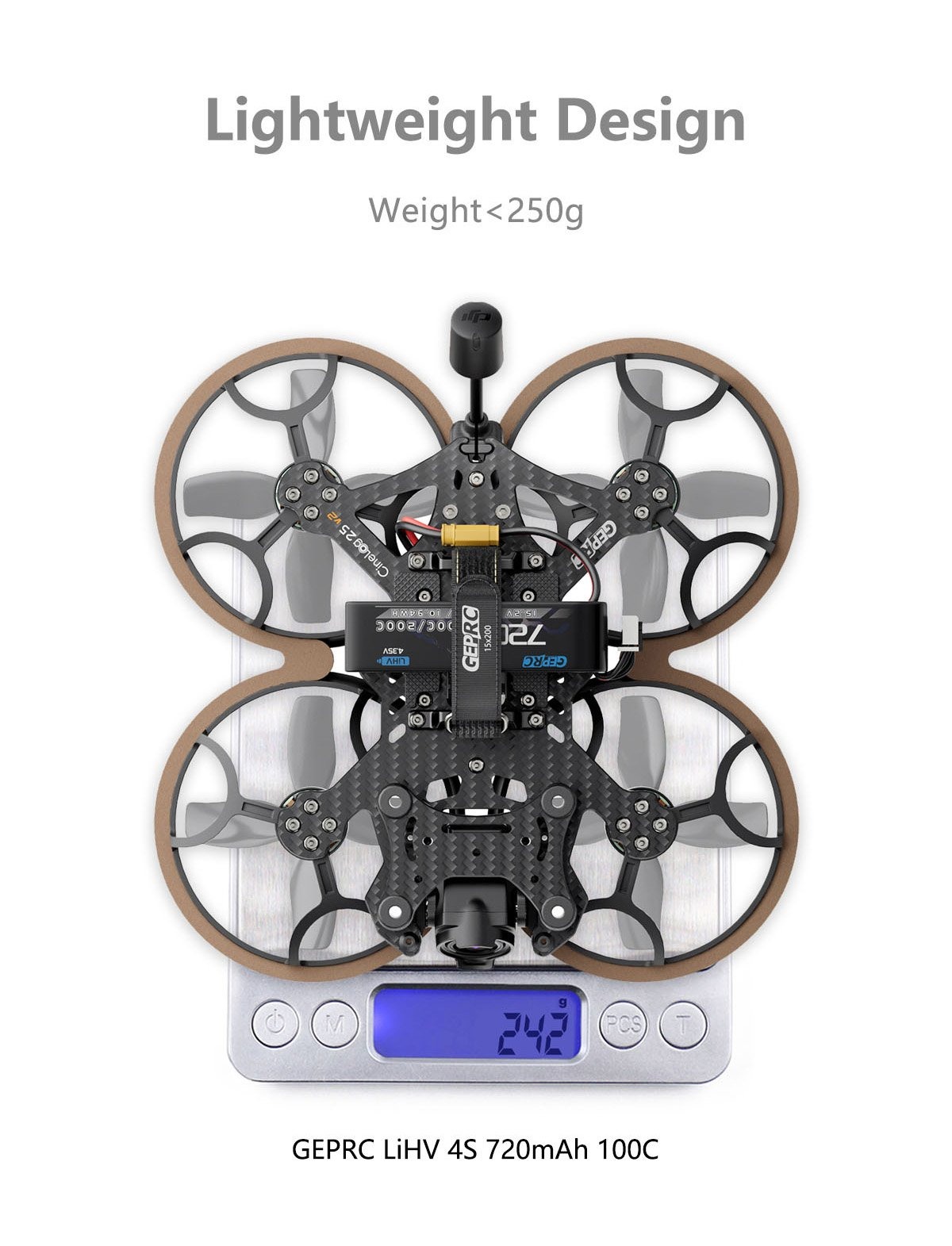

• Cinelog25 V2 Analog ELRS24 weight: 148g±5g
• Receiver: PNP
• Recommended battery:LiPo 4S 660mah-850mah
• Flight time: 4′00″ -6′ 00″

Includes

• 1 x Cinelog25 V2 Analog Quadcopter
• 2 x HQProp DT63mm*4（2pairs）
• 1 x  Battery strap M15*200mm
• 1 x  Battery strap M15*150mm
• 2 x Battery Silicone Pads
• 1 x Set of screws
• 1 x L-shaped screwdriver 1.5MM
• 1 x Keychain
• 1 x Naked Camera GP8 base
• 1 x T-type Antenna mount

Spares and Batteries (Not Included)

• Standard: HQProp DT63mm
• Alternative 3 blade Prop: Gemfan D63 Ducted 63mm (2.5″) Propellers (Set of 4)
• Alternative 5 blade Prop: Gemfan D63-5 Ducted 63mm (2.5″) Propellers (3 Colours)
• Alternative 6 blade Prop: HQProp DP T63MMX6 6-Blade Propeller (Set of 4)
• Value Pack: CNHL MiniStar 650mAh 14.8V 4S 70C Lipo Battery XT30
• Lightweight HV Pack 650mah: GNB Battery 15.2V 120C 650mAh 4S HV
• Lightweight HV Pack 850mah: GNB Battery 15.2V 120C 850mAh 4S HV
• Longer Range 930mah: GNB Battery 14.8V 120C 930mAh 4S
• Full Frame Kit: GepRC Cinelog25 V2 Frame Kit
• Frame Spare Parts: GepRC Cinelog25 V2 Frame Parts
