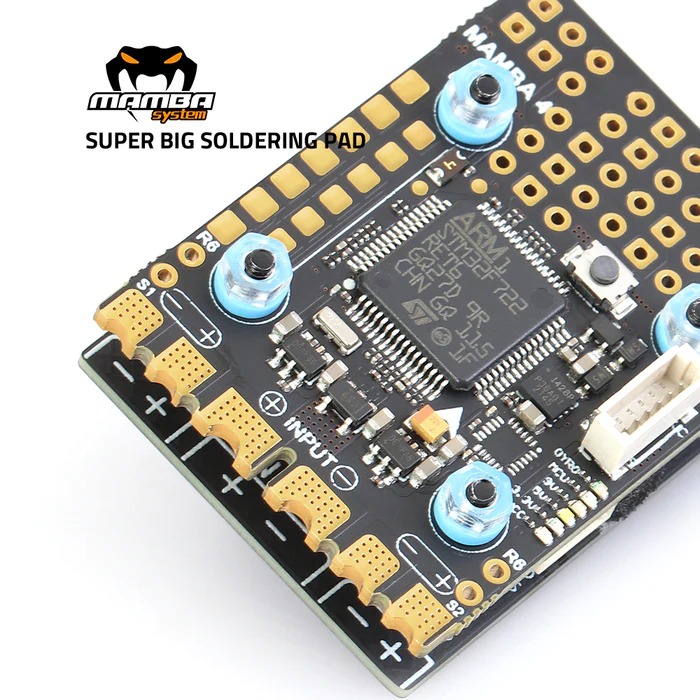

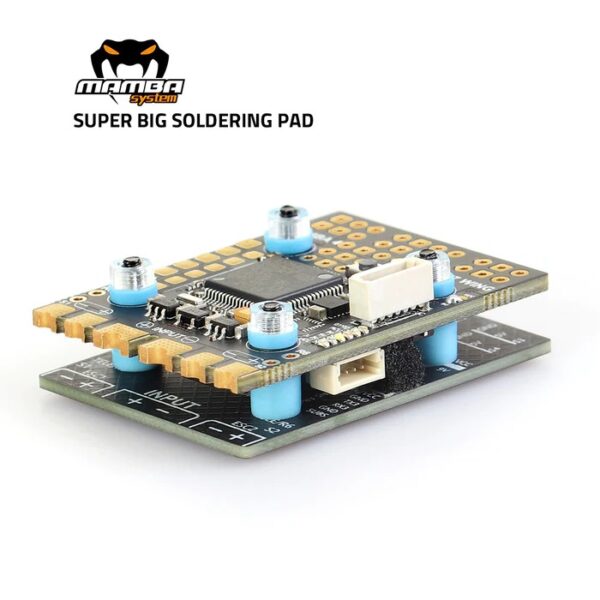

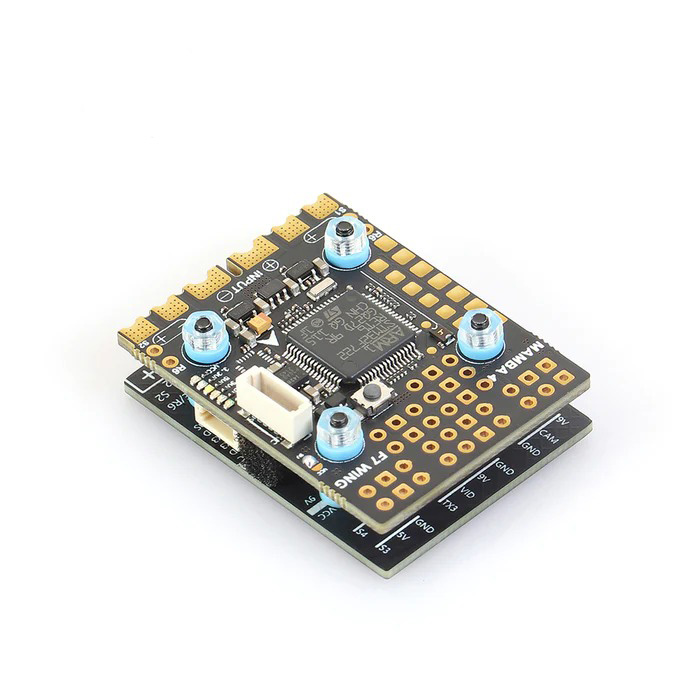

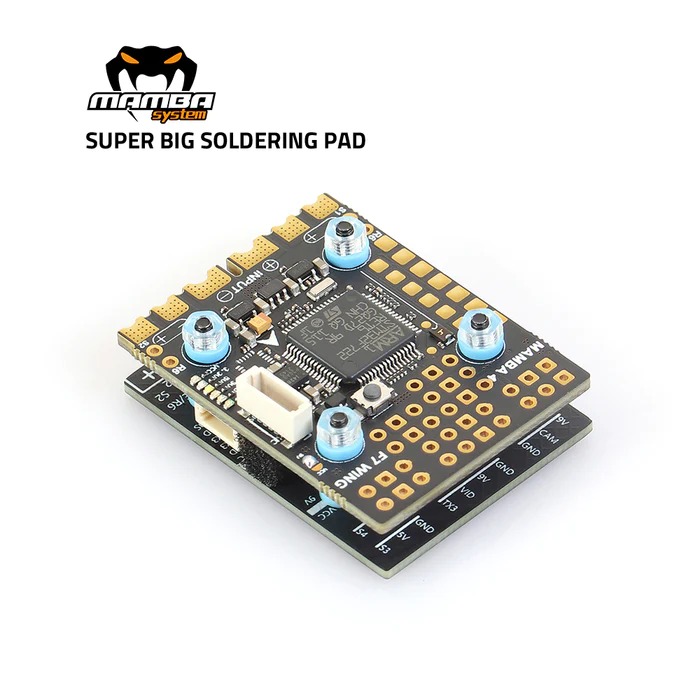

Diatone MAMBA MK4 F722 MINI WING Flight Control 20mm

4.00 out of 5
(1 customer review)

The Diatone Mamba Wing is great value with an F722 processor and everything you need for most small wings!


or 6 weekly interest free payments of NZD $16.66 with

Hurry! Only 2 left in stock

Ships from our Tauranga warehouse


Diatone MAMBA MK4 F722 MINI WING Flight Control 20mm/M2


MCU: 216MHz STM32F722
GYRO: ICM-42688-P
OSD: Yes
Blackbox: 16M Flash Memory
Barometer: SPL06
Uarts: 8 Set
I2C: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller:INAV LED
AIR UNIT Port: Yes
VTX Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
Continue current: 40A
Peak current: 50A
INAV Current Meter Scale:225
BEC:3.3V 0.5A& 5V 3A& 9V 2A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 20mm,M2

Package Includes

High-Frequency 470uF/35V ×1
AIR UNIT 6P sh1.0cable ×1
Type-C USB to 4P sh1.0 cable×1
2.54 Pin ×40



Additional information


1 review for Diatone MAMBA MK4 F722 MINI WING Flight Control 20mm

  1. 4 out of 5

    Ron Steele (verified owner)

    Again not yet used but being installed in a plane.Compared to Maytek the only downside is the lack of decal numbering on the solder pads.Supplied manual is good but more care required when soldering.
