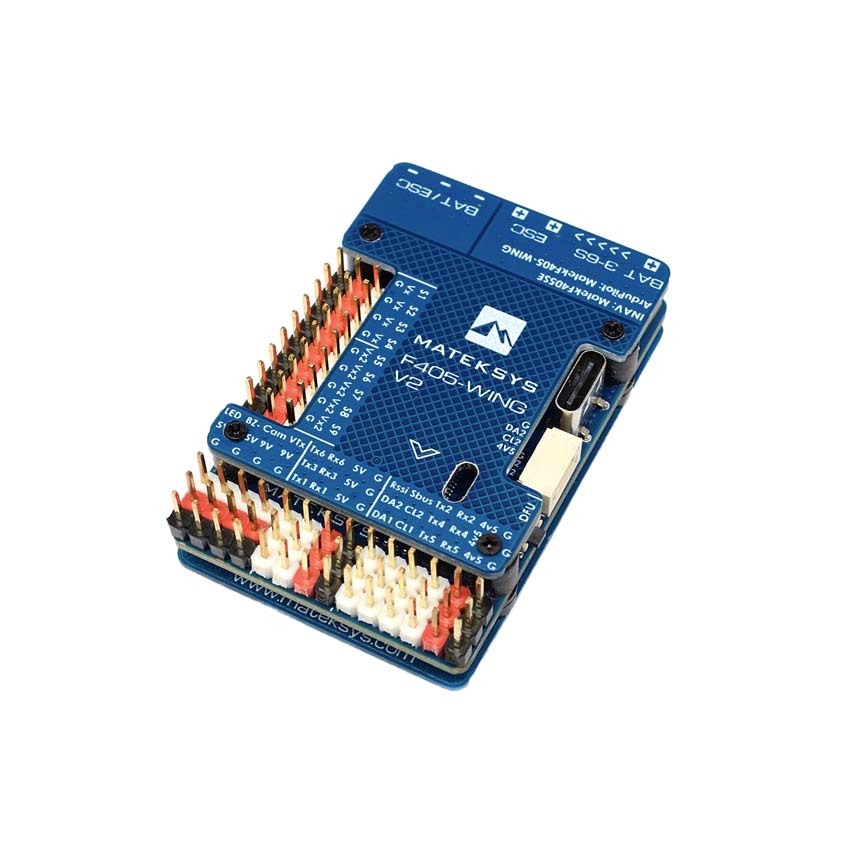

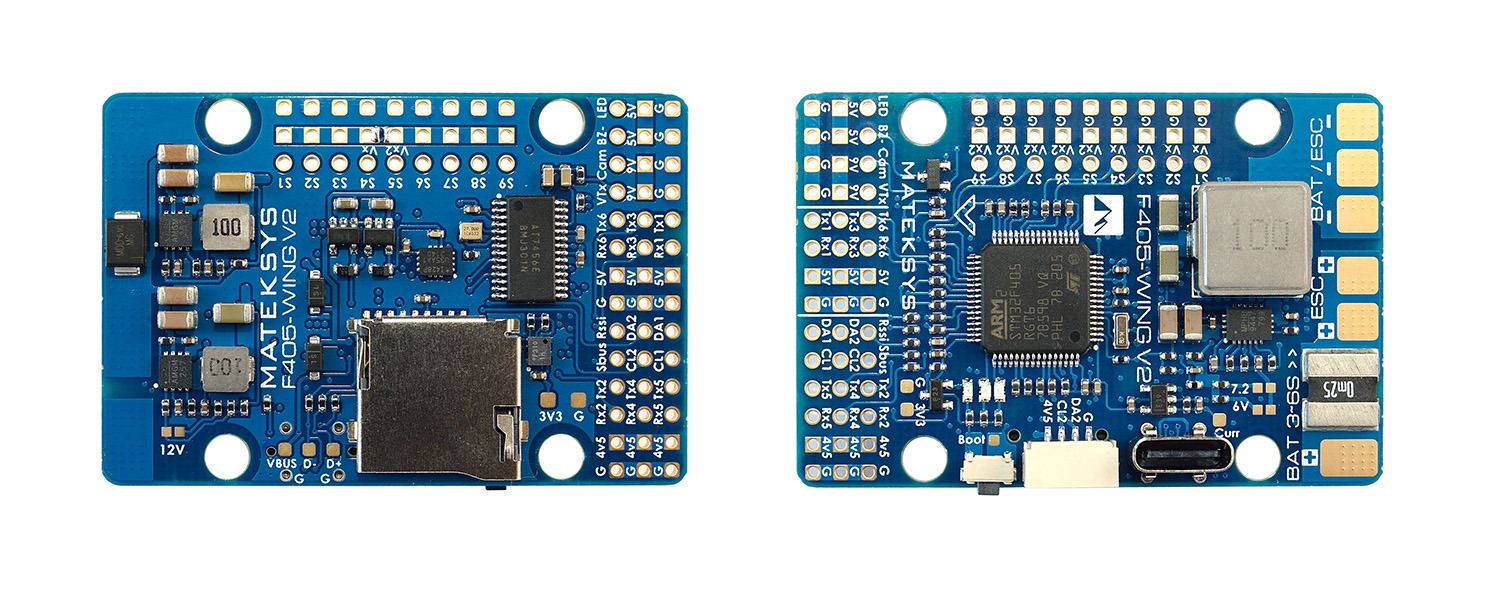

Mateksys F405-WING-V2 Flight Controller
by Mateksys
The popular F405 Wing is back, the V2 now has USB-C, additional PDB capacity, and a new low price!
$109.99
In Stock at KiwiQuads
Ships from our Tauranga warehouse
SKU: 2065
Categories: Flight Controllers, Wing & Plane Flight Controllers
Description
Whats new in V2?
- USB now Type-C
- IMU ICM42688P from MPU6000
- Baro DPS310 from BMP280
- Current sensor now 100A continuous 220A Peak! Up from 60A continuous, 104A Peak
FC Specifications
- MCU: STM32F405RGT6, 168MHz , 1MB Flash
- IMU: ICM42688-P
- Baro: DPS310
- OSD: AT7456E
- Blackbox: MicroSD card slot
- 6x UARTs, 1x Softserial_Tx option(INAV)
- 10x PWM outputs
- 2x I2C
- 3x ADC (VBAT, Current, RSSI)
- Built in inverter for SBUS input
- USB Type-C(USB2.0)
FC Firmware
- ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
- INAV: MATEKF405SE (INAV 6.0 or newer)
PDB
- Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
- Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
- Sense resistor: 100A continuous, 220A peak
- Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps
BEC 9V /12V output
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps
- 12V option with Jumper pad
- for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V options
- Continuous current: 5 Amps, 6A Peak
- for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
- Designed for external 3.3V peripherals
- Linear Regulator
- Continuous current: 200mA
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

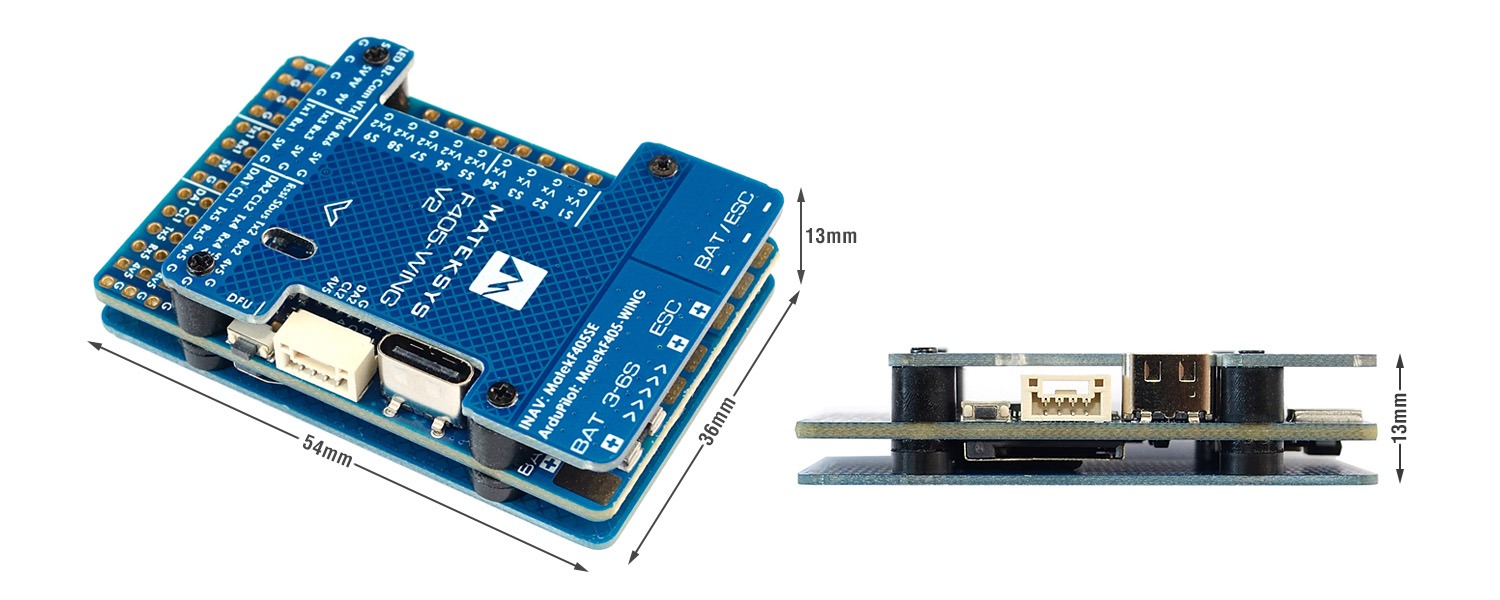

- Dimensions: 54 x 36 x 13 mm
- Weight: 25g
Including
- 1x F405-Wing-V2
- 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
- Dupont 2.54 pins (Board is shipped unsoldered)
Tips
- INAV firmware “MATEKF405SE” must be 6.0.0 or newer version.
- Current sensor scale 150
- 5x Vx2 pads on S5~S9 rails are dead pins, If powering servos of S5~S9 rails with the built-in Vx BEC, bridge Vx2 to Vx pad with a drop of tin. If powering servos of S5~S9 rails with an external BEC, keep the gap open, you may connect external BEC to any pair of Vx2/G.
- Softserial_tx1 is enabled on Tx2 pad by default for Frsky SmartPort telemetry. If using CRSF protocol receiver(TBS, ELRS etc), CPU based serial port(softserial) should be disable in INAV configurator.
- GPS / DJI OSD and other digital video systems / CRSF protocol receiver can work with anyyyyyyy spare UART_TX & RX.
- Airspeed sensor MS4525 works on I2C2 bus only.

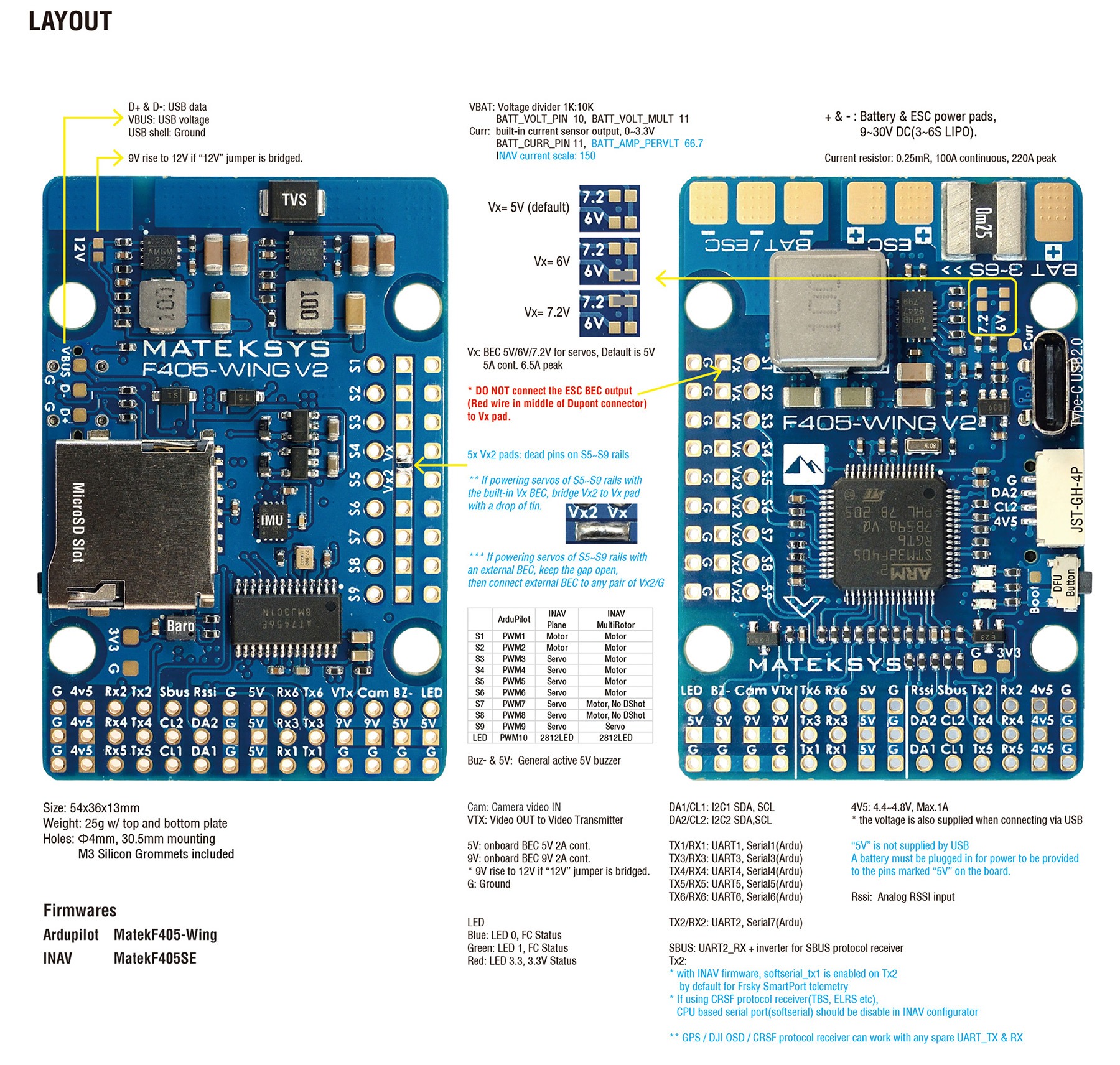

- iNav mapping: http://www.mateksys.com/?portfolio=f405-wing-v2#tab-id-4
- ArduPilot mapping: http://www.mateksys.com/?portfolio=f405-wing-v2#tab-id-5
