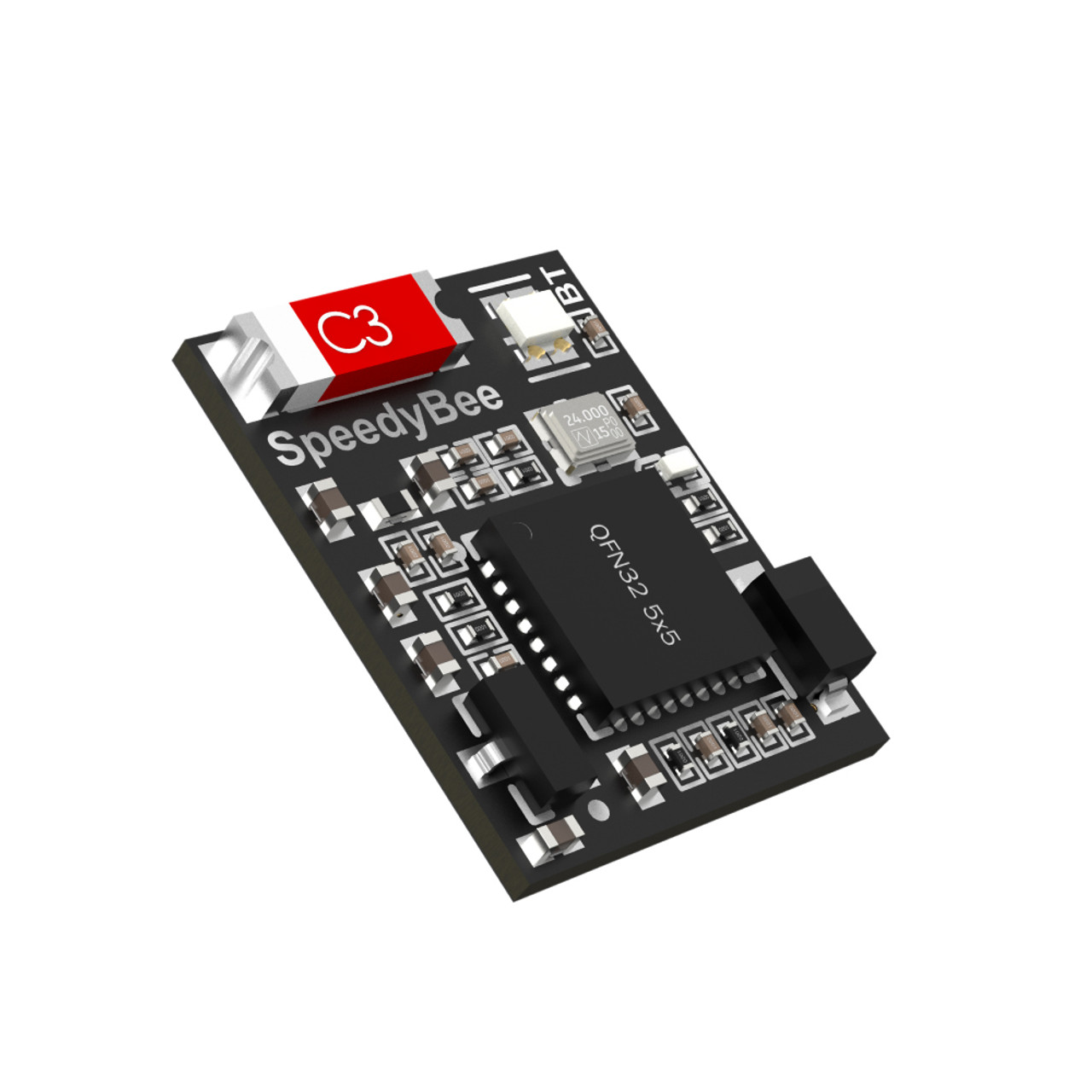

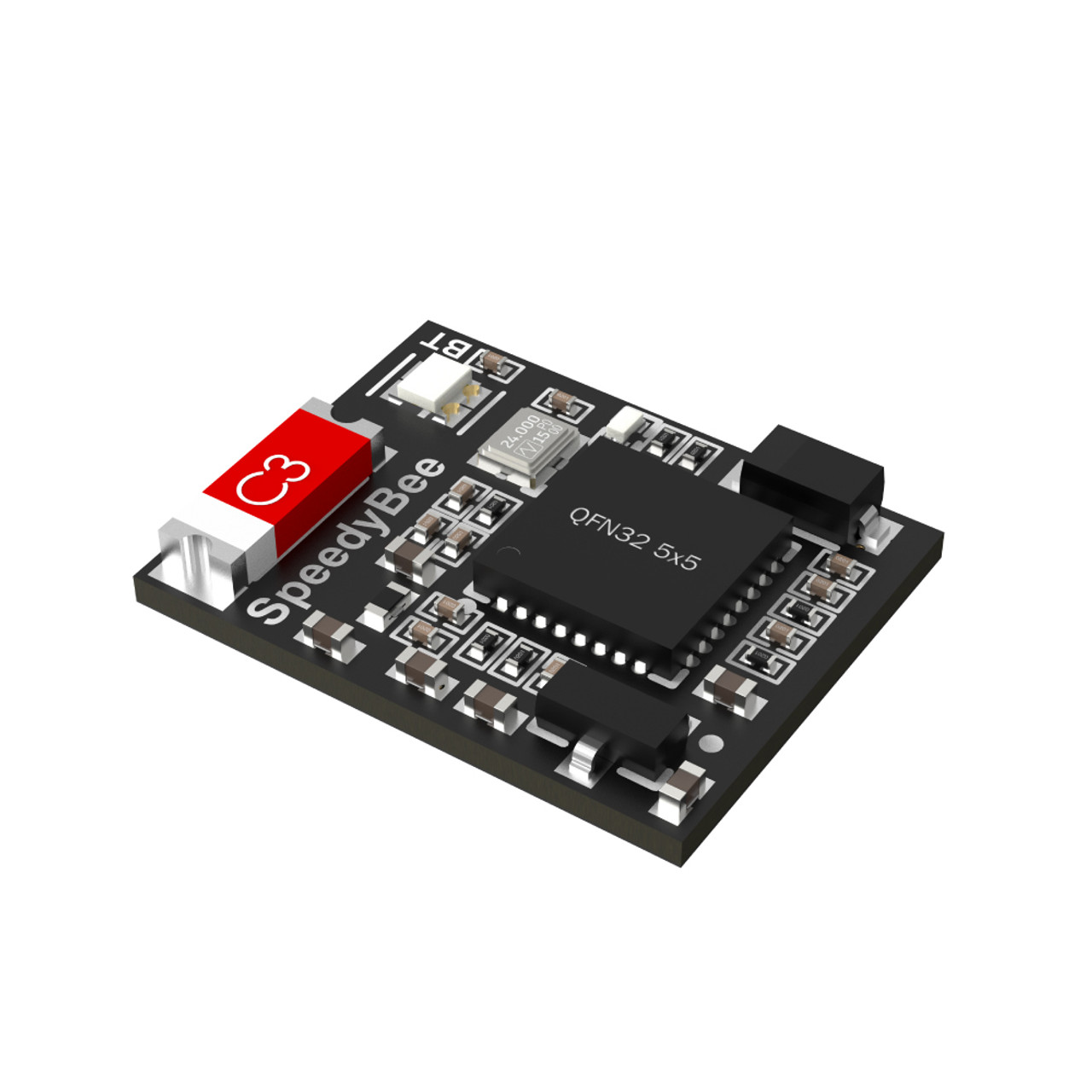

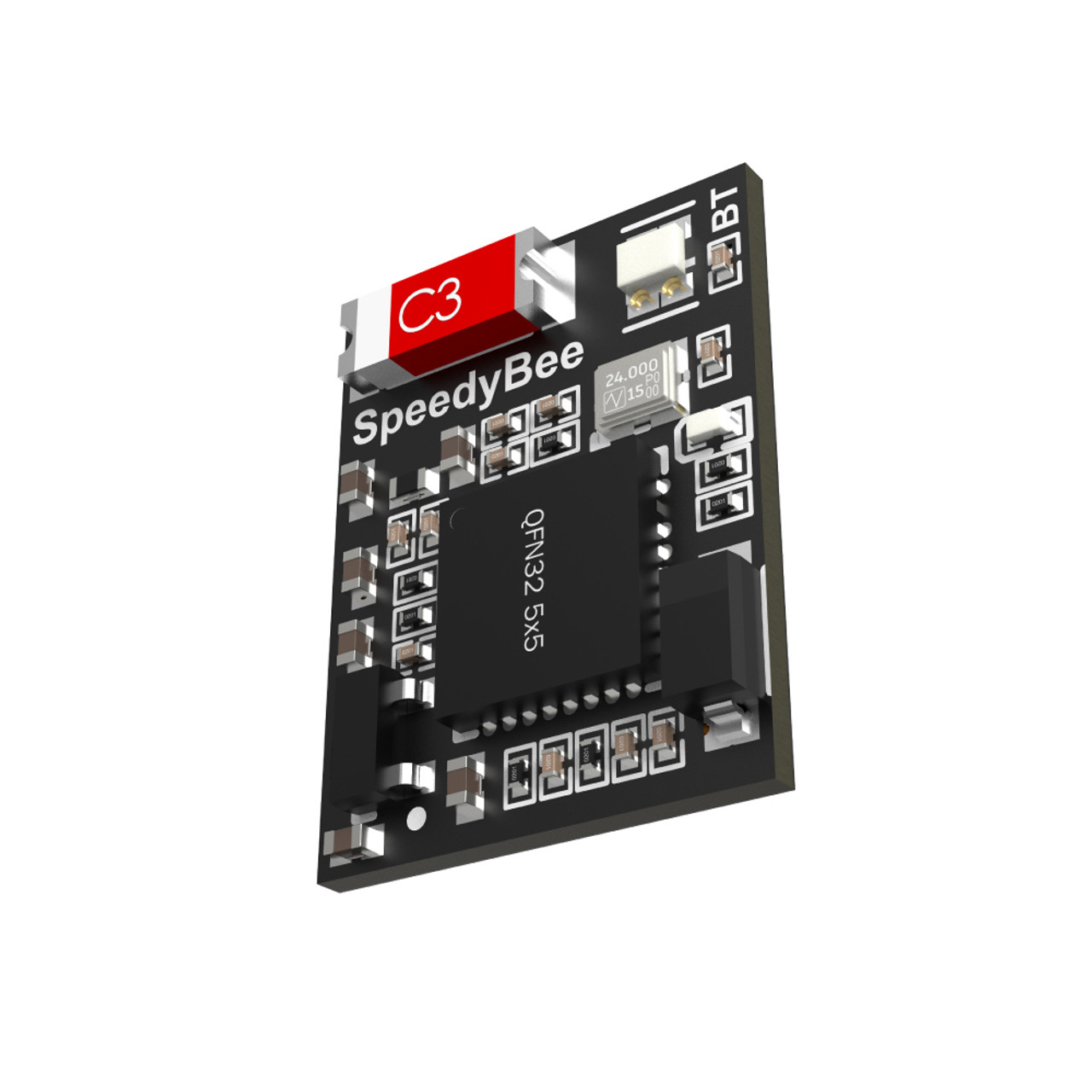

SpeedyBee BT Nano 3 Wireless FC Configuration

Description

The SpeedyBee BT Nano 3 Wireless FC Configuration revolutionizes drone setup with its compact size and intelligent Bluetooth technology, ensuring seamless communication with your flight controller while prioritizing interference-free flights, all in a sleek 14110.8mm design.

Specifications:

• Product Name: SpeedyBee BT Nano 3
• Operating Voltage: 5V
• Working Current: MAX~87mA(5V)
• Bluetooth Low Energy: Supports
• WiFi: Supports. It will be turned on automatically only when upgrading the firmware of the module itself.

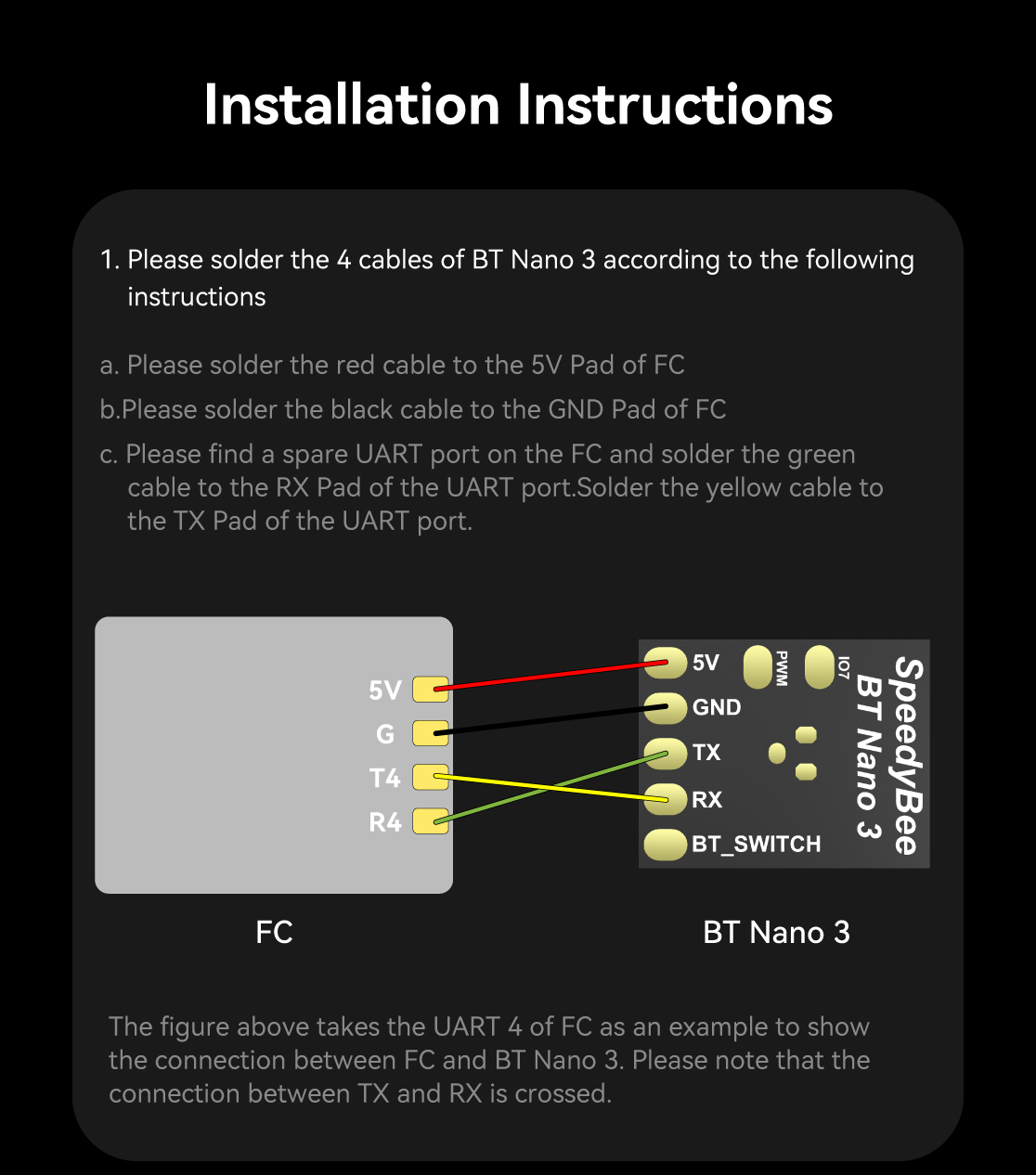

• Communication Port: UART
• Baudrate: 115200
• Bluetooth Automatically Turns Off: Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal.

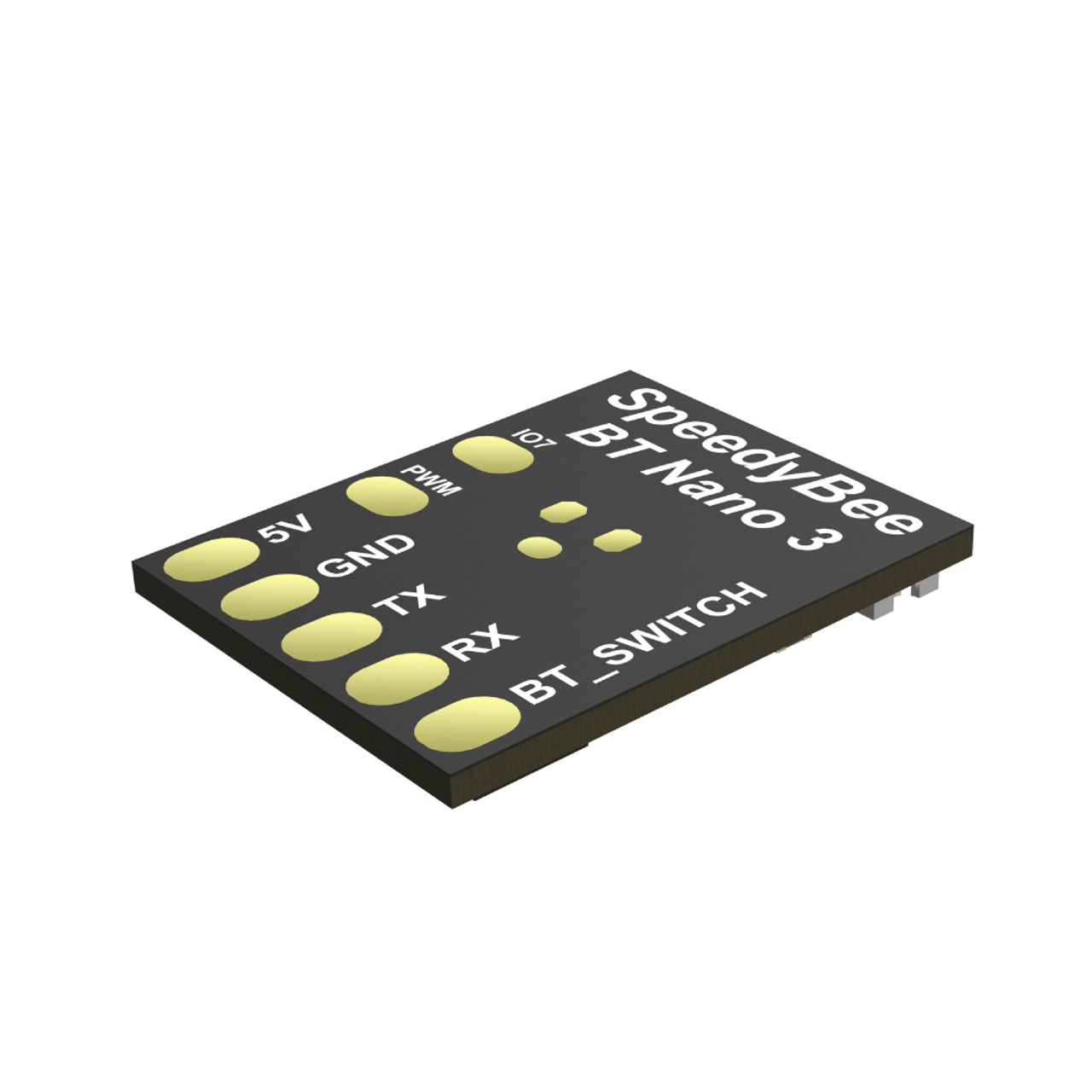

• BT Switch Pad: The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions

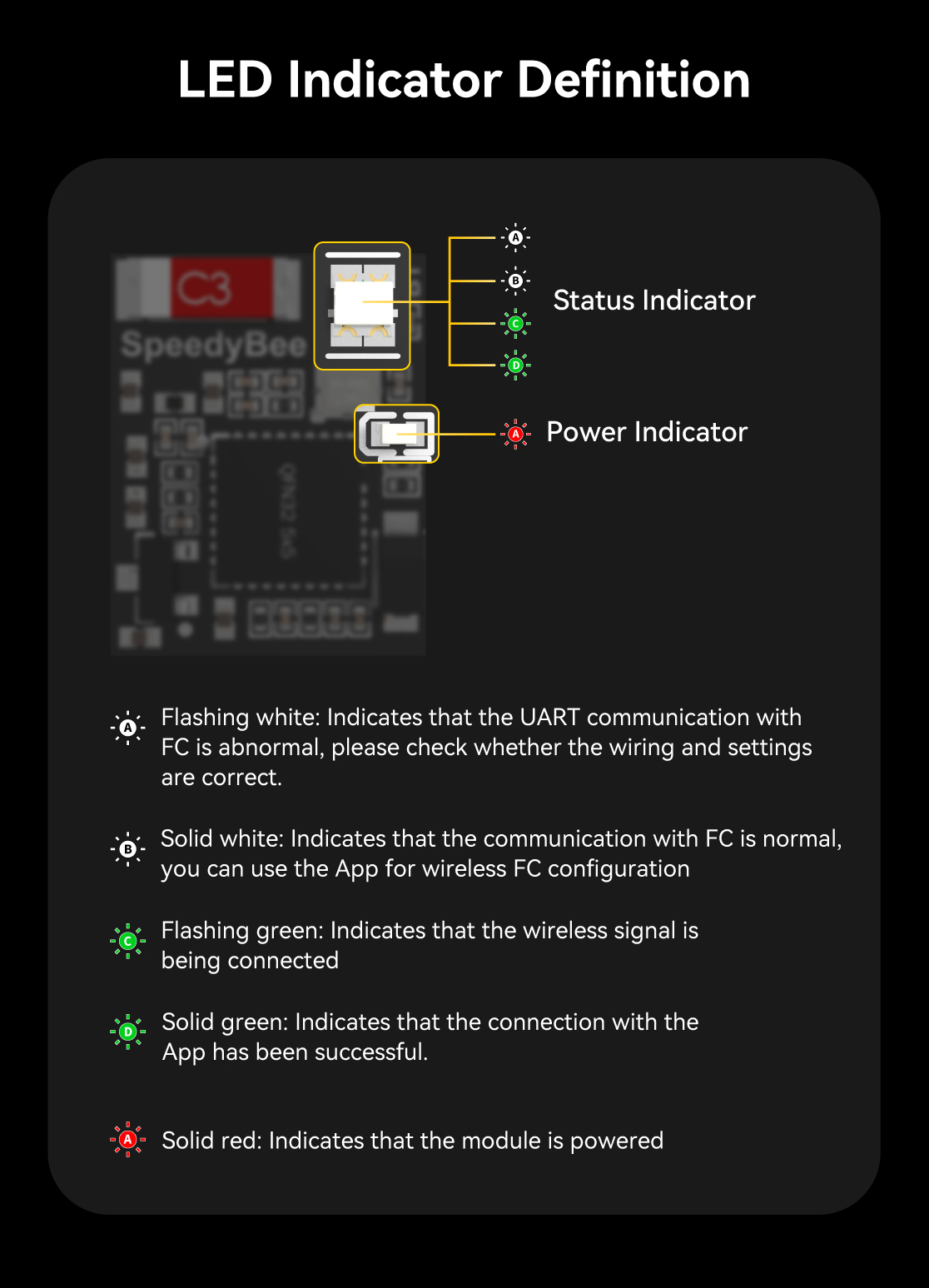

• Power Indicator: Solid Red: Indicates that the module is powered.
• Working Status Indicator: Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.
  Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment
  Flashing green: Indicates that the wireless signal is being connected
  Solid Green: Indicates that the connection with the App has been successful

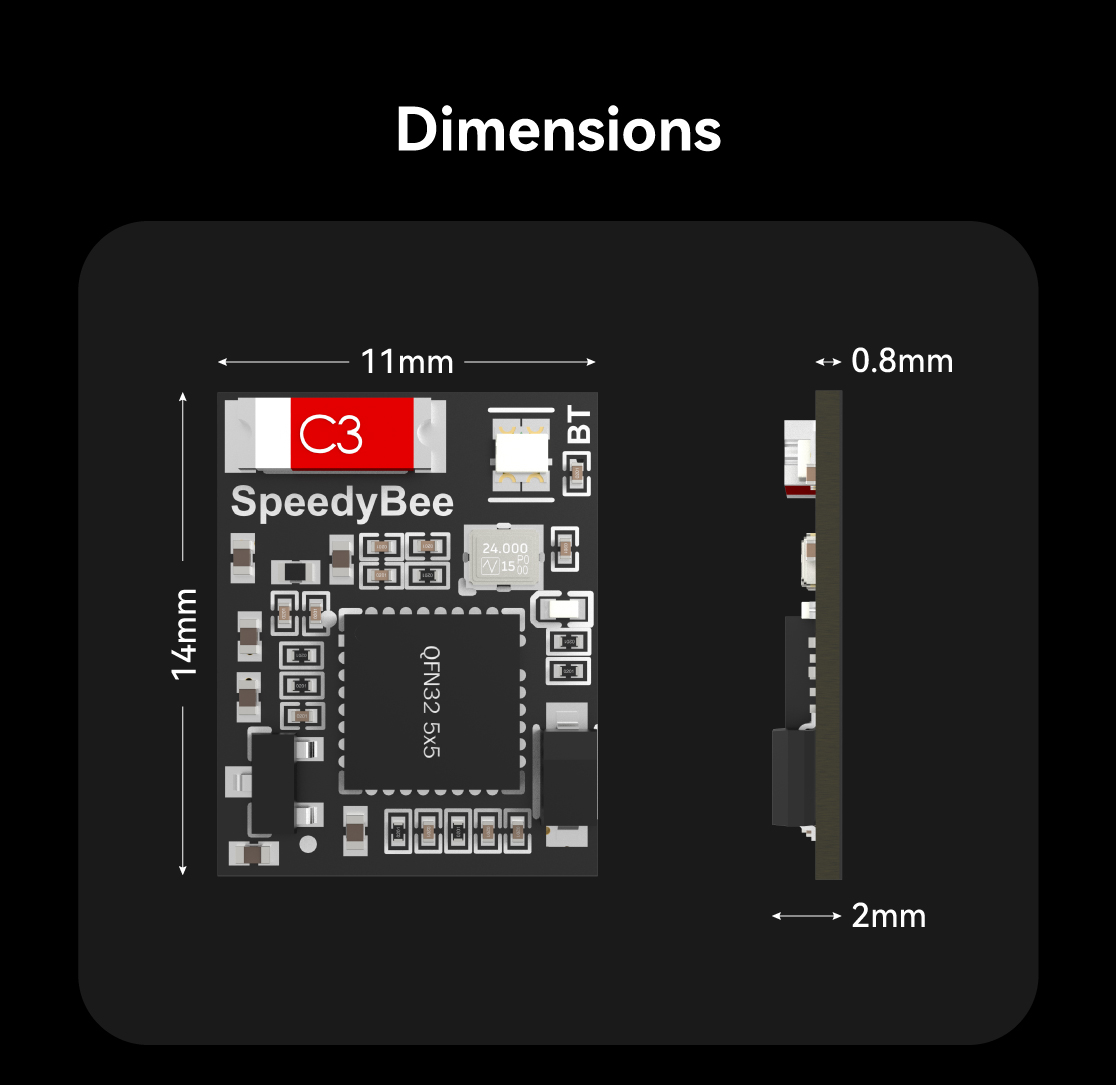

• Size: 14*11*0.8mm
• Weight: 5g
