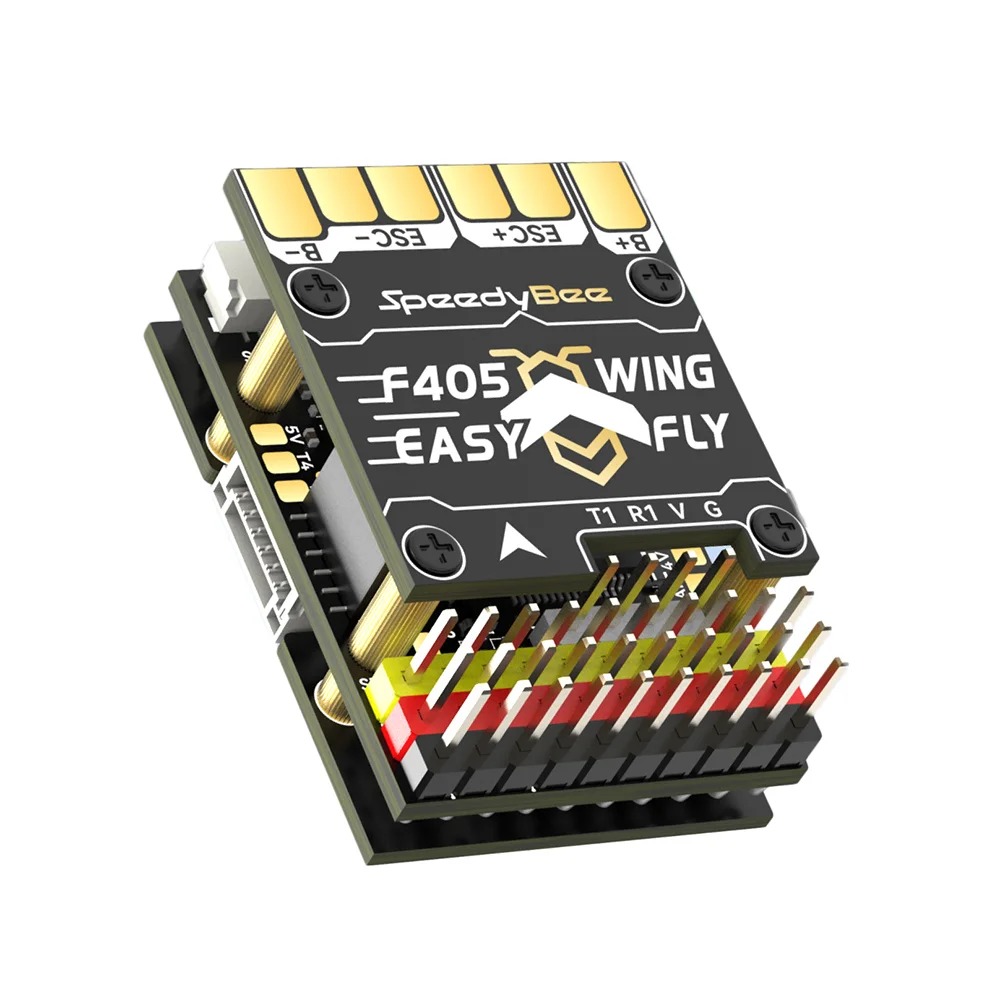

SpeedyBee F405 WING MINI Fixed Wing Flight Controller

Description

Unlock limitless flight potential with the SpeedyBee F405 Wing Mini – power-packed with advanced features for unparalleled control and performance.

Specifications:

• MCU: STM32F405, 168MHz, 1MB Flash
• IMU(Gyro&Accelerometer): ICM-42688-P
• Barometer: SPL006-001
• OSD Chip: AT7456E
• Blackbox: MicroSD Card Slot

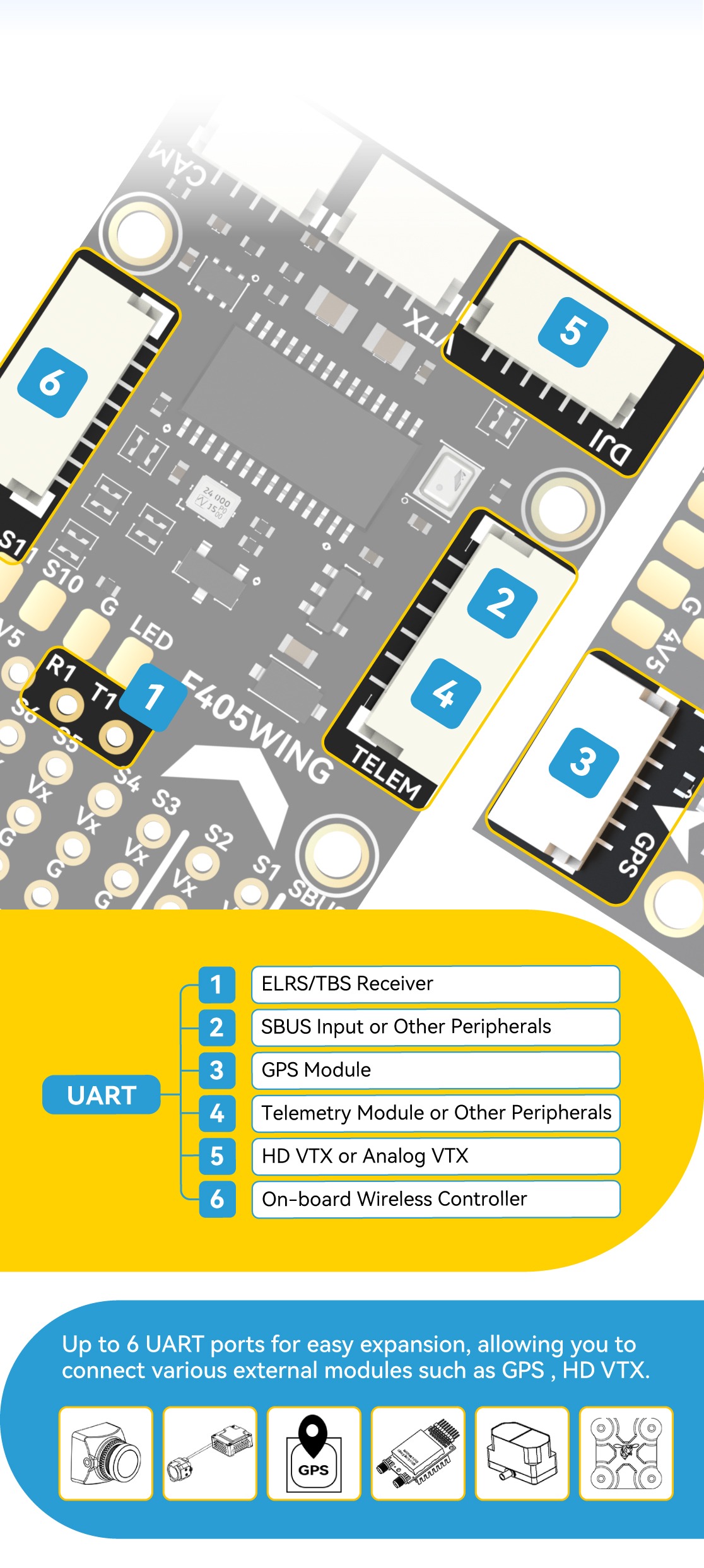

• UART: 6 sets (USART1, USART2, USART3, UART4, UART5, UART6 – Dedicated for Wireless board Telemetry connection)
• I2C: 1x Used for magnetometer, digital airspeed sensor
• ADC: 4x (VBAT, Current, Analog RSSI, Analog AirSpeed)
• PWM: 12x (9x pin headers + 2x solder pads + 1x “LED” pad)
• ELRS/CRSF Receiver: Supported, connected to UART1
• SBUS: Built-in inverter for SBUS input (UART2-RX)
• LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
• Analog RSSI: Supported, Named as “RS”
• Dual Analog Camera Switching: Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER.
  Both cameras should have the same video format, either PAL or NTSC.

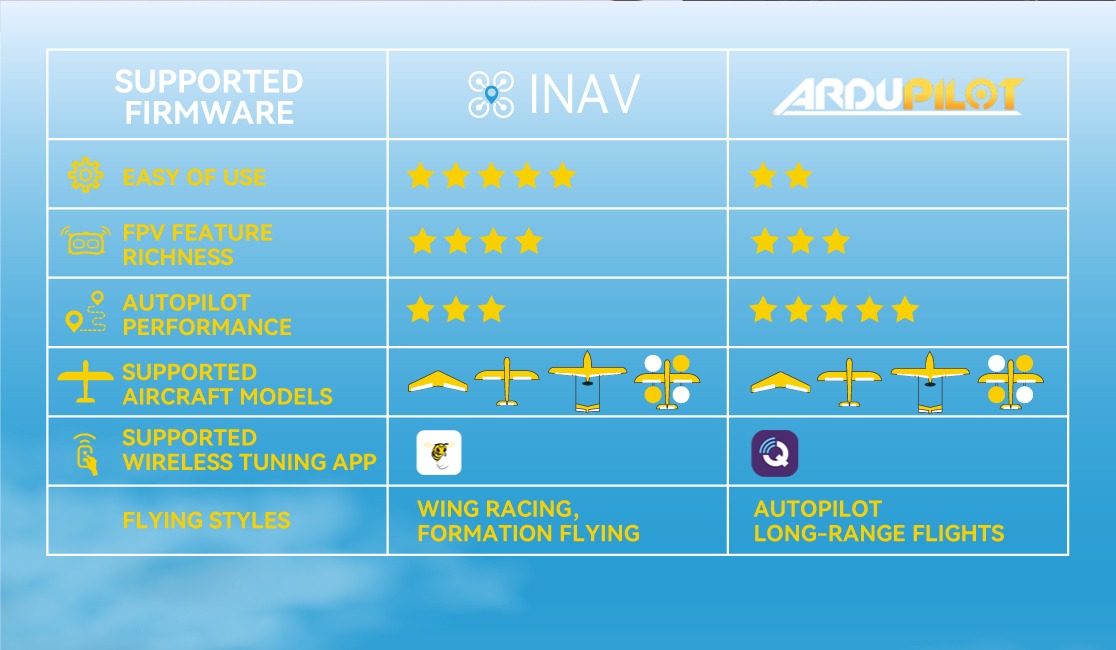

• Supported FC Firmware: INAV: SpeedyBeeF405WING (default)
  ArduPilot: SpeedyBeeF405WING

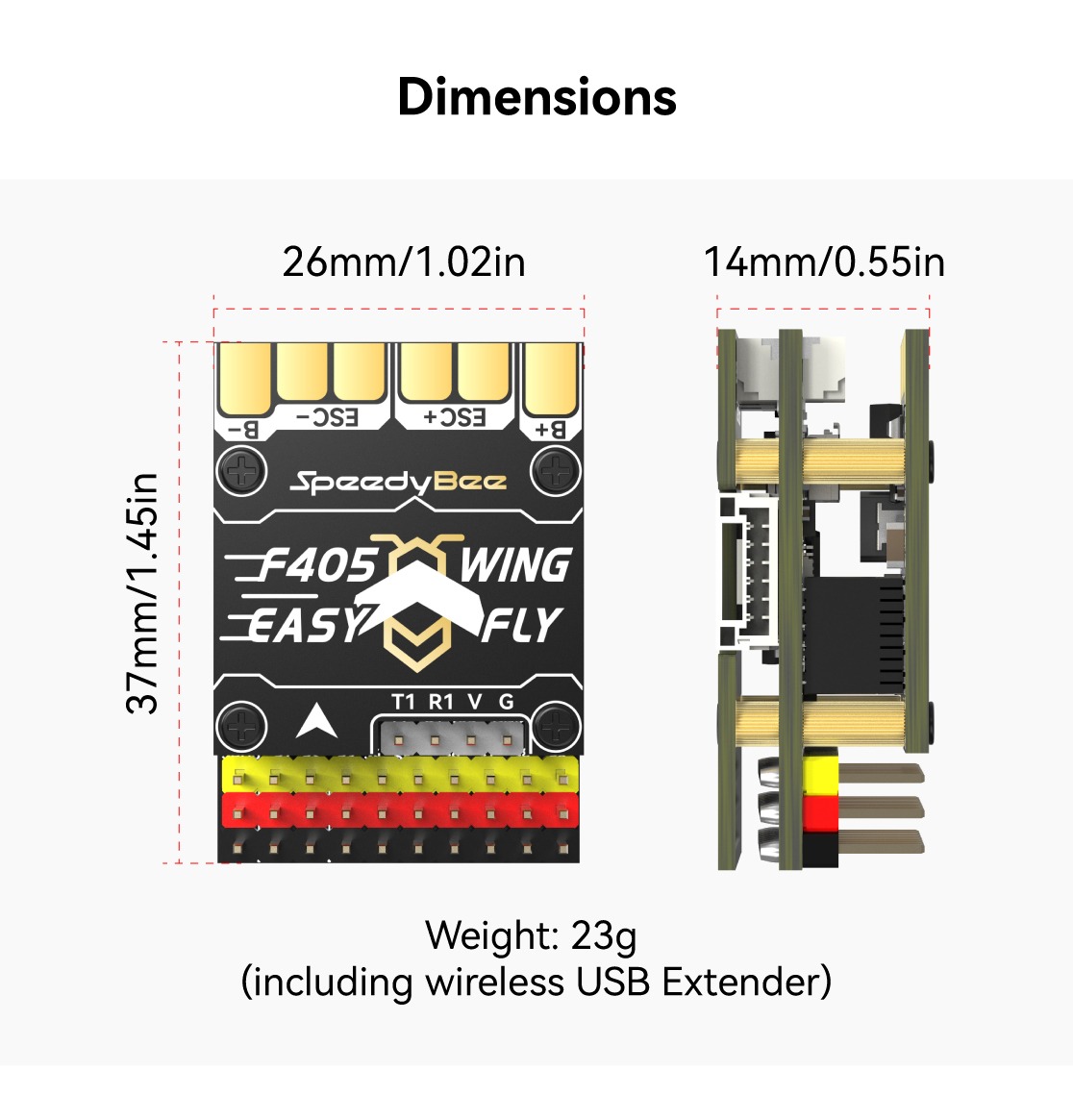

• Weight: 5.6g

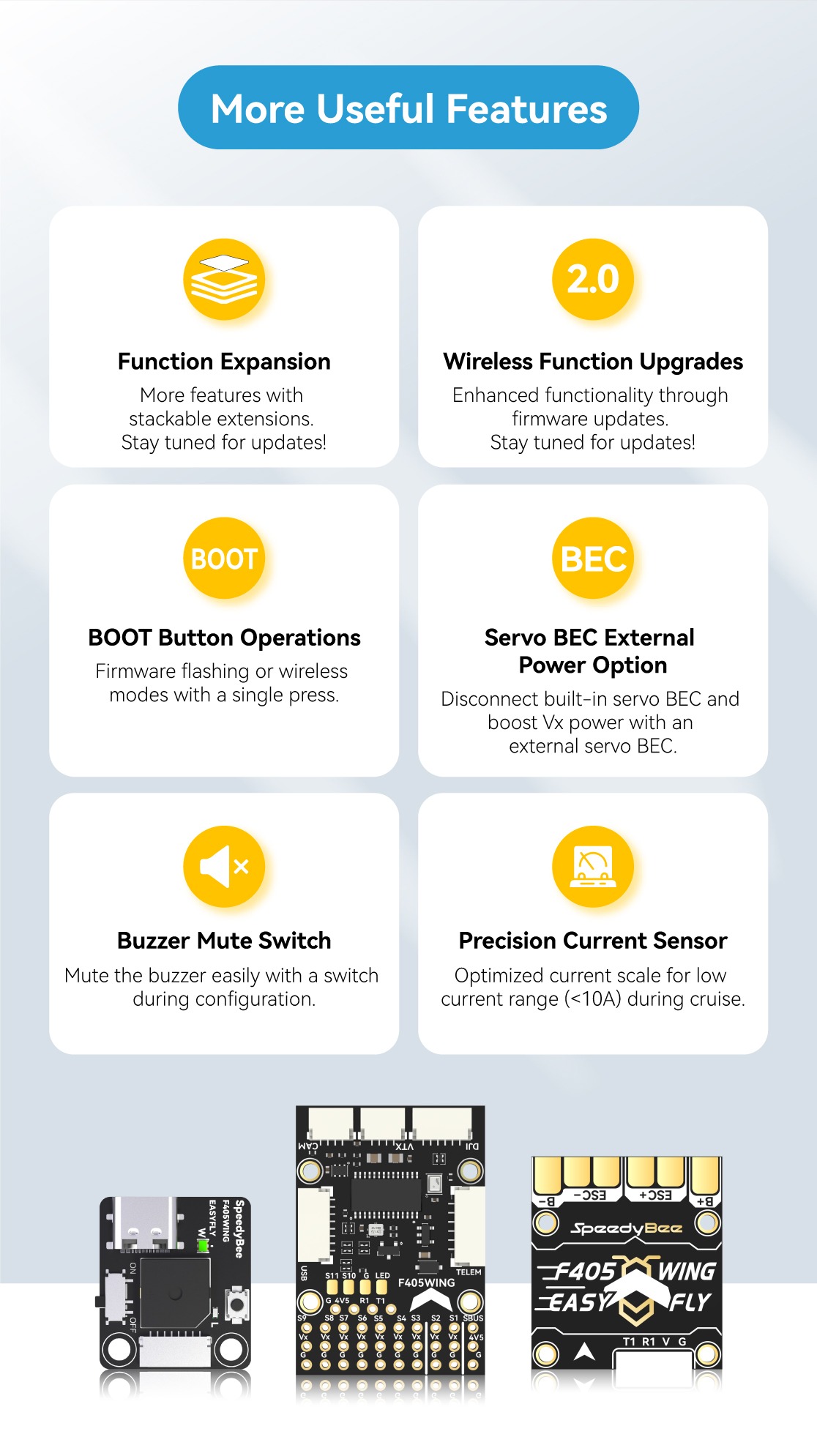

Features:

• Mini Size, Mega Ease Flexible Installation
• Neat and Easy Installation, Plug-and-Play
• Wireless Tuning 2.0: Elevated Performance
• Double the View, Double the Fun
• Up to 11 PWM outputs 9 straight-pin headers, 3 reserved solder pads,For motor and servo control
• INAV / ArduPilot Dual Firmwares, Choose As You Like
• Vertical Takeoff and Landing Fly Anywhere!
