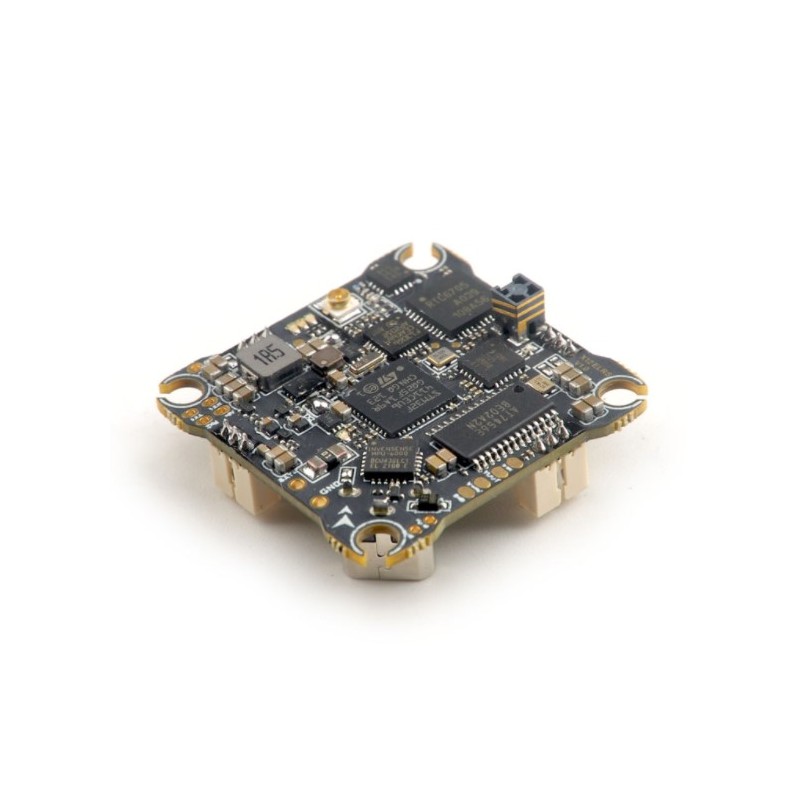

HappyModel X12 ExpressLRS AIO Flight Controller - 1

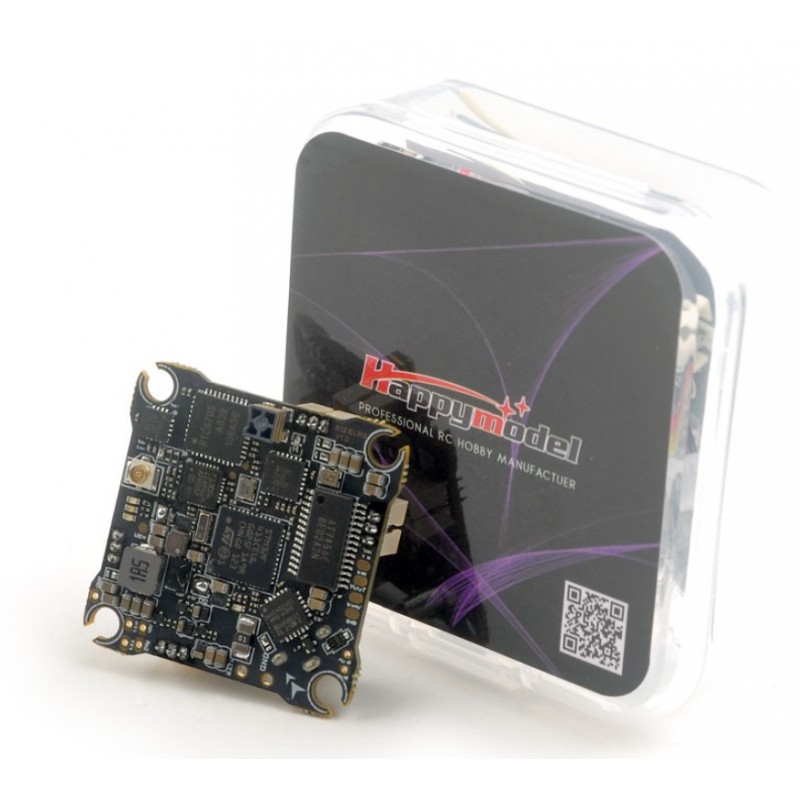

HappyModel X12 ExpressLRS AIO Flight Controller - 4

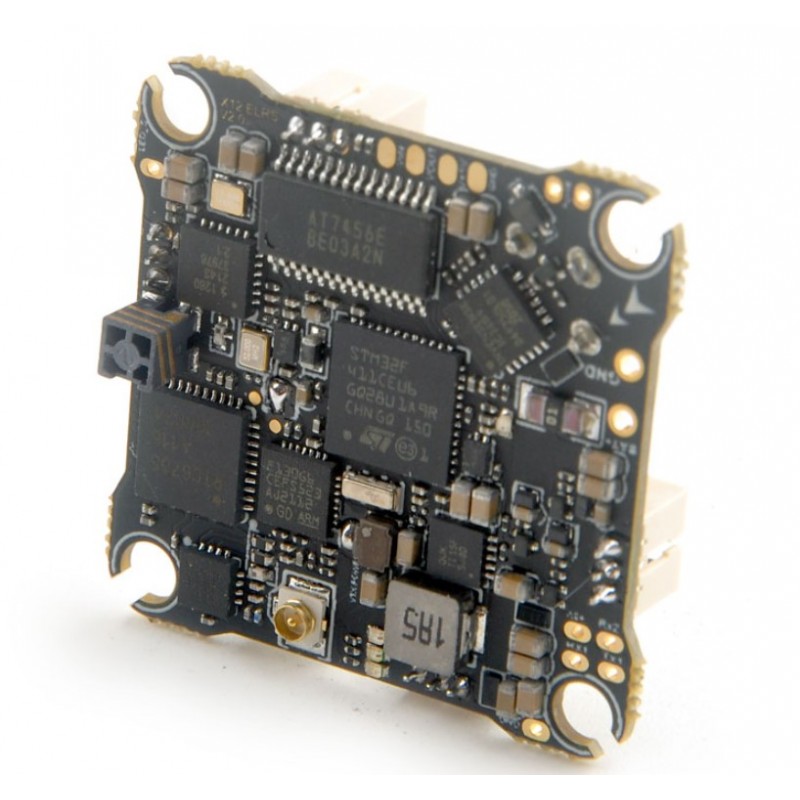

HappyModel X12 ExpressLRS AIO Flight Controller - 2

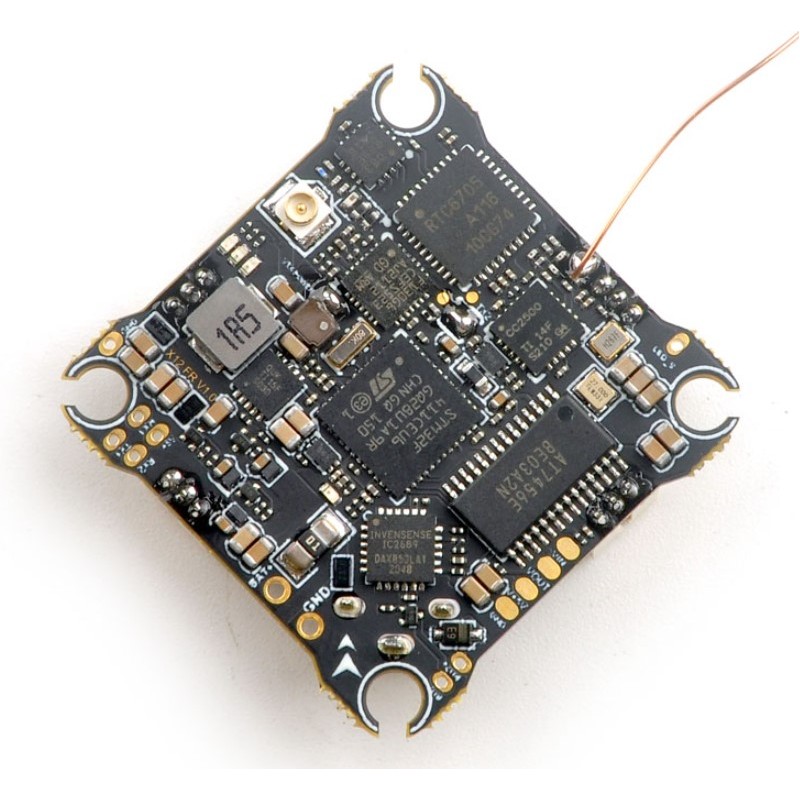

HappyModel X12 ExpressLRS AIO Flight Controller - 5

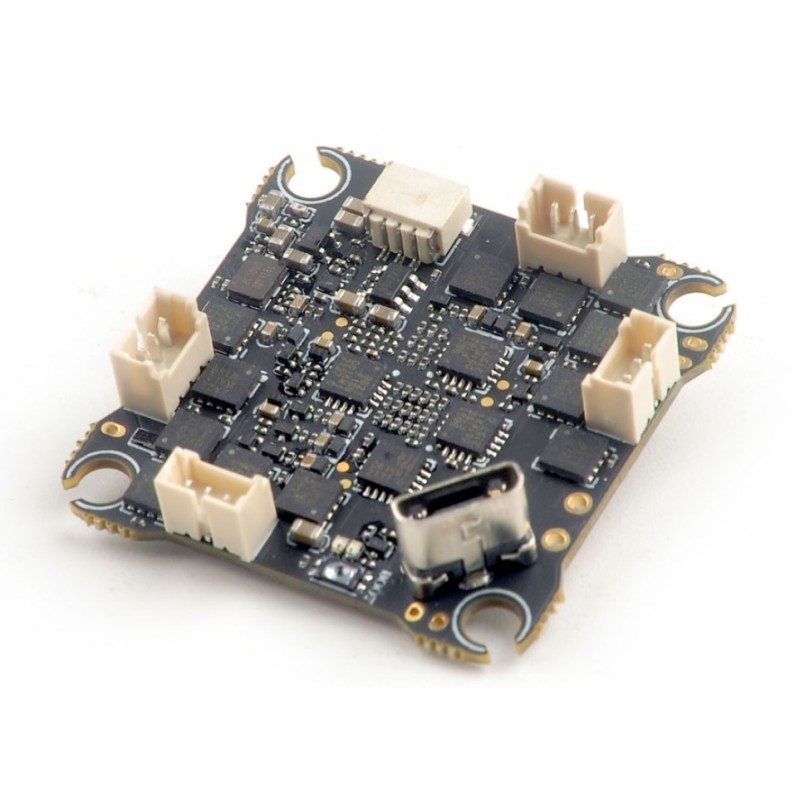

HappyModel X12 ExpressLRS AIO Flight Controller - 3
HappyModel X12 ExpressLRS AIO Flight Controller - 6

HappyModel X12 ExpressLRS AIO Flight Controller

by HappyModel
5.00 out of 5
(5 customer reviews)

A groundbreaking 5-IN-1 flight controller with 12A ESC, 400mW VTX, and ELRS receiver for unmatched FPV performance.

$139.99

Out of stock

Categories: ,

Description

FIRMWARE TARGET: Betaflight CRAZYBEEF4SX1280

The HappyModel X12 ExpressLRS AIO Flight Controller is the world’s first 5-IN-1 AIO powerhouse, integrating a 12A Blheli_S ESC, Betaflight OSD, and a high-performance OPENVTX (up to 400mW). With an onboard SPI ELRS receiver supporting ELRS TX module 2.x firmware, it delivers exceptional RX and VTX range for brushless whoops. Experience next-level flight precision and reliability in a lightweight 5.1g design built for serious FPV enthusiasts.

Specifications:

  • Brand Name: Happymodel
  • Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
  • Betaflight firmware target:
  • ELRS Version: CRAZYBEEF4SX1280
  • FRSKY Version:CRAZYBEEF4FR
  • FLYSKY Version:CRAZYBEEF4FS
  • PNP Version:CRAZYBEEF4DX
  • LITE Version:CRAZYBEEF4SX1280
  • VTX antenna: U.FL
  • Weight: 5.1g
  • Support 1-2S Lipo/LIHV battery
  • Size: 30mm*30mm*8mm

Flight controller

  • X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
  • X12 Frsky V2.1 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR
  • X12 Flysky V1.0 flight controller built-in Flysky AFHDS-2A 2.4G receiver Target:CRAZYBEEF4FS
  • X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX
  • X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: ICM20689 or BMI270 or ICM42688P(SPI connection)
  • Mount hole size: 25.5mm*25.5mm
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • Built-in 12A(each) Blheli_S 4in1 ESC
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G OpenVTX 0mw~400mw
  • Built-in ExpressLRS 2.4G,Frsky D8/D16, Flysky AFHDS-2A
  • Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

  • Power supply: 1-2S LiPo/LiPo HV
  • Current: 12A continuous peak 15A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: Z_H_30_REV16_7.HEX
  • Default protocol: DSHOT300
  • Support Bluejay firmware
  • When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard SPI ExpressLRS 2.4GHz Receiver

  • Packet Rate option: 50Hz/150Hz/250Hz/500Hz
  • ExpressLRS Firmware version: V2.0
  • RF Frequency: 2.4GHz
  • Antenna : SMD antenna
  • Telemetry output Power: <12dBm
  • Receiver protocol:  SPI ExpressLRS
  • Compatible with ExpressLRS V2.0 TX Module
  • Couldn’t flash separately ExpressLRS firmware

Onboard Frsky SPI D8/D16 receiver Version

  • SPI BUS receiver
  • CC2500 RF
  • Compatible Non EU transmitter D8 model Channels: 8ch
  • No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
  • Support Frsky D8/ D16 , Redpine , SFHSS
Onboard Flysky SPI AFHDS-2A receiver Version
  • SPI BUS receiver
  • Protocol: AFHDS-2A
  • Channels: 14ch(AFHDS-2A)
  • No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
  • Failsafe support
Onboard 5.8g OPENVTX
  • Firmware version: OPENVTX
  • Smartaudio v2.1
  • PIT Mode support
  • RCE Mode support
  • Channels:48ch
  • Transmitting Power: 0/RCE/25mw/100mw/400mw
  • Power supply: DC 5V
  • Current (5v): <650ma (400mw)
  • Antenna connector: U.FL

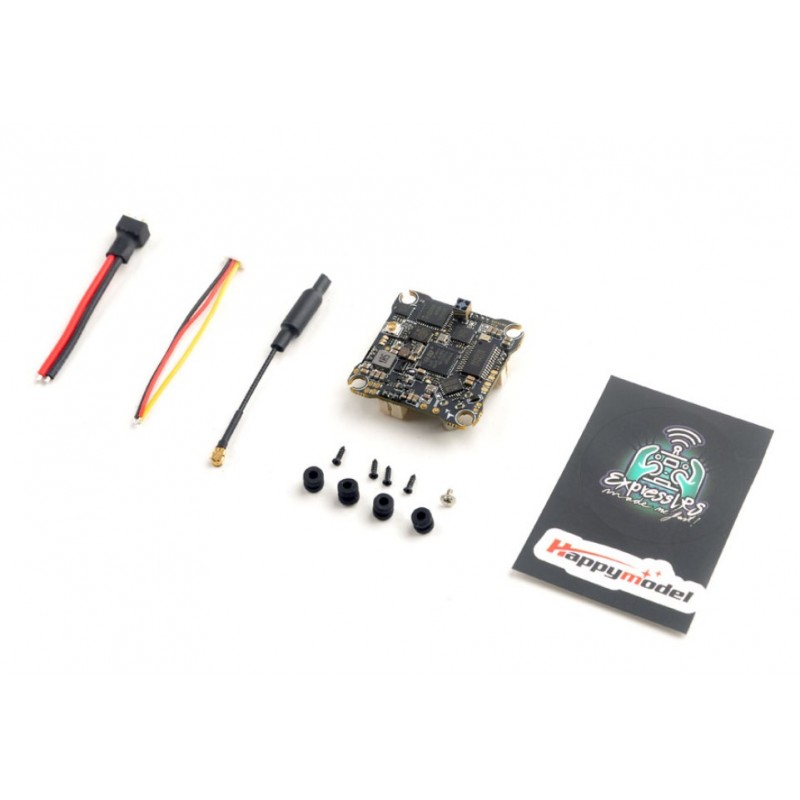

HappyModel X12 ExpressLRS AIO Flight Controller - 6

Package Includes:
  • 1 x X12 ELRS AIO Flight Controller

Additional information

Brand

5 reviews for HappyModel X12 ExpressLRS AIO Flight Controller

  1. 5 out of 5

    Nathan C. (verified owner) –

    Great little board for whoops. Having ELRS and a built in 400mW VTX is a big win.

  2. 5 out of 5

    Brett C (verified owner) –

    Great little board for your nano long range build.

  3. 5 out of 5

    Geoffrey B. (verified owner) –

  4. 5 out of 5

    Reuben H. (verified owner) –

  5. 5 out of 5

    Stewart E. (verified owner) –

    Nice FC, working well 🙂
    Great service as usual
