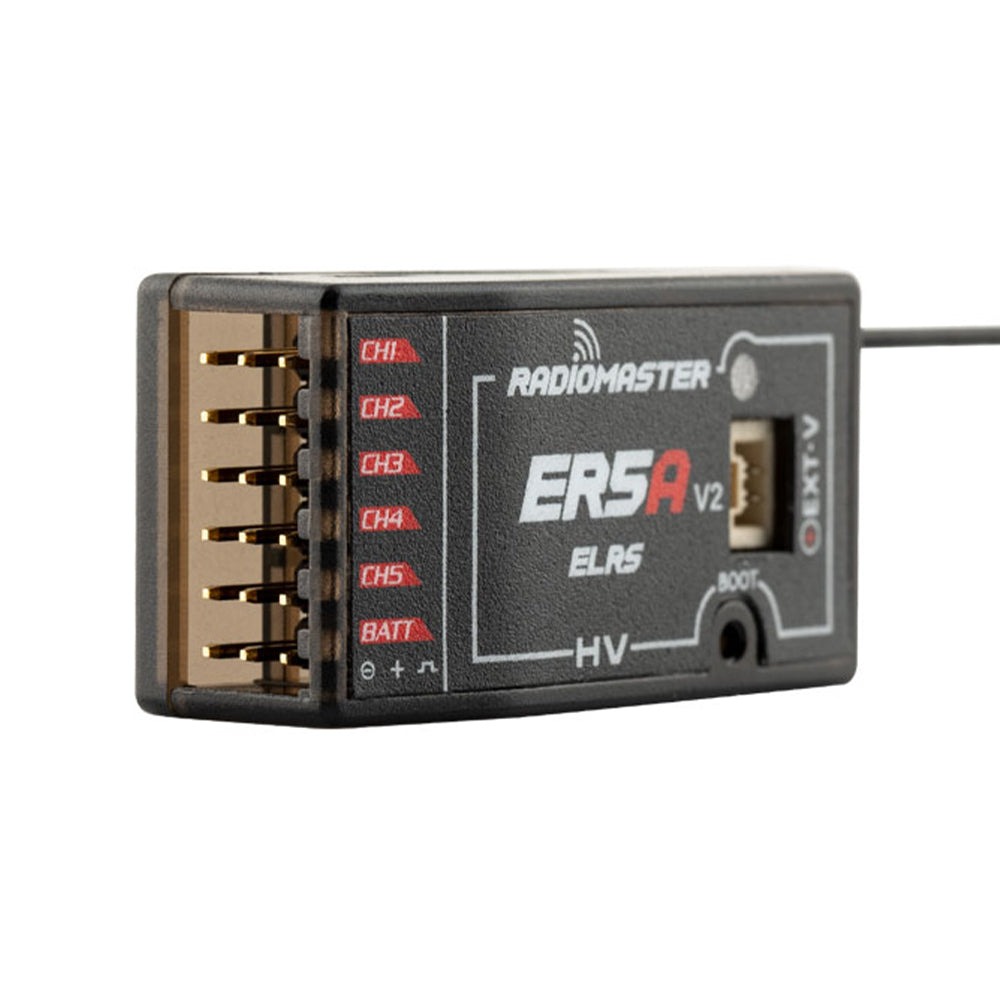

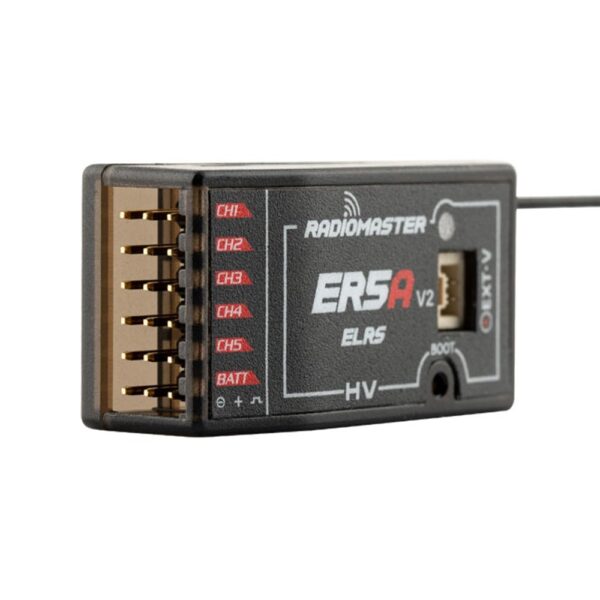

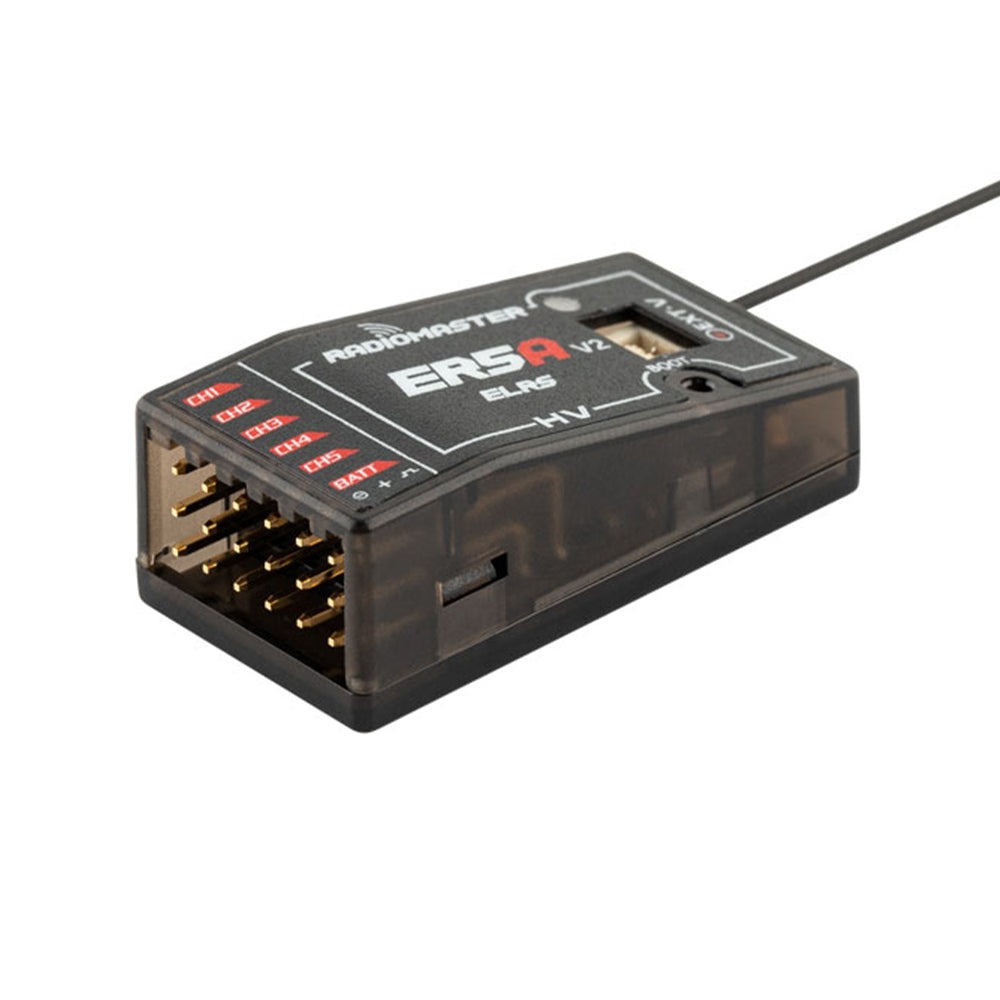

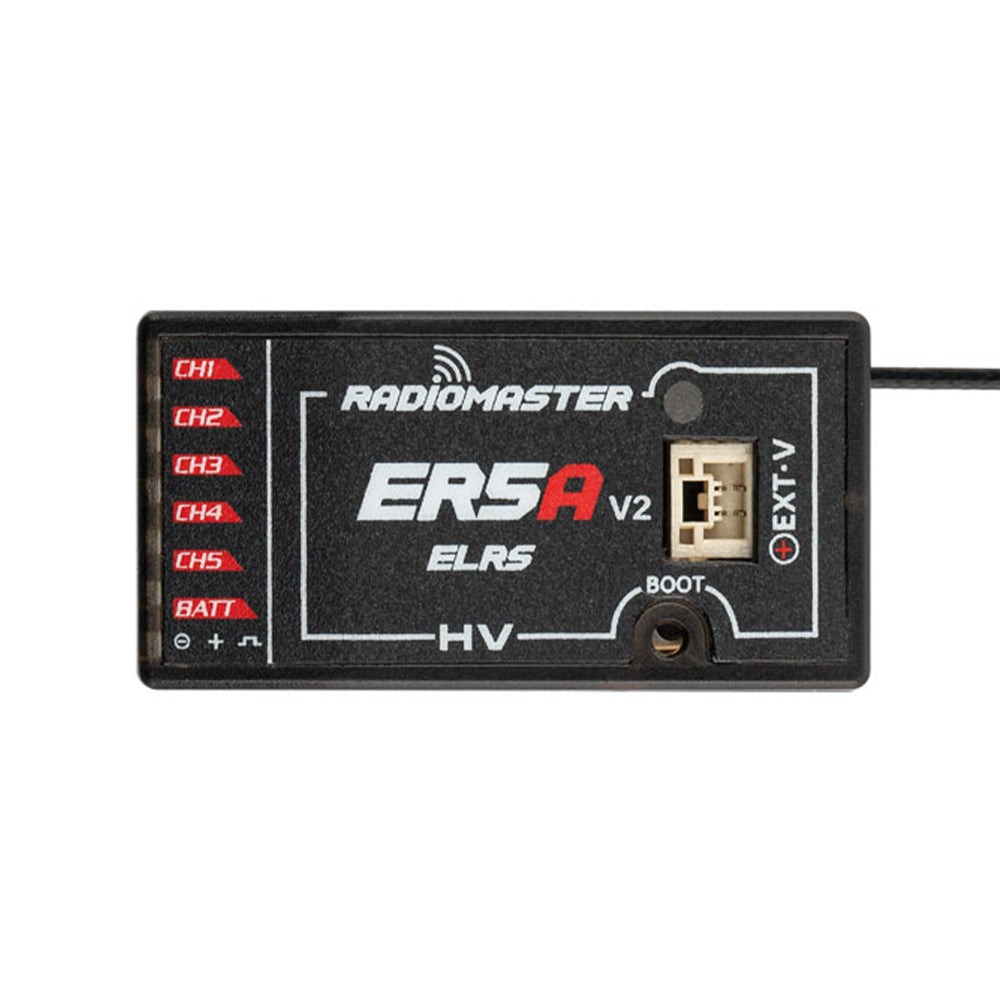

RadioMaster ER5A V2 2.4GHz 5Ch ELRS PWM Receiver

Description

We are now launching ER5 Series ELRS PWM receivers. ER5A V2 ELRS PWM receiver for Aircraft applications, and the ER5C ELRS PWM receiver for surface & marine R/C applications.

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range

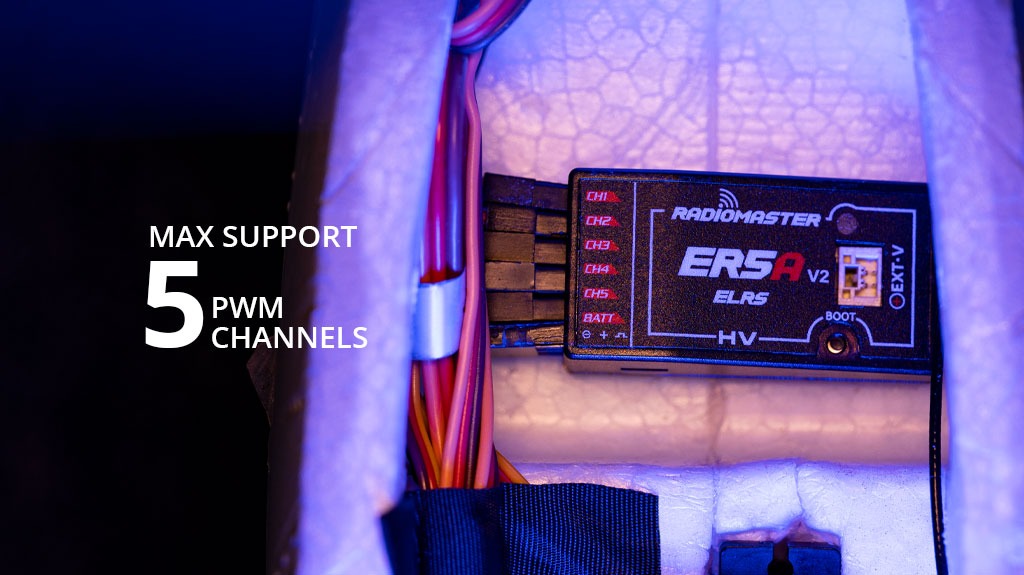

• Support 5 PWM Channels

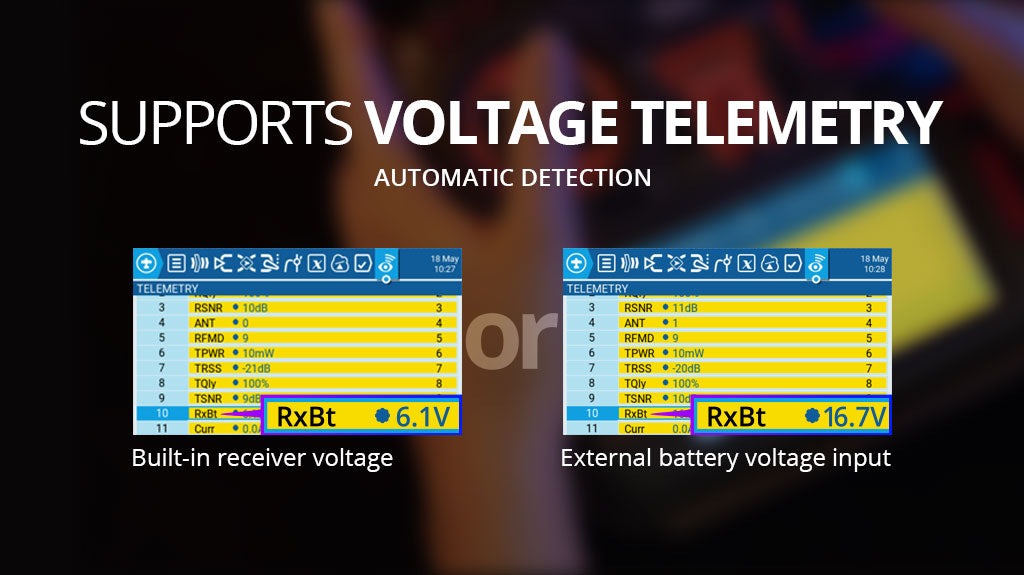

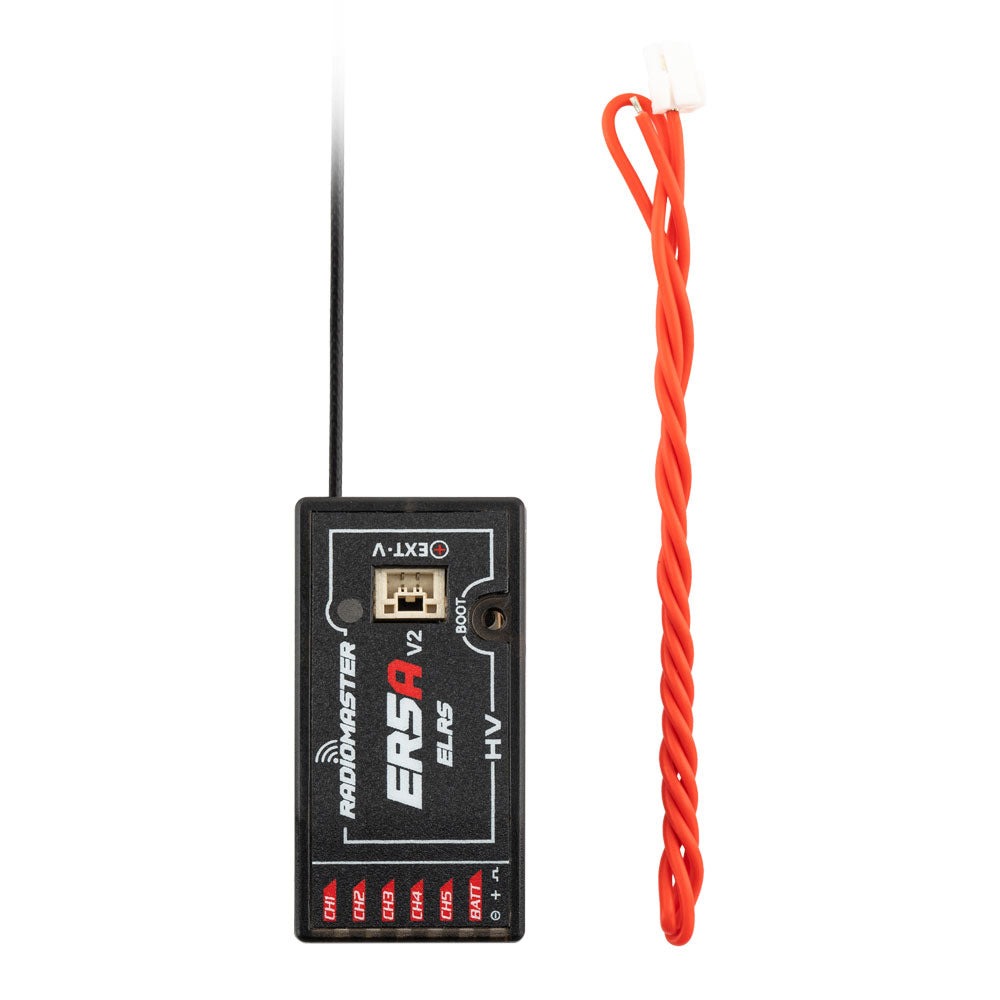

• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage

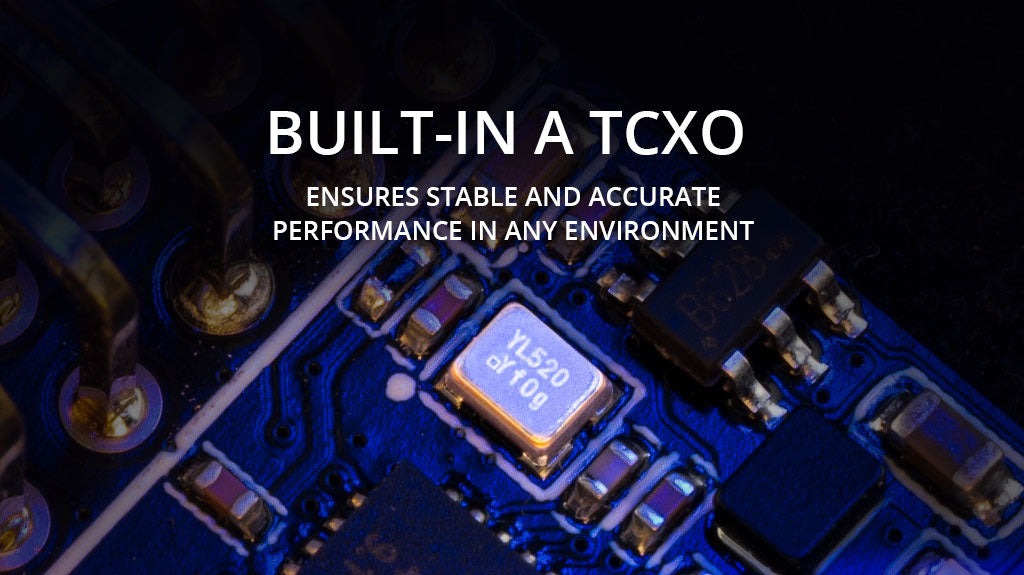

• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration

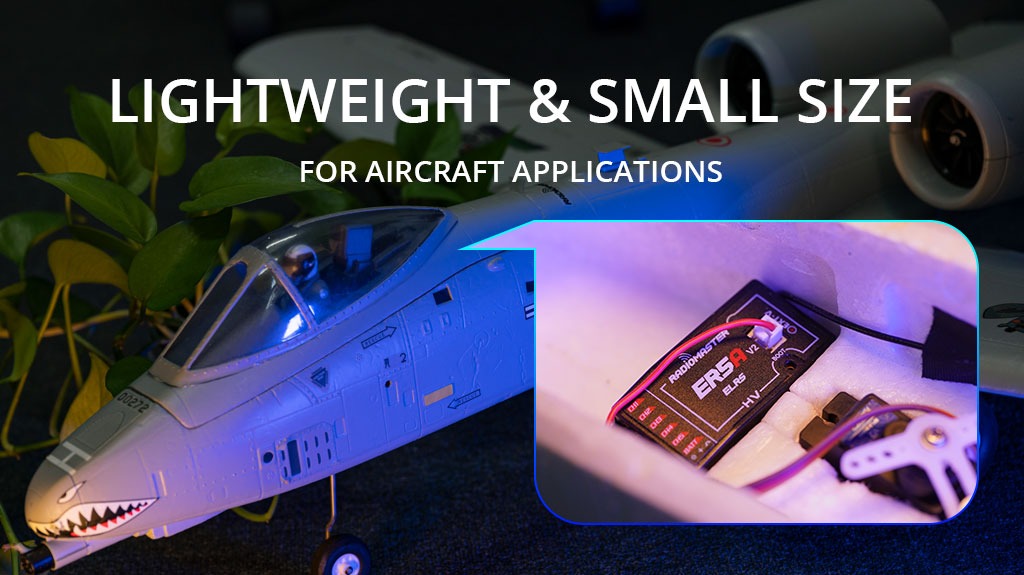

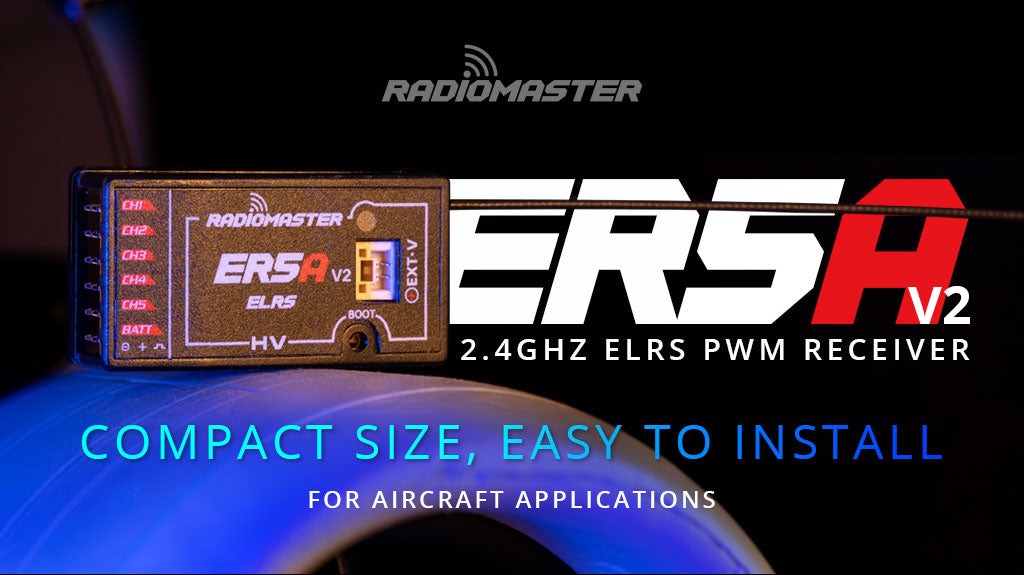

• Compact size, easy to install. Perfect for aircraft applications
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

• Item: ER5A V2 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5-8.4V

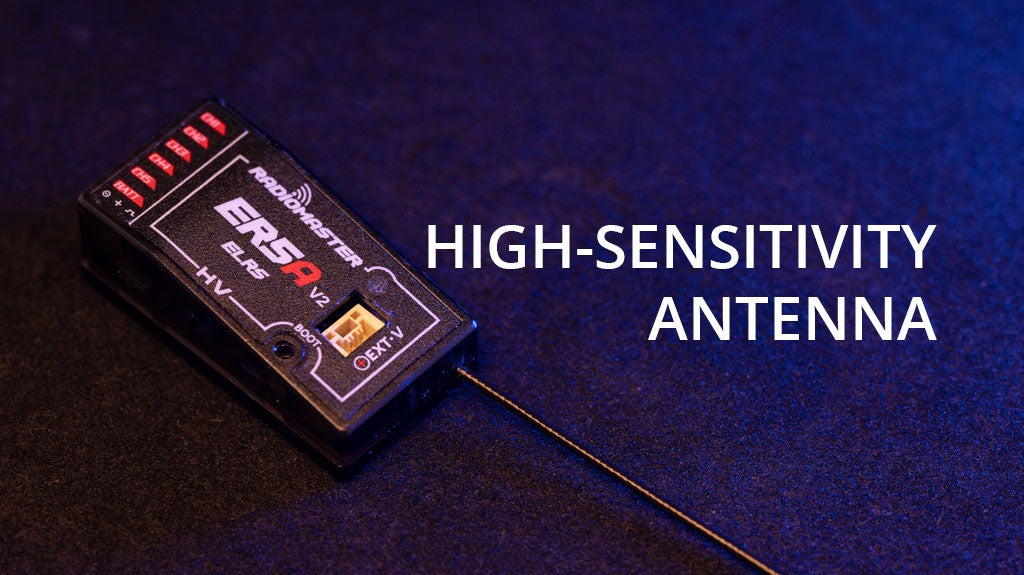

• Antenna type: High-sensitivity antenna
• Wireless Protocol: ELRS 3.3.0 pre-installed
• Channels: 5
• Telemetry Voltage Detection Range: DC 4.0 – 35V
• RF Telemetry: Yes
• Telemetry Power: 10mw
• Weight: 6.7 grams

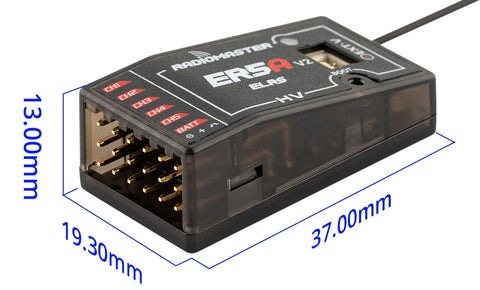

• Size: 37.0 * 19.3 * 13.0mm
• Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

Related Products

• TX12 Mark II Radio
• TX16 Mark II Radio
• Zorro Radio

Package Includes

• 1 x ER5A V2 2.4GHz 5Ch ELRS PWM Receiver

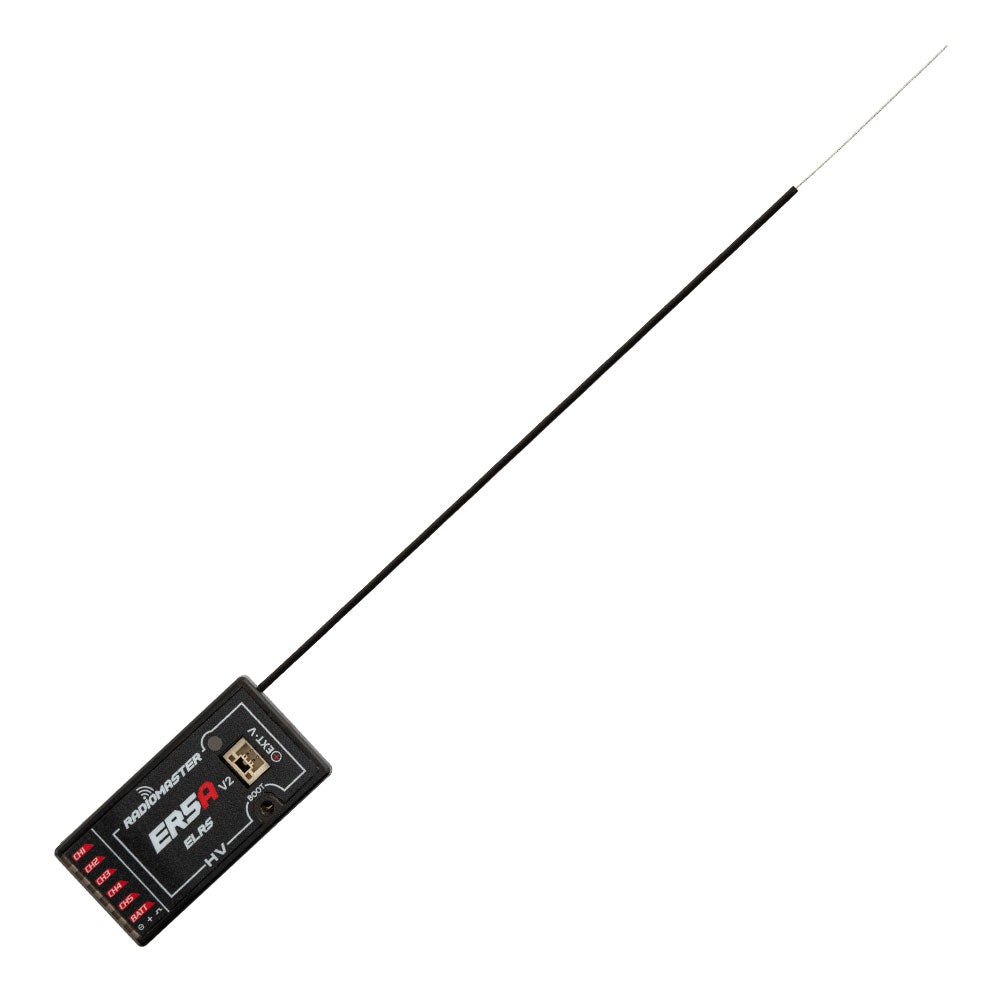

• 1 x Spare Long Antenna
