HappyModel 2.4GHz EP1 Dual TCXO True Diversity ExpressLRS Receiver

Description

The Happymodel EP1 Dual TCXO is nano-sized true diversity 2.4GHz ELRS receiver with RF amps and two antennas. This dual TCXO receiver uses a temperature-compensated crystal oscillator to help with accurate MCU clock frequency, thus improving the performance and reliability of your RC link

Features

• Excellent performance in extreme temperatures
• Uses a temperature-compensated crystal oscillator
• Diversity 2.4GHz ELRS RX
• Two Antennas
• Dual Receiver
• RF Amps

Firmware

• Default Firmware out of factory: Unified_ESP32_2400_RX Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW
• Firmware update via UART or WIFI

Specifications

• Type: ISM2.4GHz

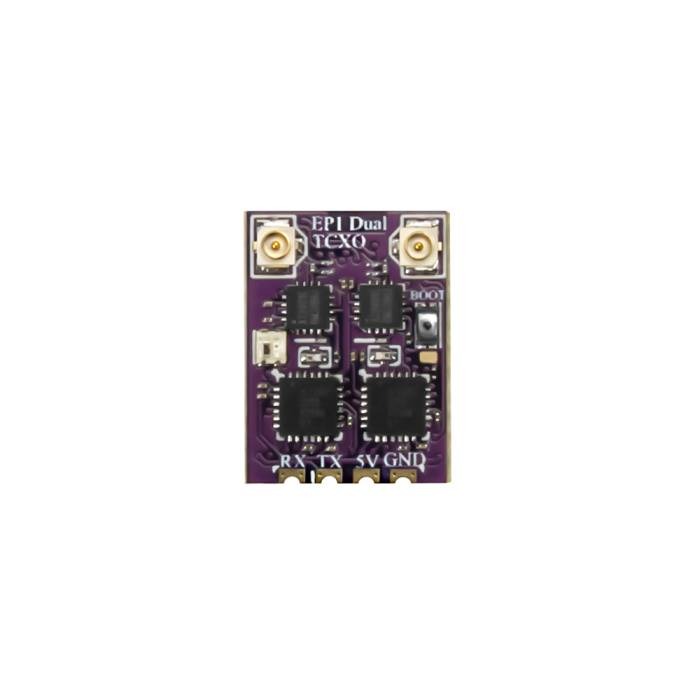

• ESP32 PICO D4, dual SX1280(SX1281)
• Antenna connector: IPEX MHF 1/U.FL
• RF Frequency: 2.4GHz (2400~2480MHz)
• Telemetry power: >19dbm
• Receiver protocol: CRSF
• Input voltage: +5V DC @ “+” pad
• PCB size: 19mm x 14mm
• Weight: 1gram exclude antenna
• Built-in a TCXO (temperature-compensated crystal oscillator)

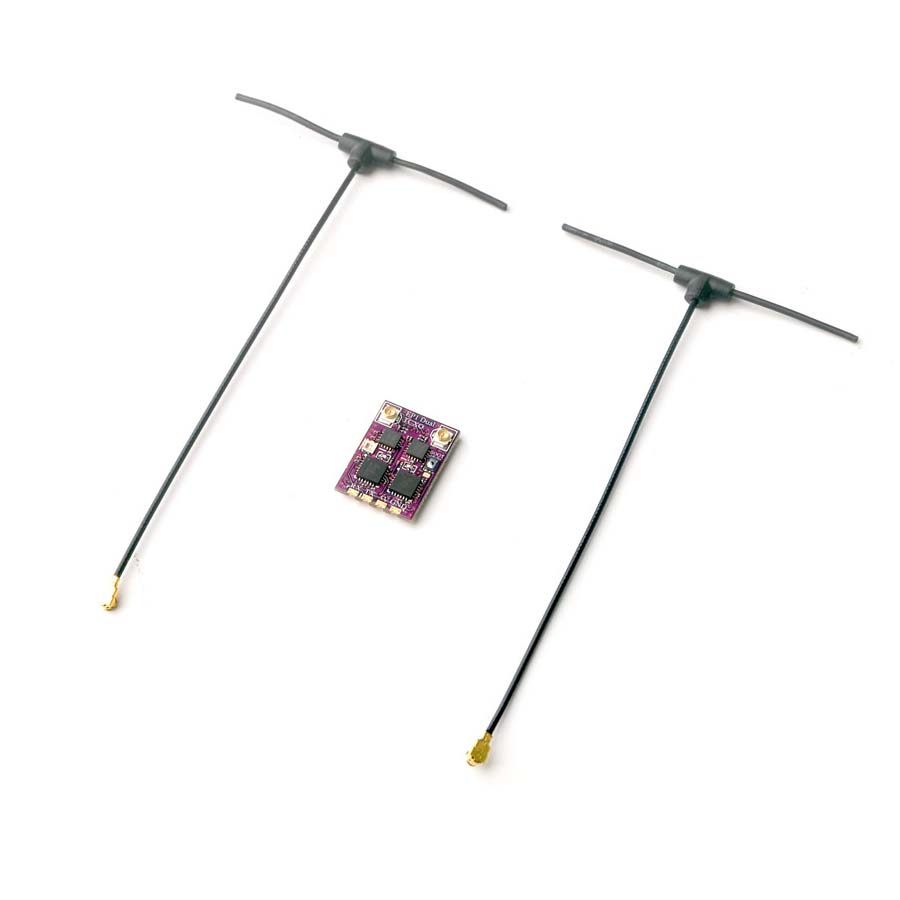

Includes

• 1x Happymodel ExpressLRS Nano 2.4GHz EP1 Dual TCXO RX
  2x Antenna
