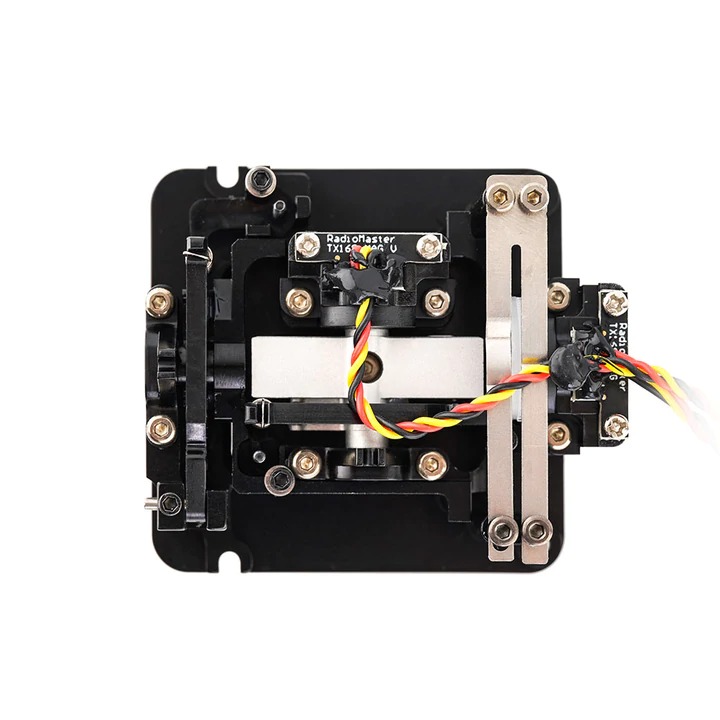

Radiomaster – AG01 CNC Hall Gimbals for TX16S (Pair)

Description

Designed and tested for over a year, the AG01 gimbals have been in development with engineers and champion pro pilots such as MCK, Alex Campell, Noical, Veysi.FPV, AZFPV, Xiao Zheng, and Long XL to meet the demanding requirements of the world’s most competitive racing events.

The AG01 is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX16S to the next level!

Key Features

• Made with CNC processed aviation grade aluminum
• Ergonomic stick ends
• Non contact hall sensors,for accurate control inputs and precise centering.
• Quad precision bearings,for unparalleled stick feel.

Specification

• Item: AG01 Full CNC Hall Gimbal
• Full CNC Gimbal
• Product model: AG01
• Sensing type: Hall
• Working voltage: DC 3.3V
• Linearity: Real-time (No delay)
• Adjustable travel range: 38°—54°
• Adjustable mode: Yes
• Adjustable tension: Yes
• Quad bearing: Yes
• Temperature range: -20°c-85°c
• Size: 60*53*56mm
• Weight: 82g/pc

Adjustments

• 1/2 STICK TRAVEL LIMITER(Min.38°，Max,54°）
  Turn clockwise to decrease travel，
  Turn counterclockwise to increase travel
• 3/4 SPRING TENSION ADJUSTABLE
  Turn clockwise to decrease stick tension,
  Turn counterclockwise  to decrease stick tension
• 5 GIMBAL MODE SETTING
  Turn clockwise to the bottom to switch to throttle(Throttle tension needs to be  adjusted also per step 6/7).Turn  counterclockwise  to the top to switch to self centering.
• 6/7 THROTTLE TENSION ADJUSTABLE
• 6 Screw adjusts the tension tightness.
• 7 Screw adjusts the scale tightness.

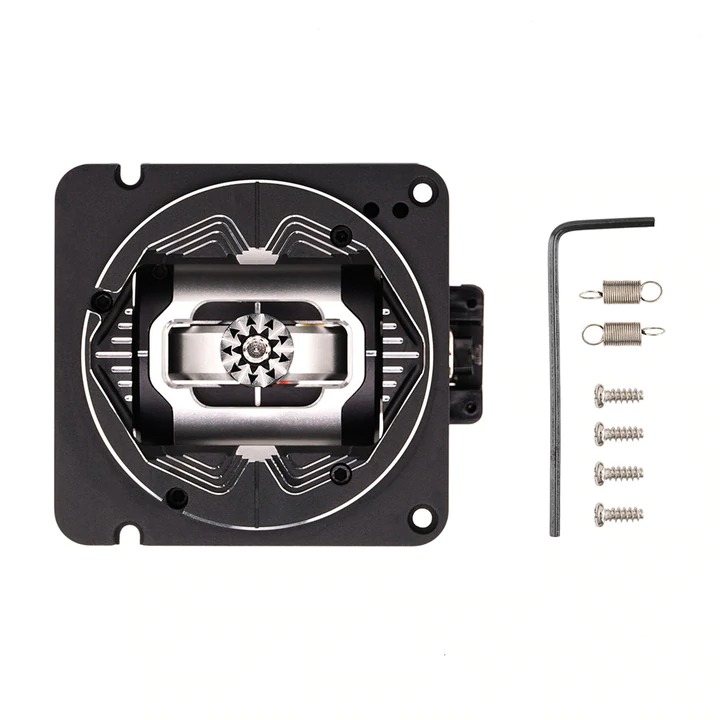

Includes

• 1 * AG01 CNC Hall Gimbal (Throttle)
• 1 * AG01 CNC Hall Gimbal (Centering)
• 2 * TX16S Softer Tension Spring Set
• 2 * Hexagon socket screwdriver
• 1 * Manual
