RadioMaster ER5Ci 2.4GHz 3Ch ExpressLRS Land/Sea Receiver

Description

The RadioMaster ER5C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

Features

• Built-in high-sensitivity ceramic antenna
• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Supports 3 PWM Channels
• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Designed for all types of surface models
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

• Item: ER5C-i 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 – 8.4V
• Antenna type: Built-in high-sensitivity ceramic antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 5CH PWM
• Telemetry power: 10mW
• Battery voltage detection range: DC 4.0 – 35V
• Weight: 5.0 grams

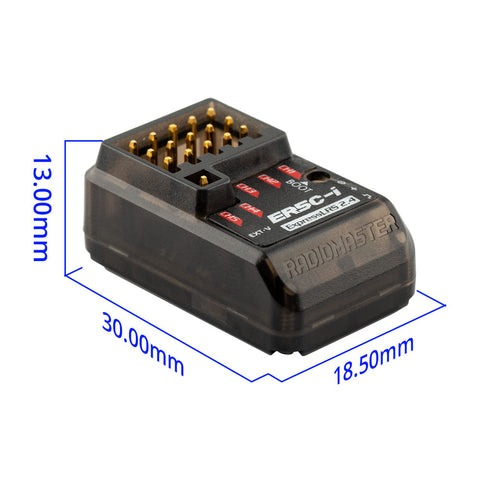

• Dimensions: 30.0*18.5*13.0 mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i



TCXO

The TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.

Associated Products

• MT12 Surface Radio Controller

Package Includes

• 1 * ER5C-i 2.4GHz ELRS PWM Receiver

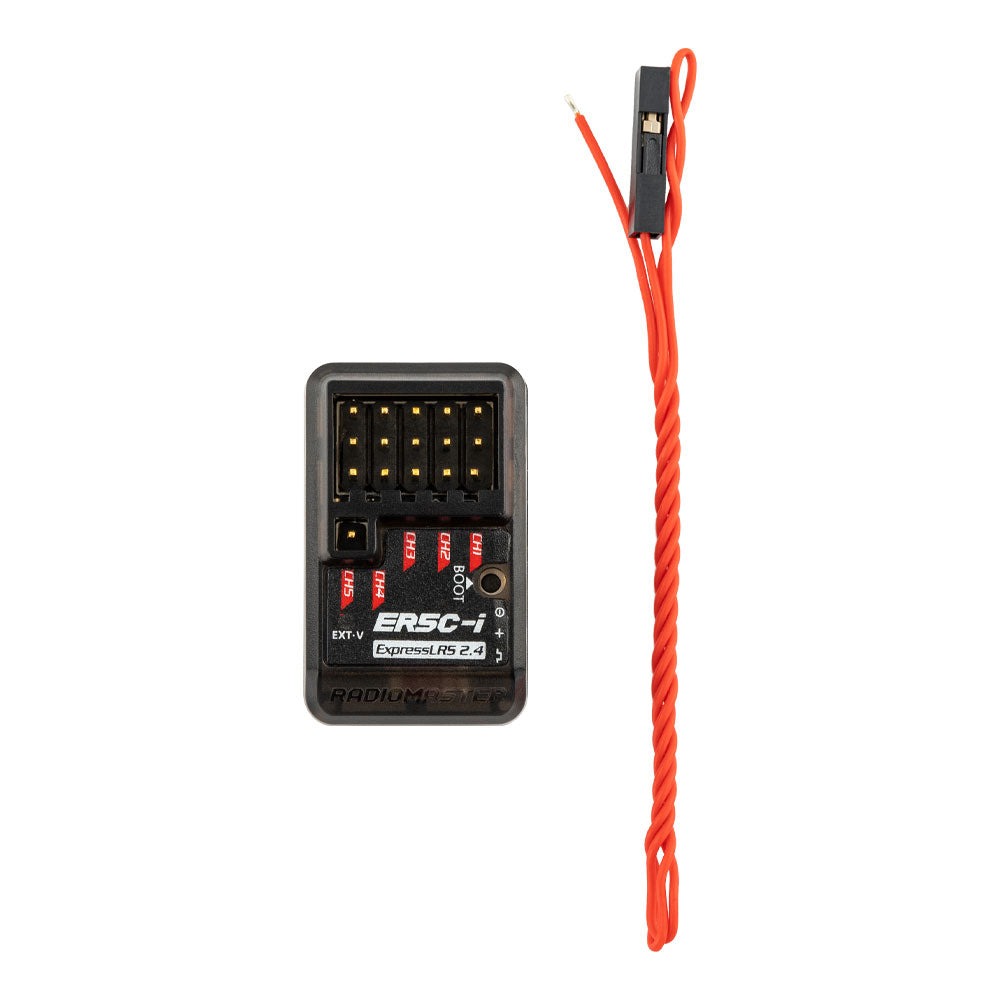

• 1 * Voltage telemetry wire
• 1 * User Card
