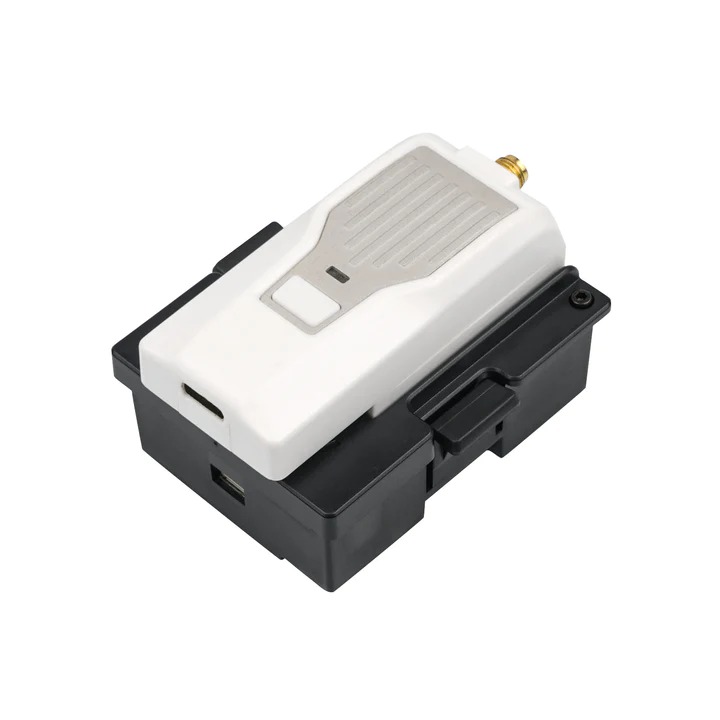

BetaFPV Micro to Nano Module Adapter

Description

With the use of micro-nano module adapter, nano tx module can work on transmitters with a Micro bay (or JR bay) easily

Specification

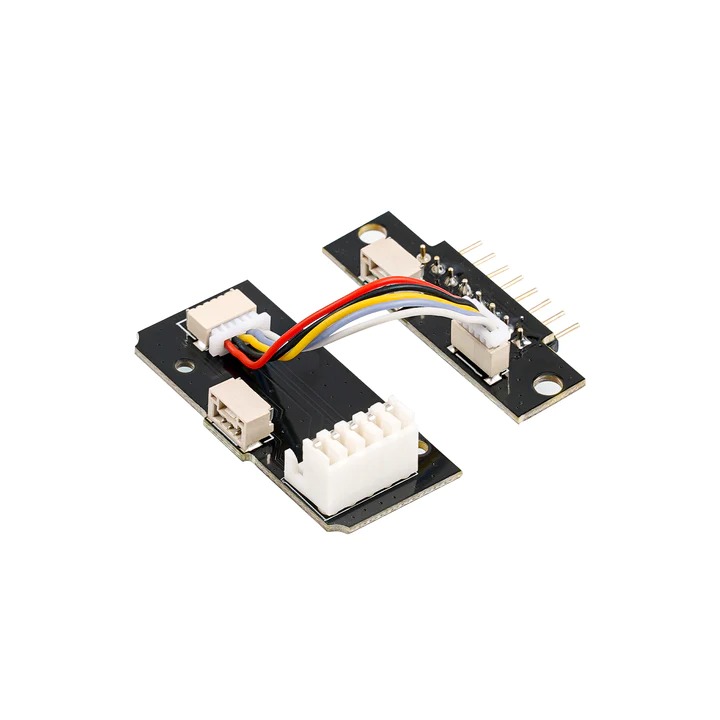

Item: Micro-Nano Module Adapter / Micro-Nano Module PCBA
Size: 65*48*28mm (JR module size）
Weight: 25g
Input: JR module bay (Micro module bay)
Output: Nano module bay (Lite module bay)

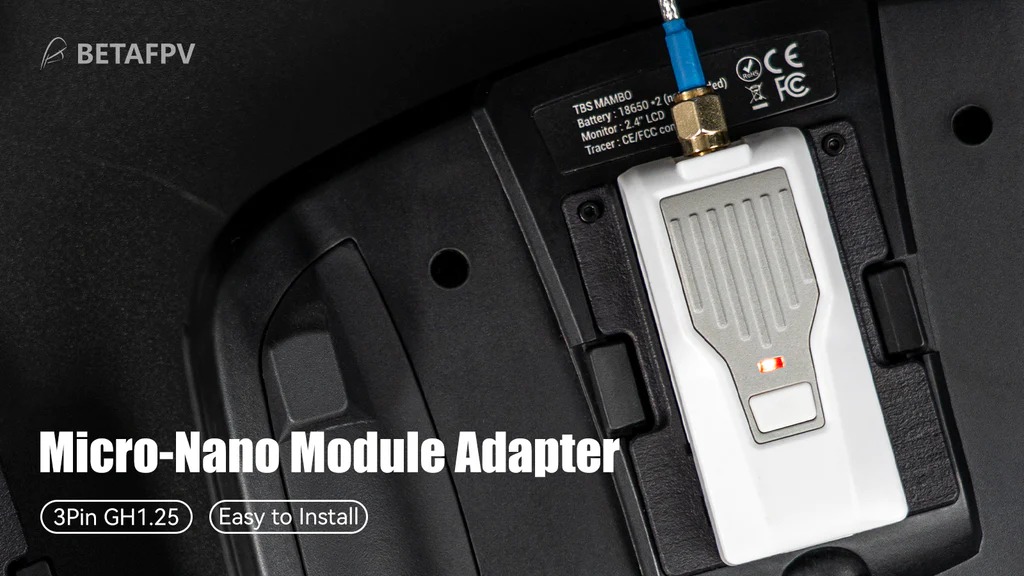

Supported radio transmitter: Any witha Micro module Bay eg. Radiomaster TX16S, TBS Mambo etc
Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TXTBS Tracer Nano TX, Happy Model Nano TX, Frsky XJT Lite/R9M Lite/R9M Lite Pro.

Diagram

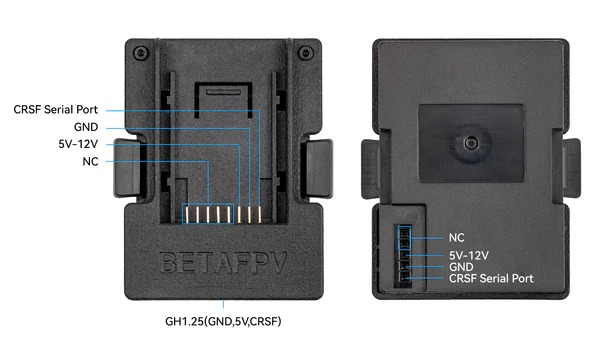

Below is the diagram for the standard micro-nano module adapter

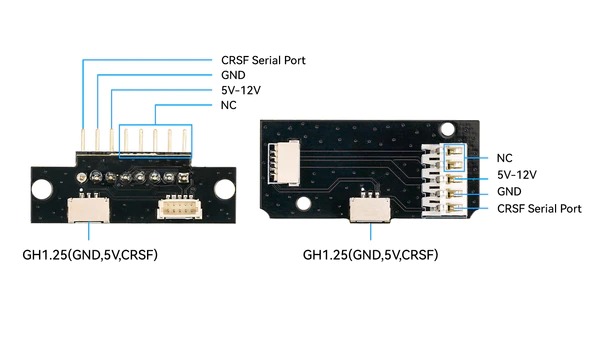

Below is the diagram for the PCBA only.

Package

• 1 * Micro-Nano Module Adapter
• 1 * Converter cable
• 1 * Double-sided tape
