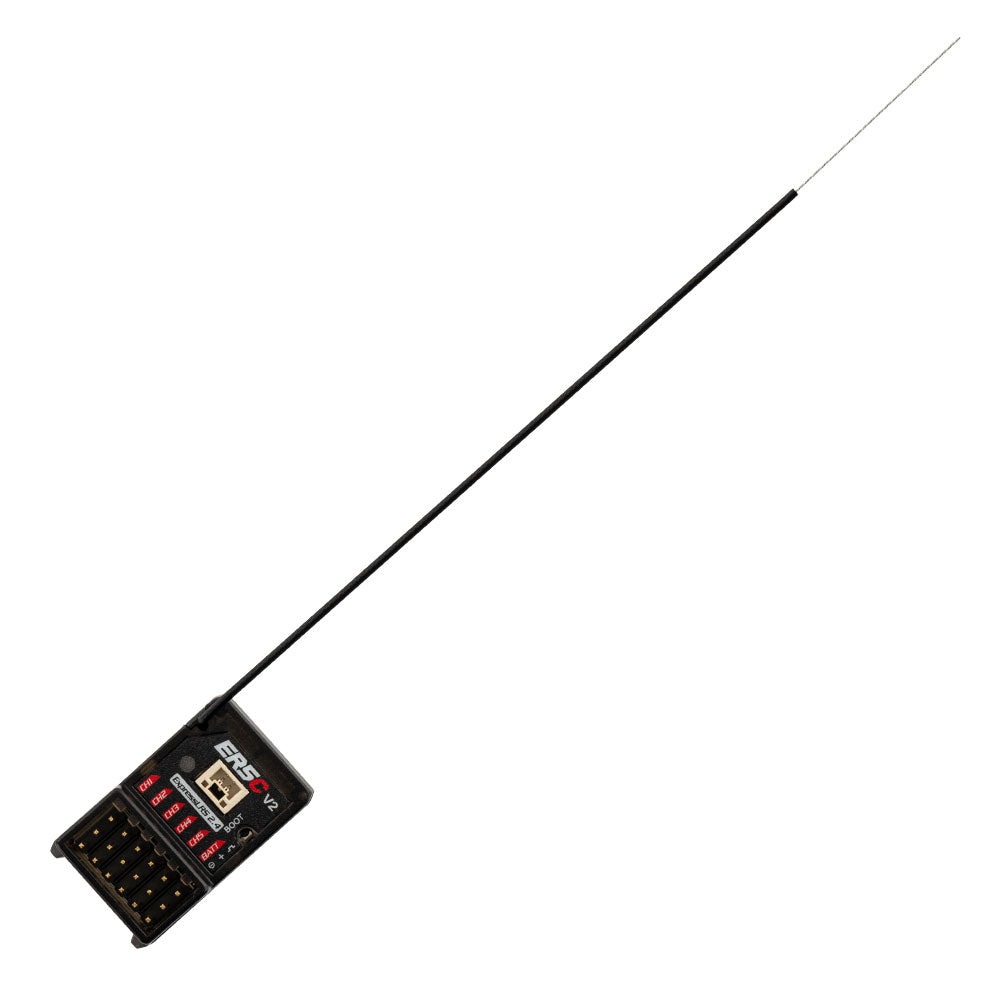

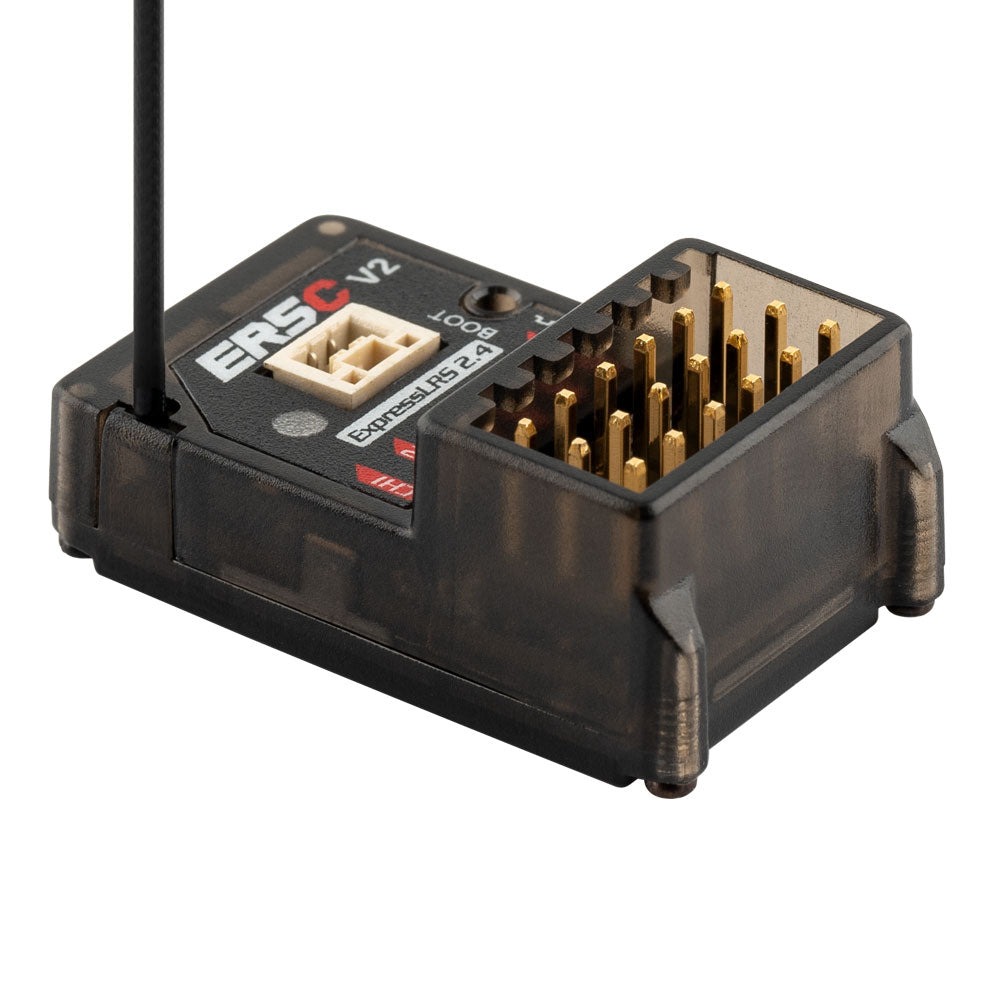

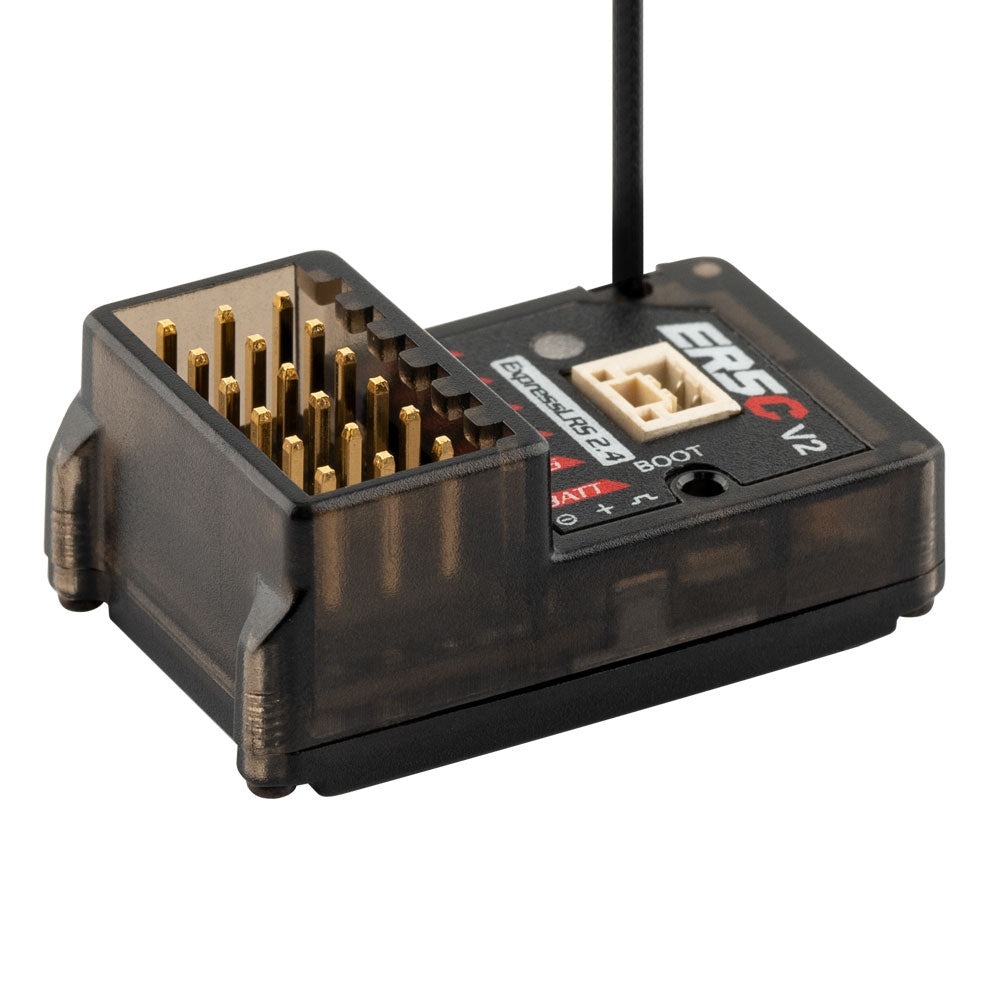

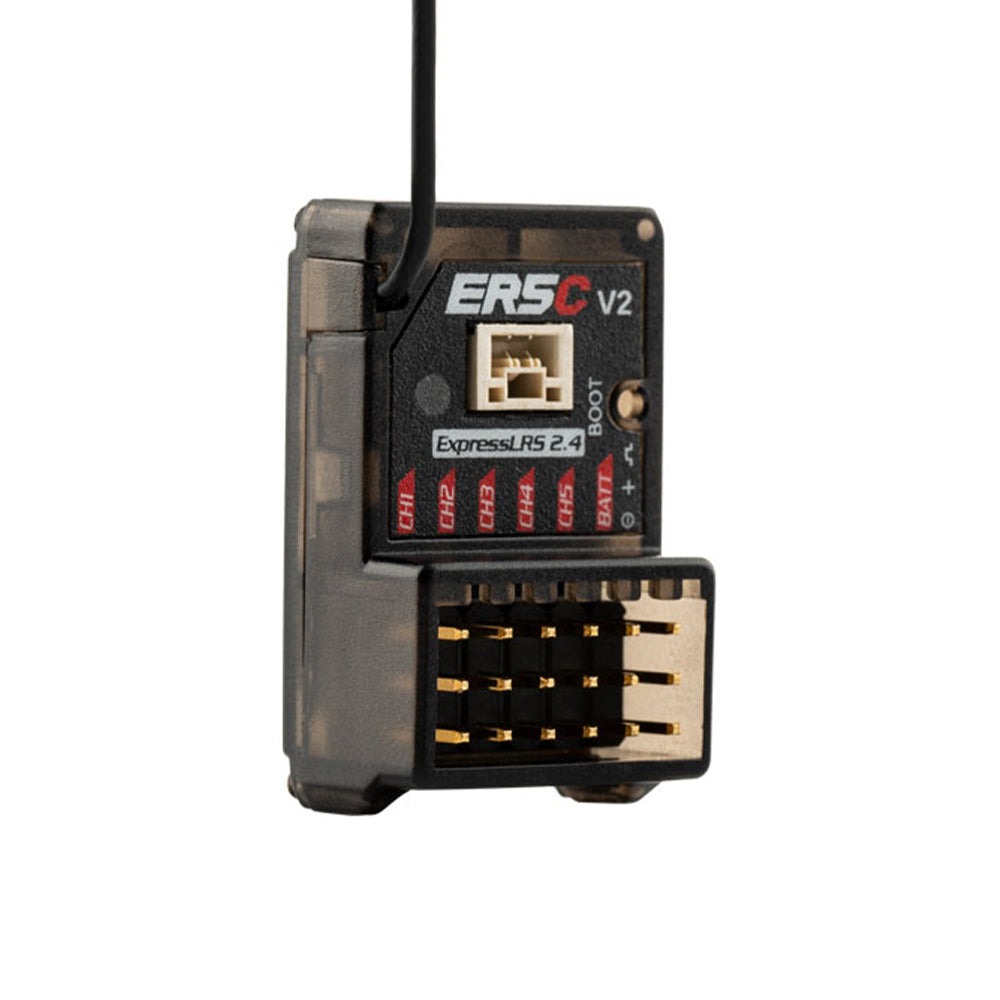

RadioMaster ER5C V2 2.4GHz 5Ch ExpressLRS PWM Receiver
by RadioMaster
5.00 out of 5
(6 customer reviews)
Experience unmatched control and reliability with RadioMaster ER5C V2, the ultimate 5-channel ExpressLRS receiver for all R/C adventures.
$42.99
Out of stock
Get an alert when this product is in stock
SKU: 1551
Categories: ExpressLRS, RC Radios, Receivers
Description
The RadioMaster ER5C V2 2.4GHz 5Ch ExpressLRS Receiver delivers unmatched R/C performance. With top-tier reliability, lightning-fast response, and vast range, it’s ideal for all surface and marine applications. Enjoy advanced voltage and battery telemetry for precise, real-time control.
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range

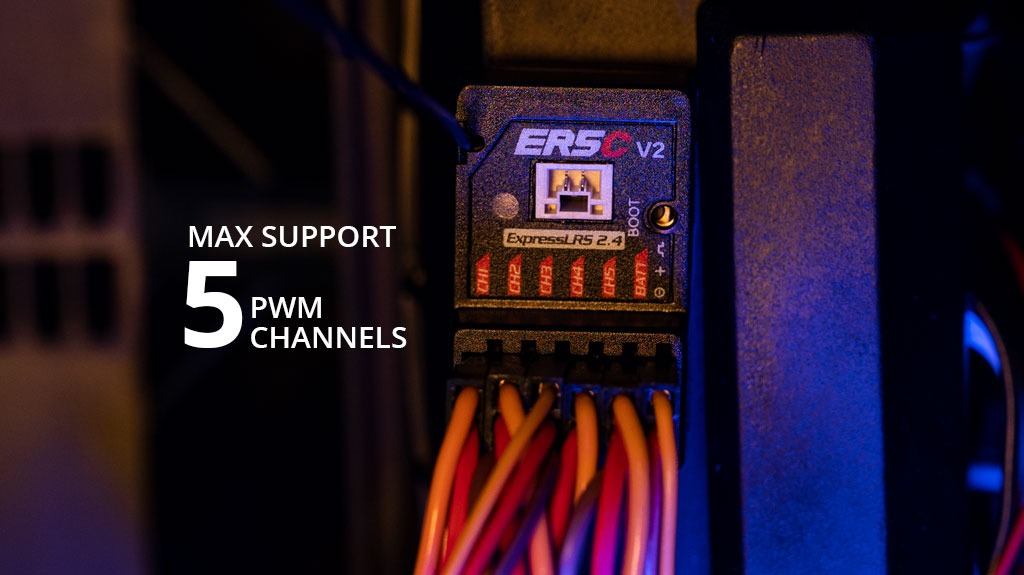

- Support 5 PWM Channels
- Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage

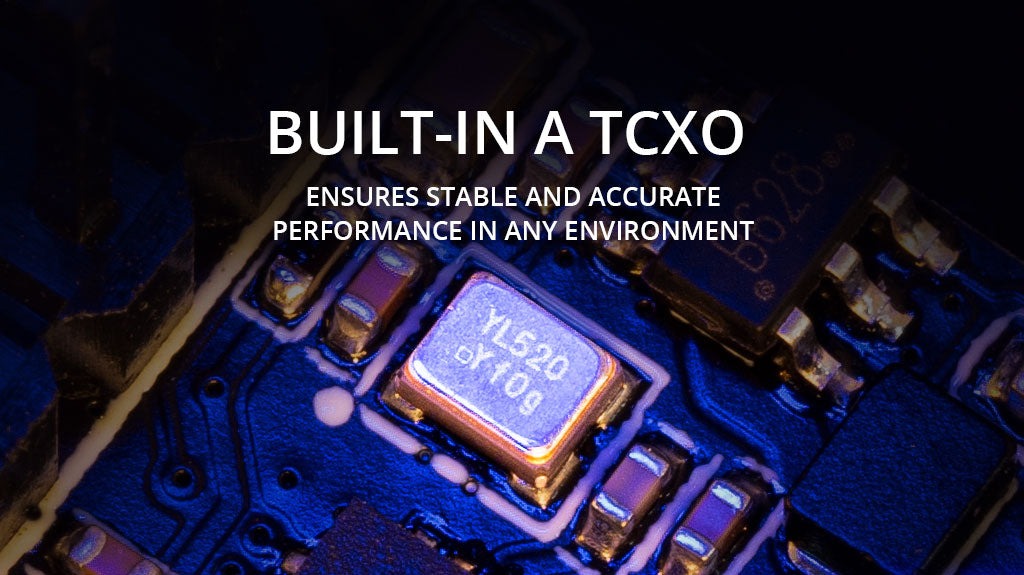

- Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
- Optimized ground up PCB design
- Supports Wi-Fi updates and WEBUI configuration
- Compact size, easy to install. Perfect for surface & marine R/C applications
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications:

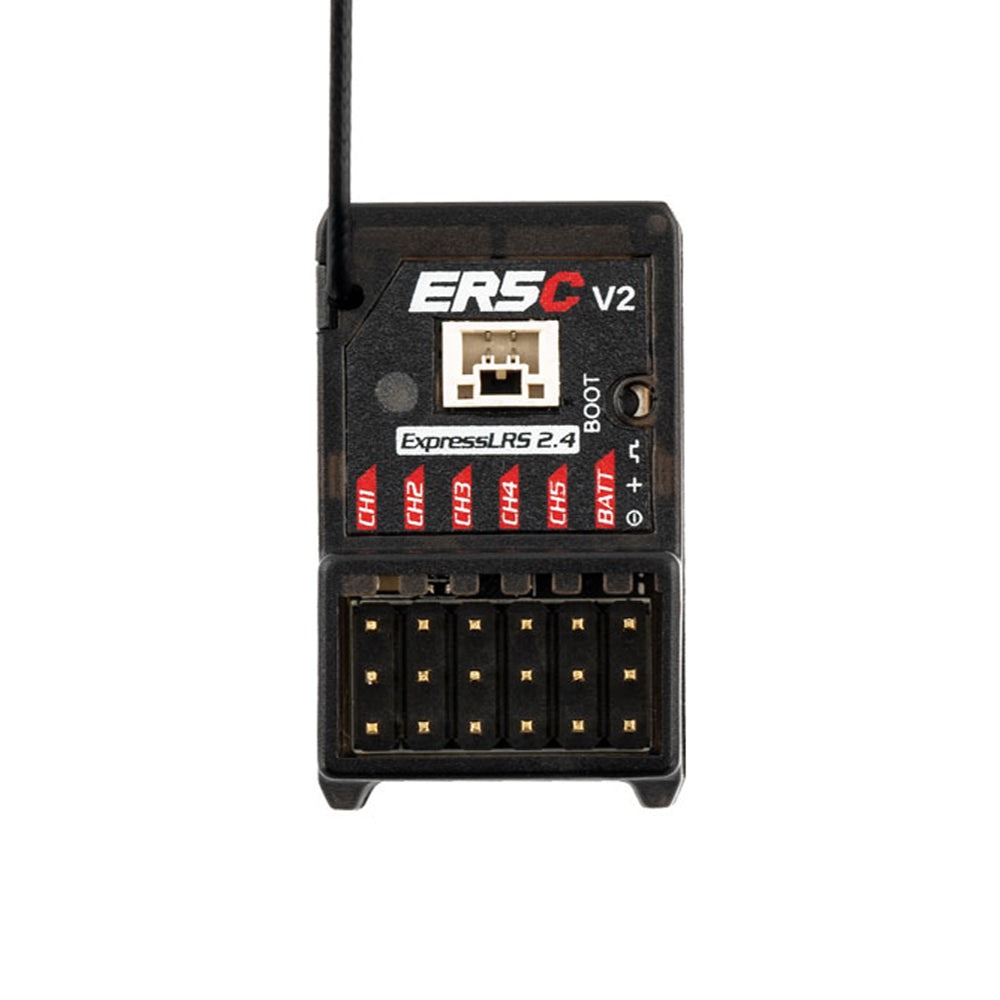

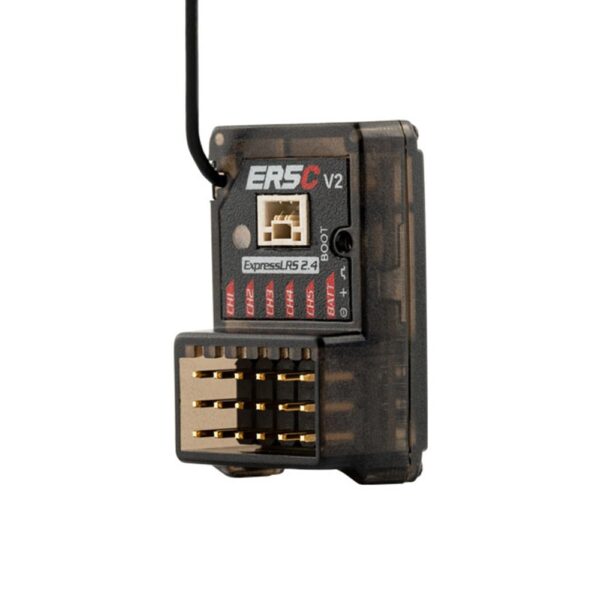

- Item: ER5C V2 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5-8.4V

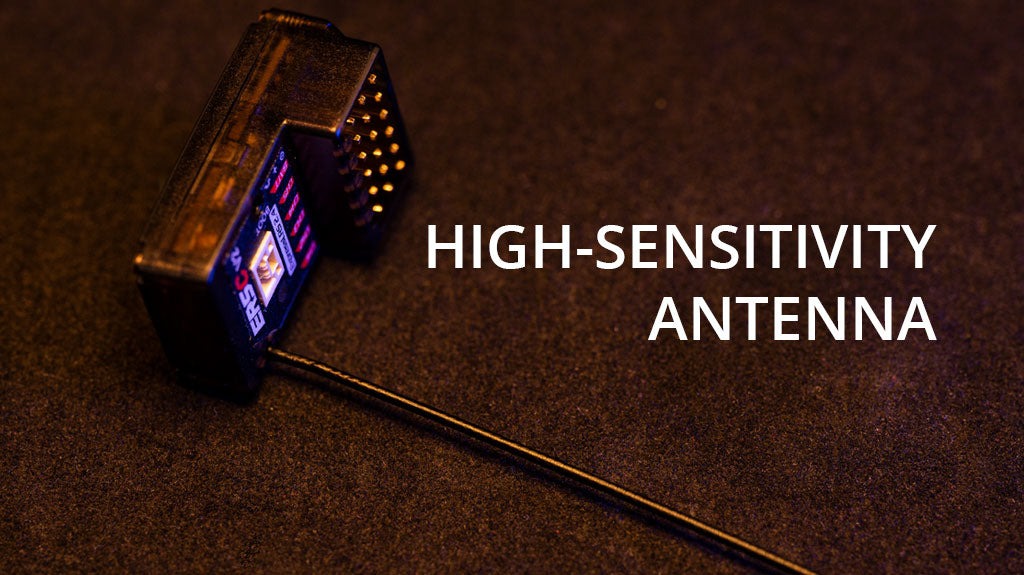

- Antenna type: High-sensitivity antenna
- Wireless Protocol: ELRS 3.3.0 pre-installed
- Channels: 5
- Telemetry Voltage Detection Range: DC 4.0 – 35V
- RF Telemetry: Yes
- Telemetry Power: 10mw
- Weight: 5.7 grams

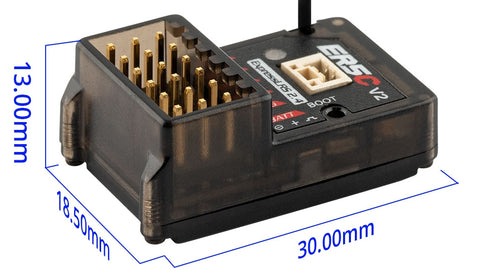

- Size: 30.0 * 18.5 * 13.0mm
- Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX
Package Includes:

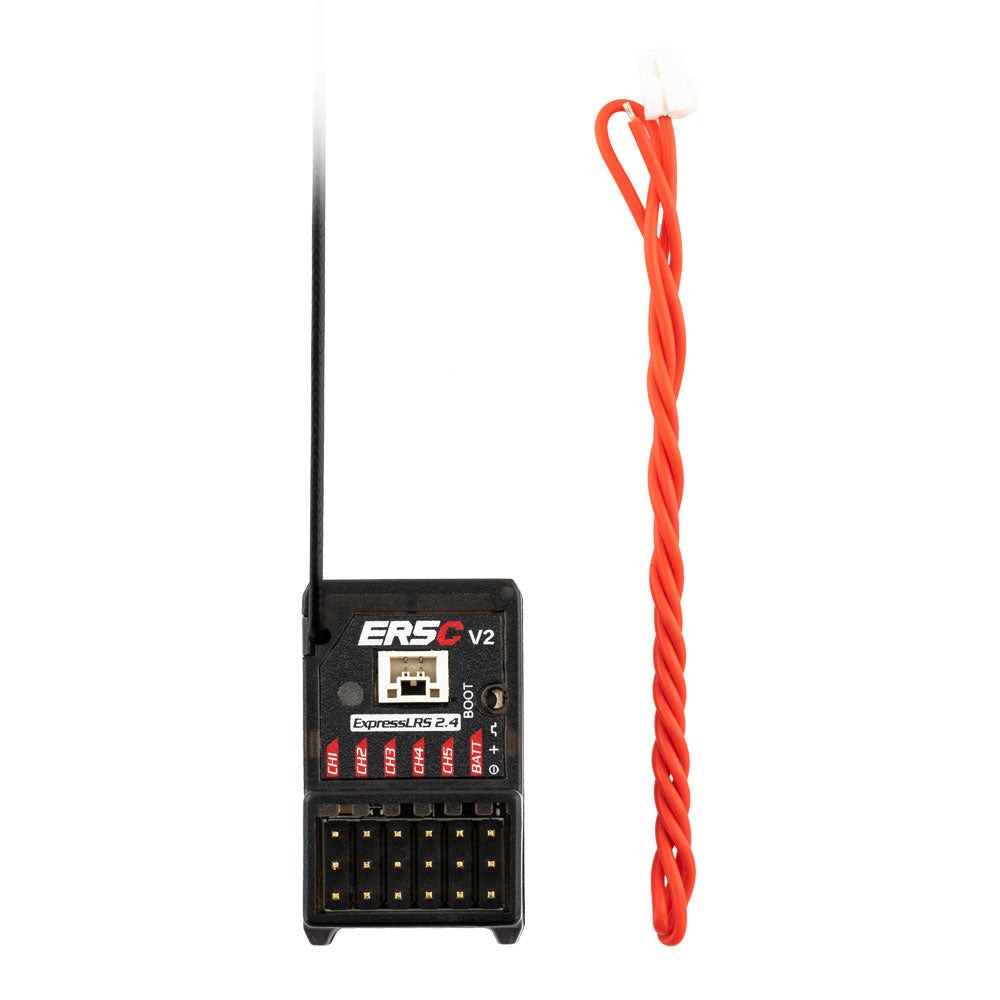

- 1 x ER5C V2 2.4GHz ELRS PWM Receiver
- 1 x Voltage telemetry wire
- 1 x User Card
