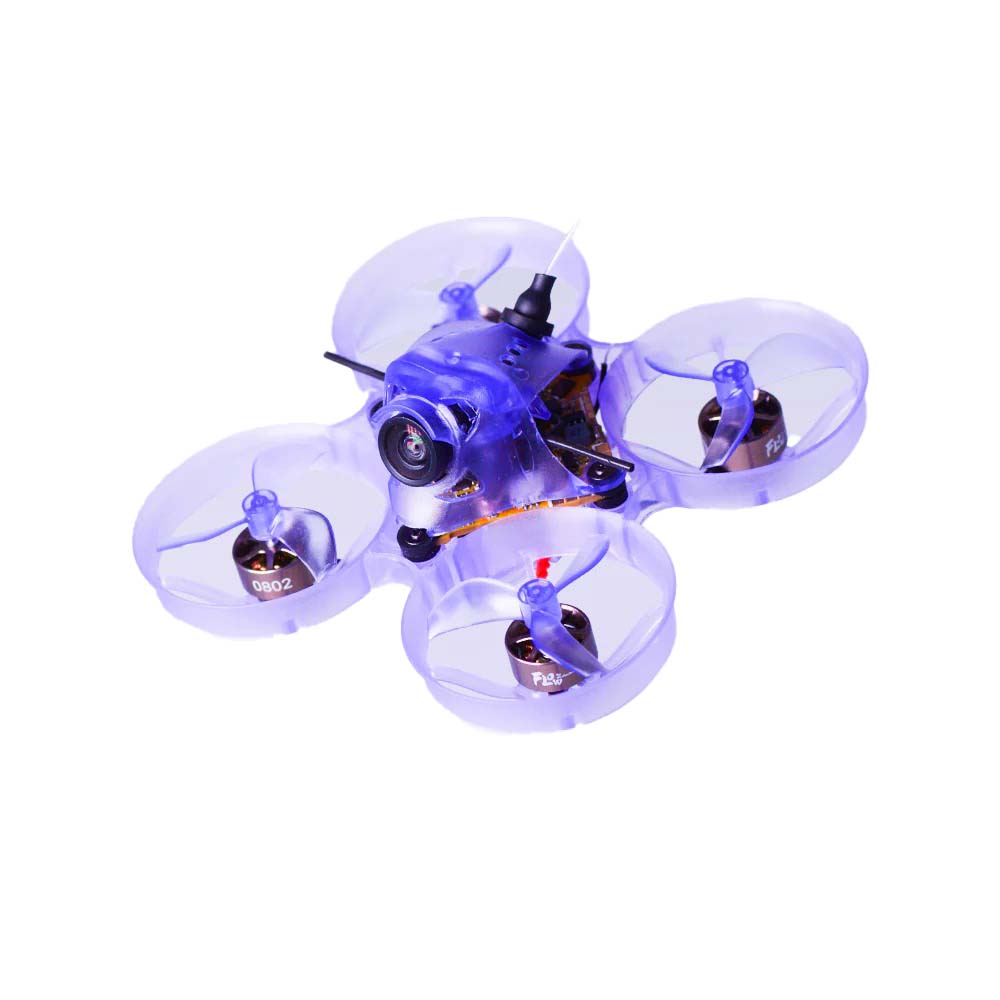

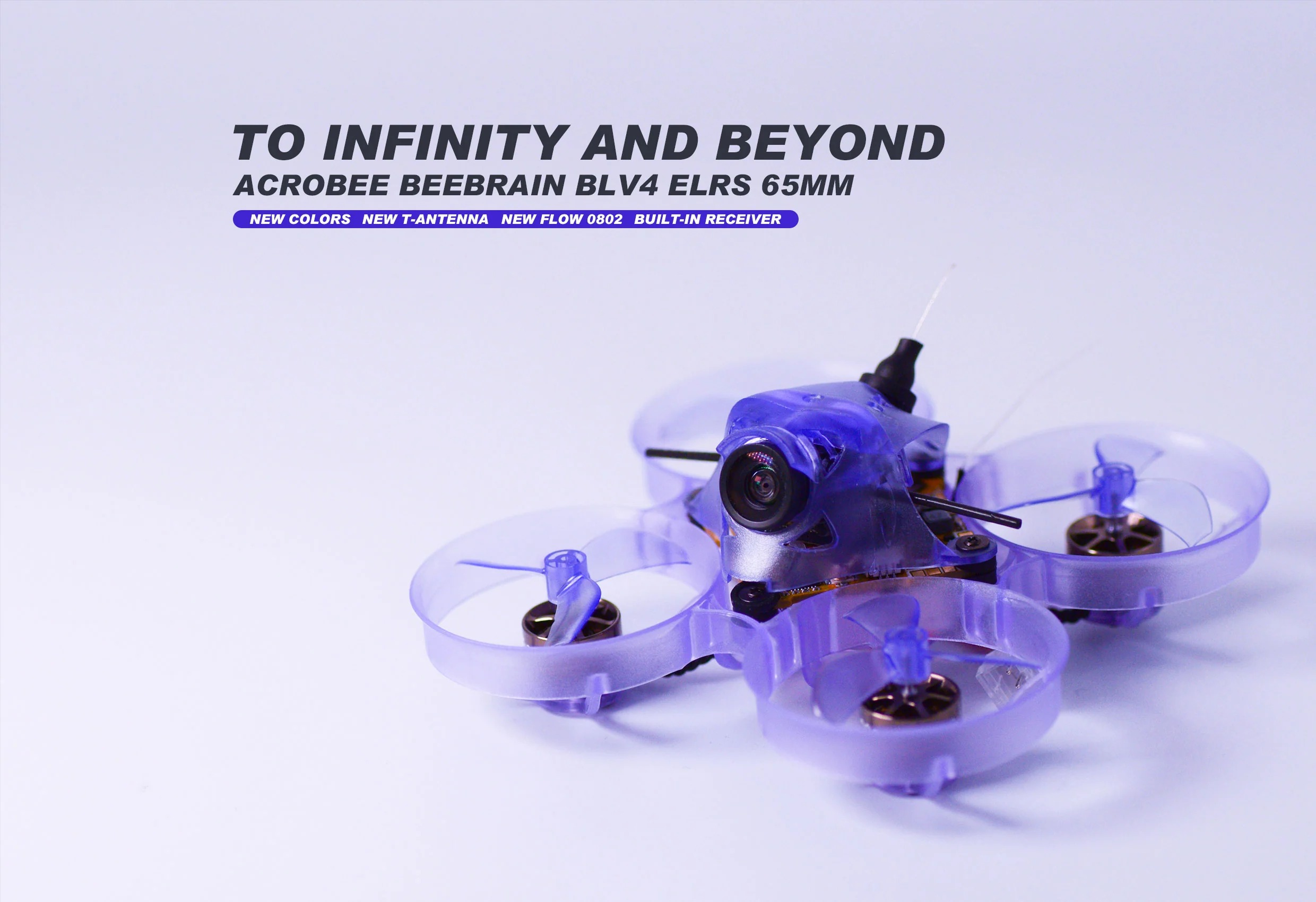

NewBeeDrone AcroBee65 BLV4 Whoop BNF ExpressLRS

Description

Specifications:

Drone Size: 65mm

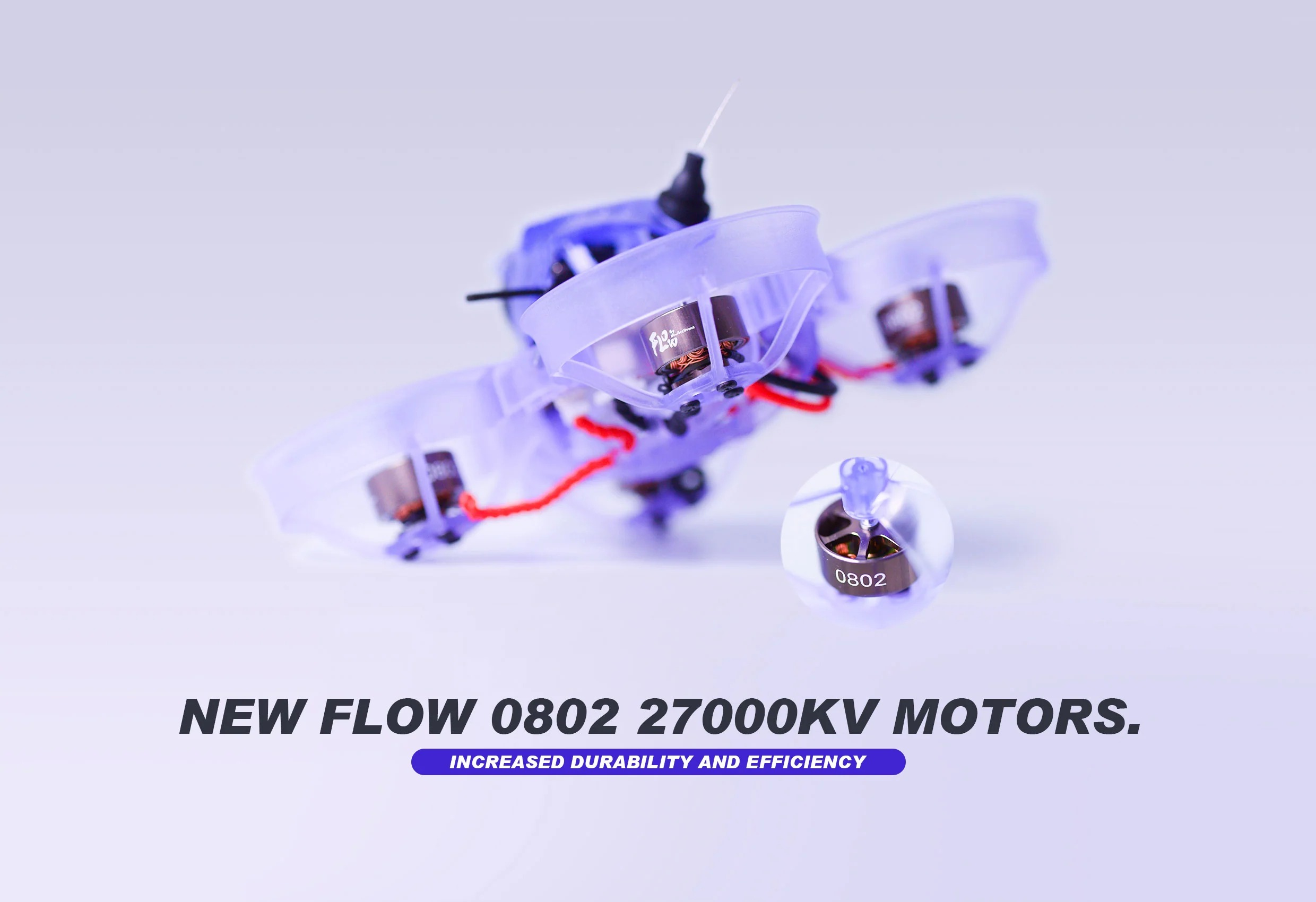

Motors: Flow 0802 27000kv (new motor start ship on April 3rd)
Frame: Cockroach65 Brushless Frame Clear Purple
Camera Mount: Goober Canopy Clear Purple
Propeller: Azi Tri-blade 31mm 1.0 Clear Purple

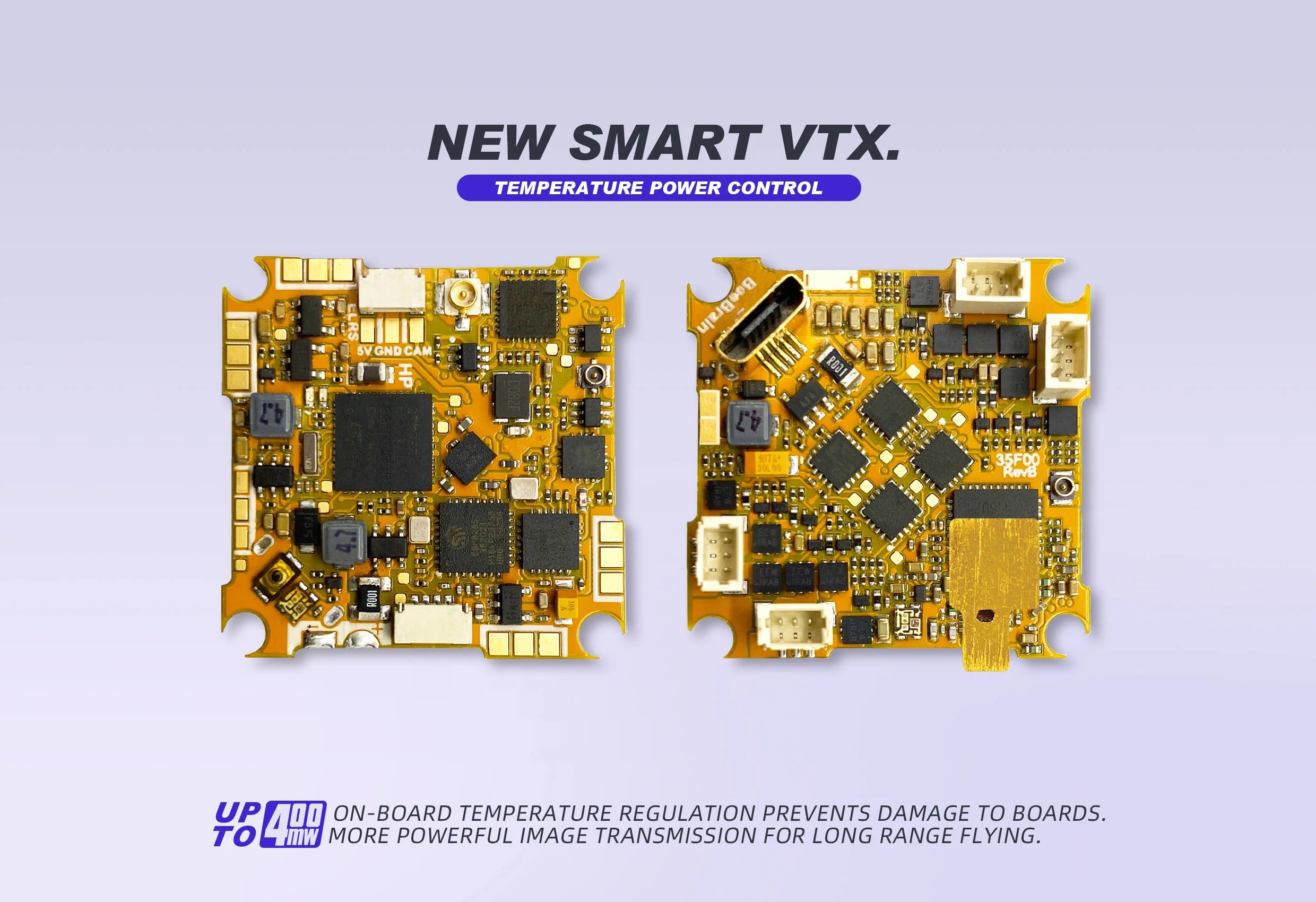

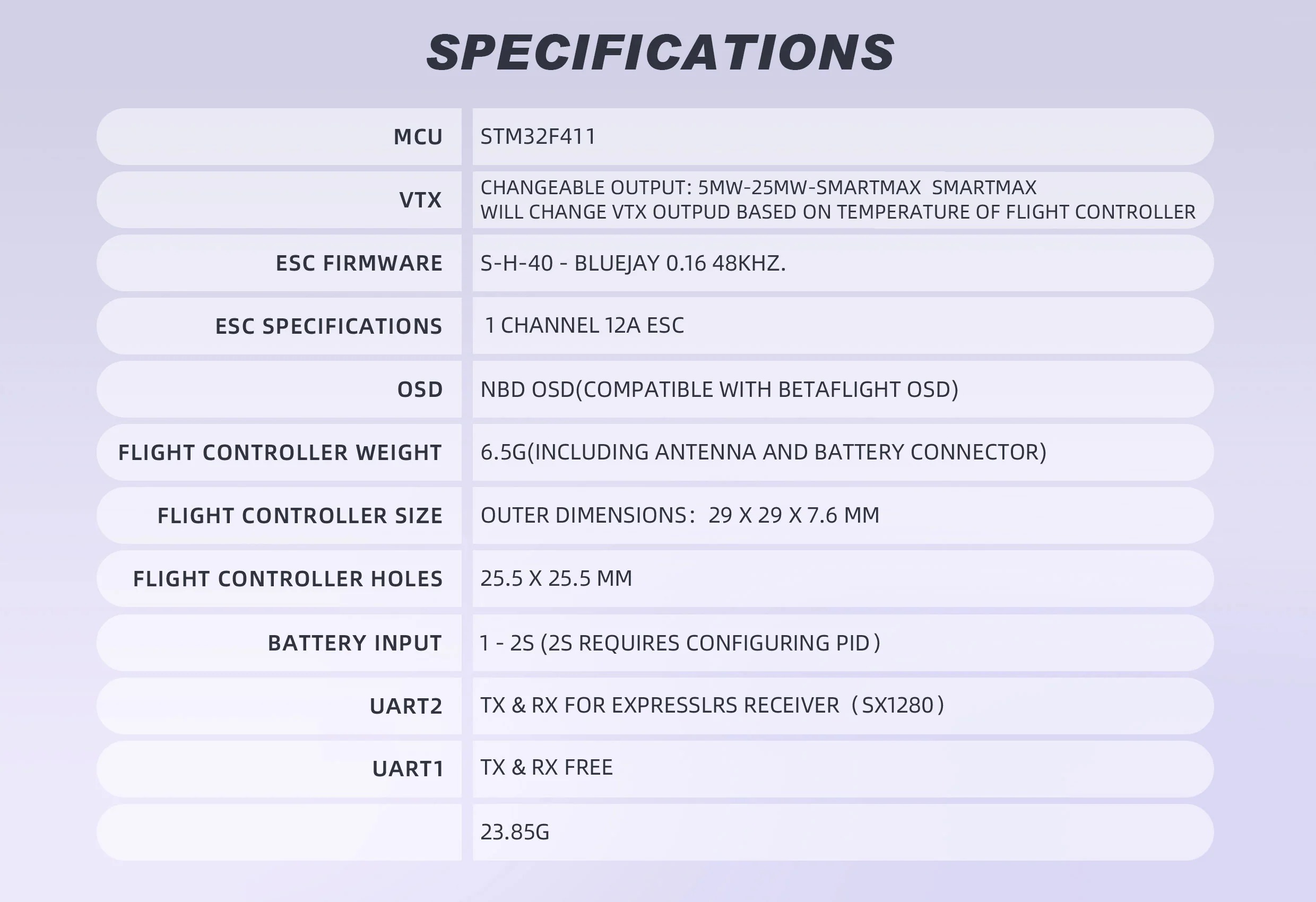

BeeBrain BLV4 ELRS Spec:

Flight Controller： BeeBrain BLv4 ELRS
MCU: STM32F411
VTX: Switchable output power from 5mw- 25mw(for Racing) – SmartMAX(SmartMax up to 400mw) with BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS Pre-Flash with Bluejay 0.16 target: S-H-40 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: ELRS2.4 Diversity receiver(ESP32 compatible with wifi&bluetooth firmware update) 2.4G T-Antenna(Top) & normal 2.4G antenna(bottom)
Flight Controller Weight: 6.5g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5×25.5mm
Battery input: 1-2S (Preset only support 1S, 2S will need throttle cap at less 50%)
Uart2: Tx&Rx for ExpressLRS2.4G Receiver
Uart1: Tx&Rx free
Power Connector: NBD-PH2.0 connector

Firmware:
1. BeeBrain blv4 ELRS3.0 receiver firmware
2. BeeBrain blv4 ELRS2.0 receiver firmware
3. BeeBrain blv4 ELRS Betaflight 4.4 firmware

What’s included:
1x NewBeeDrone AcroBee65 BLV4 BNF ExpressLRS 27000KV

Warning:

This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.

Note* The 27000kv motor on your device is designed for high performance and may be too strong for most users. To ensure safety, the factory has set the device to only use 80% of the maximum power by default. However, if you require more power, it is possible to adjust the settings through the Betaflight software, which can be accessed under the PID tab. Please note that increasing the power beyond the default setting may increase the risk of damage to the device or injury to yourself or others, and should be done with caution.
