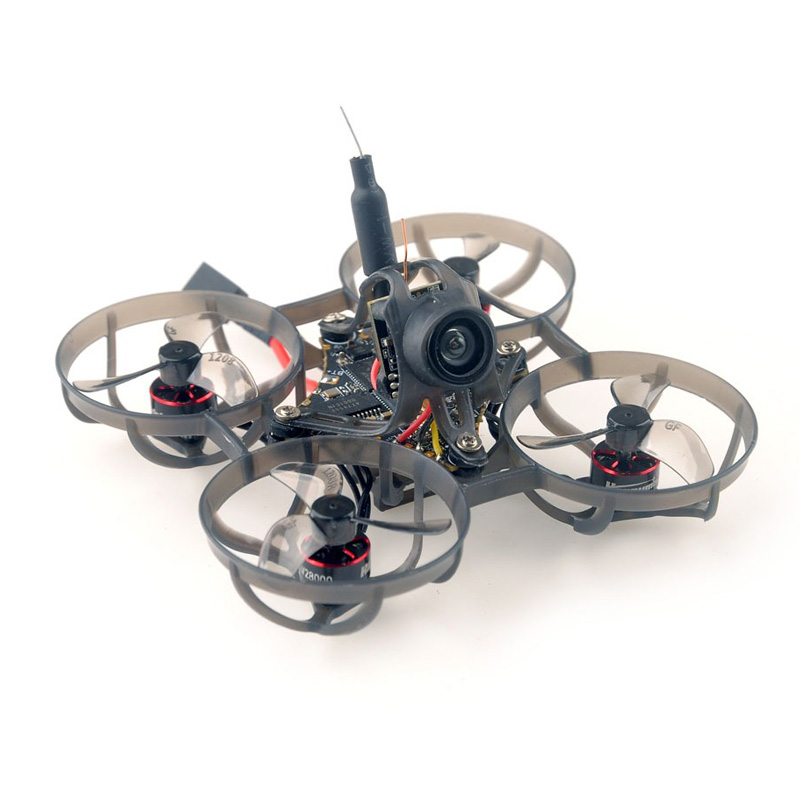

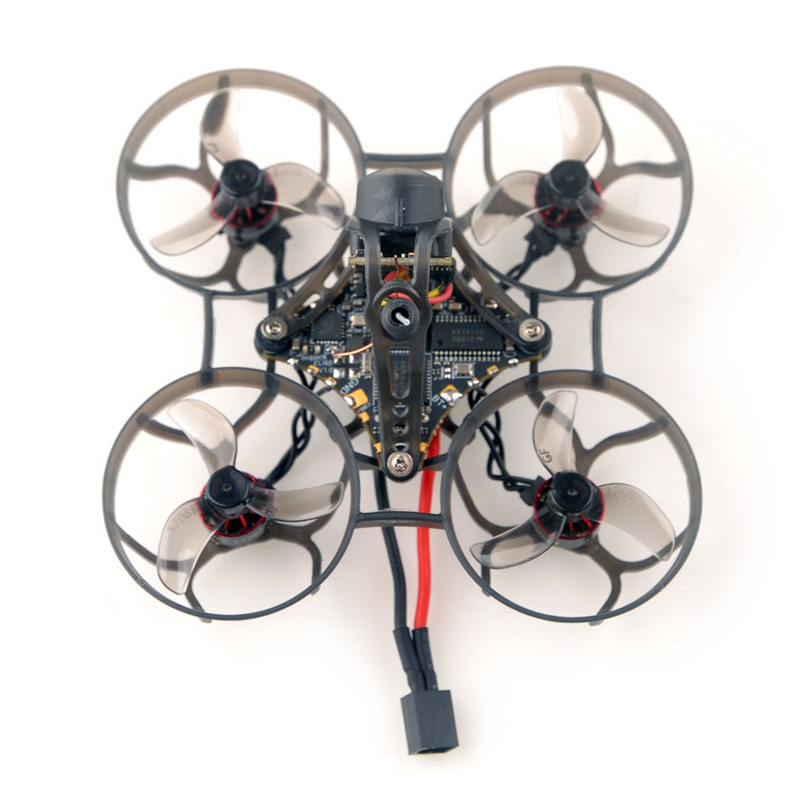

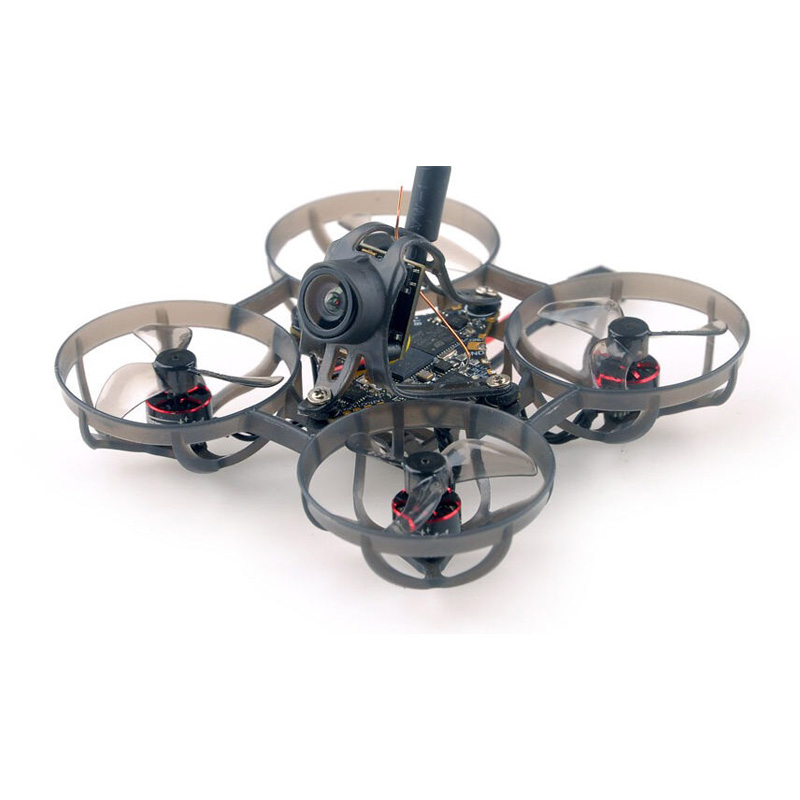

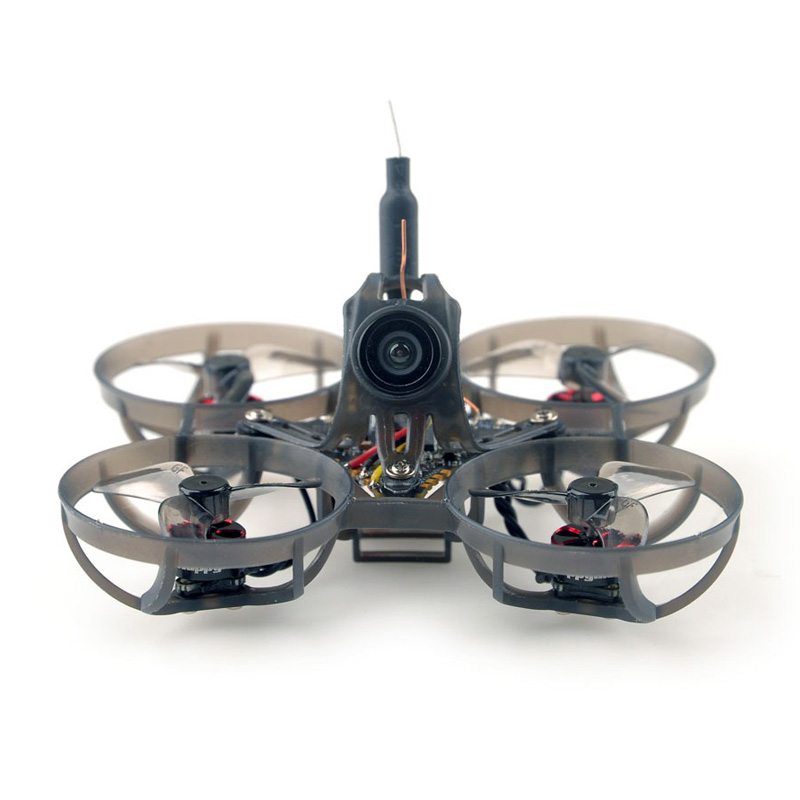

HappyModel Mobula6 2024 BNF ExpressLRS V2

Description

Note: The only difference for v2 is it comes with V2.0 AIO FC with motor plug for convenience in replacing motors (V1.0 AIO FC is soldered motors)

The HappyModel Mobula6 2024 BNF ExpressLRS delivers unparalleled FPV adventures. Experience ultra-light agility and cutting-edge features for unmatched aerial excitement.

Features:

• AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
• Super light 1S 65mm Brushless whoop only 17.7g
• Equipment with the lightest brushless motors-SE0702 only 1.46gram
• FX17-B 1/3 CMOS 800TVL Camera awesome footage
• Smooth and powerful
• Compatible for 1S Lipo/LIHV

Specifications:

• Wheelbase: 65mm
• Size: 81mm*81mm*37mm

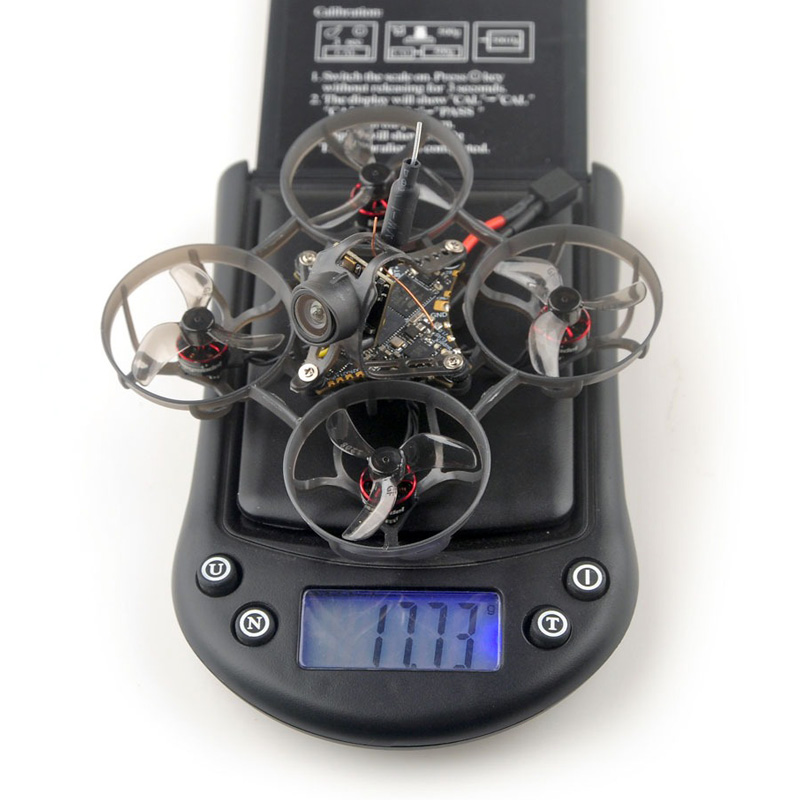

• Weight: 17.7g

Includes:

• 1x Mobula6 2024 1S 65mm whoop Drone Frame +  Canopy
• 1x SuperX ELRS AIO 5-IN-1 Flight controller
• 4x SE0702 KV28000 brushless motor
• 1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
• 1x FX17-B 1/3 CMOS 800TVL camera NTSC 4:3
• 1x Onboard 5.8G 25mw~400mw VTX
• 1x Spare canopy
• 1x Propeller disassemble tool
• 1x Screw driver

Parts Specifications:

Motor

• Mode: SE0702 KV28000
• Configu-ration: 9N12P
• Stator Diamter: 7mm
• Stator Length: 2mm
• Shaft Diameter: Φ1mm
• Motor Dimension(Dia.*Len): Φ9.5mm*14mm
• Weight(g): 1.46g
• No.of Cells(Lipo): 1S only

Propellers

• Materials: PC
• Inch: 31mm
• Pitch: 0.8 in
• Weight: 0.21g
• Mount hole diameter:  1mm

Flight controller

• SuperX ELRS AIO 5-IN-1 Flight controller
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
• Sensor:BMI270(SPI connection)
• Mount hole size: 25.5mm*25.5mm
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
• Built-in UART ExpressLRS v3.0.0
• Built-in voltage meter sensor , voltage meter scale 110
• Built-in current meter sensor , current meter scale 1175

Onboard 4in1 ESC

• Power supply: 1S LiPo/LiPo HV
• Current: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: Bluejay v0.19.2
• Default protocol: DSHOT300
• Recommend ESC Startup power value to min1100/max1200

Onboard Serial ExpressLRS receiver

• Packet Rate option: 50Hz/150Hz/250Hz/500Hz
• ExpressLRS Firmware version: V3.0
• RF Frequency: 2.4GHz
• Antenna: Enameled copper wire antenna
• Telemetry output Power: <12dBm
• Receiver protocol: Serial_based CRSF
• Compatible with ExpressLRS V3.x.x TX Module
• Could flash single ELRS receiver firmware by Wifi
• ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx

Onboard 5.8g VTX

• Firmware version: OPENVTX
• MSP VTX
• PIT Mode support
• Channels: 40ch
• Transmitting Power: 0/RCE/25mw/100mw/400mw
• Power supply: DC 5V
• Current (5v): <650ma (400mw)
• Antenna connector: U.FL

FX17-B Camera

• Model: FX17-B
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• FOV 150°
• Signal System: NTSC
• Net Weight: 1.5g
• Dimensions: L14mm*W14mm*H13mm

Spare Parts (Not Included)

• Frame: HappyModel Mobula6 2024 Frame (Grey/Clear)
• Canopy: HappyModel Mobula6 2024 Camera mount bracket
• Motor: HappyModel SE0702 KV28000 for Mobula6 2024
• Camera: HappyModel FX17-B FPV Nano Camera
• Charger: VIFLY WhoopStor V3 6 Ports 1S Storage Charger Discharger
• Props: TBC

Recommended Batteries (Not Included):

• GNB Battery 3.8V 60C 300mAh 1S HV A30 Head Connector
• GNB Battery 3.8V 60C 380mAh 1S HV A30 Head Connector
