AtomRC Seal Glider 1500mm RC FPV Airplane (Kit/PNP)

Description

The ATOMRC Seal is a configurable Glider offering easy flying, long flight times, and flexible FPV platform, it can be setup as 1100mm or 1500mm Wingspan using the included components.

Features

• Classic glider (bixler style), Good gliding ability easy for beginners.
• Detachable wing design, user can choose 1100mm wing span or use extend wing to 1500mm wingspan.

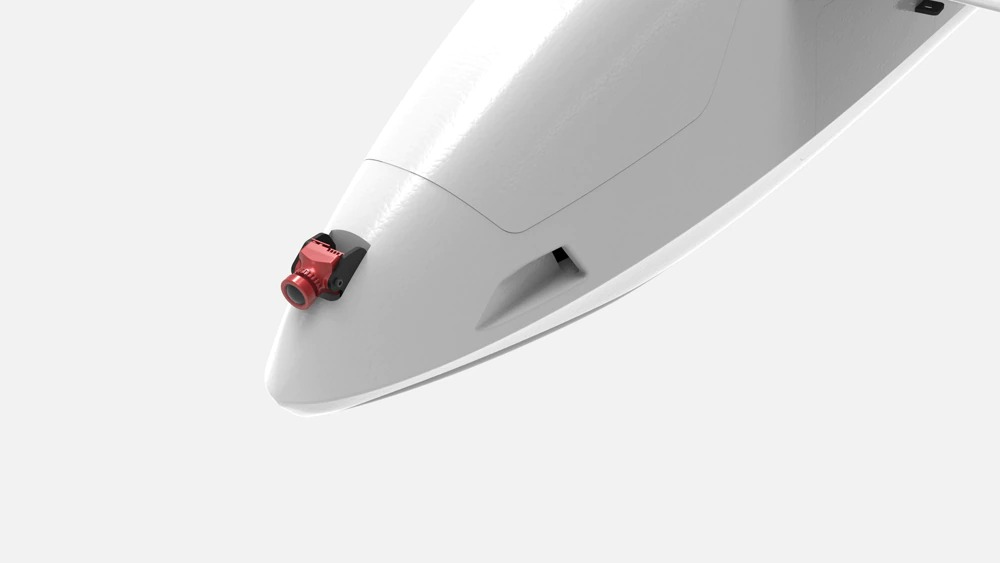

• Design for FPV, ESC, FC VTX and Camera all have installation area. Easy to build and maintain.

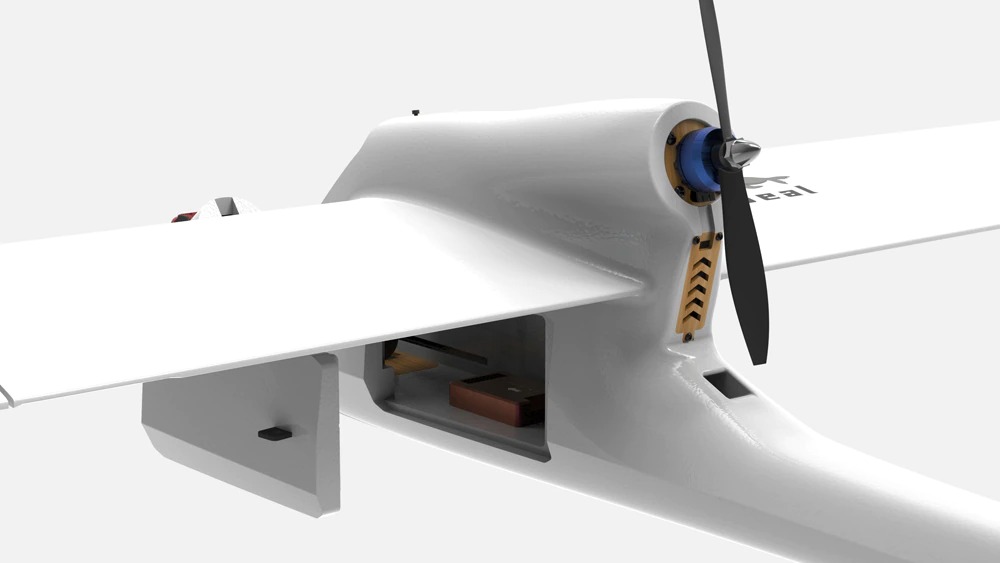

• Side door for install Flight controller, easy to wiring and maintain.

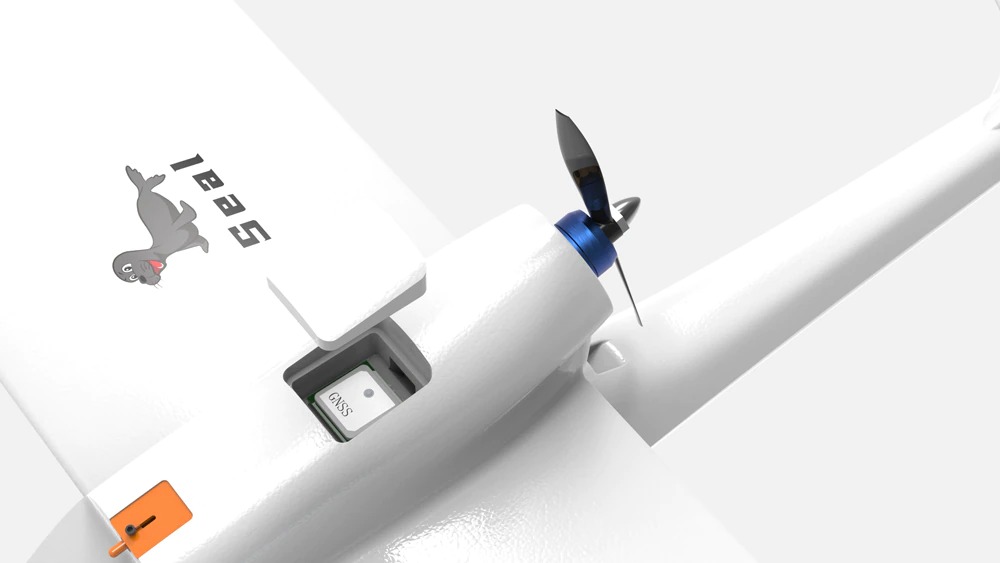

• Two hatch, flat hatch for gimbal or DJI Air uint.
• Air cooling duct design, reduce the heat inside the fuselage.

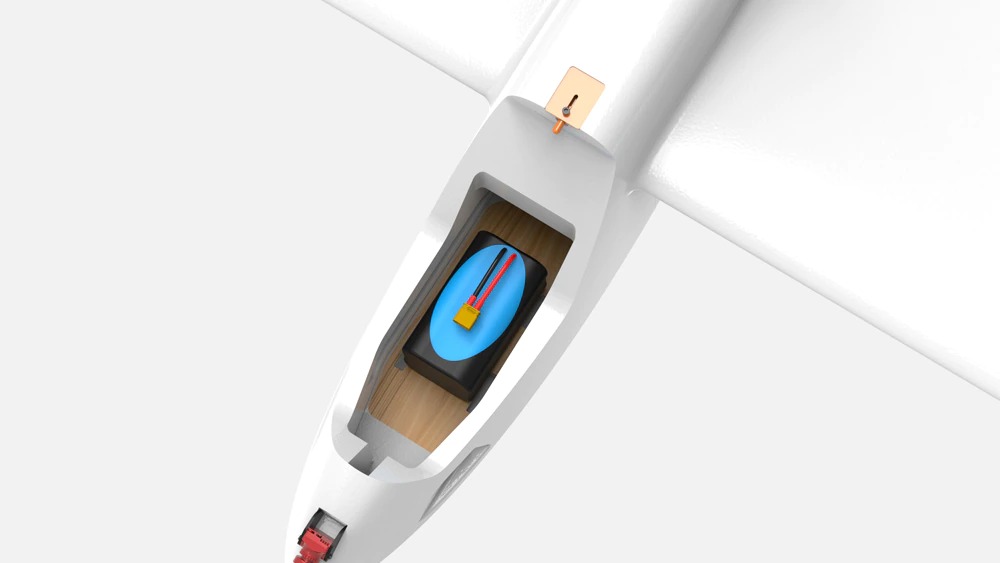

• Huge battery bay, recommend 3000~5000mAH 4s1P battery, battery support up to 4S2P 21700 lion.

Specifications

• Wingspan:1500mm/1100mm
• Length:950mm
• Material: EPO
• WingArea:25.7d㎡/17.8 d㎡
• Package size:560*290*210mm
• Recommend motor: 2212 1400KV
• Recommend prop: 8040
• Recommend battery:
• 21700 4S1P /3000~5000mAH 4s1P
• Servo: 4* 9g servo
• PNP version：（2212/1400KV 8040 prop 21700/4s1p 4500mAh）
  • Recommend take off weight: 1100g（1500mm）
  • Max. take off weight:1400g（1500mm）
  • Cruise speed：50km
  • Cruise current：4.1A
  • Flight time: up to 60min
  • Travel：50km

Batteries

1100mm wingspan use the smaller packs listed, 1500mm use larger packs or expect to use weights to achieve CG)

• GNB Battery 14.8V 100C 2200mAh 4S
• GNB Battery 14.8V 110C 2600mAh 4S
• GNB Battery 14.8V 100C 3000mAh 4S
• GNB Battery 14.8V 90C 4200mAh 4S need to conver power plug
• 4S Li-Ion packs COMING SOON for Long Range.

This is a large shipping item

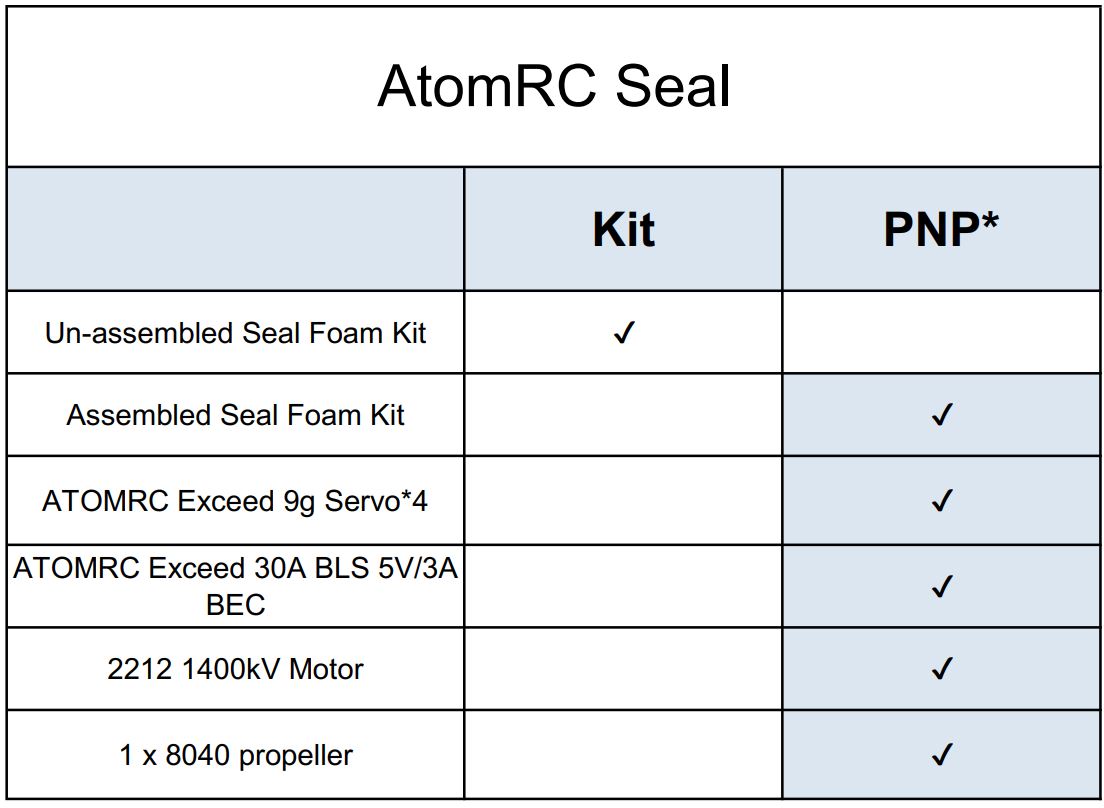

* Note the PNP version the air frame/foam parts are assembled but the electronics are NOT assembled.
