Foxeer Micro Lollipop 5.8GHz RHCP Antenna 2PCS Black (5 Connector Types)
by Foxeer

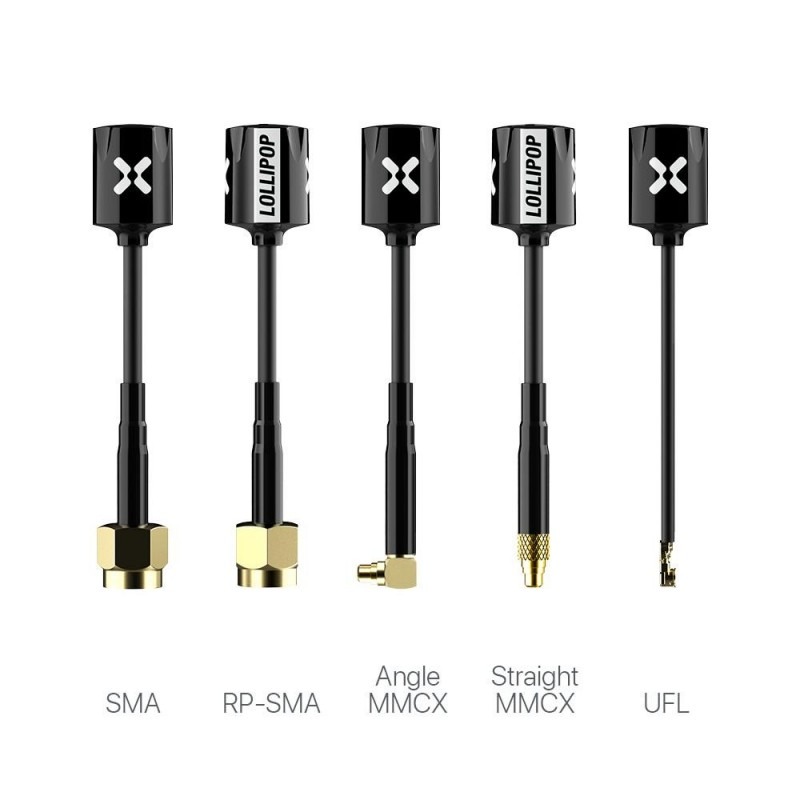

A pair of Foxeer Micro Lollipop 5.8GHz RHCP Antenna availble in SMA, RP-SMA, U.FL, MMCX 90°,MMCX Straight, the pinnacle of lightweight high performance micro Antennas
$32.99
Description
Quantity 2pcs Antennas
SMA, U.FL, MMCX Straight are Black Colour
MMCX 90° RPSMA are RED Colour
Specifications:
Center Frequency 5.75GHz
Gain 2.5dBi
Axial Ratio Close to 1
Band Width 5.5G~6GHz
Radiation Efficiency 98%
SWR 1.06 at Center Frequency
Polarization RHCP
Case Material PC+ABS
Weight
SMA/RPSMA: 4.7g
AngleMMCX/MMCX: 3.2g
UFL: 1.6g
Dimensions
UFL Tube: 11*130mm 65mm cable/45mm tube,
SMA/RPSMA/AngleMMCX/MMCX: 11*65mm
Quantity 2pcs Antennas
Additional information
| Brand | |
|---|---|
| Connector | SMA, RPSMA, U.FL, MMCX 90deg, MMCX |
