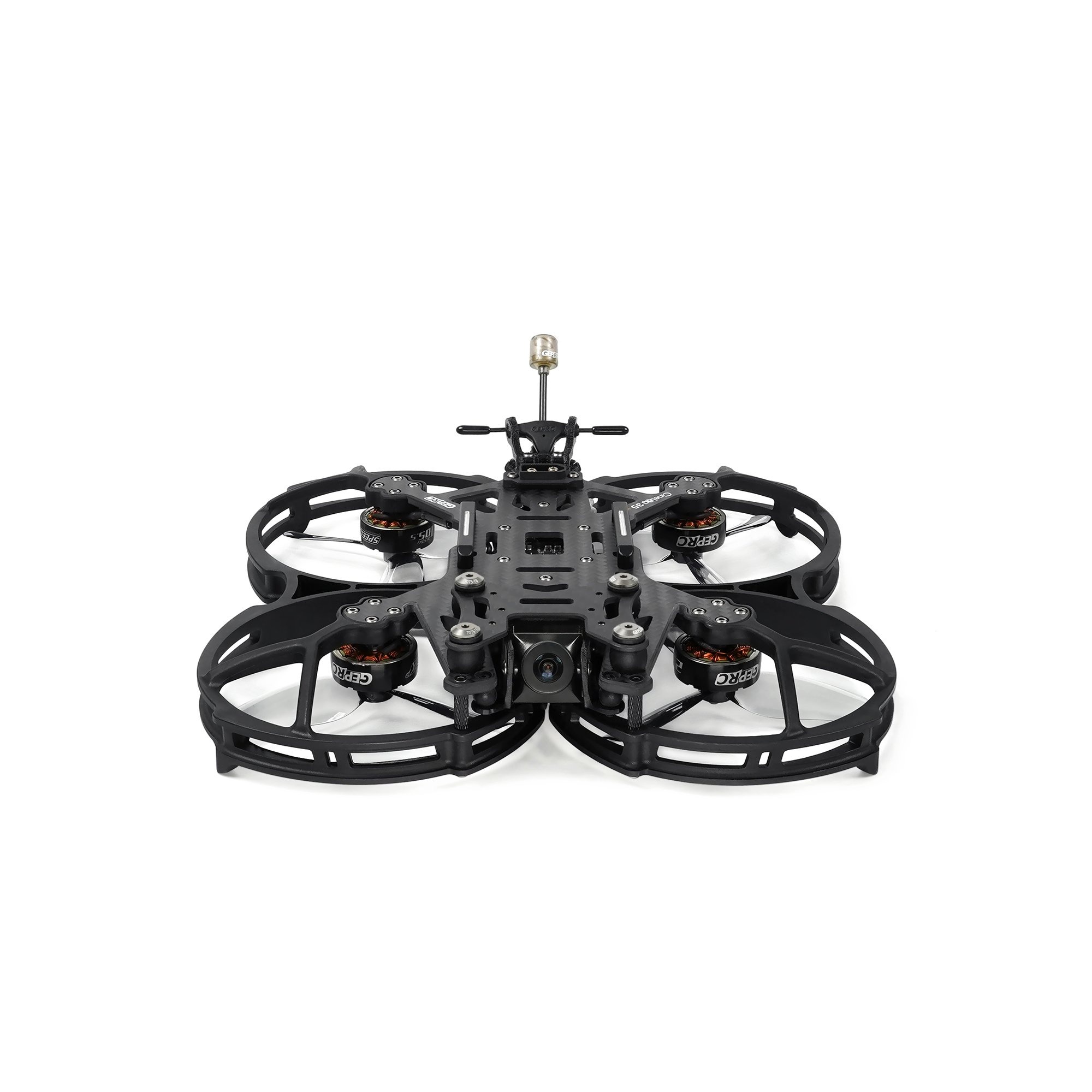

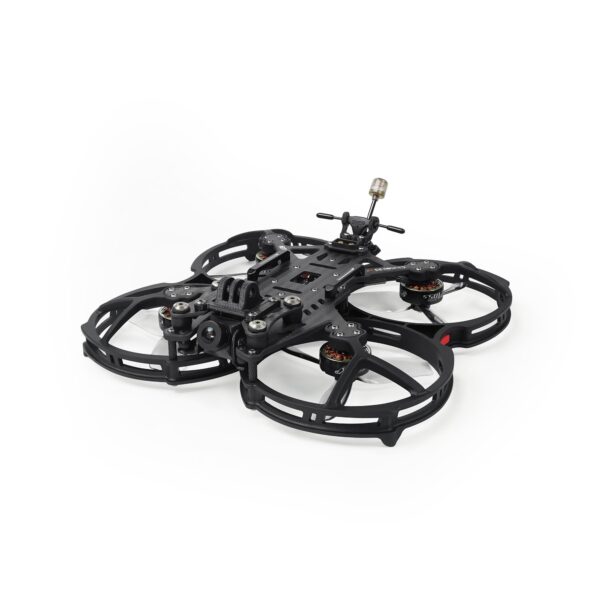

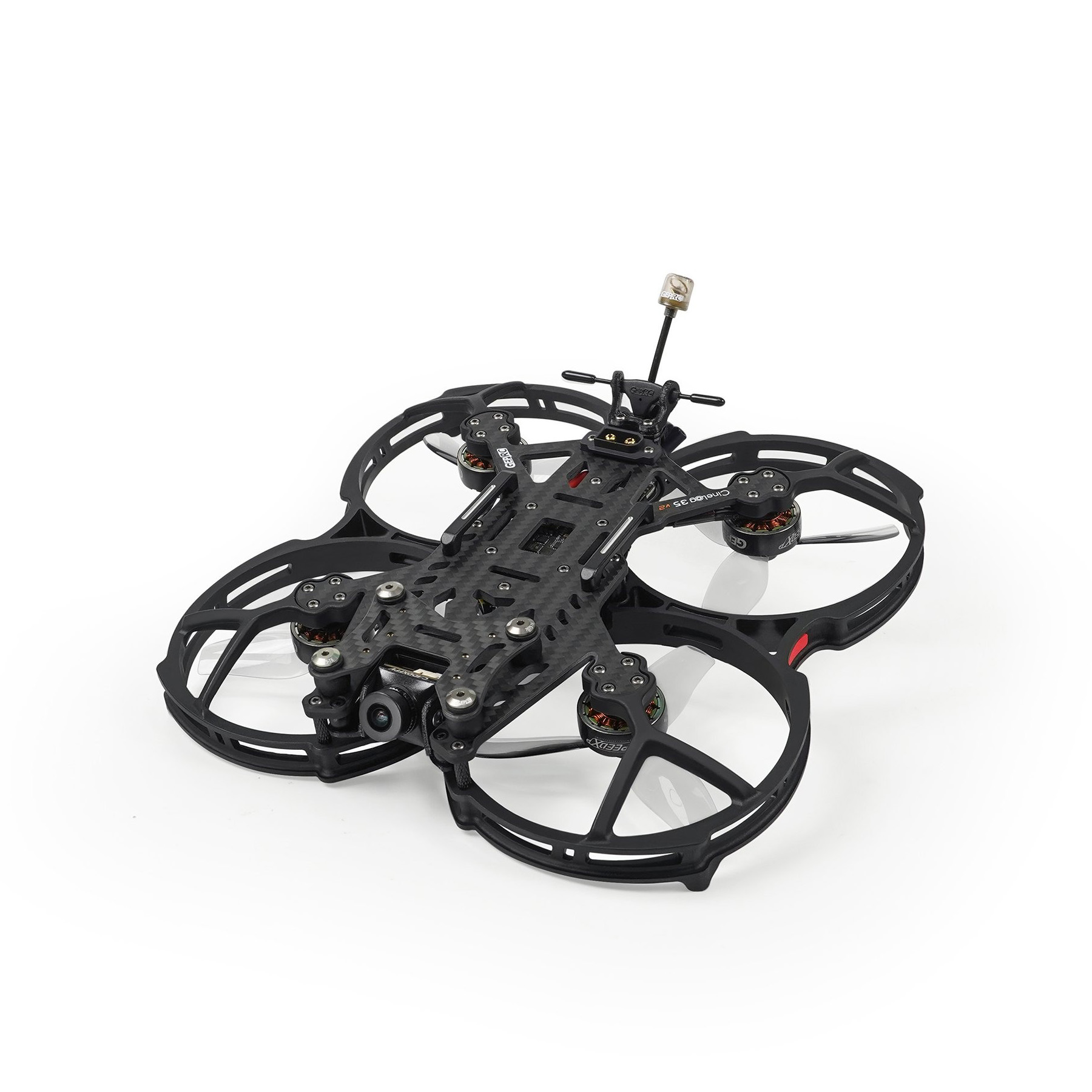

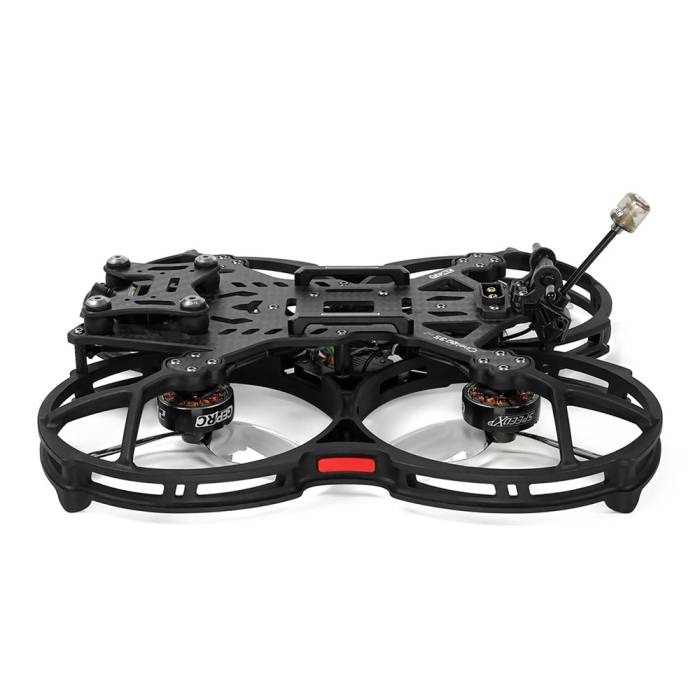

GepRC CineLog35 V2 3.5″ CineWhoop Drone Analog + GPS BNF ExpressLRS

Description

The CineLog 35 V2 features a Caddx Ratel 2 camera, main carbon plate, and injection protection frame with an increased 7075 aluminum column for structural strengthening. The battery mounting uses a tie with 7075 aluminum parts fixed, and the power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame adds a memory card and USB port for easy data reading. Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, this drone has more power with an aggressive system and faster response. This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors.

Note: Action camera is not included.

Features

The Caddx Ratel 2 camera is designed with an independent under-hanging shock absorption gimbal
Strengthened carbon plate, hollow design, injection protection frame, and noise reduction design
Propeller Guard adds memory card and USB ports for easy data reading
GEP F722-45A AIO V2 high-performance flight controller
Carefully tuned 3.5-inch Analog cinematic FPV drone
SPEEDX2 2105.5 motors with HQ DT90 propellers
7075 aluminum parts are fixed, solid and stable
XT60E1-M Power Cable

Specifications

• Receiver: GEPRC ELRS 2.4G
• Antenna: GEPRC Peano 5.8G RHCP UFL
• Motor: SPEEDX2 2105.5-2150KV（6S）
• OSD: Betaflight OSD w/AT7456E chip
• CineLog35 V2 Analog weight: 263.8g
• FC system: GEP-F722-45A AIO V2
• Model: Cinelog35 V2 Analog
• Propeller: HQProp D-T90MM
• VTX: GEPRC RAD 1W(UFL)
• Flight time: 5′00″ -8′ 30″
• MCU: STM32F722RET6
• Camera: Caddx Ratel 2
• Bottom plate: 1.5mm
• Gimbal plate: 2.0mm
• Frame: GEP-CL35 V2
• Wheelbase: 142mm
• Gyro: ICM 42688-P
• Top plate: 3.5mm
• ESC: 8Bit 45A
• GPS: Included

Spares and Reccomended Accesories:

• Gemfan D90 3-Blade Ducted 90mm (3.5″) Propellers (Set of 4)
• HQProp T3.5×2.5×3 Propellers (Set of 4 – Grey)
• Value lightweight Pack: CNHL 6S 100C 1000mAh
• Our most popular lipo: CNHL 6S 100C 1300mAh
• Premium Lightweight Lipo: GNB Battery 22.8V 120C 1300mAh 6S HV

Package Includes:

• 1x GEPRC CineLog 35 V2 3.5″ Analog Cinewhoop Drone w/ Caddx Ratel 2 – 6S (ExpressLRS)
• 1x L-shaped screwdriver (1.5mm)
• 1x Naked GoPro Mounting Base
• 1x L-shaped screwdriver (2mm)
• 1x L-shaped screwdriver (3mm)
• 2x HQProp D-T90MM（2 pairs）
• 2x M20*250mm battery strap
• 1x Antenna fixed tube (pair)
• 1x Antenna Mounting Base
• 1x GoPro Mounting Base
• 2x Battery Silicone Pads
• 1x Plastic Tweezers
• 1x Hardware Set
• 1x M5 wrench
• 1x Keychain
