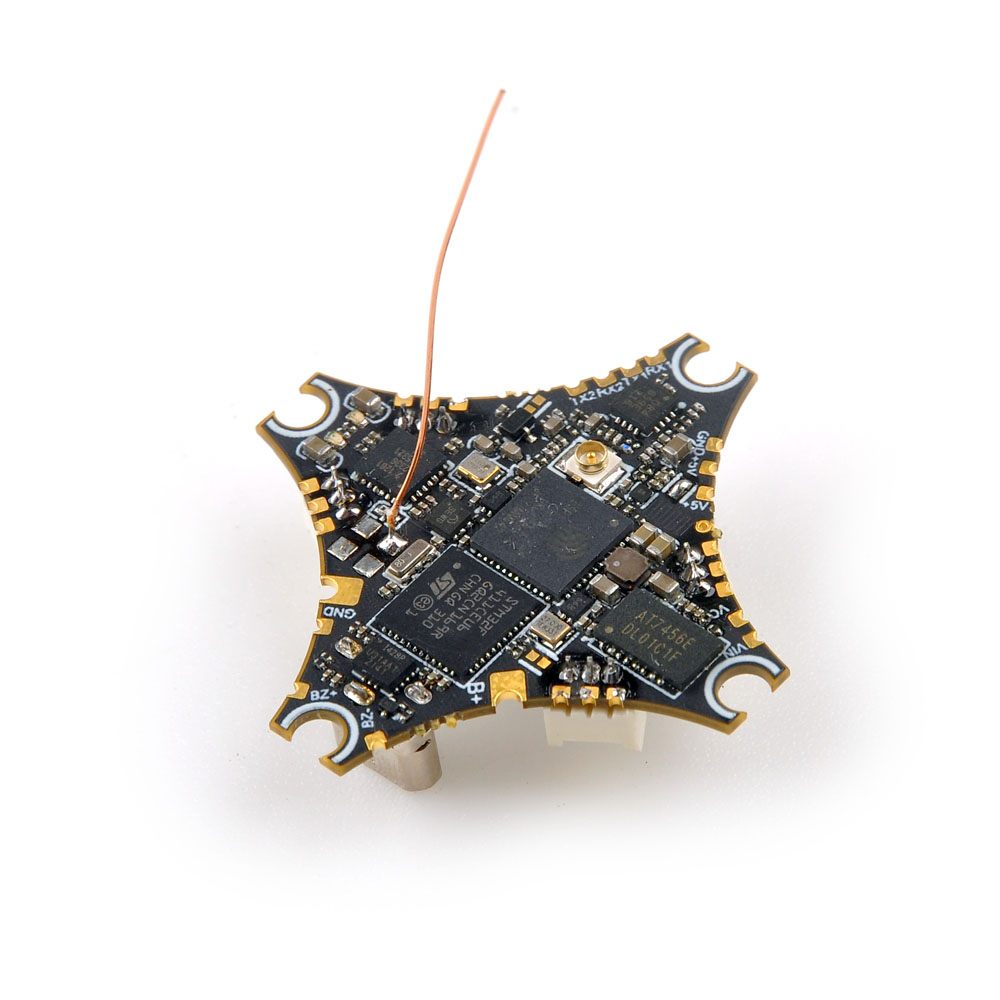

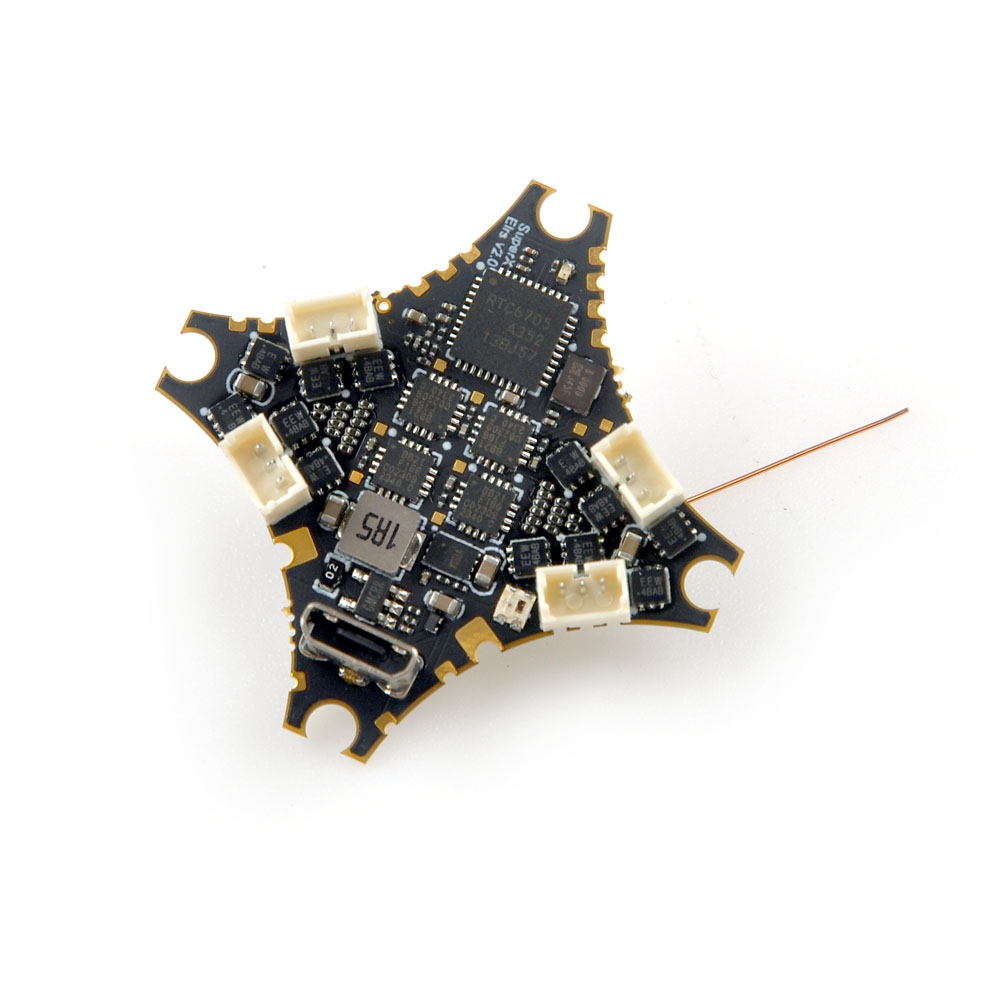

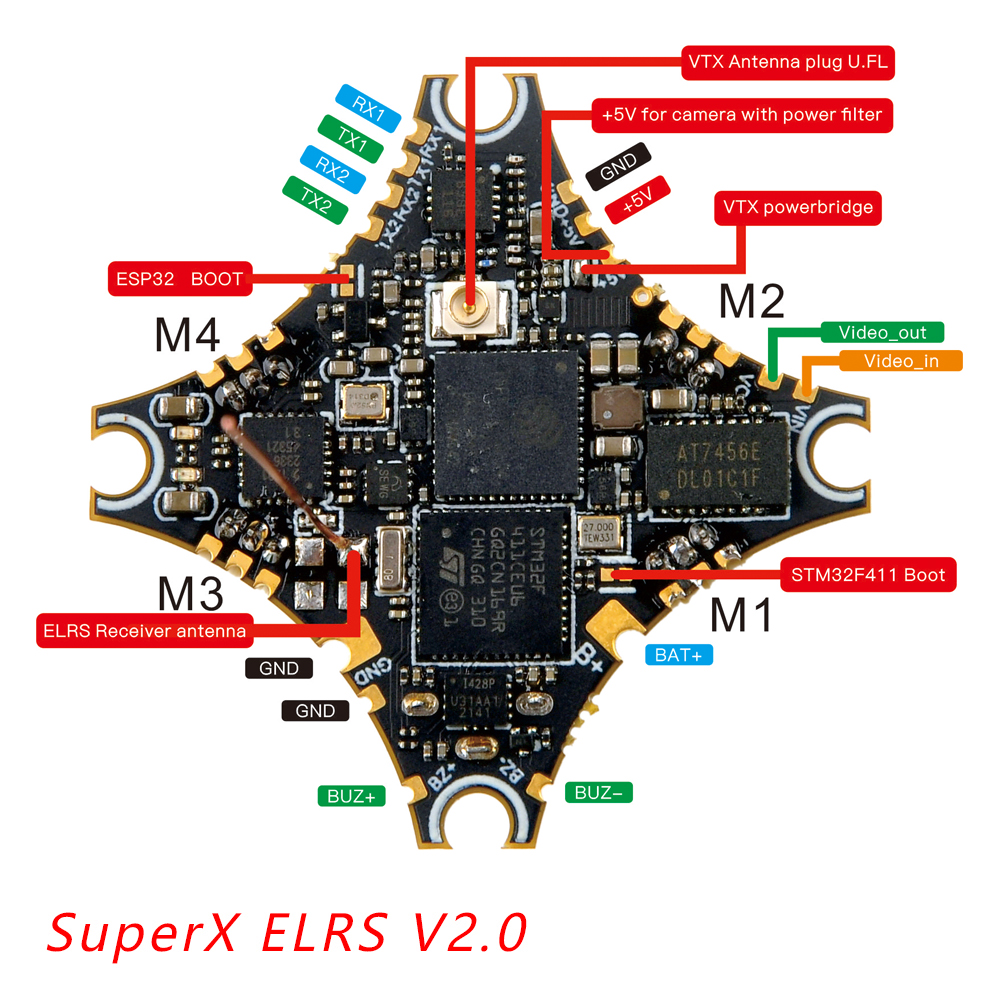

HappyModel SuperX V2.0 ELRS 5-IN-1 AIO Flight Controller

Description

The HappyModel SuperX V2.0 ELRS 5-IN-1 AIO Flight Controller is an ultra-compact powerhouse engineered for elite micro FPV performance. Featuring an STM32F411 MCU, ExpressLRS 3.0 receiver, 5A 4-in-1 ESC, OpenVTX up to 400mW, and Betaflight OSD, it delivers seamless control, efficient power, and clean video—all in one board. With WiFi flashing and reliable telemetry, this flight controller takes versatility and performance to the next level.

Specifications

Flight Controller

• MCU: STM32F411CEU6 (100MHz, 512K Flash) + ESP32-PICO-D4
• IMU Sensor: BMI270 (SPI connection)
• Mounting Pattern: 25.5mm x 25.5mm
• Power Supply: 1S battery input (DC 2.9V–4.35V)
• Built-in OSD: Betaflight OSD (SPI control)
• Built-in UART Receiver: ExpressLRS v3.0.0
• Voltage Meter Sensor: Scale 110
• Current Meter Sensor: Scale 1175
• Firmware Target: O-H-5 48KHz

4-in-1 ESC (Integrated)

• Power Supply: 1S LiPo / LiPo HV
• Continuous Current: 5A
• Peak Current: 6A (for 3 seconds)
• ESC Firmware: Bluejay v0.19.2
• Default Protocol: DSHOT300
• Startup Power Range: Min 1100 / Max 1200
• BLHeliSuite Programmable: Yes

Onboard ExpressLRS Receiver

• Frequency: 2.4GHz
• Protocol: Serial-based CRSF
• Packet Rate Options: 50Hz / 150Hz / 250Hz / 500Hz
• Telemetry Output Power: <12dBm
• Antenna: Enameled copper wire (U.FL connector)
• Firmware: ExpressLRS v3.0.0 (compatible with V3.x.x TX module)
• Flashing Method: Wi-Fi supported
• Firmware Target: HappyModel AIO 2.4GHz RX+VTX (available from ELRS v3.4.0 RC2)

Onboard 5.8GHz VTX

• Firmware Version: OpenVTX
• Control: MSP VTX (via Betaflight)
• Channel Support: 40 channels
• PIT Mode: Supported
• Output Power Levels: 0 / RCE / 25mW / 100mW / 400mW
• Power Supply: DC 5V
• Current Draw: <650mA (at 400mW)
• Antenna Connector: U.FL

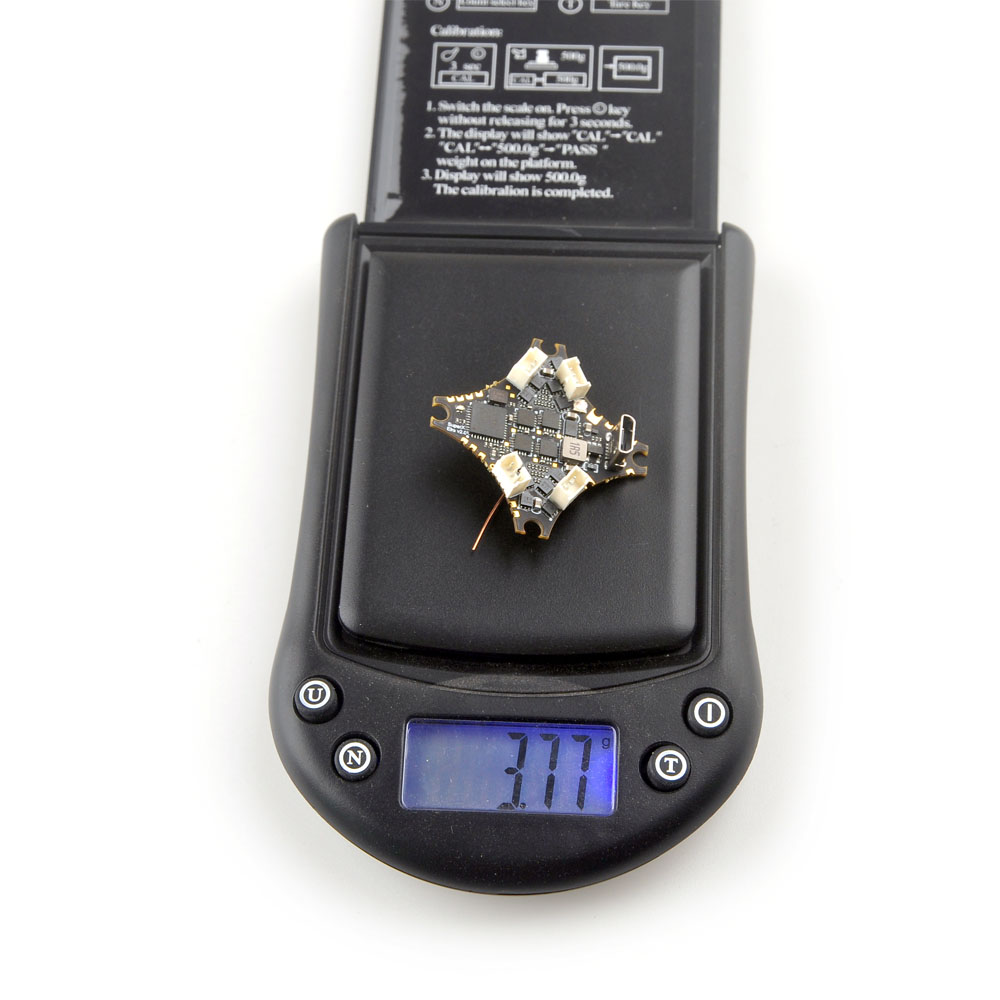

Weight

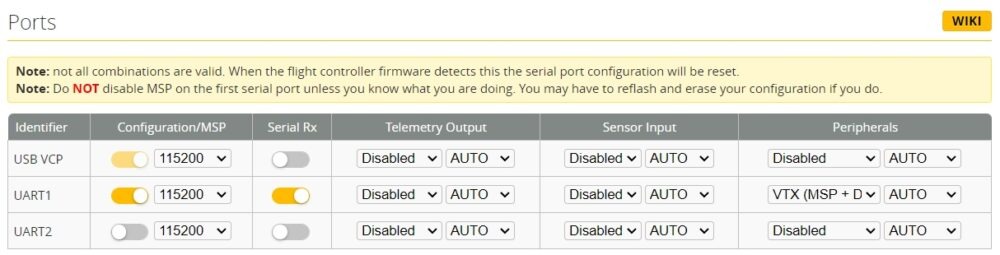

Port Settings

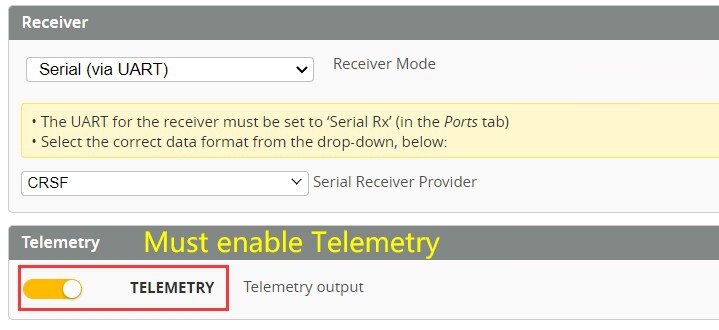

Receiver and Telemetry Settings

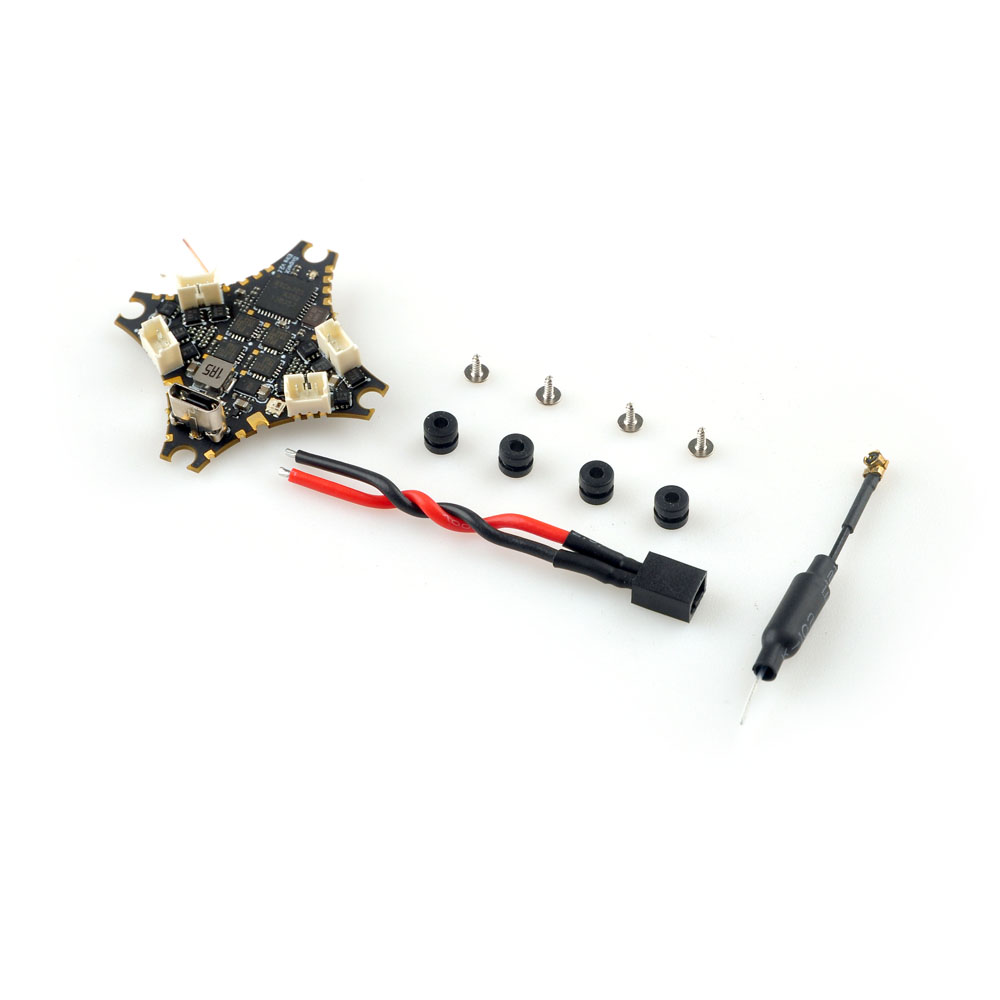

Package Includes

• 1 x HappyModel SuperX V2.0 ELRS 5-IN-1 AIO Flight Controller

Related Products (Not Included)

• Drone: HappyModel M8 Freestyle HDZero Mobula8 Micro FPV Drone
• Motor: HappyModel RS1102 KV13500 Brushless Motor for M8 Freestyle
