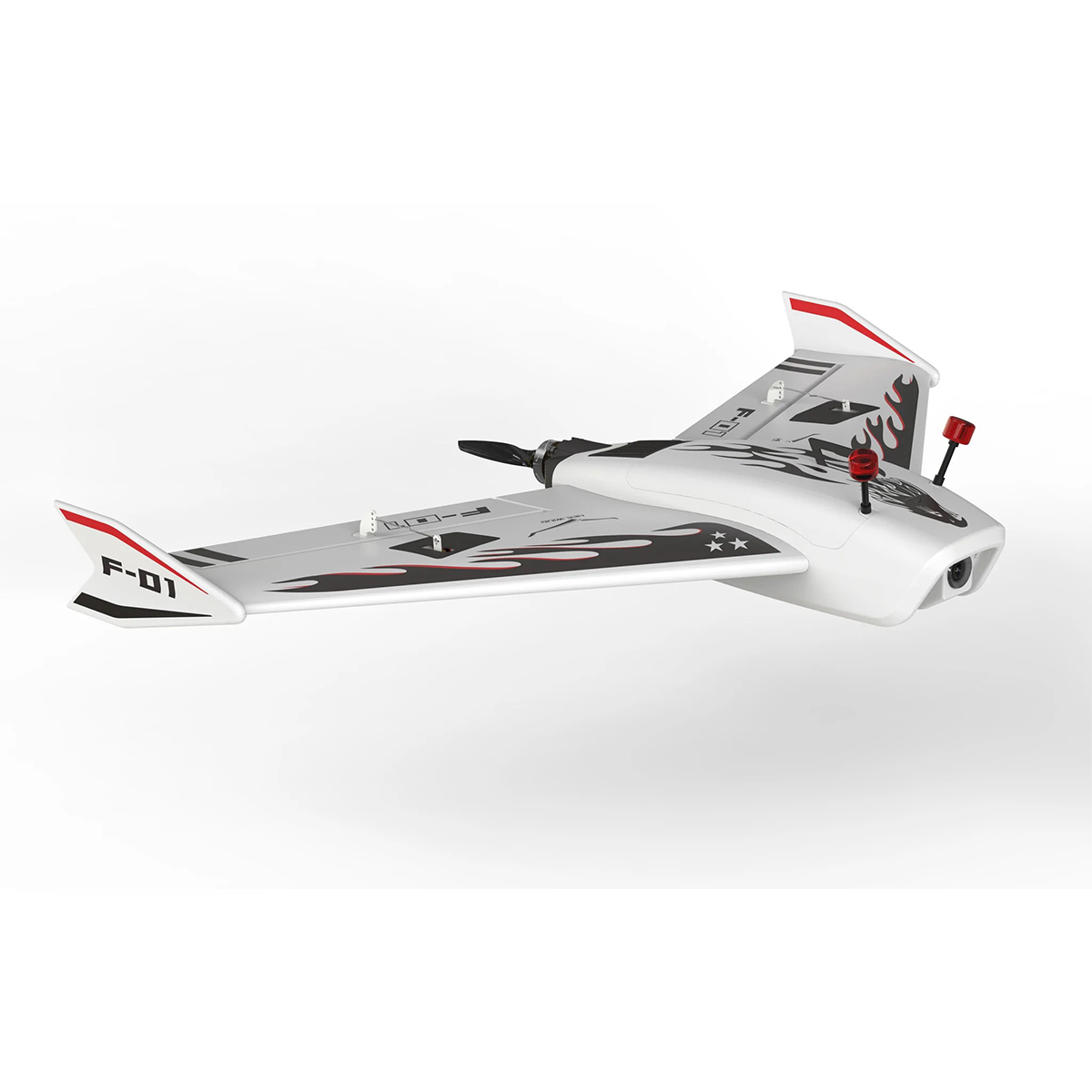

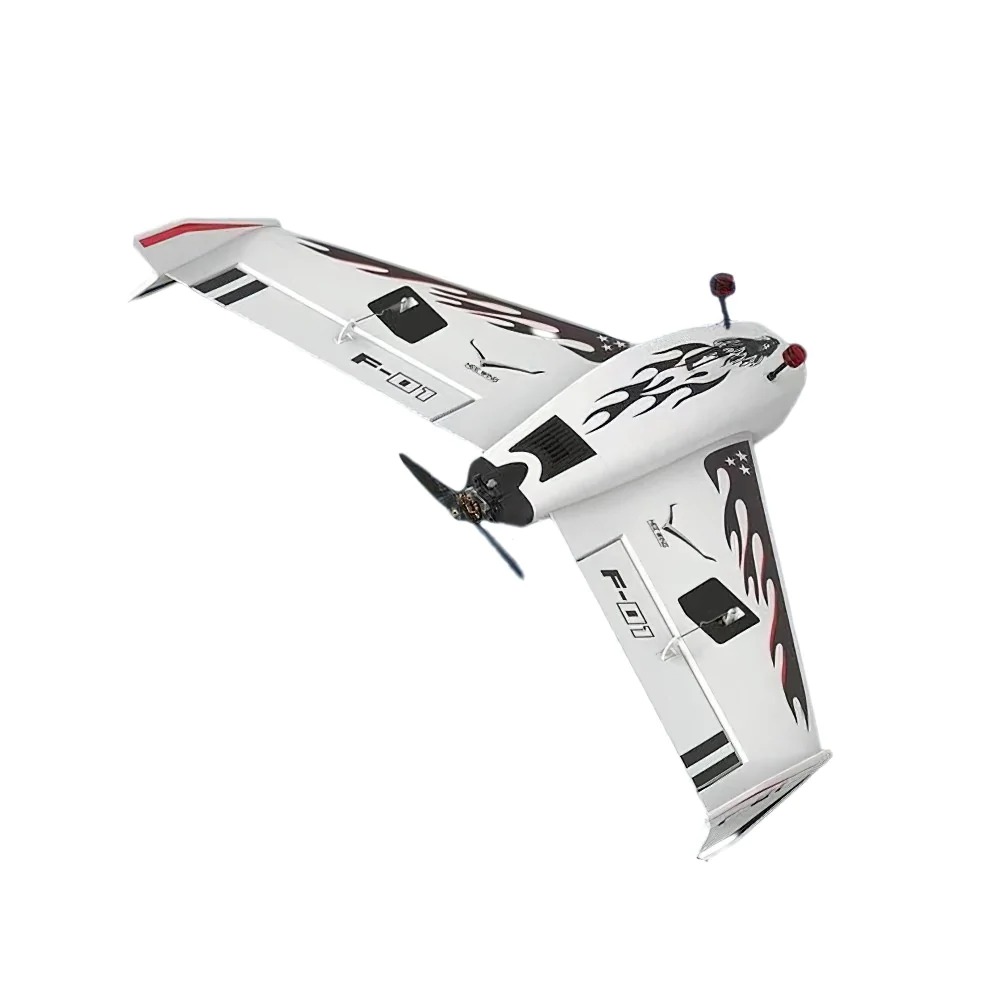

Hee Wing F-01 Fixed Wing 690mm (PNP/Kit)

Description

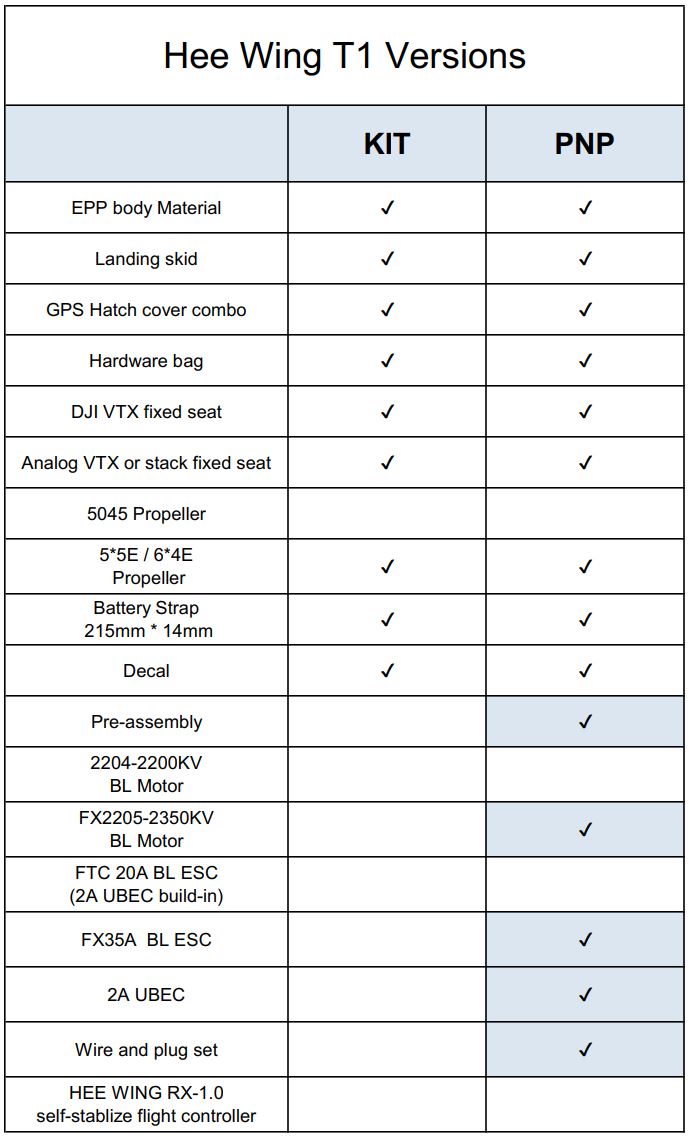

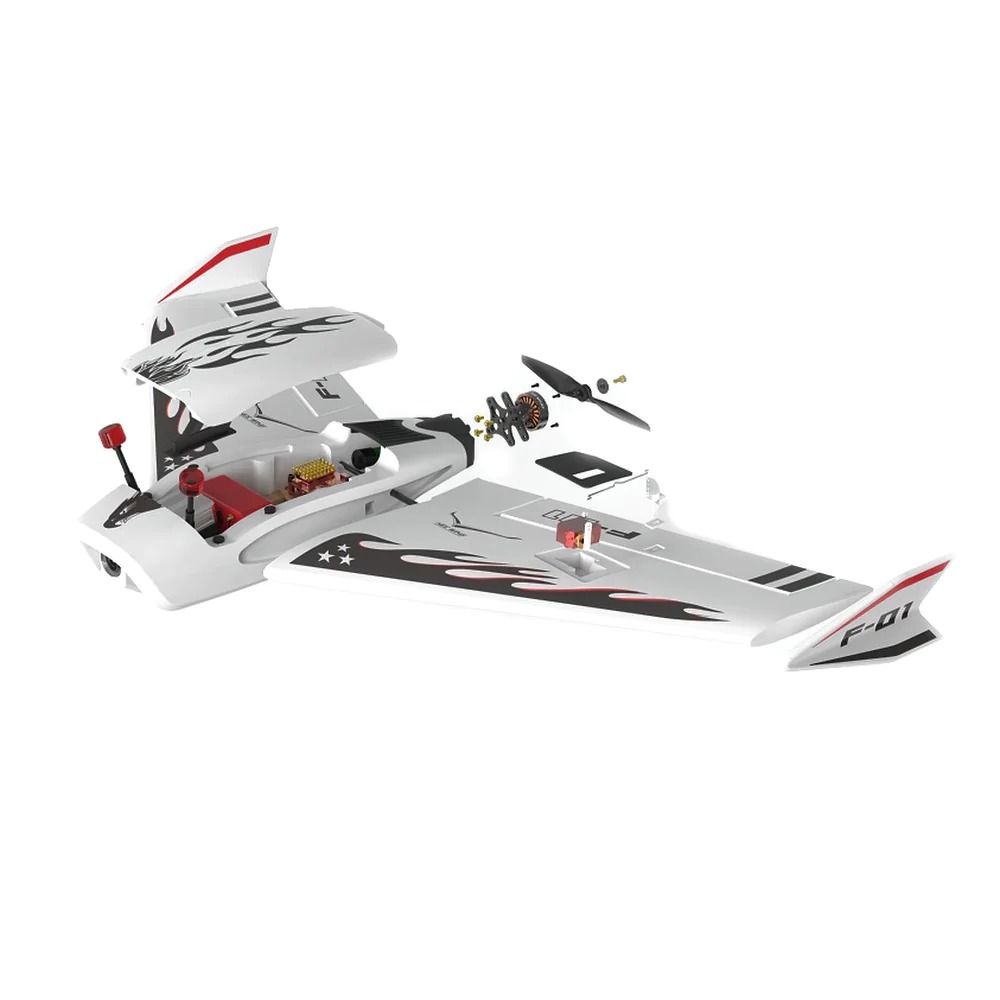

The Hee Wing WING F-01 Ultra Delta Wing RC FPV Airplane has an unobstructed convection cabin design which ensures that the electronic equipment inside the cab is always cool and worry-free. With both a KIT and PNP version availble, these are suitable for both Analog and Digital builds just add your FPV gear of choice and enojy!

Features

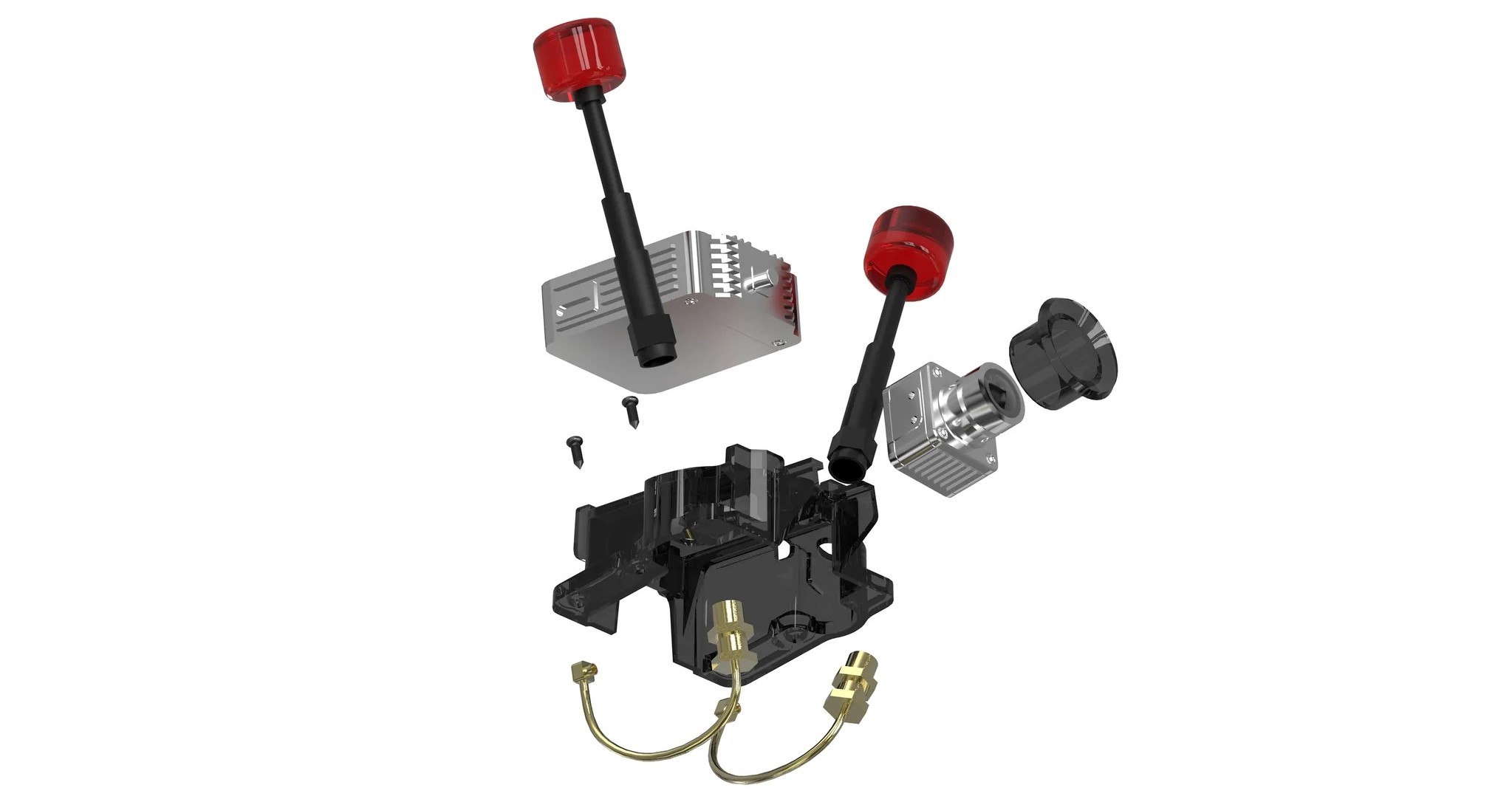

• Independent detachable lens plug for both FPV and visual observation flights
• Wings have embedded carbon fiber rods with different angles
• Small wingspan with large space for electronics electronics
• Four magnets are applied to the hatch for better fastening
• The new wingtip design supports vertical take-off mode
• Supports horizontal and vertical battery mounting
• Tailored lens ring for better protection

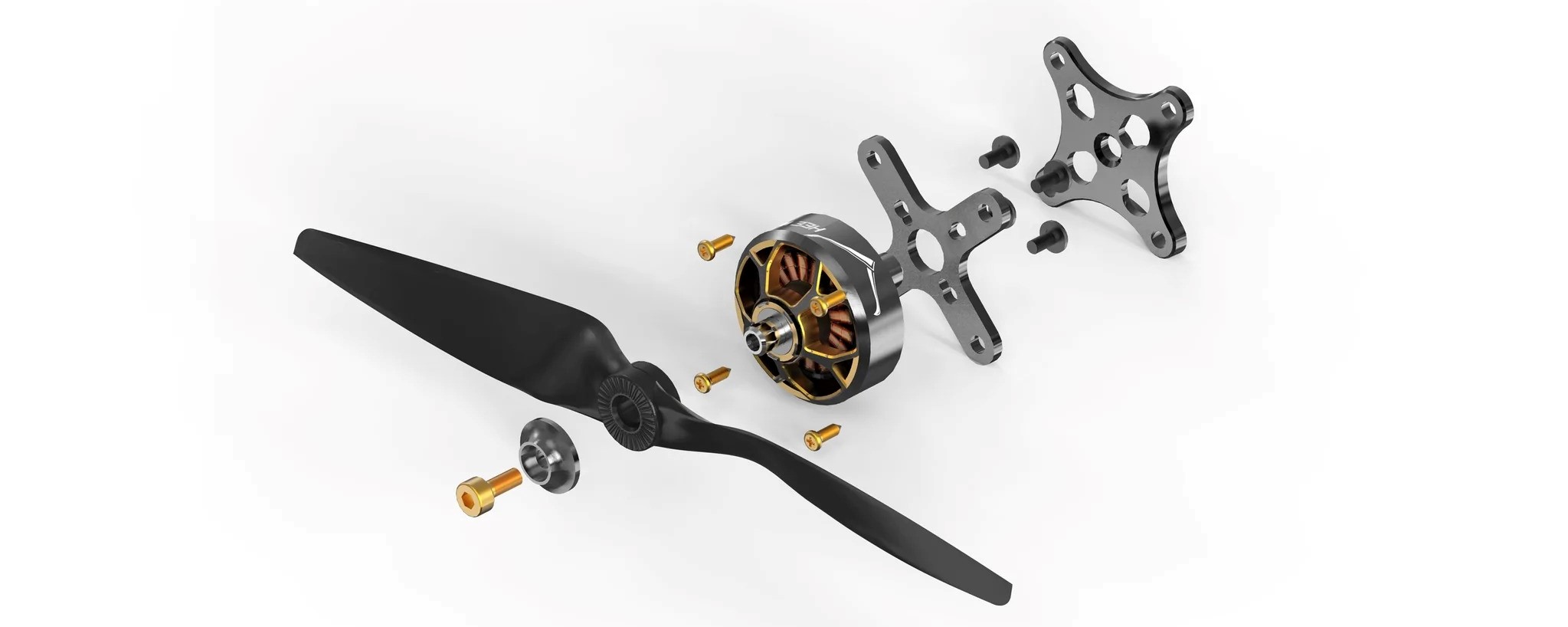

• All new propeller locking method
• Tailored for DJI Digital Air unit

Specifications:

• Camera: Guard Outer Diameter – 17.5mm. Inner Diameter – 14mm/15mm, Height – 12mm , Material – ABS
• Airplane Dimension: Wingspan 690mm, Height: 88mm, Length: 415mm

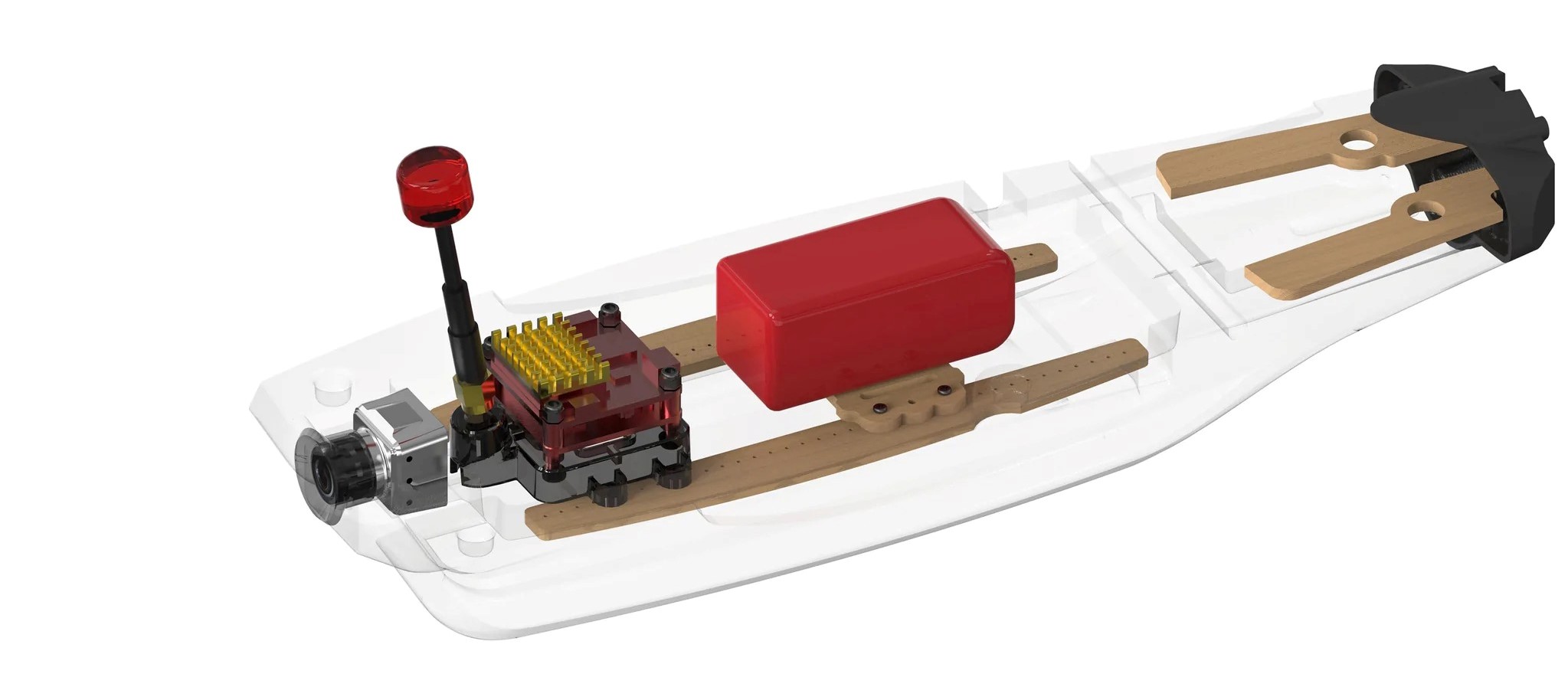

• Fuselage space: Battery compartment: 175mm*175mm*55mm

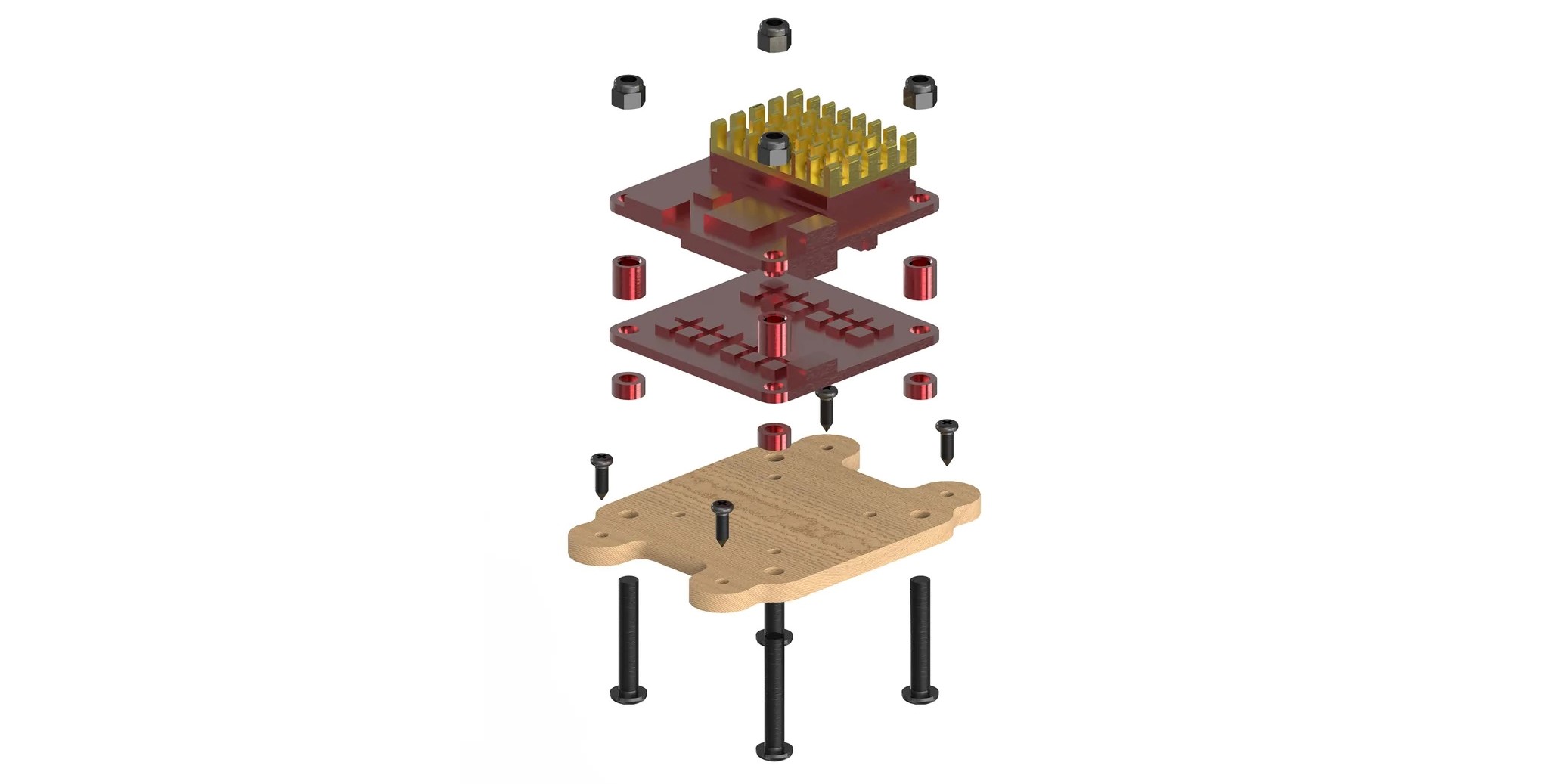

• VTX fixed seat: compatible with digital VTX and analog VTX
• KIT Weight: 150g (epp-30)/190g (epp-20)
• ESC compartment: 70mm*38mm*20mm
• CNL: PMU + CNL FC + GPS + Cable
• Material : EPP/ABS/Carbon Fiber
• Camera: 20mm*21mm*30mm
• Max Flight speed: ≥220+km/h
• Max Endurance: >70 minutes
• Take off weight: 350g~850g
• Min Flight speed: <27km/h
• Thrust: ≥920g(6*4E prop)

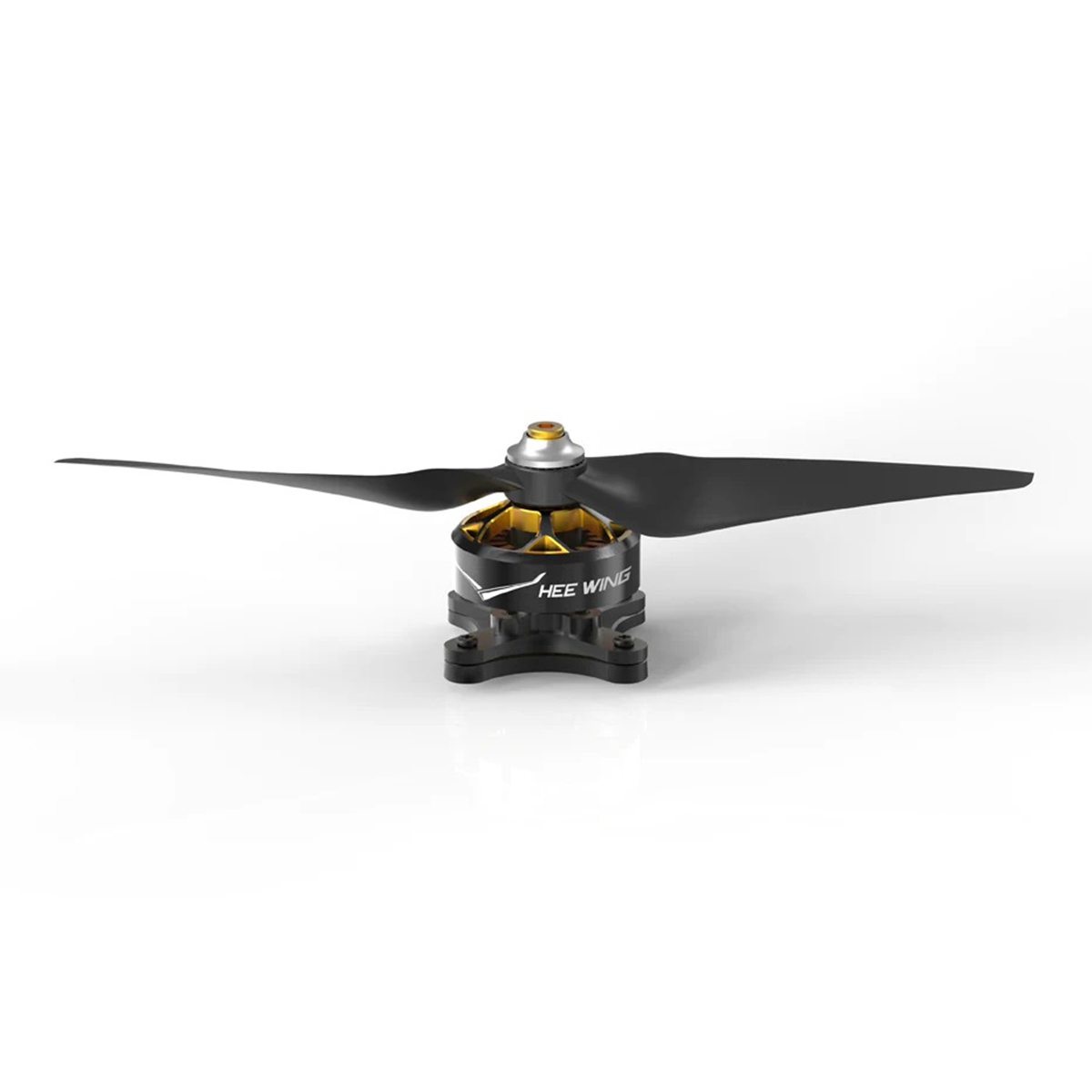

• Motor: FX-2205/2350KV‍
• Propeller: 5x5E/6x4E
• Max Mileage: >45km
• Servo: 9g Servo
• ESC: FX-35A
• Battery: 2S~4
• Note: when speed is≥100km/h, should install lens cover to prevent excessive inflow air from blowing away from the hatch.

Batteries:

• Reccomended 4s 1100-1500mah
  • CNHL Speedy Pizza 1200mAh 14.8V 4S 100C Lipo Battery
  • CNHL Black Series 1300mAh 14.8V 4S 100C Lipo Battery
  • GNB Battery 14.8V 100C 1550mAh 4S
• 3S and 4S Li-Ion packs COMING SOON for Long Range.

Upgrades:

• Reccomended FC: Matek F411-WTE Flight Controller
• GPS:  Mateksys GPS and Compass M8Q-5883

Note this is a large shipping item
