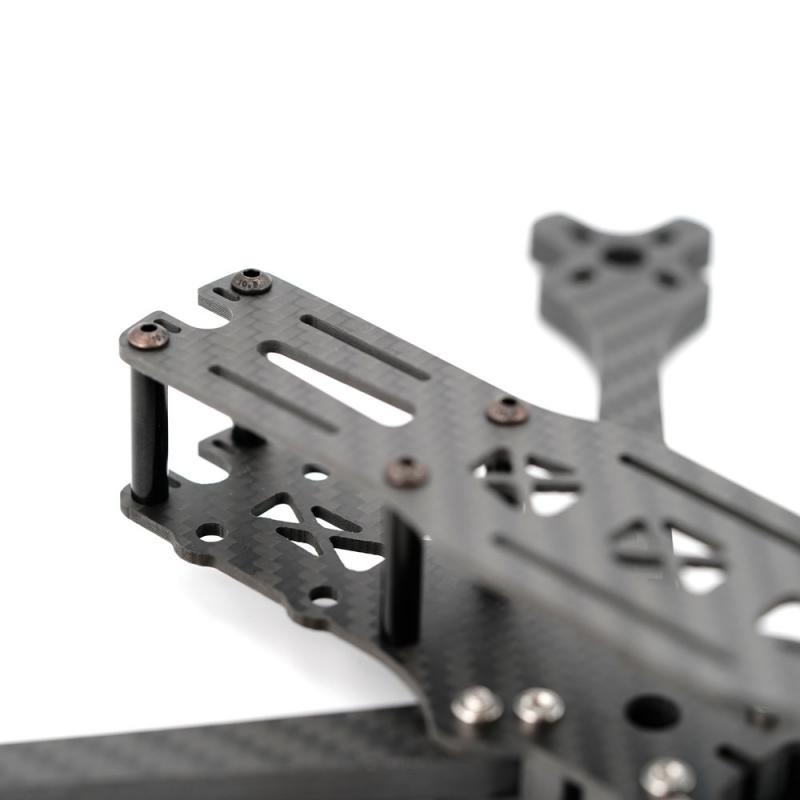

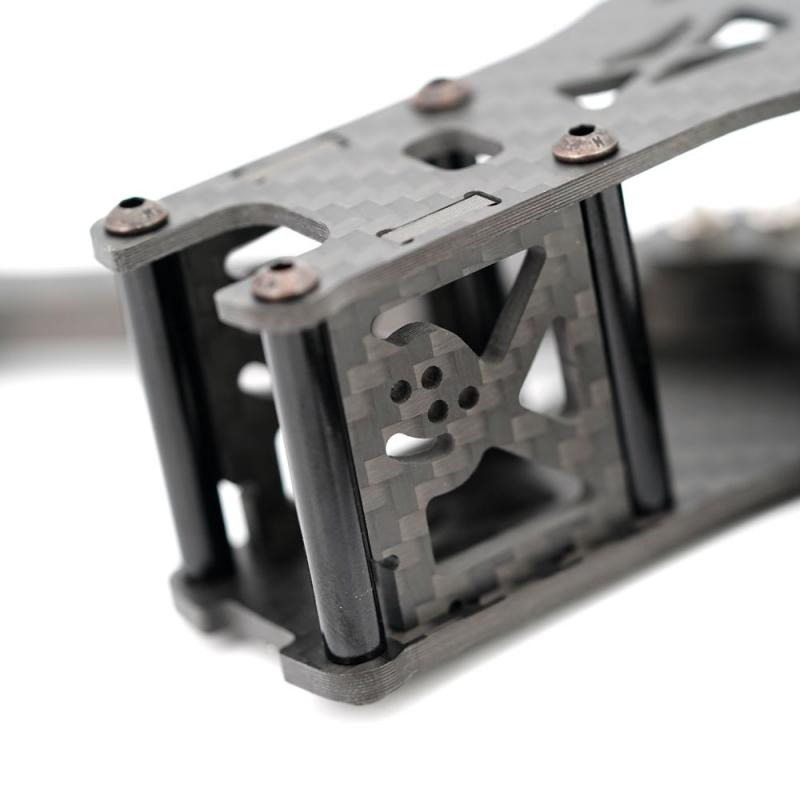

TBS Source One HD V5.1 5-inch Racing Drone Frame
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product suits Analog and Digital systems
$64.99
In Stock at KiwiQuads
Description
Update: October 2024, revision 5.1 which includes TBS Lucid Stack mounting holes

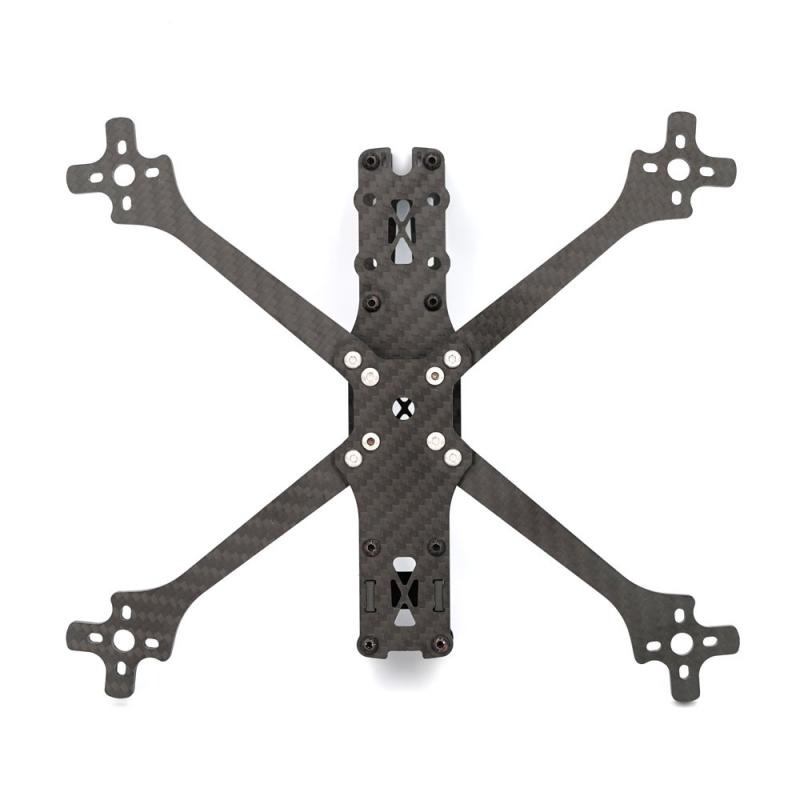

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
The TBS Source One Project
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Included in the Frame Kit:
- 1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
- 1x Screw & Standoff set
*3D Printed parts sold seperately
Hardware:
- 16X M3x10 allen screw
- 4X M3x12 allen screw
- 4X M3x14 allen screw
- 4X OD 5mm M3 30mm standoff
- 4X OD 5mm M3 22mm standoff
- 8x M3 press insert nut
Technical Specifications:
- Wheelbase 5″: 226mm
- Wheelbase 7″: 318mm
- Top Plate: 2mm
- Middle plate: 2mm
- Bottom Plate: 2.5mm
- Camera Mounting Plate: 2mm
- Standoff height: 30mm and 22mm
- Arm thickness 5″: 6mm
- Arm thickness 7″: 6mm
- Stack Mounting: 30.5 × 30.5mm & 20 x 20
- Weight 5″: 123.5g
Community Links:
- Project discussion:Â https://discordapp.com/invite/ZJGkHwF
- Project files:Â https://github.com/tbs-trappy/source_one
- Interactive Manual (work in progress)
- 3D Printed files on Thingiverse:Â https://www.thingiverse.com/tag:sourceone
- 3D Printed Parts (STL) also available on github!
Reviews before 1st September 2022 for previous versions.
