iFlight Nazgul Evoque F5D/F5X V2 O3 Air Unit Frame Kit

F5D 5″ DeadCat Frame and F5X 5″ Squashed X Frame

$169.99

SKU: 7312/7313 Categories: ,

Description

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Features:
  • V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission

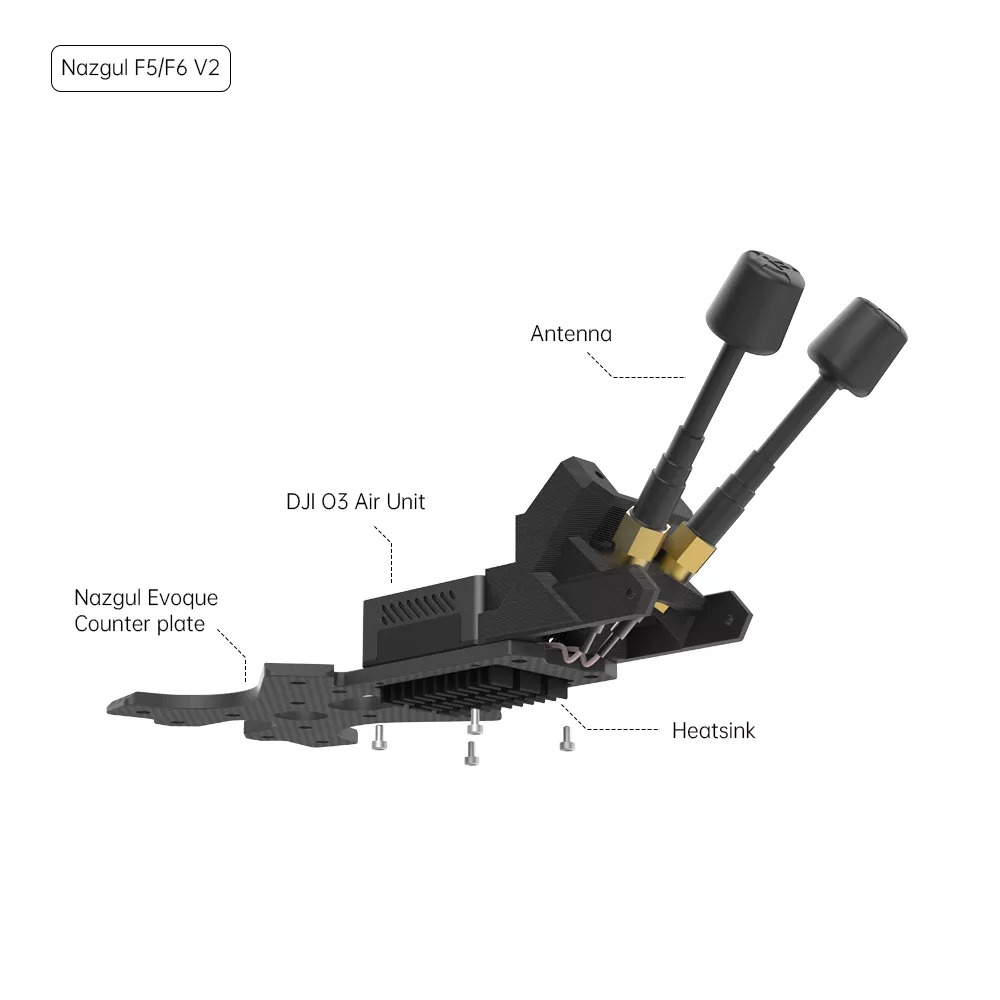

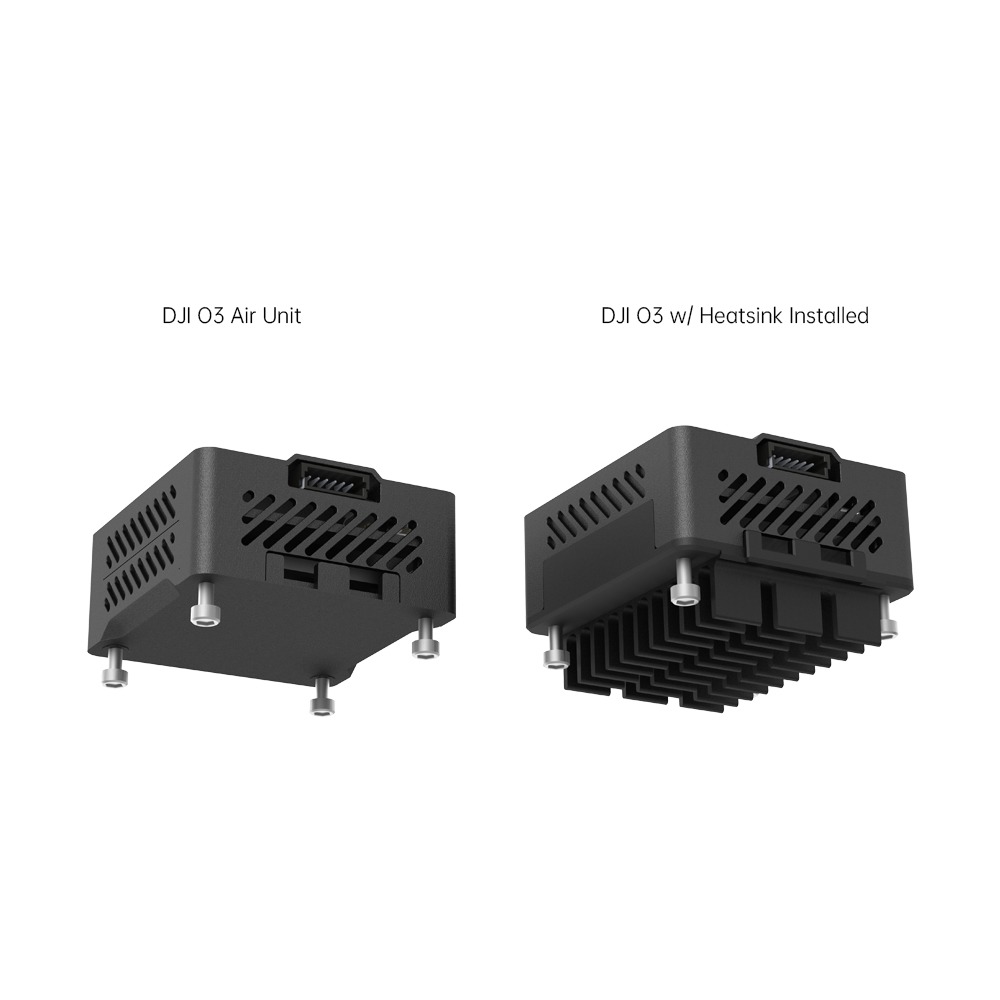

  • Specially Designed Heatsink for DJI O3 Air Unit
  • New Camera Mount for a wider camera FOV with TPU damping inserts
  • New Side Panels to perfectly fit the O3 Air Unit in the back
  • New Dual 5.8G VTX Antenna TPU mount
  • Latest Nazgul Frame Upgrades for Maximum Protection
  • Optional Parts to select (not included in frame kit):
  • New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery
  • Single DJI VTX Antenna TPU to install the original DJI O3 set included antenna.
Specifications:
  • Product Name: Evoque F5 V2 Frame Kit
  • Frame wheelbase: 223 mm (DeadCat)
  • Frame Dimension: L190*W136*H36 mm (DeadCat)
  • Frame Body Dimension: 36mm
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Motor Mounting: 16x16mm
  • VTX Mounting: 25.5*25.5/Φ1.6mm
  • Weight: 150grams (Included no TPU Parts)

Includes:

  • 1 x Evoque F5 V2 Frame Kit
  • 1x O3 Air Unit Heatsink
  • 2x O3 IPEX to RP-SMA Antenna Pigtails
  • 1 x O3 Dual Antenna TPU
  • 1 x GoPro TPU Base Mount
  • 1 x Screw Bag
  • 4 x TPU Armguard
  • 1 x Front Bumper TPU
  • 1 x Rear Bumper TPU
  • 2 x Anti-slip Battery Pad
  • 2 x Battery Strap (20*250mm)
