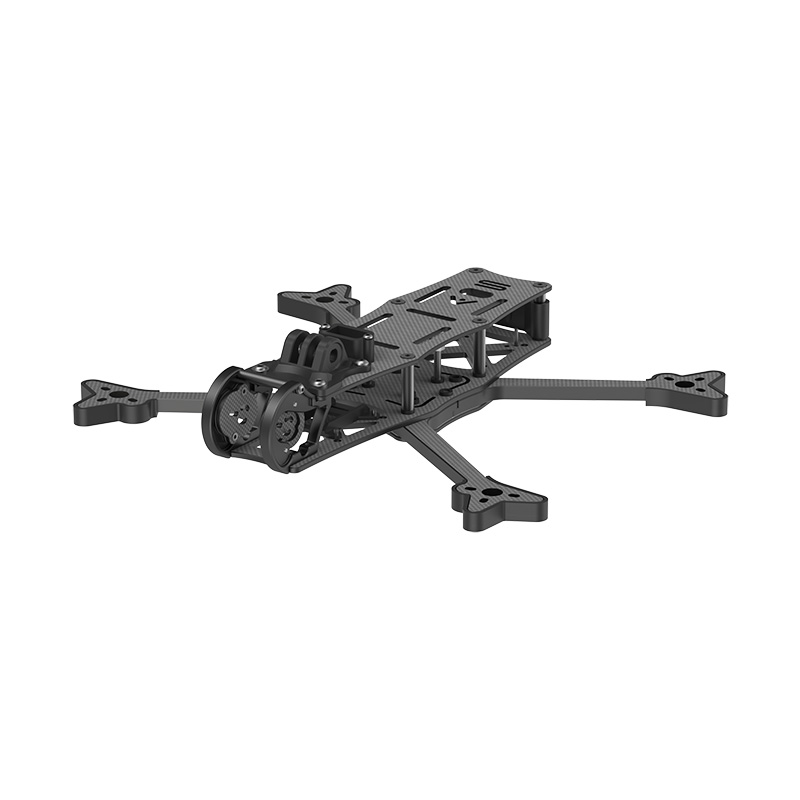

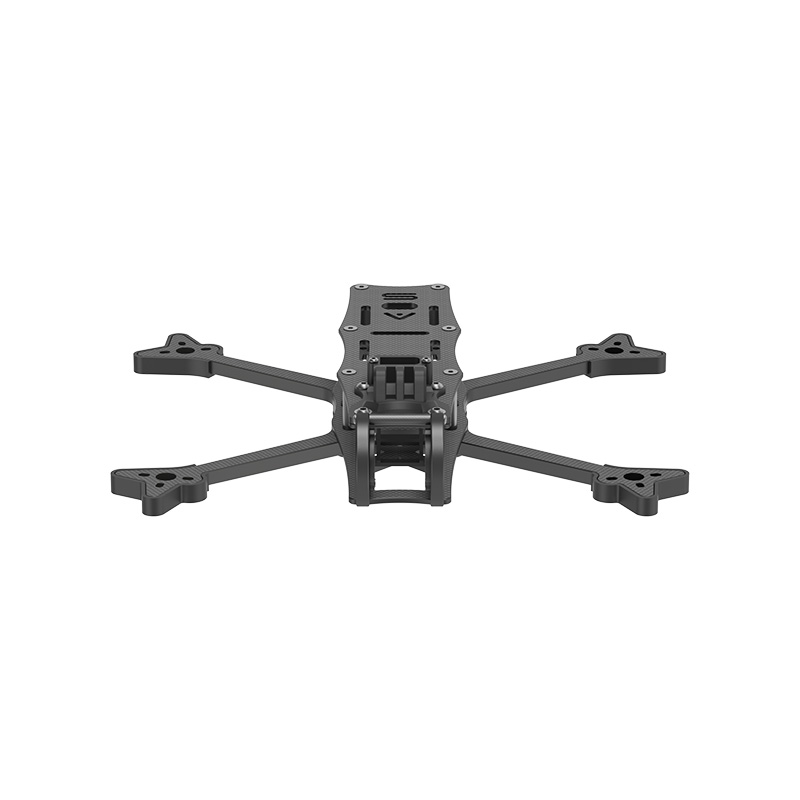

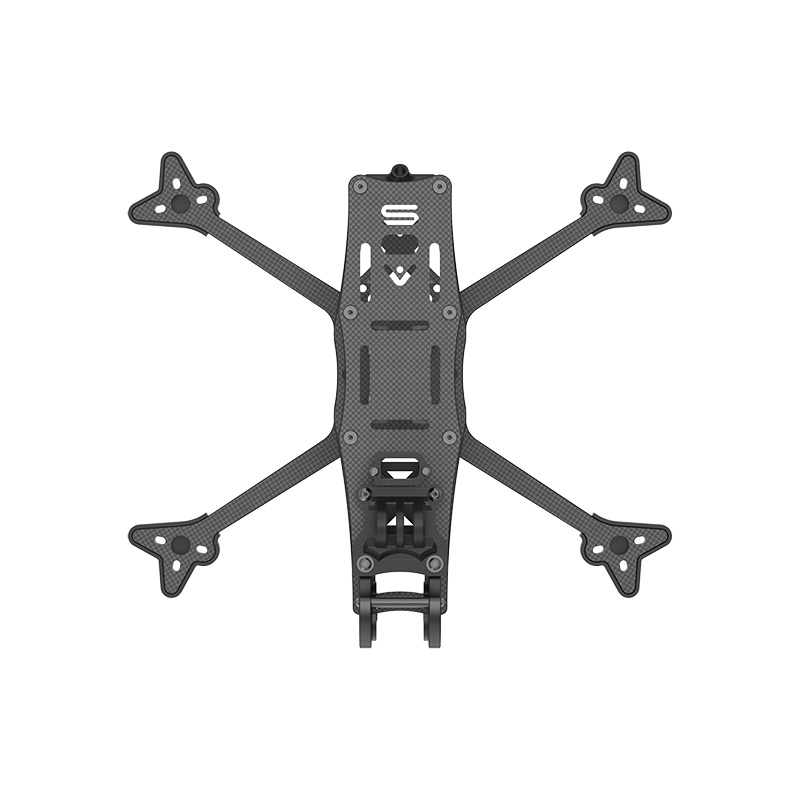

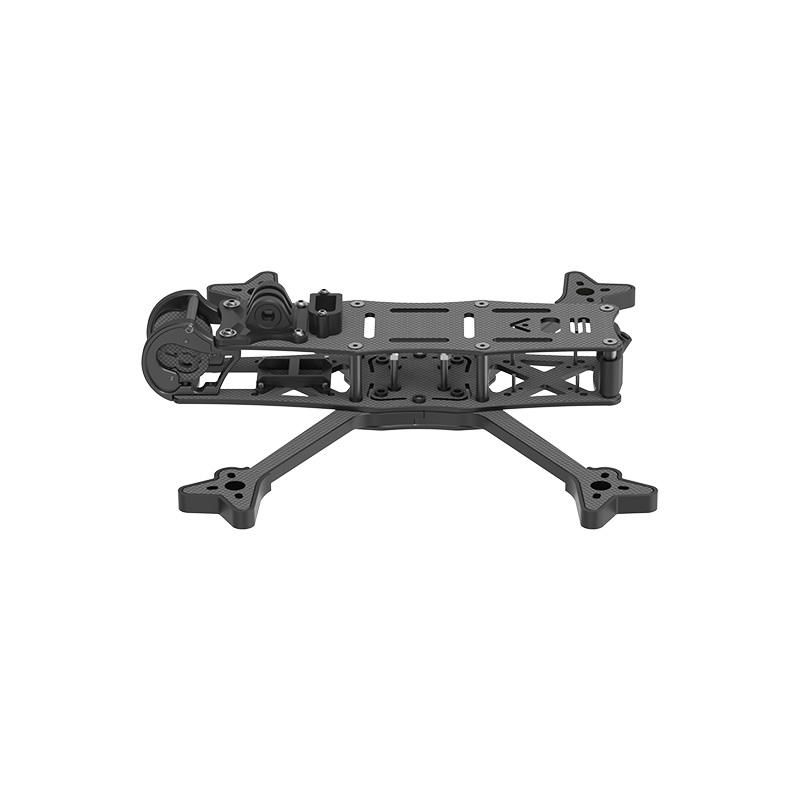

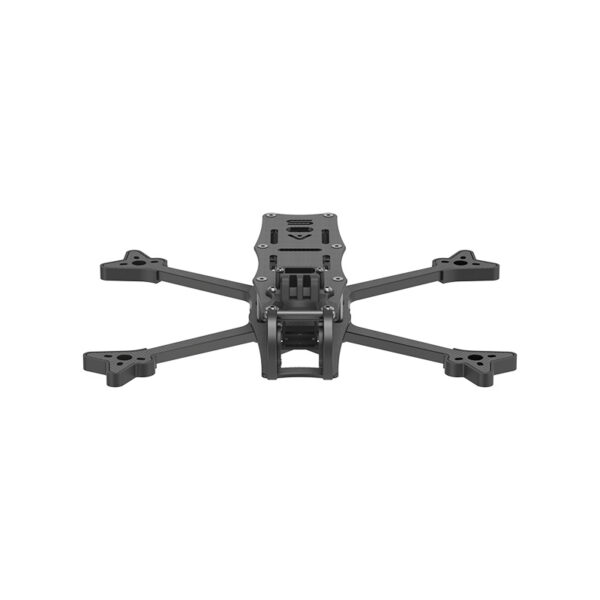

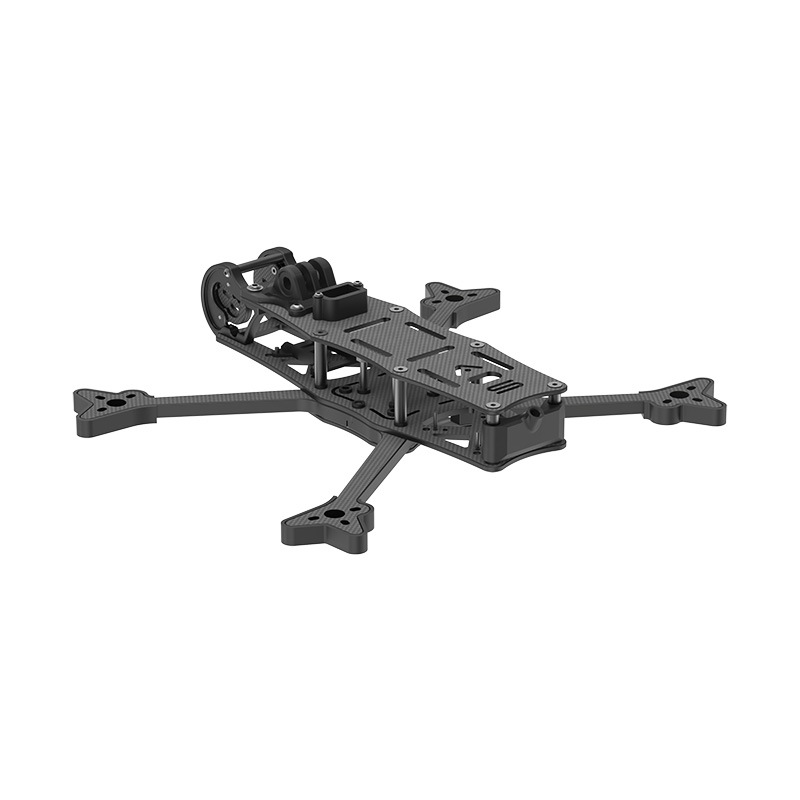

AOS 5 V5 Frame Kit 5″ w X-Cell

Description

Discover the future of 5″ FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here’s why the AOS 5 V5 is the ultimate choice for drone enthusiasts.

Features:

• Supports up to 5.2″ Props
• AOS X-Cell Anti-Vibration Technology
• Three 30.5×30.5, 25.5×25.5, or 20×20 mm stacks
• 155° FOV no props in view
• Fully DJI O3 compatible (soft mount + ND filters)
• Supports 19-20mm cameras (hard or soft mounted)
• Reinforced 7075 Aluminium Camera Cage
• Supports Lengthwise or Toilet Tank battery mounting
• ⌀16 – ⌀19mm motor mounting (supports all standard 5″ motors)
• 28x28mm M3 GoPro Mounting Pattern
• 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

Specifications:

• Product Name: AOS 5 V5 Frame Kit
• Frame wheelbase: 228mm
• Frame Dimension: L180*W140*H34 mm
• Arm Thickness: 6mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Upper Plate Thickness: 2.5mm
• Max Flight Stack Height: 20mm
• Max VTX Height: 20mm
• Motor Mounting: 19×19-φ3mm/16×16-φ3mm
• Flight Stack Mounting: 20*20 Φ3mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm
• VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm
• Weight: 150g
• Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX

Package Included:

• 1 x AOS 5 V5 Frame Kit
• 1 x TPU Parts
• 1 x Screw Bag
• 2 x Battery Strap
• 2 x Battery pads
