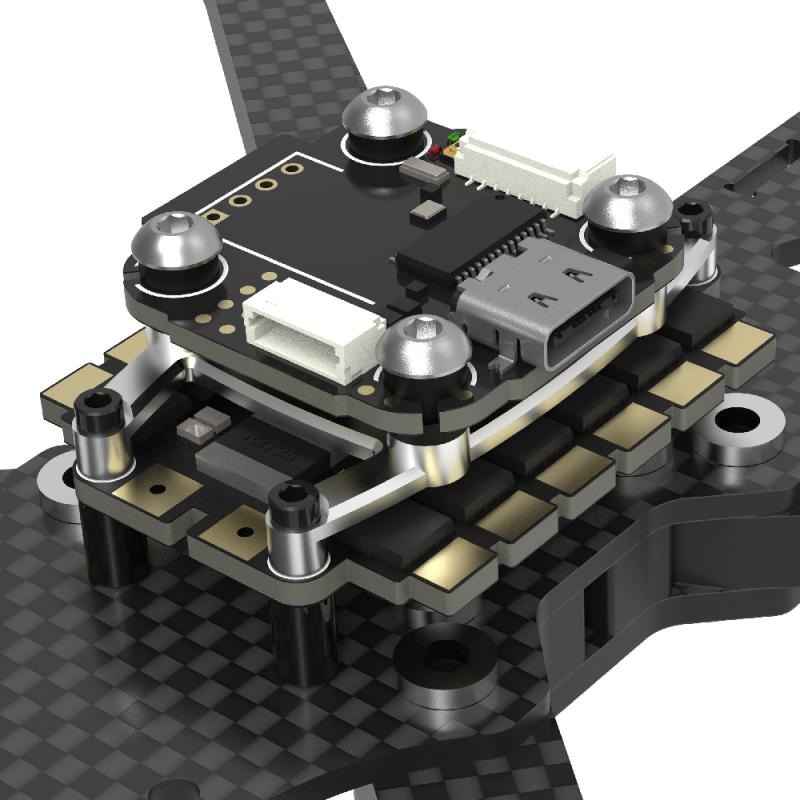

TBS Lucid Freestyle Stack F60A AM32 (ICM-42688P)

Description

The TBS Lucid Freestyle Stack F60A AM32 (ICM-42688P) revolutionizes flight performance. Engineered for racing and freestyle, it integrates AT32 microprocessors and AM32 software. Versatile across 3” to 8” quads, 3S – 6S, and dual-mount patterns. Ideal for pros with MPU6000 (Pro) or budget-savvy with ICM-42688P (Freestyle) gyro.

Specifications

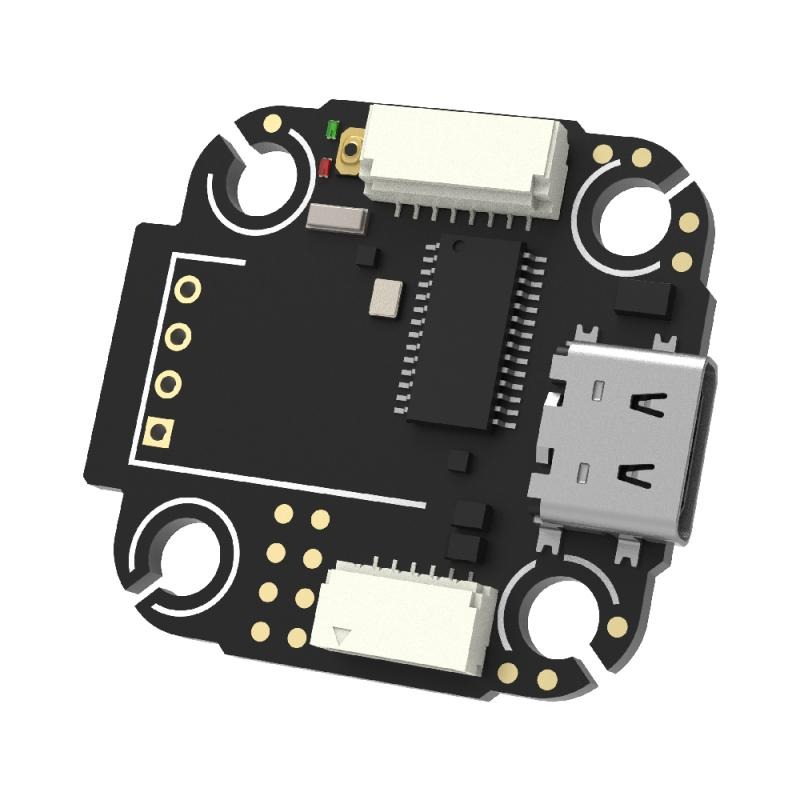

Flight Controller:

• MCU: AT32F435RMT7, 288MHz
• Gyro: ICM-42688P
• Motors: 4 motors, with telemetry and current sensor
• BEC: 9V, 2.5A. 5V 2A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8)
• Input: 3S-6S
• Size: 31mm*29mm
• Mounting: 20mm*20mm
• Weight: 4.51g

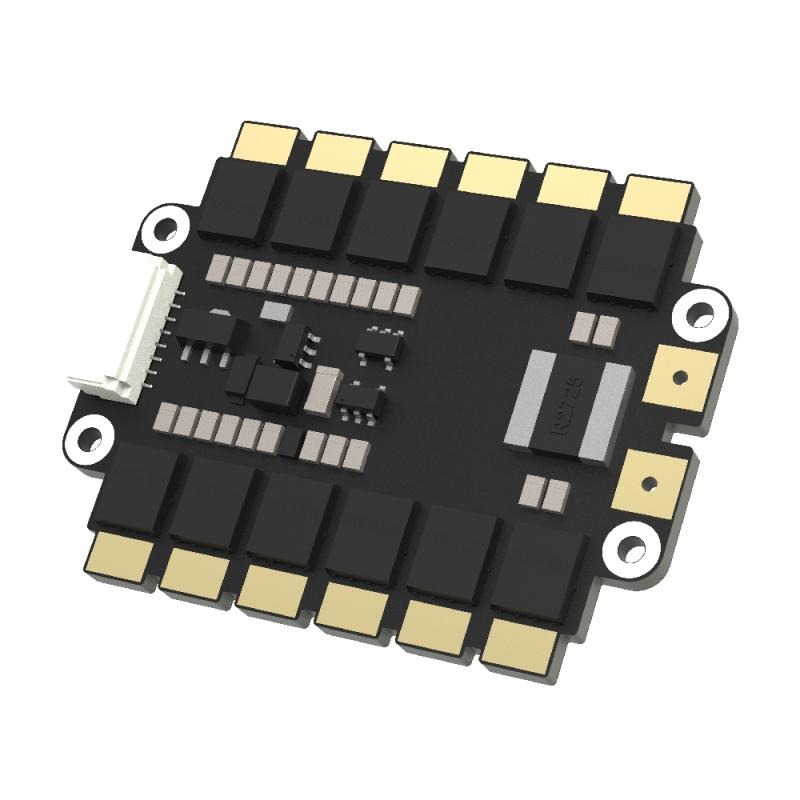

ESC:

• ESC software: AlkaMotors32 (AM32)
• ESC target: tbslu6s4in1
• Rated current: 60A x 4, 300 seconds
• Peak Current: 70A x 4, 60 seconds
• Propellers: Up to 9″, over 7″ requires good airflow
• Input: 3-6S Lipo
• Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
• ESC Current port: Yes
• BEC: No
• Size: 34mm*44mm
• Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20×20 mm, 30.5×30.5 mm
• Weight: 13.81g, 19g incl. brackets

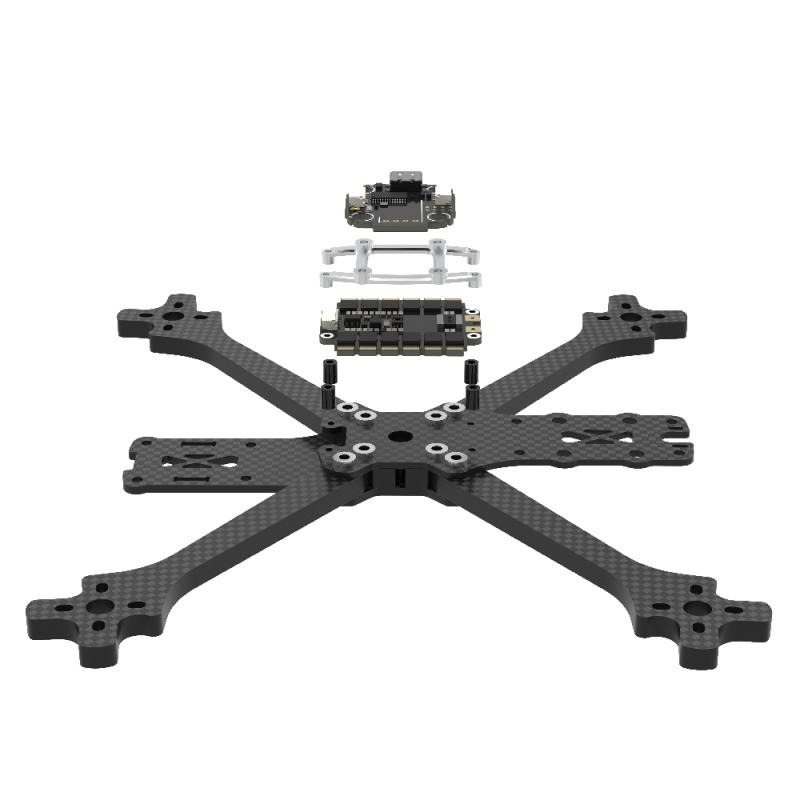

Gorilla Mount

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

Package Includes

• 1 x TBS Lucid Freestyle Stack F60A AM32 (ICM-42688P)
