iFlight BLITZ Mini F7 Stack E55A for Evoque
by iFlight
5.00 out of 5
(3 customer reviews)
Flight’s Blitz line of electronics features improved circuit designs, better components, and lower electrical noise. This results in better performance, durability, and reliability. These are fantastic parts for any build.
$239.99
Out of stock
Receive in-stock notifications for this.
SKU: 1523
Categories: 20mm x 20mm, FC / ESC Stacks, Electronics
Description

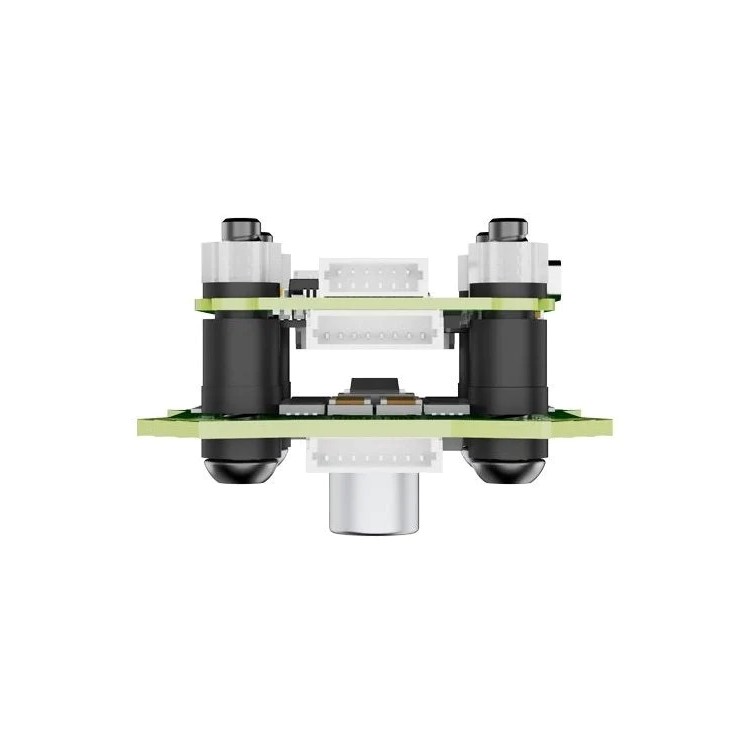

This is the replacement iFlight Blitz Mini stack for your iFlight Evoque series, also suitable for the Nazgul5 series or any other 5″ quad with 20×20 mounting.
Features:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging

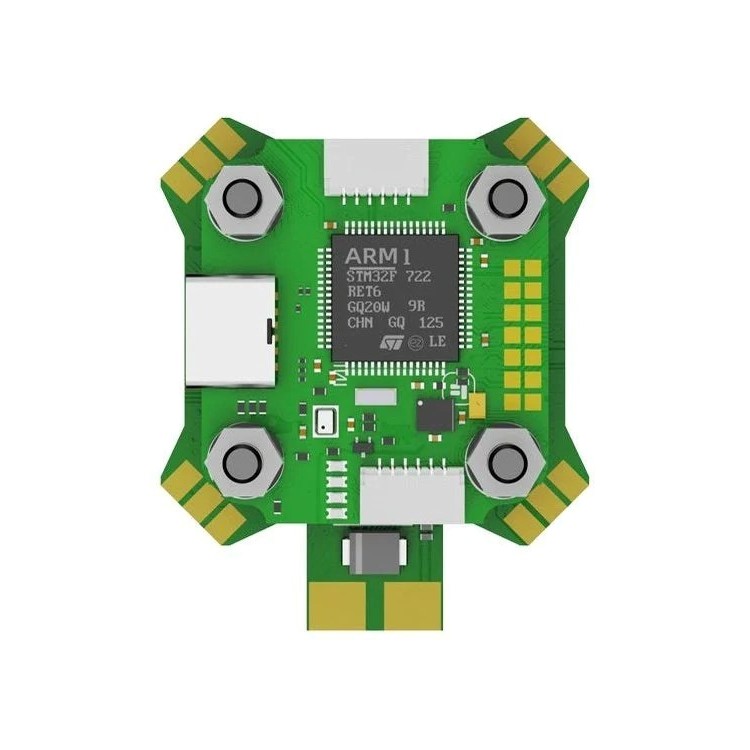

Flight Controller:
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456
- Flash: 16MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
- Dimensions: 30.5×27 mm
- Weight: 5g
ESC
- Dimension: 35*42mm
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 11.3g
- Supports 2-6S Lipo input
- MCU: G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G2
- Firmware: BLHeli 32
Includes:
- x BLITZ Mini F7 V1.1 Flight Controller
- 1 x BLITZ Mini E55 4-IN-1 2-6S ESC
- 1 x silicon grommets
- 1 x wire harness for F7 Flight controller
