SpeedyBee F722 V3 50A BLHeli_32 128K 30×30 Stack

5.00 out of 5
(12 customer reviews)

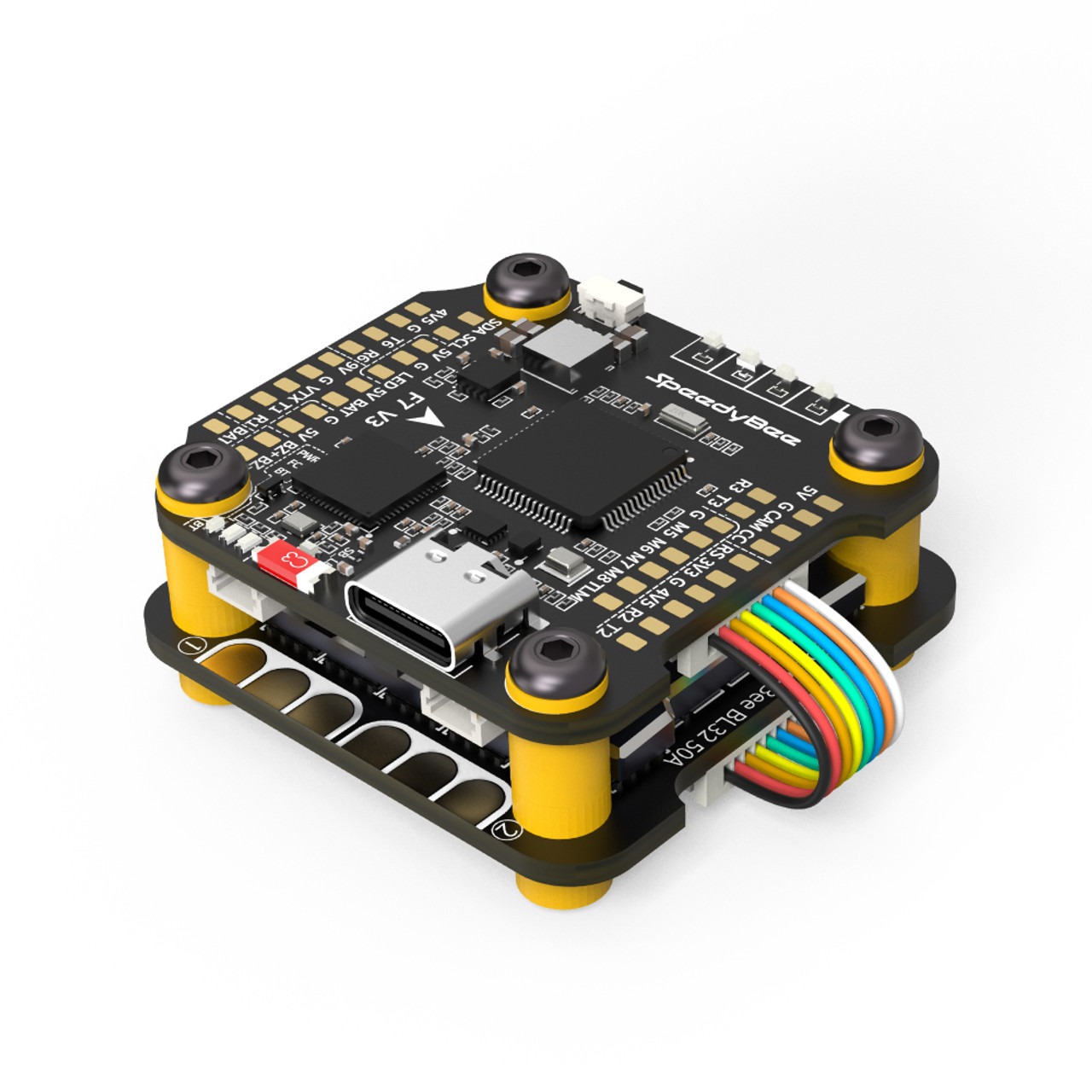

The SpeedyBee F7 V3 Stack includes an F722 flight controller and a 50A 128K ESC.

Original price was: $224.99.Current price is: $194.99.

Hurry! Only 3 left in stock

Ships from our Tauranga warehouse
SKU: 2514 Categories: ,

Description

The SpeedyBee F7 V3 Stack includes an F722 flight controller and a 50A 128K ESC. Featuring a BMP280 barometer, OSD, 500MB Memory Blackbox, a built-in FC LiPo monitoring system, and many more features, this stack is the perfect addition to your FPV build.

Specifications

F405 V3 FC

  • Power Output:
    • 1) 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on the front side, and 6 +5V output included in the connectors on the bottom side. The total current load is 2A.
    • 2) 2 groups of 9V output, one +9V pad on the front side and the other included in a connector on the bottom side. The total current load is 4A.
    • 3) Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load Supported.
  • Designed for 3.3V-input receivers. Up to 500mA current load.
  • WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
  • I2C: Supported. SDA & SCL pads on the front side. Used for magnetometer, sonar, etc.
  • Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
  • ESC signal M1 – M4 on the bottom side and M5-M8 on the front side.
  • LED: Used for WS2812 LED controlled by Betaflight firmware.
  • UART: 5 sets (UART1, UART2, UART3, UART4, UART6)
  • DJI Air Unit plug: A full DJI Air Unit JST slot onboard
  • BLE Support, used for Flight Controller configuration
  • Buzzer: BZ+ and BZ- pad used for 5V Buzzer
  • Mounting: 30.5×30.5mm, 4mm hole size
  • Dimensions: 41(L) x 38(W) x 8.1(H)mm
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BlackBox: 500MB onboard data flash
  • BetaFlight Camera Control Pad: Yes
  • ESC Telemetry: UART UART4 RX
  • Power input: 3S – 6S Lipo
  • Target: SPEEDYBEEF7V3
  • SmartPort: Supported
  • Baro: BMP280 (I2C)
  • MCU: STM32F722
  • Boot button: Yes
  • RSSI input: Yes
  • IMU: BMI270
  • USB: Type-C
  • Weight: 9G

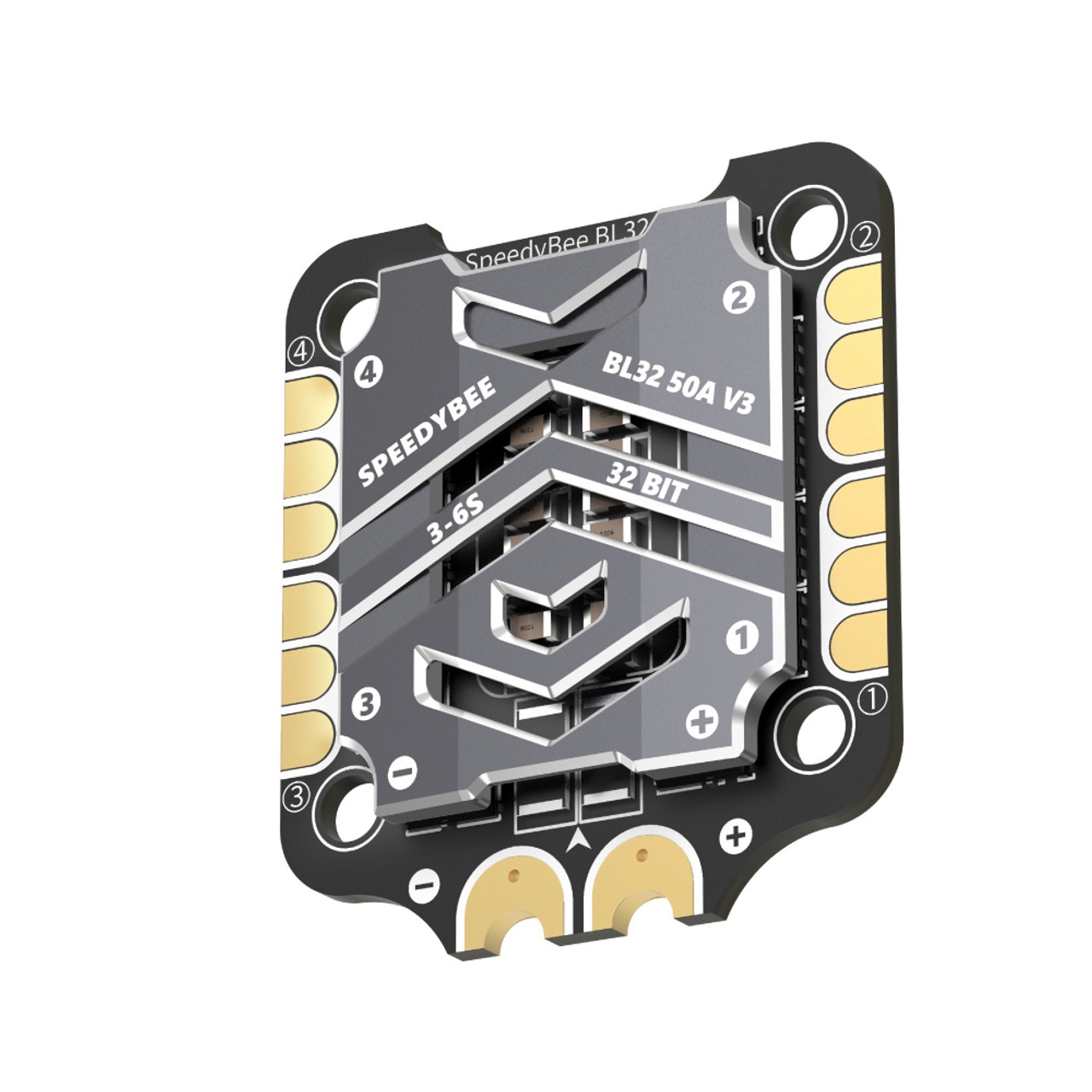

50A 3-6s BLHeli_S 4-in-1 ESC

  • Current Sensor: Supported (Scale=490 Offset=0)
  • Mounting: 30.5×0.5mm, 4mm hole size
  • Dimension: 45.6(L)x40(W)x8.8mm(H)
  • Firmware: SpeedyBee BL32 50A
  • Weight: 19.2g with heat sink
  • Continuous Current: 50Ax4
  • Power input: 3S – 6S LiPo
  • Burst Current: 55A(5S)
  • Power output: VBAT
