SpeedyBee F405 V4 BLS 55A 30×30 Stack
Blast through freestyle or racing with full 6S power. Configure motors wirelessly—no computer, just your phone.
$162.99
Stock coming soon!
Get an alert when this product is in stock
Description
The SpeedyBee F405 V4 BLS 55A 30×30 Stack delivers powerful 6S performance with a real 55A output, robust BB21 MCU, and premium Japan-made filtering capacitors for smooth, reliable flights. The built-in Bluetooth and SpeedyBee app let you wirelessly configure motor directions and FC/ESC settings—no PC required—making it the ultimate upgrade for racers and freestyle pilots who demand peak power, easy setup, and total control anywhere, anytime.
Specifications:
-

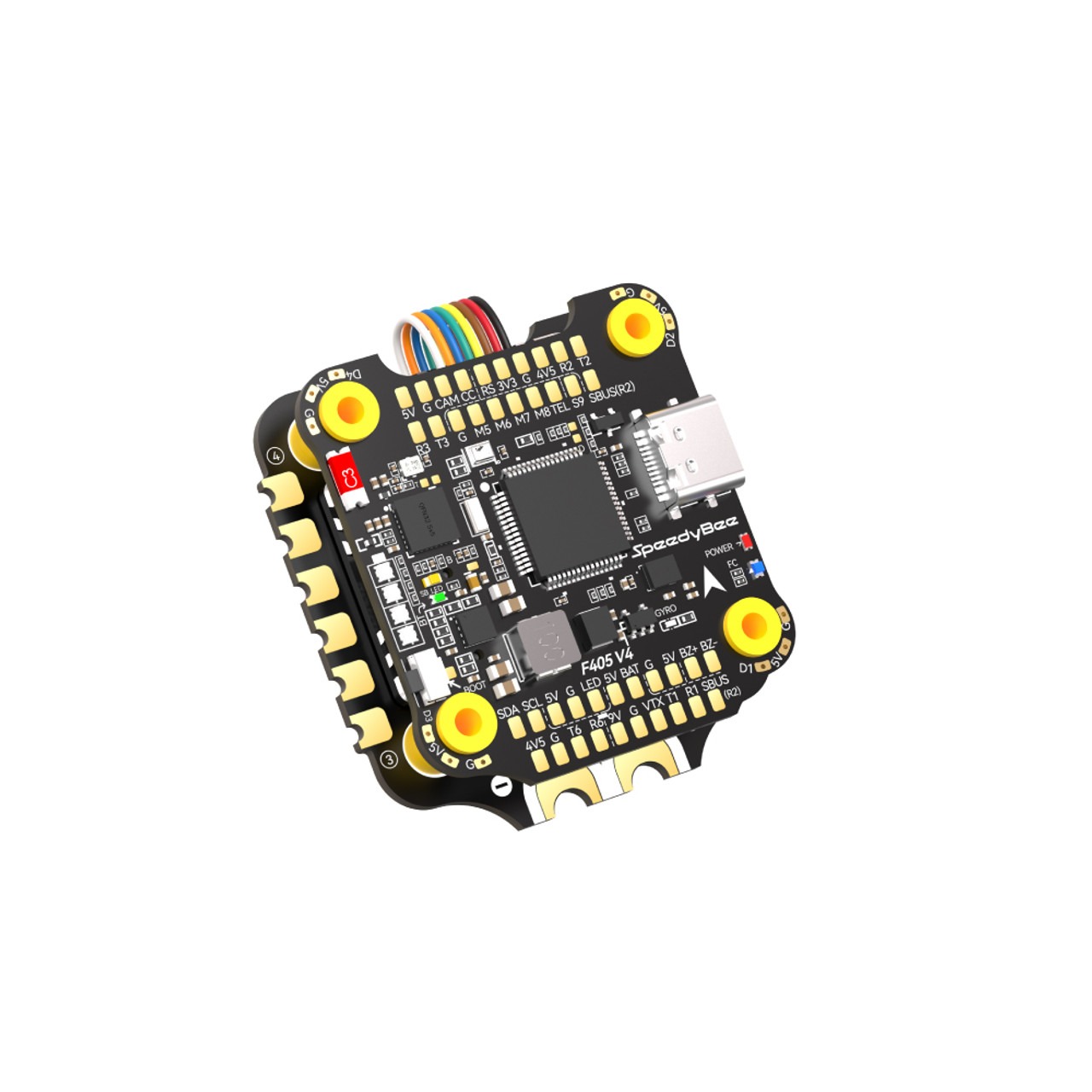

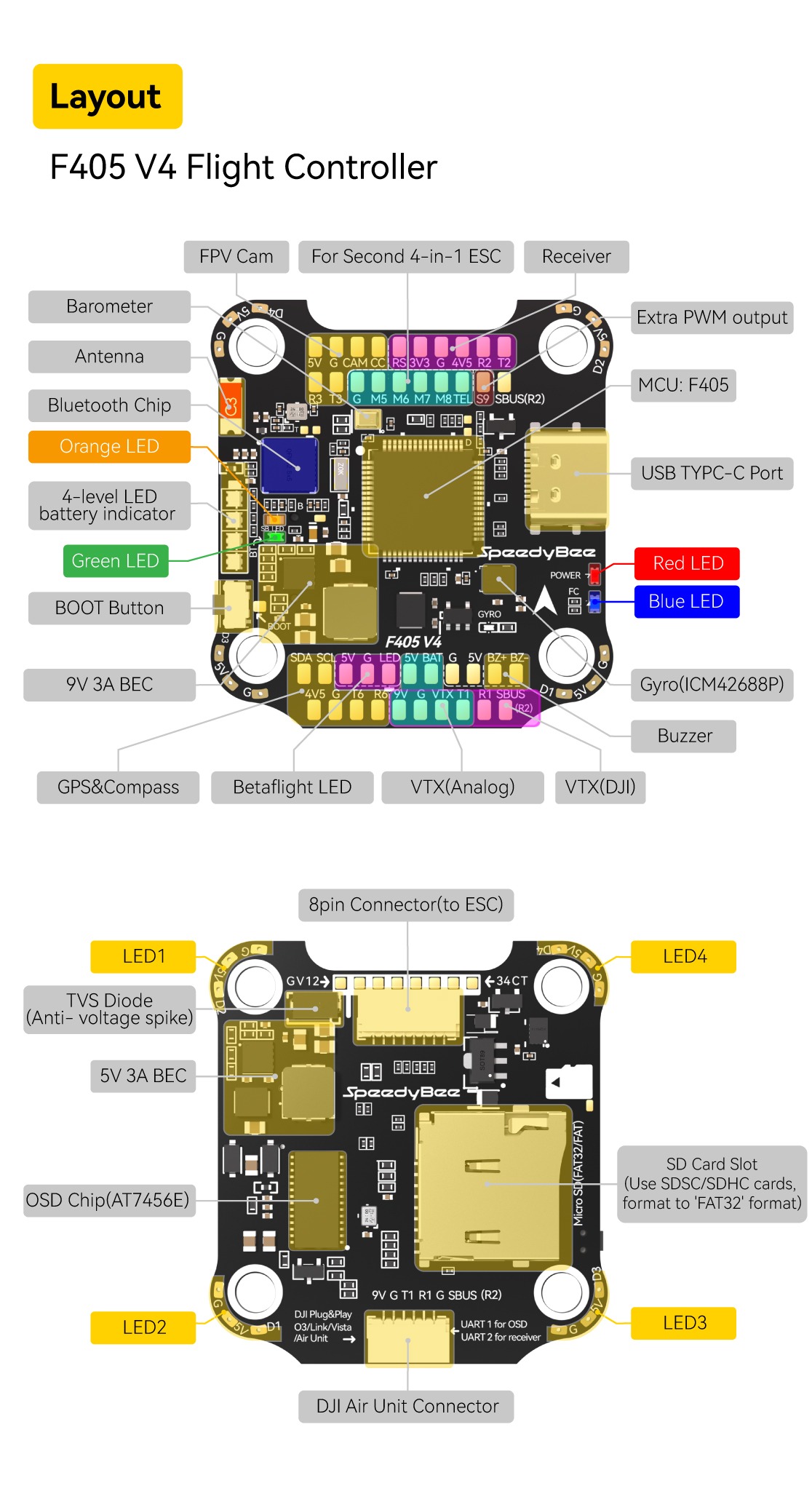

Product Name: SpeedyBee F405 V4 30×30 Flight Controller
- MCU: STM32F405
-
IMU (Gyro): ICM42688P
-
USB Port Type: Type-C
-
Barometer: Built-in
-
OSD Chip: AT7456E
-
BLE Bluetooth: Supported (UART4 @ 115200 baud for FC configuration)
-
WiFi: Not supported
-

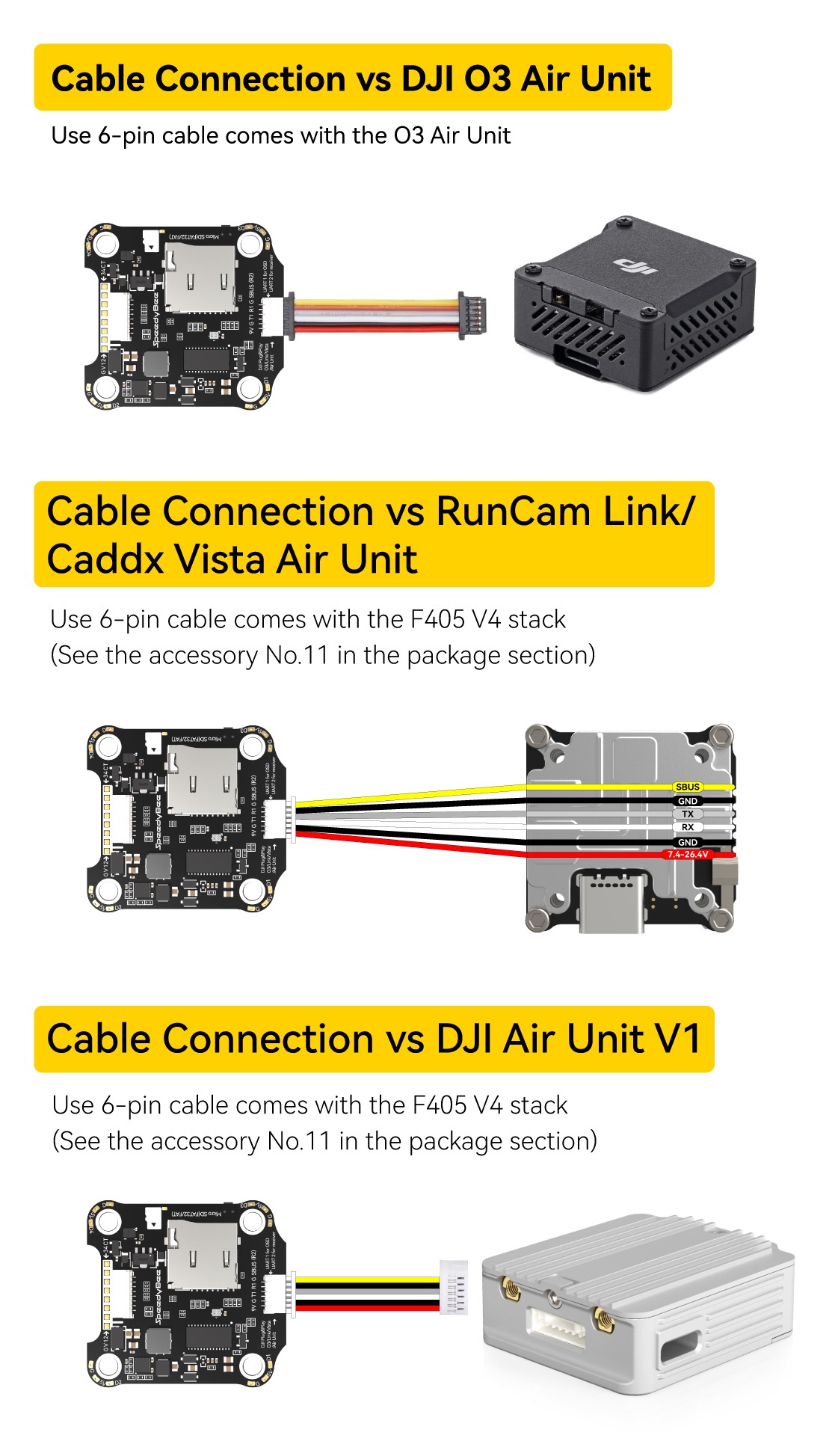

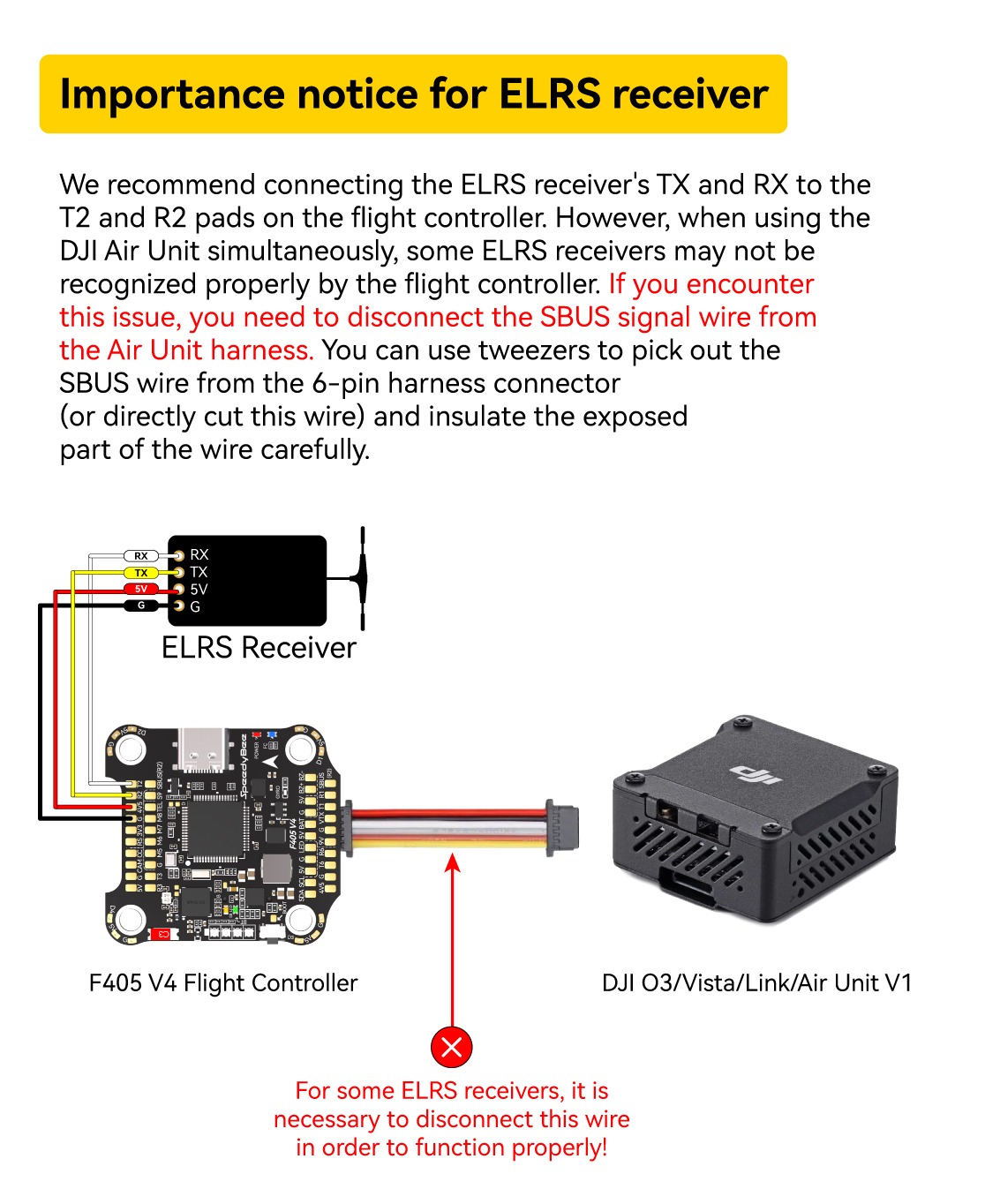

DJI Air Unit Connection:
-
6-pin connector or direct soldering
-
Fully compatible with DJI O3 / RunCam Link / Caddx Vista / DJI Air Unit V1
-
-
6-pin DJI Plug: Supported (no rewiring needed)
-
Blackbox (MicroSD Slot):
-
Supports SDSC/SDHC (≤32GB)
-
Must be FAT16 or FAT32 formatted
-
Max 4GB usable in Betaflight
-
SDXC (U3) cards not supported
-
-
Current Sensor Input: Supported (Scale = 400, Offset = 0 with SpeedyBee BLS 55A ESC)
-
Power Input: 3S–6S LiPo (via 8-pin connector or bottom pads)
-
5V Output:
-
9 groups total
-
4x +5V pads
-
1x BZ+ pad (for buzzer)
-
4x LED 5V pads
-
Max current: 3A
-
-
9V Output:
-
2 groups (1 pad front, 1 via bottom connector)
-
Max current: 3A
-
-
3.3V Output: Supported (for 3.3V receivers, up to 500mA)
-
4.5V Output: Supported (for receivers/GPS, up to 1A, works via USB)
-
ESC Signal Pads:
-
M1–M4 (bottom side)
-
M5–M8 (front side)
-
-

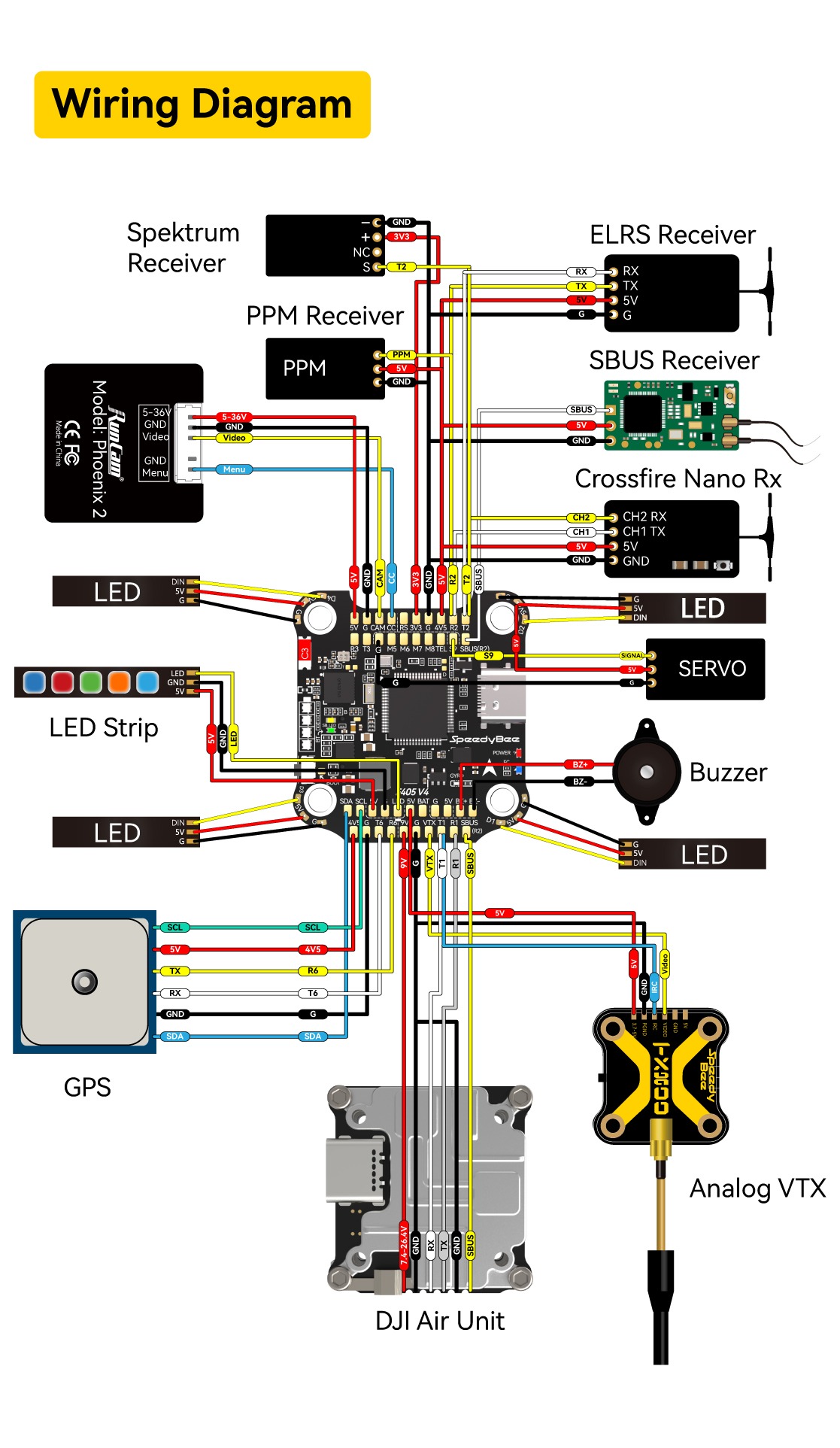

UART Ports:
-
6 total: UART1, UART2, UART3, UART4 (Bluetooth), UART5 (ESC telemetry), UART6
-
-
ESC Telemetry: UART R5 (UART5)
-
I2C Support: SDA & SCL pads (front side, for magnetometer/sonar)
-
Betaflight LED Pad: Supported (5V, G, LED pads for WS2812)
-
Buzzer: BZ+ and BZ- pads for 5V buzzers
-
BOOT Button:
-
Hold + power on = DFU mode (firmware recovery)
-
Short press = Cycle LED display mode
-
Long press = Switch SpeedyBee LED ↔ Betaflight LED mode
-
-
RSSI Input: Supported (RS pad on front side)
-
Smart Port / F.Port: Not supported
-
Supported Firmware: Betaflight (default), INAV
-
Firmware Target: SPEEDYBEEF405V4
-

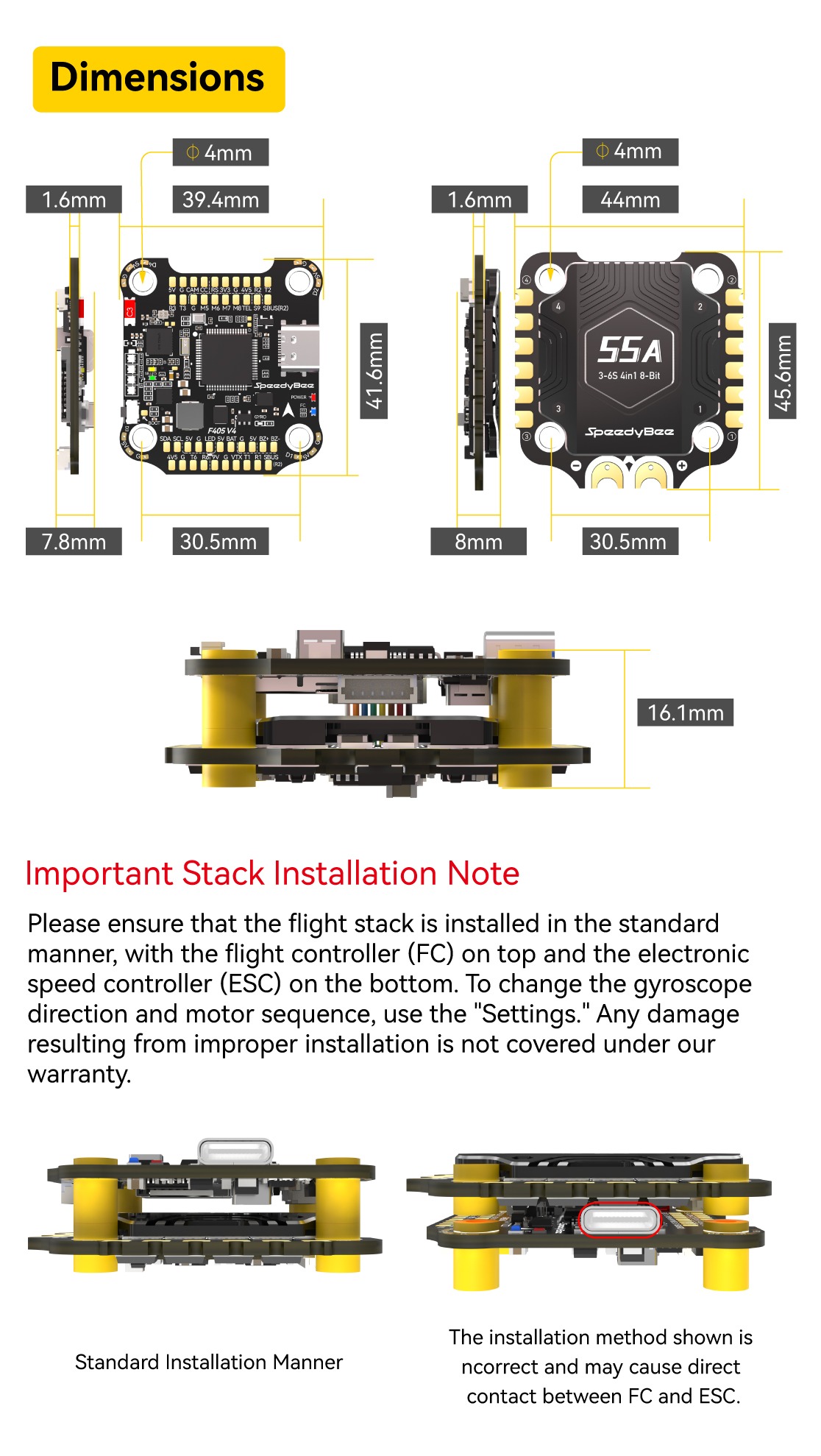

Mounting Pattern: 30.5 x 30.5mm (4mm hole diameter)
-
Dimensions: 41.6 x 39.4 x 7.8 mm
-
Weight: 10.5g

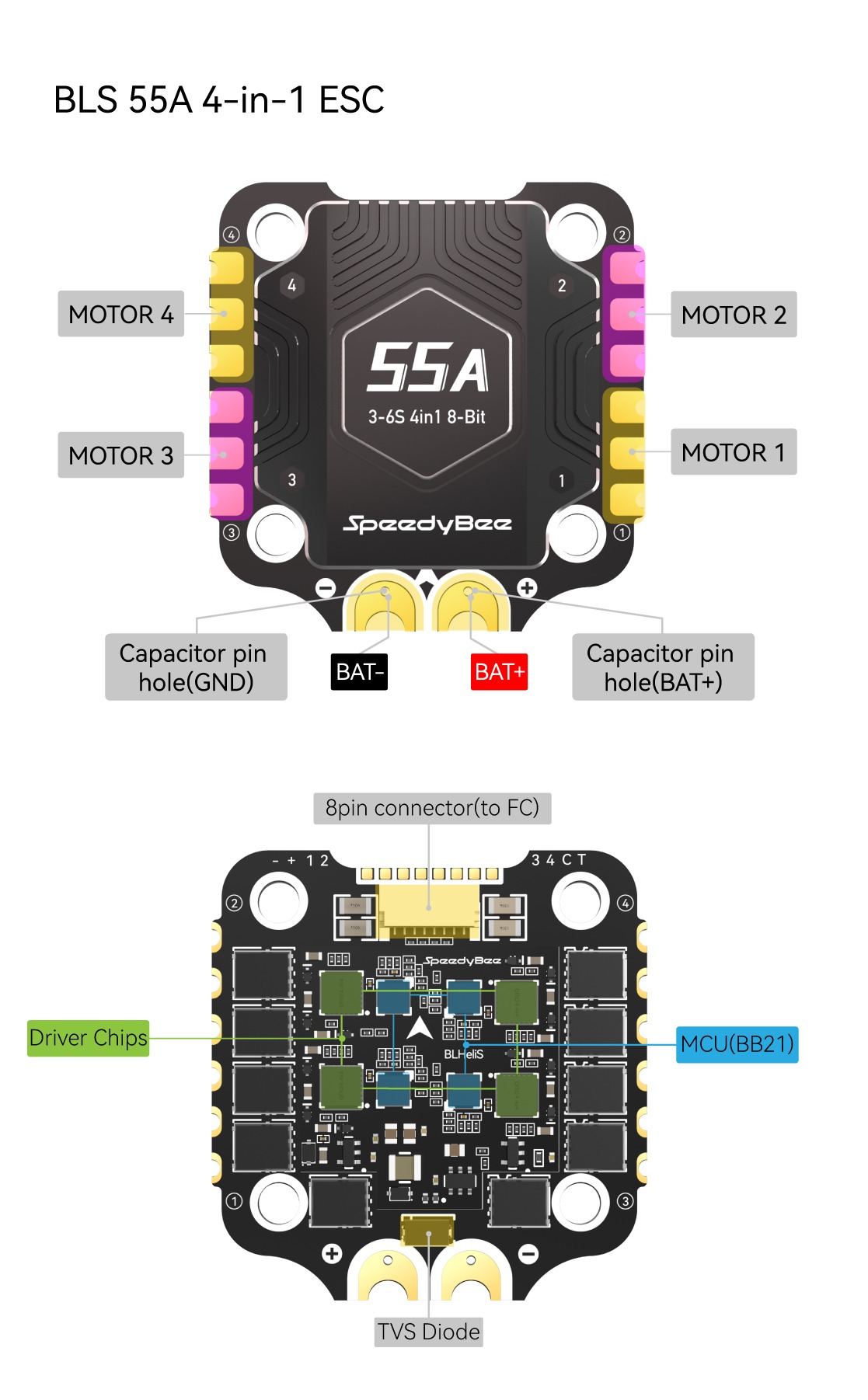

Product Name: SpeedyBee BLS 55A 30×30 4-in-1 ESC
-
Firmware: BLHeli_S J-H-40
-
PC Configurator: ESC Configurator
-
Continuous Current: 55A x 4
-
Burst Current: 70A (10 seconds)
-
TVS Protective Diode: Yes
-

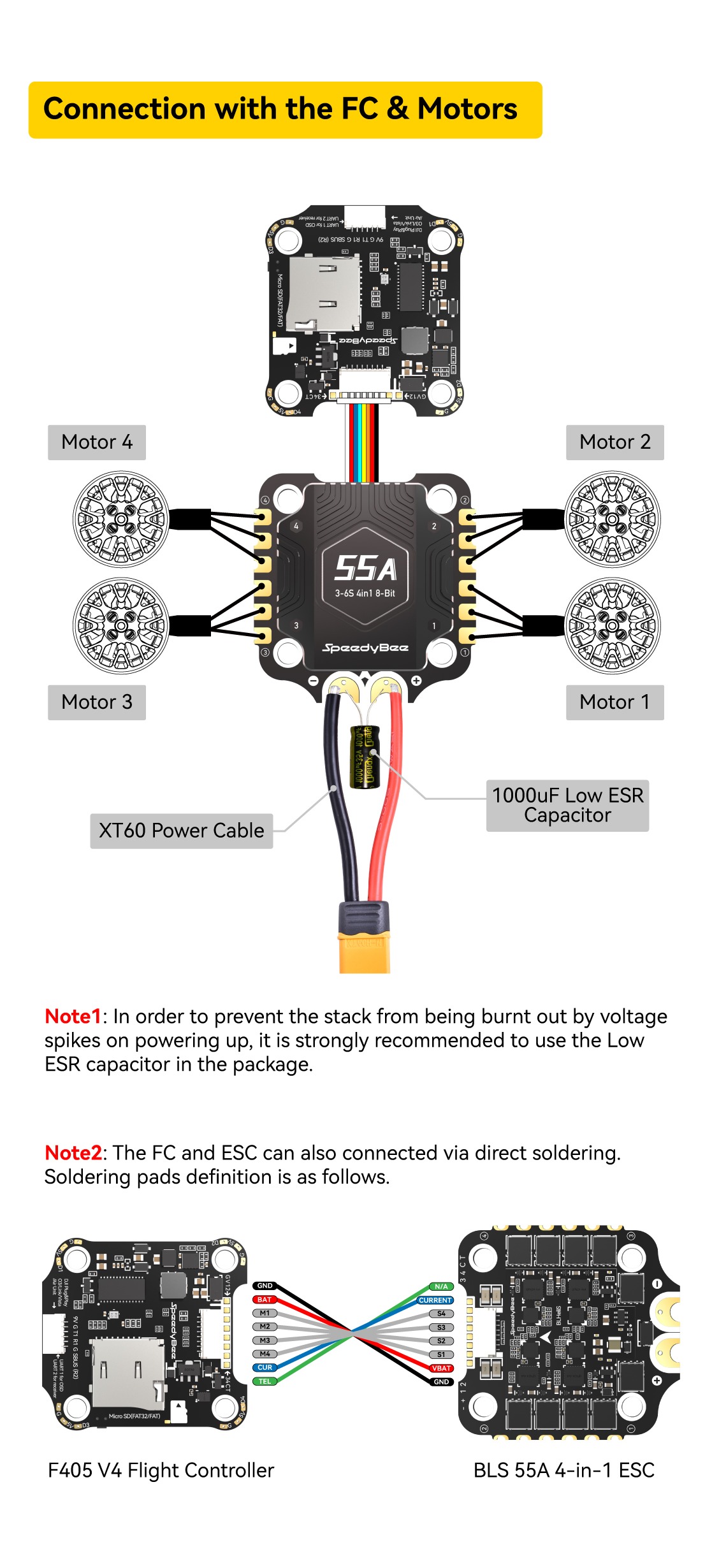

External Capacitor: 1000uF Low ESR (included)
-
ESC Protocols: DSHOT300, DSHOT600
-
Power Input: 3–6S LiPo
-
Power Output: VBAT
-
Current Sensor: Supported (Scale = 400, Offset = 0)
-
ESC Telemetry: Not supported
-
Mounting Pattern: 30.5 x 30.5mm (4mm hole diameter)
-
Dimensions: 45.6 x 44 x 8 mm
-
Weight: 23.5g
Package Includes:
- 1 x SpeedyBee F405 V4 Flight Controller
- 1 x M3*8mm Silicone Grommets (for FC)
- 1 x SH 1.0mm 25mm-length 8pin Cable (for FC-ESC connection)
- 1 x DJI 6pin Cable (80mm)
Additional information
