iFlight Anti Spark Filter for XT60 connector (2 Sizes)
by iFlight
5.00 out of 5
(2 customer reviews)
Avoid the 6S spark and protect your electronics when plugging in your liPo with these AntiSpark Filters from iFlight!
$28.99
SKU: 1302/1315
Categories: Battery Accessories, Electronic Accessories, Electronics
Description
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

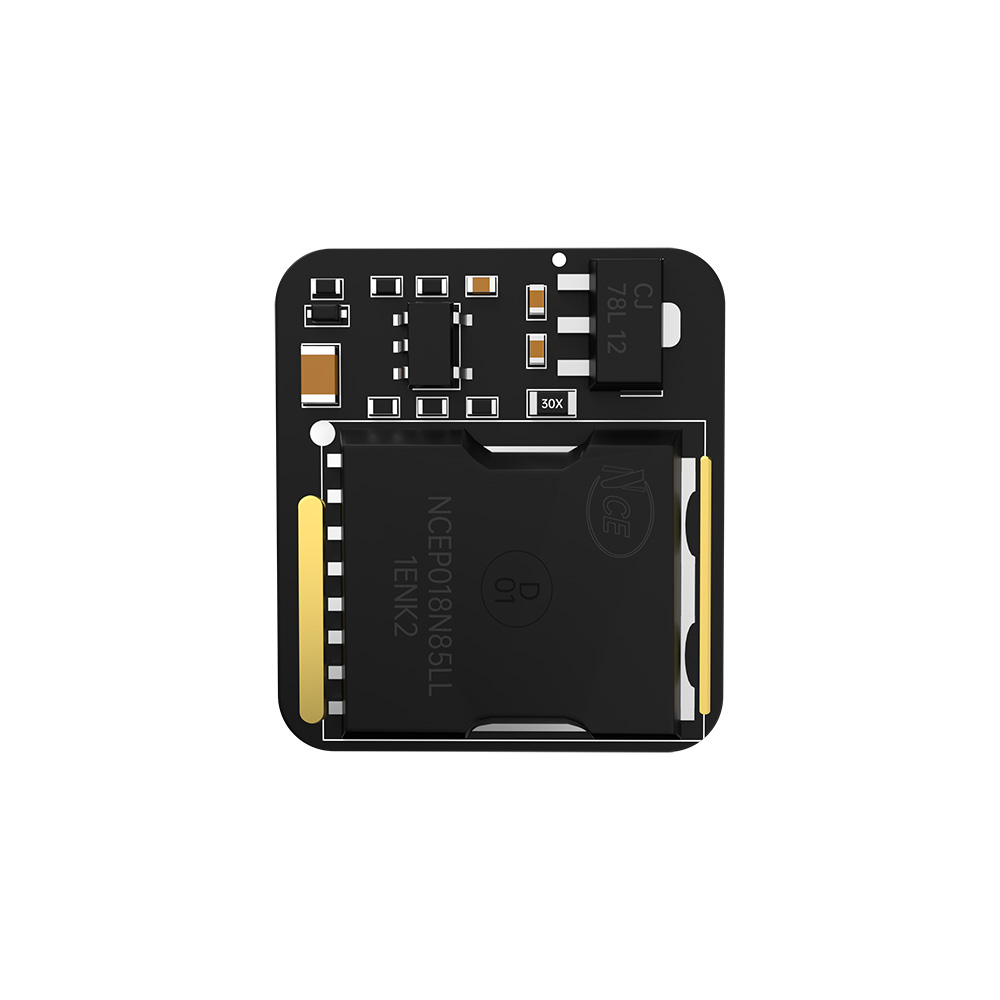

Option 1 18*16 – For Nazgul Evoque F5/F6 and Nazgul5 V3/Chimera 7 pro (5″ to 7″)
- Input voltage: 3-6S (9-26V)
- Continuous overcurrent: 30A for 60 minutes

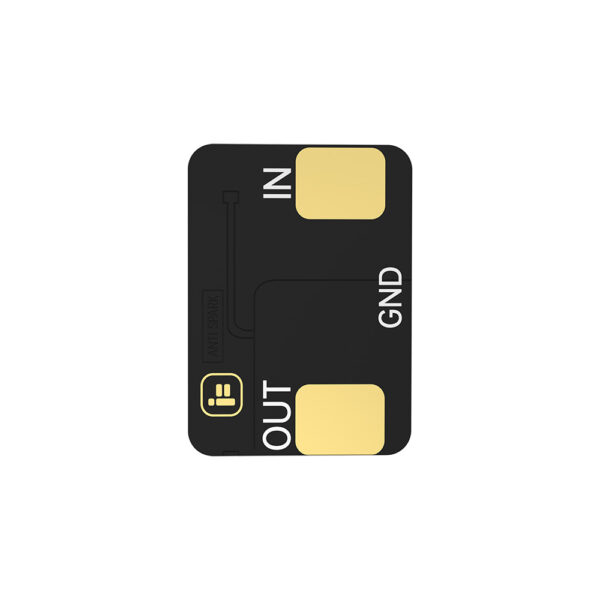

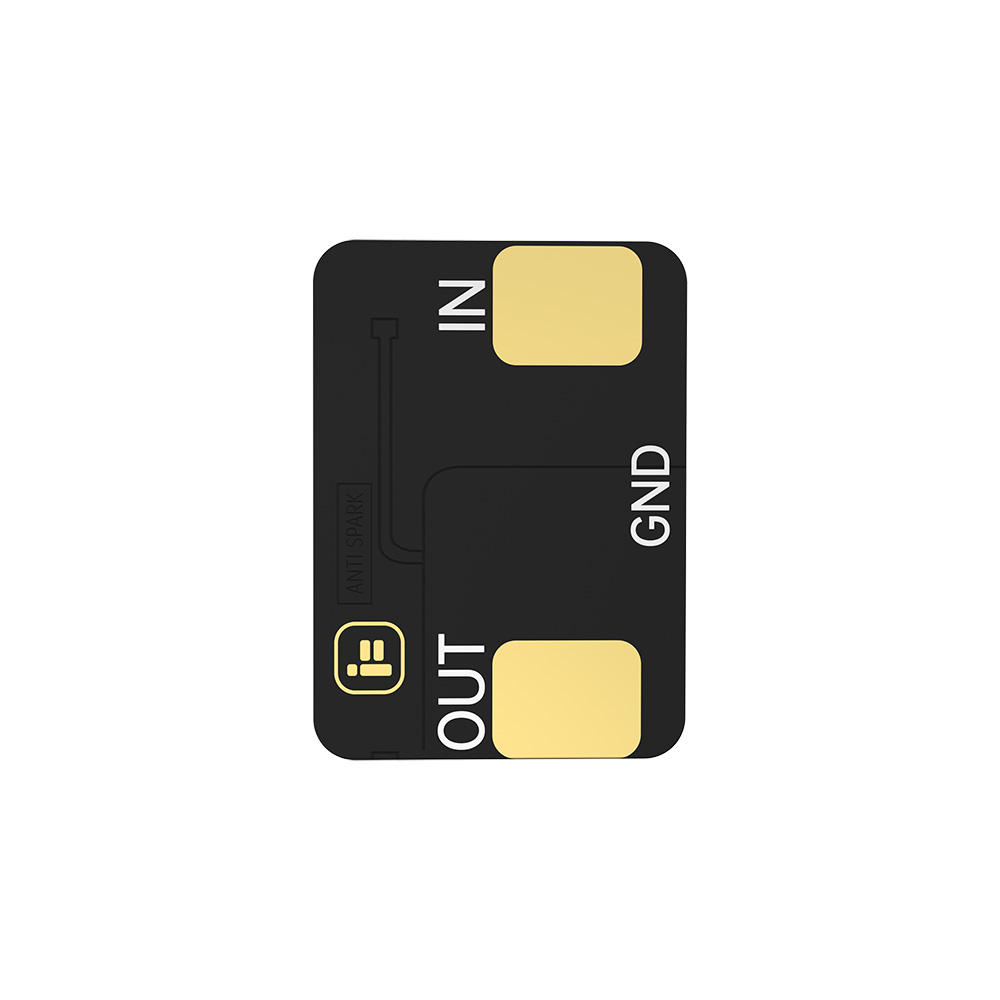

- Size: 18*16mm/ 25*18mm
- Weight: 2.4g/ 2.6g

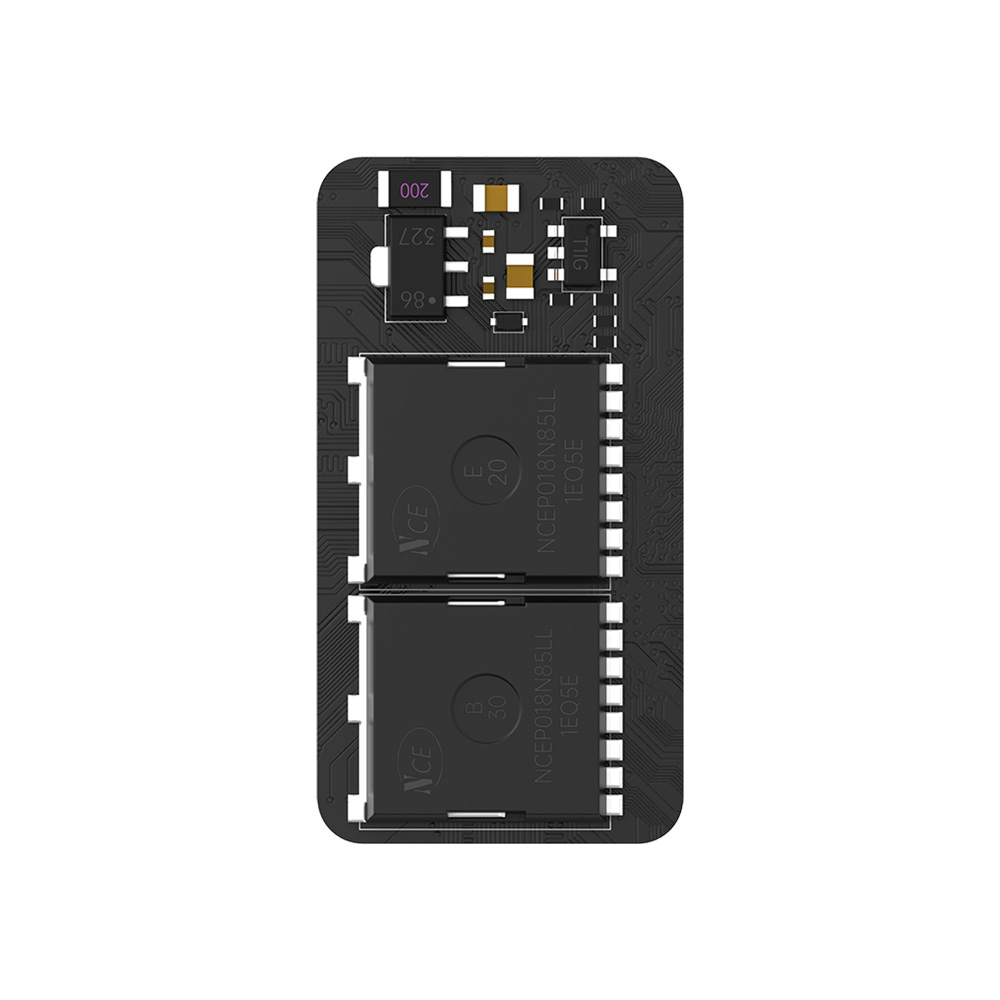

Option 2 30*16 For high current draw Quads 8″+
- Input voltage: 4-6S (14-26V)
- Continuous overcurrent: 150A
- Instantaneous current: 160A
- Size: 30*16mm
- Weight: 4.5g
Additional information
Brand | |
---|---|
Size | Option 1 18*16, Option 2 30*16 |
