iFlight Blitz BEC Module 2-8S with 5V/12V Output
by iFlight
4.83 out of 5
(6 customer reviews)
The iFlight Micro BEC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 36V to a low output stable voltage, which makes it ideal for step-down voltage applications.
$8.99
Out of stock
Receive in-stock notifications for this.
SKU: 7196
Category: Electronic Accessories
Description

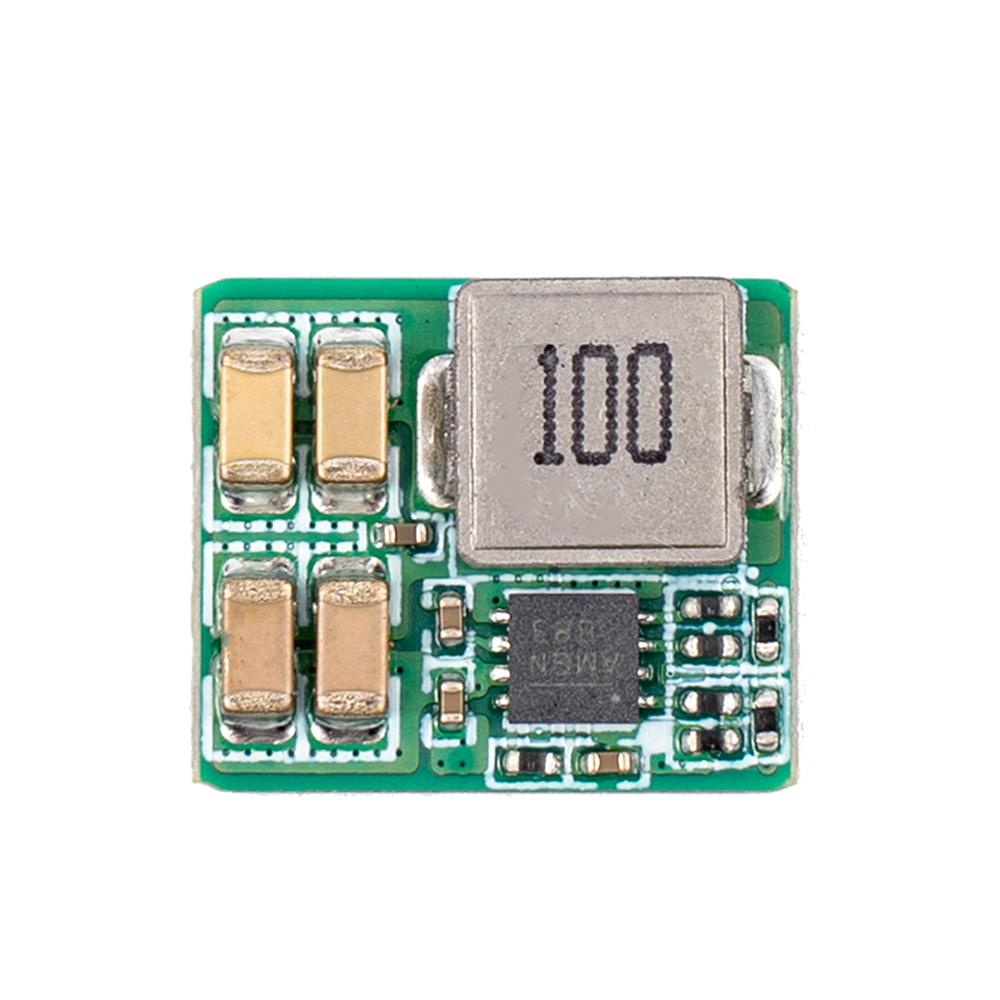

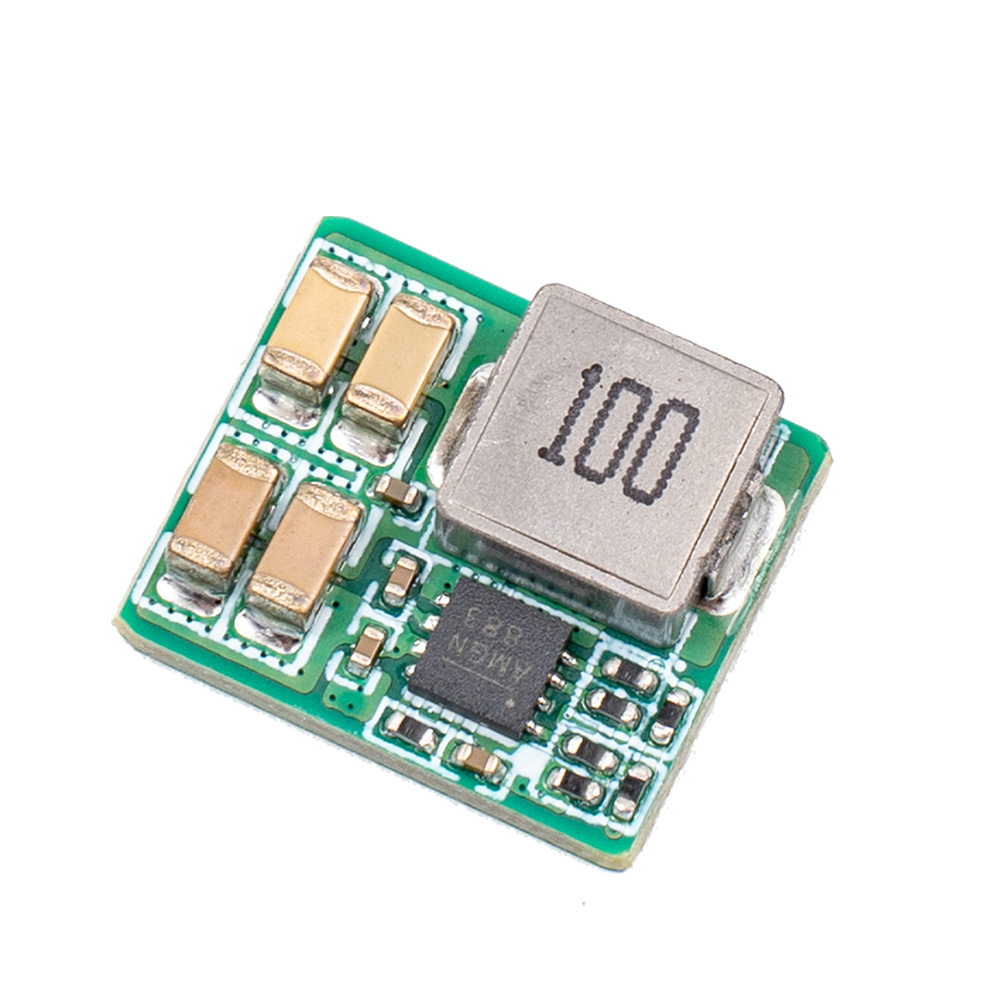

The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 35V to a low output stable voltage, which makes it ideal for step-down voltage applications.
It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 35V).
Features
- Step-down switch mode
- High-efficiency synchronous
- Wide 6V to 35V Input voltage range
- The voltage output can be 5V or 12V adjustable. (default 5V)
Specifications:
- Input voltage: 6-35V
- Output voltage / current: 5V or 12V. Average 2A / Peak 3A
- Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.
- Size: 12*14*4.5mm
- Pins distance: 2.55mm
- Weight: 1.8g
Package Included:

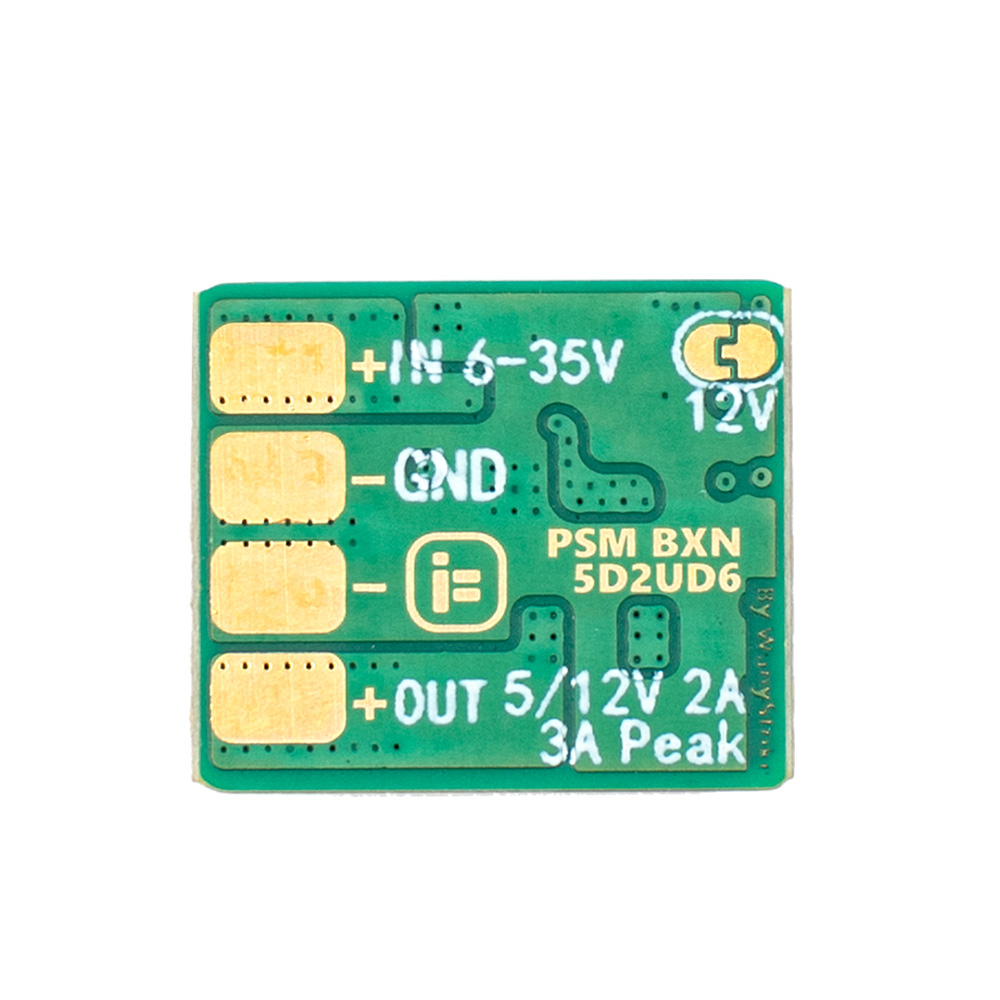

- 1 x BLITZ PSM BXN 5D2UD6 BEC
- 1 x Connecting cables
Additional information
