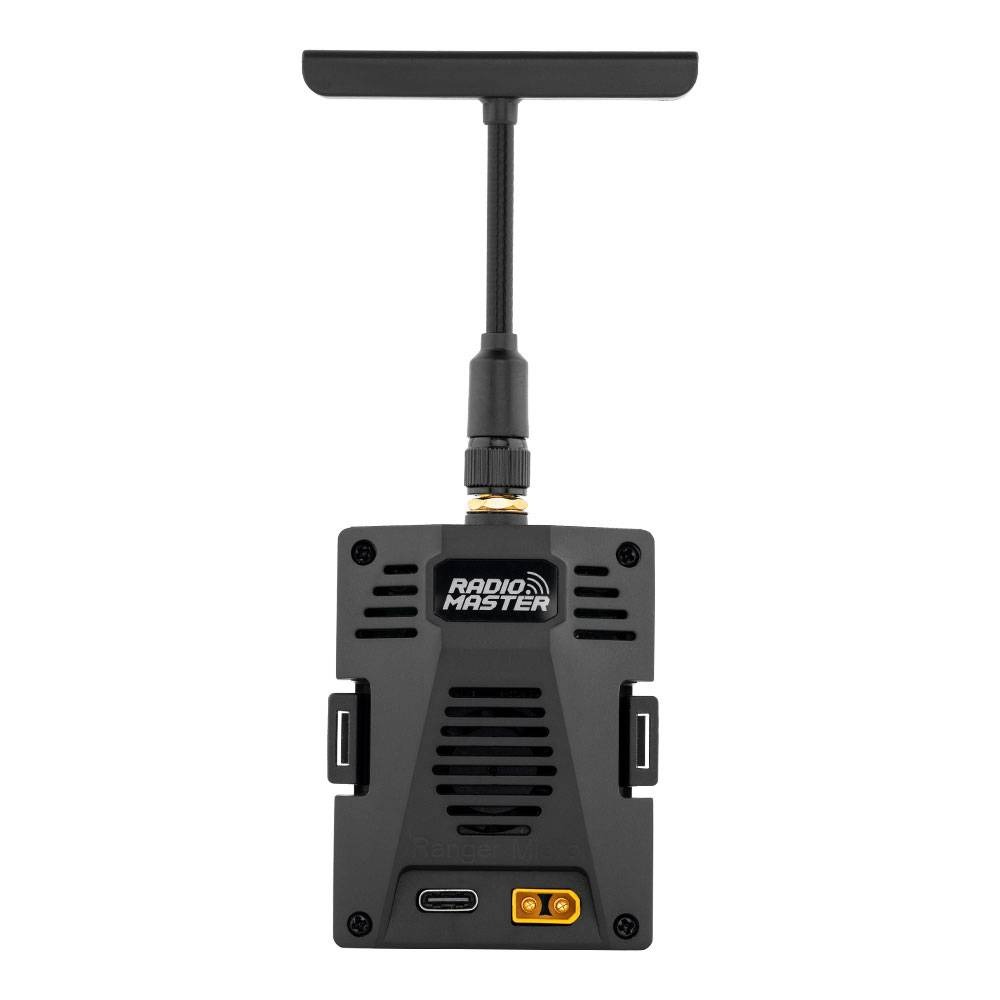

RadioMaster Ranger Micro 2.4Ghz ELRS Module – Starter Combo

Description

Please note all KiwiQuads stock have the v2 Power boards and are safe to use with external power.

Features

• The JR connector supports TX16S MKII/TBS Mambo or any JR standard 5pin socket radios.
• Micro ExpresssLRS 2.4GHz Module
• High-Efficiency Cooling System
• WiFi and Bluetooth Support
• Max F-1000Hz Packet Rate
• 1W Power Output

Specifications

• Dimension: 136*49*33mm, 50g (with Moxon antenna) / 74*49*33mm, 40.5g (without antenna)
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• MCU: ESP32(main), ESP8285(aux,as esp backpack)
• Frequency Range: 2400 MHz to 2480 MHz

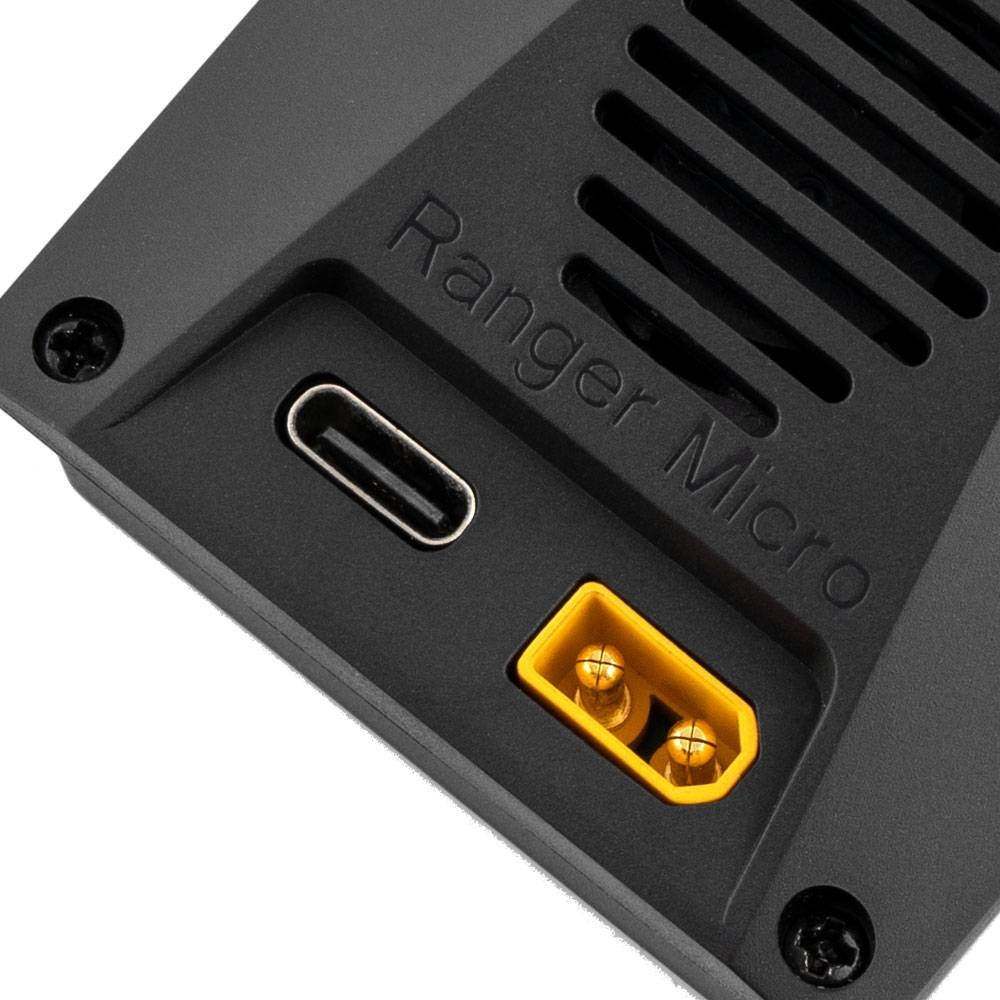

• XT30 Power supply voltage: DC 6V – 16V
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Weight: 50g (with Moxon antenna）
• Regulatory Domain: ISM2400
• Item: Ranger Micro Module
• RF chip: SX1281IMLTRT
• Bluetooth support: Yes
• Wifi Support: Yes

Specifications – T-Antenna

• Antenna polarization: vertical/horizontal polarization
• Type: T-type Omnidirectional Antenna
• Connector: RP-SMA Male
• Freqency: 2.4GHz
• Weight: 9.5g

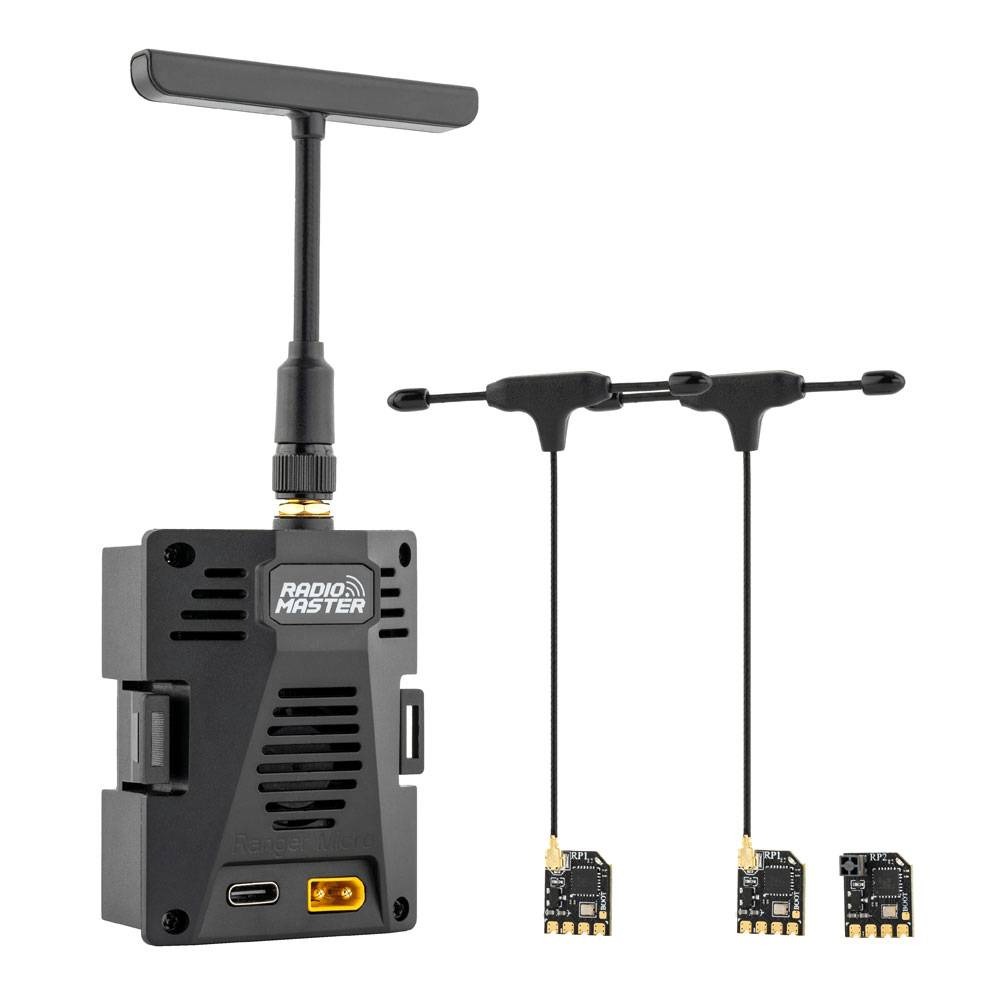

Includes

• 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
• 1x JR Standard 5pin Socket Module Bay Adapter
• 1x Hexagon Socket Screwdriver
• 1x 2.4GHz T Antenna – RP-SMA
• 2x Radiomaster RP1 Receiver
• 1x Radiomaster RP2 Receiver
• 1x Futaba CRSF socket cable
• 3x M2*5 Screws

Accesories/Upgrades (Not included)

• RadioMaster 2.4GHz Moxon Directional Antenna
