RadioMaster DJI RS2 & RS3 Pro Compatible ExpressLRS 2.4ghz gimbal RX
by RadioMaster
Upgrade aerial cinematography effortlessly. GR-01: DJI RS2/RS3 Pro compatible. Precision control with ExpressLRS technology.
$99.99
Hurry! Only 3 left in stock
Ships from our Tauranga warehouse
SKU: 7012
Categories: ExpressLRS, RC Radios, Receivers
Description

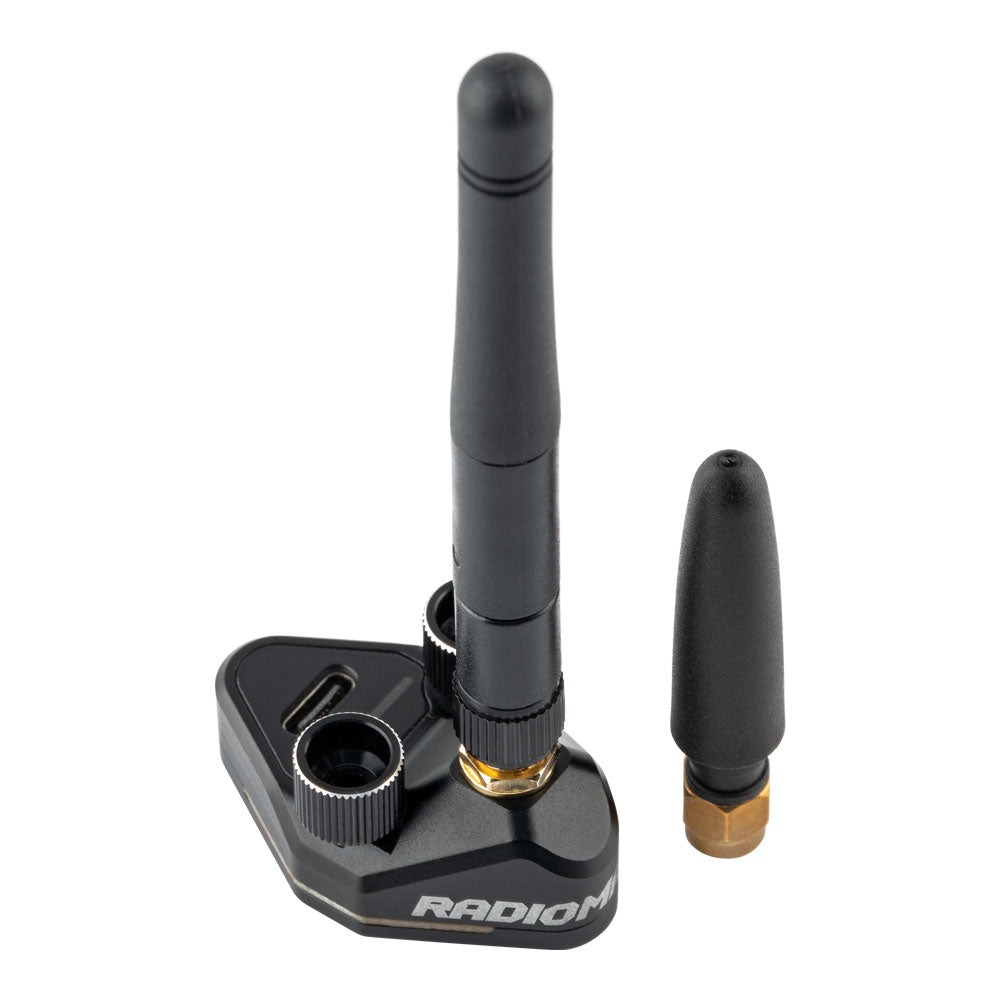

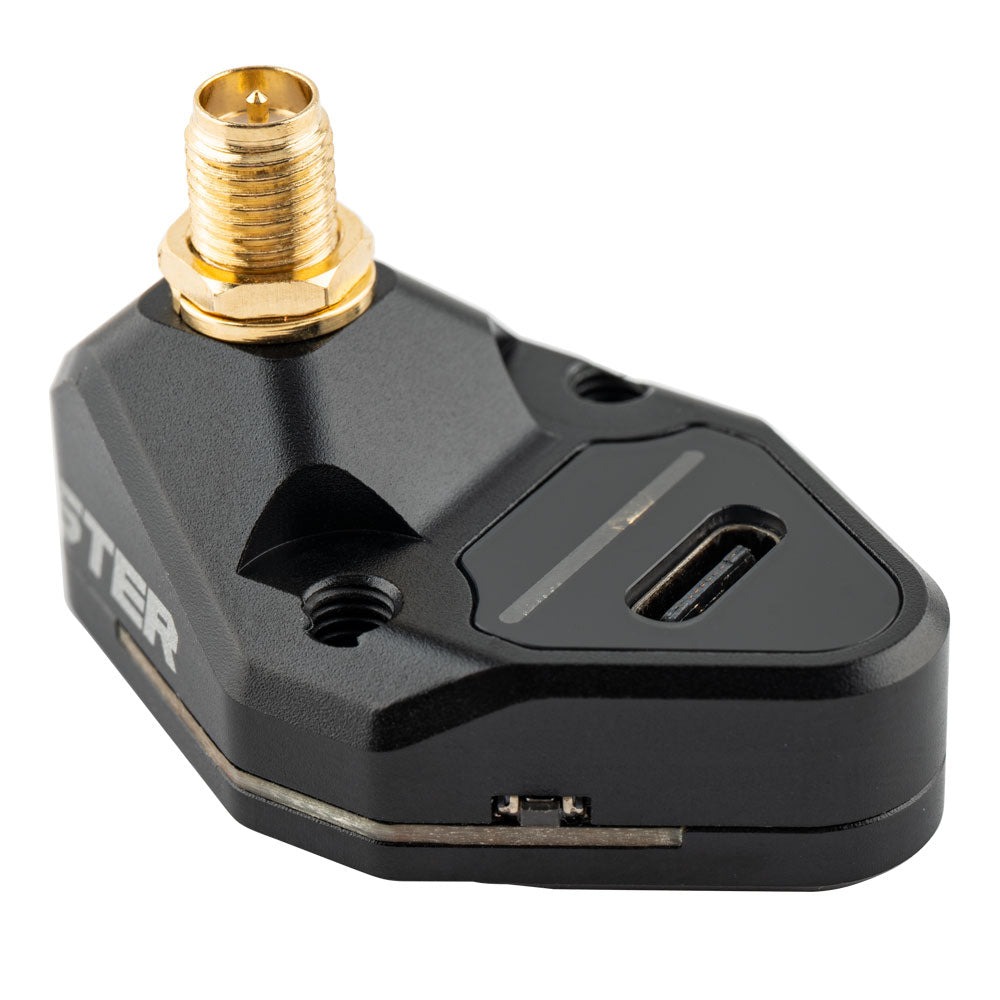

Effortlessly upgrade your aerial cinematography with the GR-01 ExpressLRS 2.4GHz Receiver. Compatible with DJI RS2 and RS3 Pro camera gimbals, it offers precision control and professional-grade performance. The CNC housing ensures durability, while the built-in USB-C port allows for easy firmware updates, making it a must-have tool for cinematographers.
![](https://www.kiwiquads.co.nz/wp-content/uploads/RadioMaster-DJI-RS2-RS3-Pro-Compatible-ExpressLRS-2.4ghz-gimbal-RX-4.jpg)
Features:
- Compatible with the DJI RS2 and RS3 Pro camera gimbals
- Professional & durable CNC housing
- Convenient direct NATO port mounting
- Built in USB-C port for easy firmware updates
- Replaceable 2.4Ghz antennas
Specification:
- Item: GR-01 ExpressLRS 2.4GHz Receiver
- Frequency: ISM2400MHz (2.4GHz)
- MCU: ESP8285
- RF Chip: SEMTECH SX1281
- Antenna: 2.4GHz Omni
- Frequency Range: 2400 MHz to 2480 MHz
- Firmware Version: ExpressLRS v3.3.0
- FW Target: RadioMaster RP1/2 2400 RX
- Output protocol: DJI RS Pro
- Firmware flash method: UART or Wifi
- Connector Type: NATO Port
- Voltage: 5V
- Weight: 18.80g(without antenna)
- Dimension: 43.00×27.70×27.50mm
![](https://www.kiwiquads.co.nz/wp-content/uploads/RadioMaster-DJI-RS2-RS3-Pro-Compatible-ExpressLRS-2.4ghz-gimbal-RX-5.jpg)
![](https://www.kiwiquads.co.nz/wp-content/uploads/RadioMaster-DJI-RS2-RS3-Pro-Compatible-ExpressLRS-2.4ghz-gimbal-RX-6.jpg)
![](https://www.kiwiquads.co.nz/wp-content/uploads/RadioMaster-DJI-RS2-RS3-Pro-Compatible-ExpressLRS-2.4ghz-gimbal-RX-7.jpg)
![](https://www.kiwiquads.co.nz/wp-content/uploads/RadioMaster-DJI-RS2-RS3-Pro-Compatible-ExpressLRS-2.4ghz-gimbal-RX-8.jpg)
How to bind:
- Quickly power the Rx 3 times using the USB-C port
The green LED will double-blink when the Rx is in binding mode.
Enter ExpressLRS LUA script on your radio, press [BIND]. The LED will go to solid green “ON” if bind is successful. - Alternatively use the ExpressLRS binding phrase method for binding
After a successful bind procedure, make sure the output protocol is “DJI RS Pro”. Return to main menu and re-enter the ExpressLRS LUA Go to “Other Devices” at the bottom of the screen and select “RMRP1” and ensure “DJI RS Pro” is selected.
Dimensions:

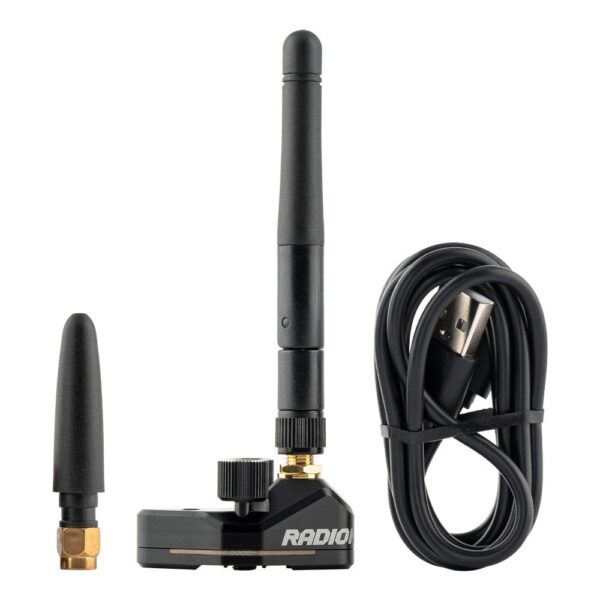

Package Includes:
- 1 * GR-01 ExpressLRS 2.4GHz Receiver
- 1 * USB-C Cable
- 1 * Short 2.4GHz Antenna
- 1 * Folding 2.4GHz Antenna
