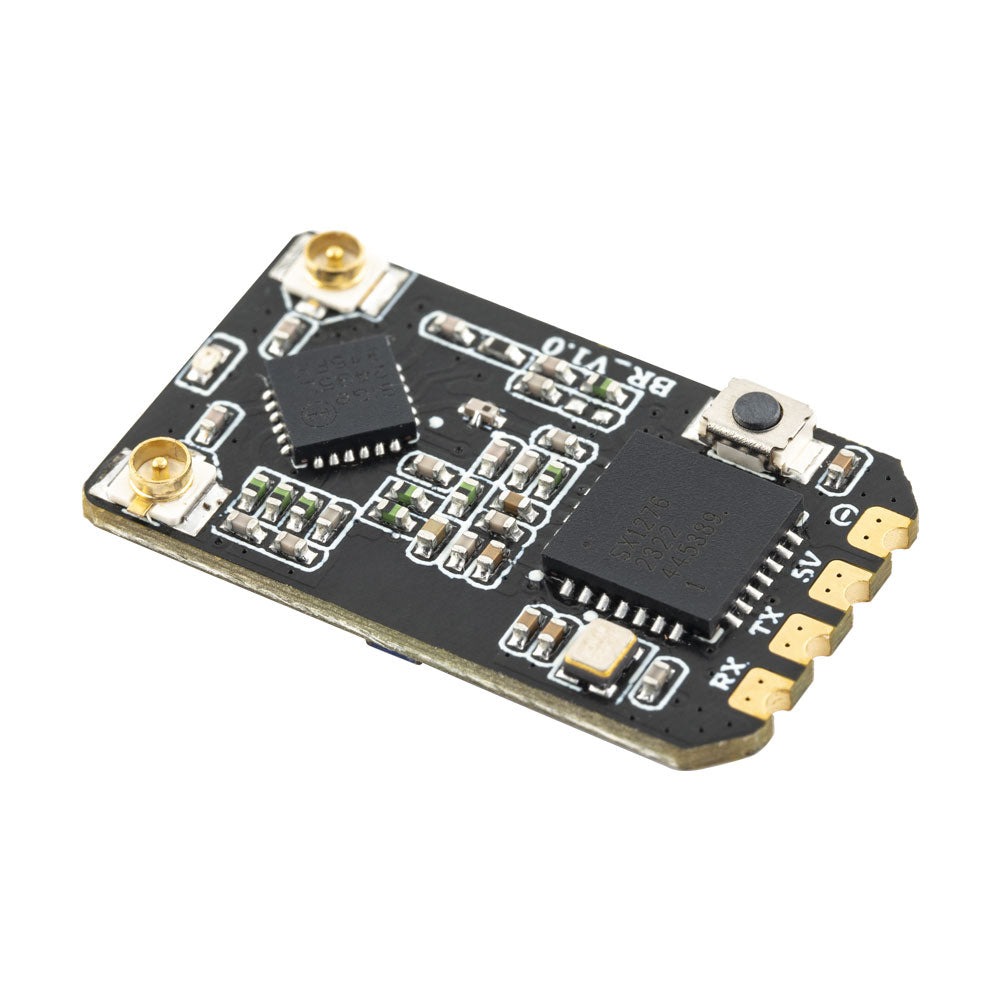

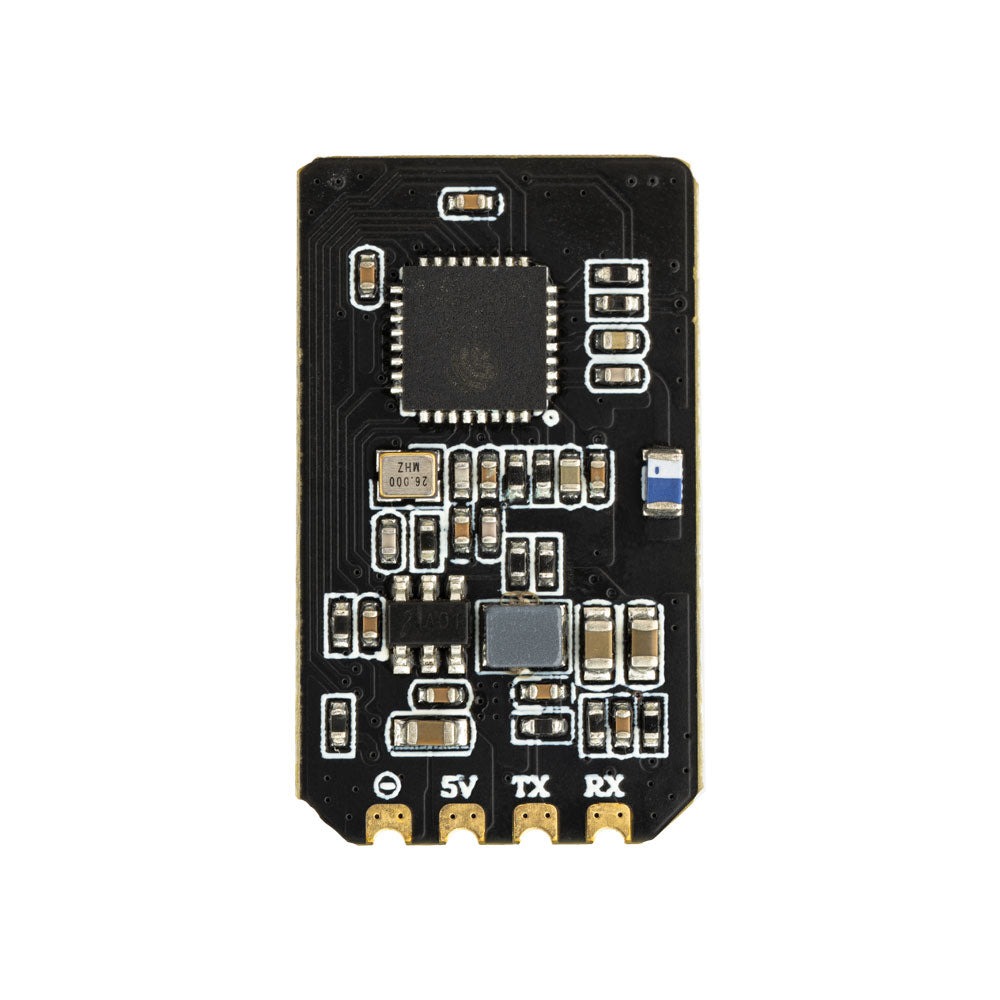

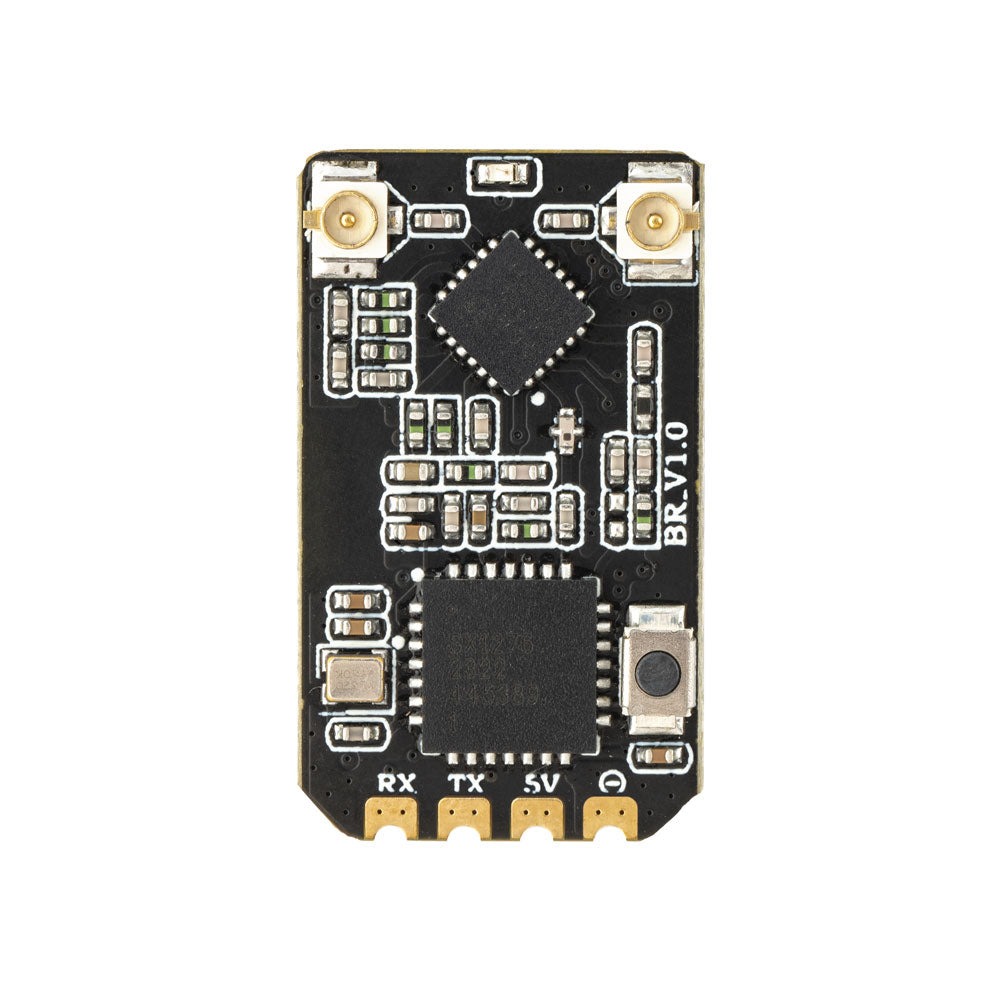

RadioMaster BR3 915mHz ExpressLRS Receiver

Description

The RadioMaster BR3 915mHz ExpressLRS Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR3 ExpressLRS receiver also features superior resistance to vibration.

Features:

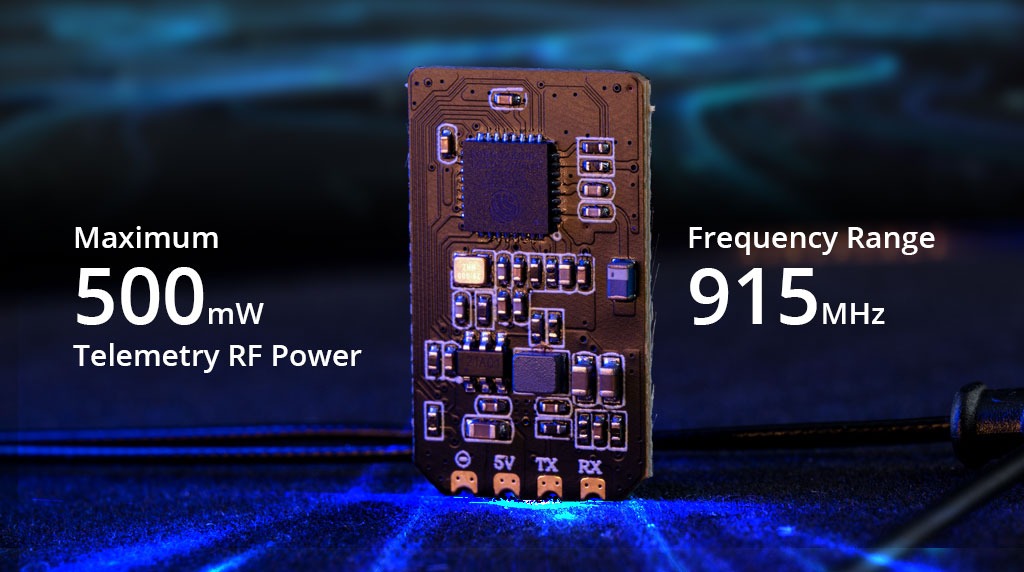

• Maximum 500mW telemetry RF power
• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration

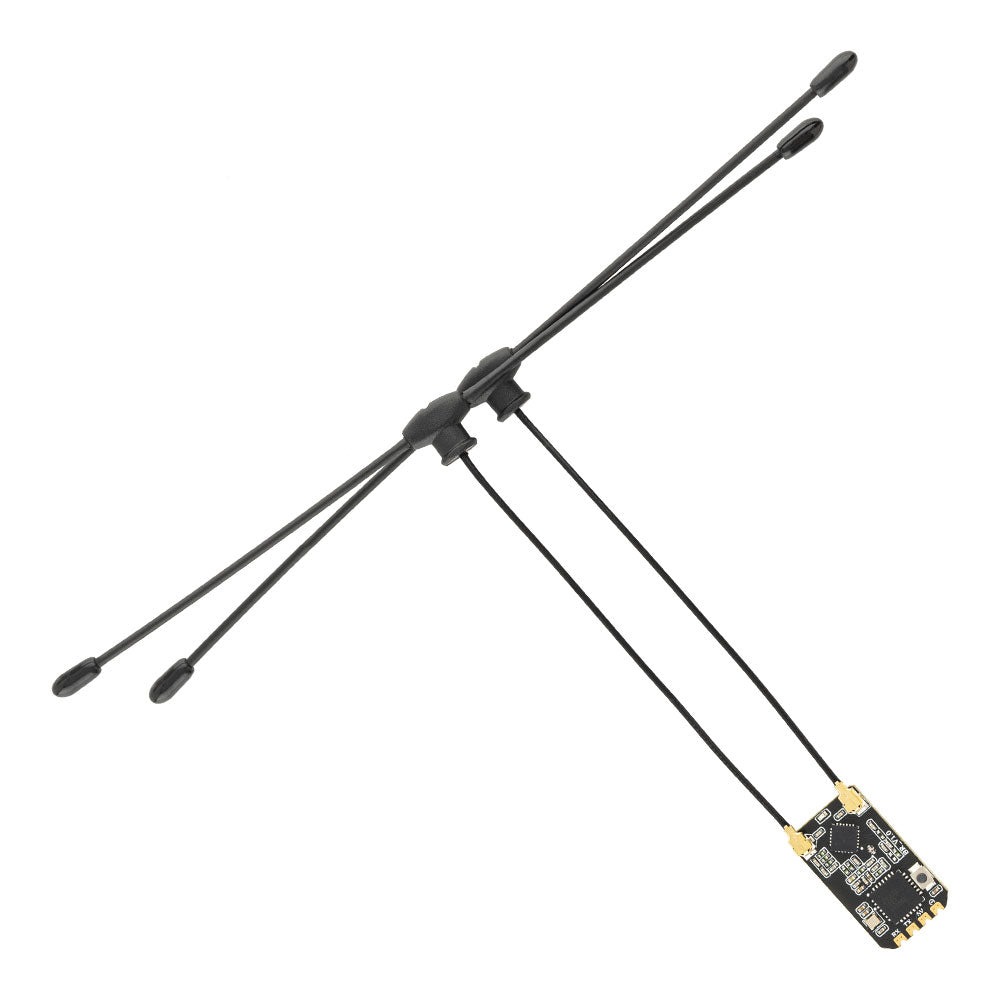

• Dual 915/868MHz T Antenna for improved signal stability and range

Specification:

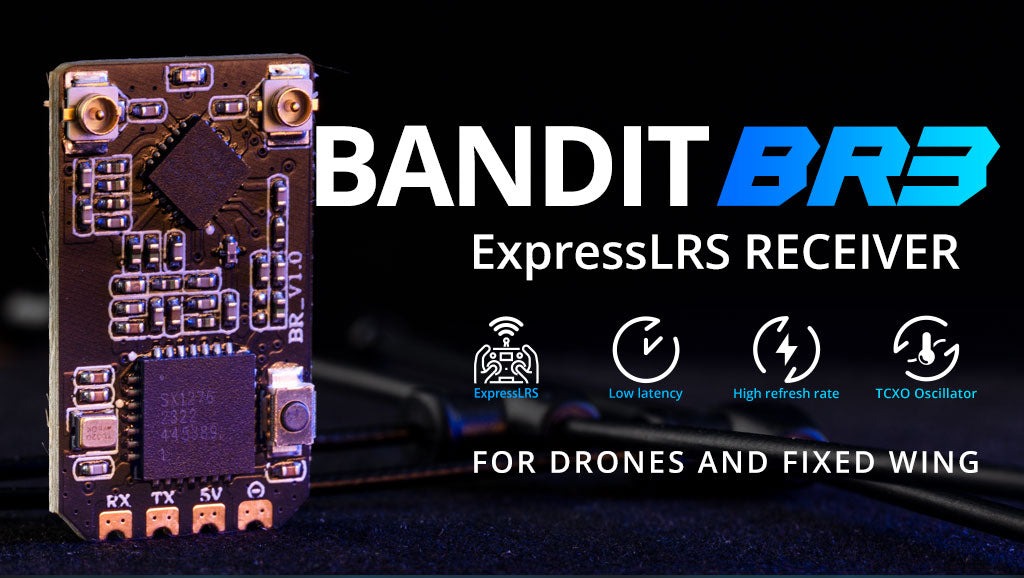

• Item: Bandit BR3 ExpressLRS Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF power: 100mW – 500mW LUA Adjustable
• Antenna: 915/868MHz T Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 4.5-8.4V

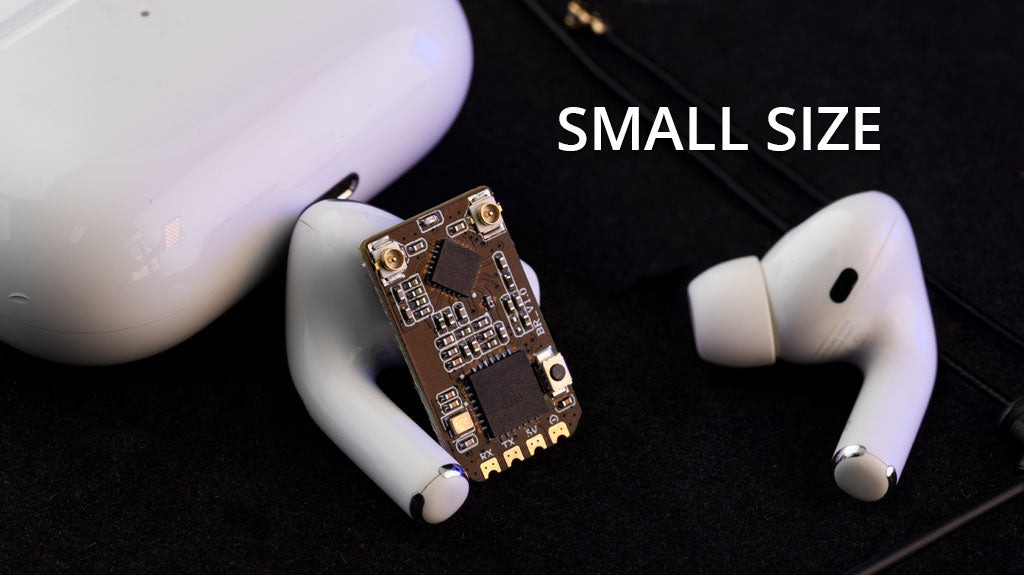

• Dimension: 24*14.2mm
• Weight: 5.5g (with antennas)

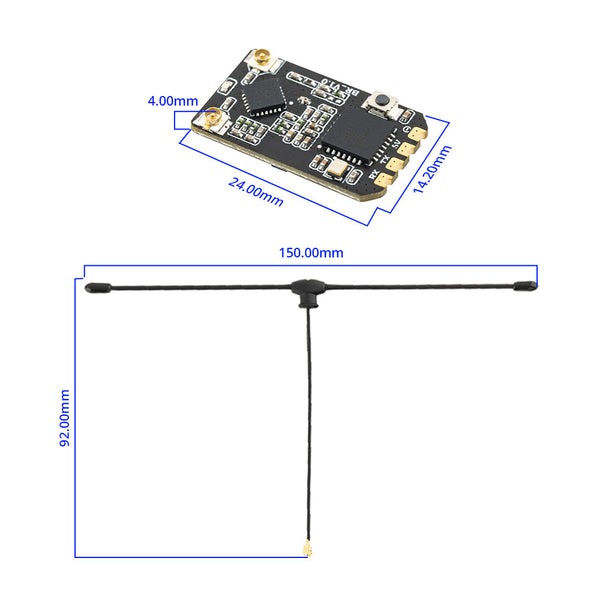

Dimensions:

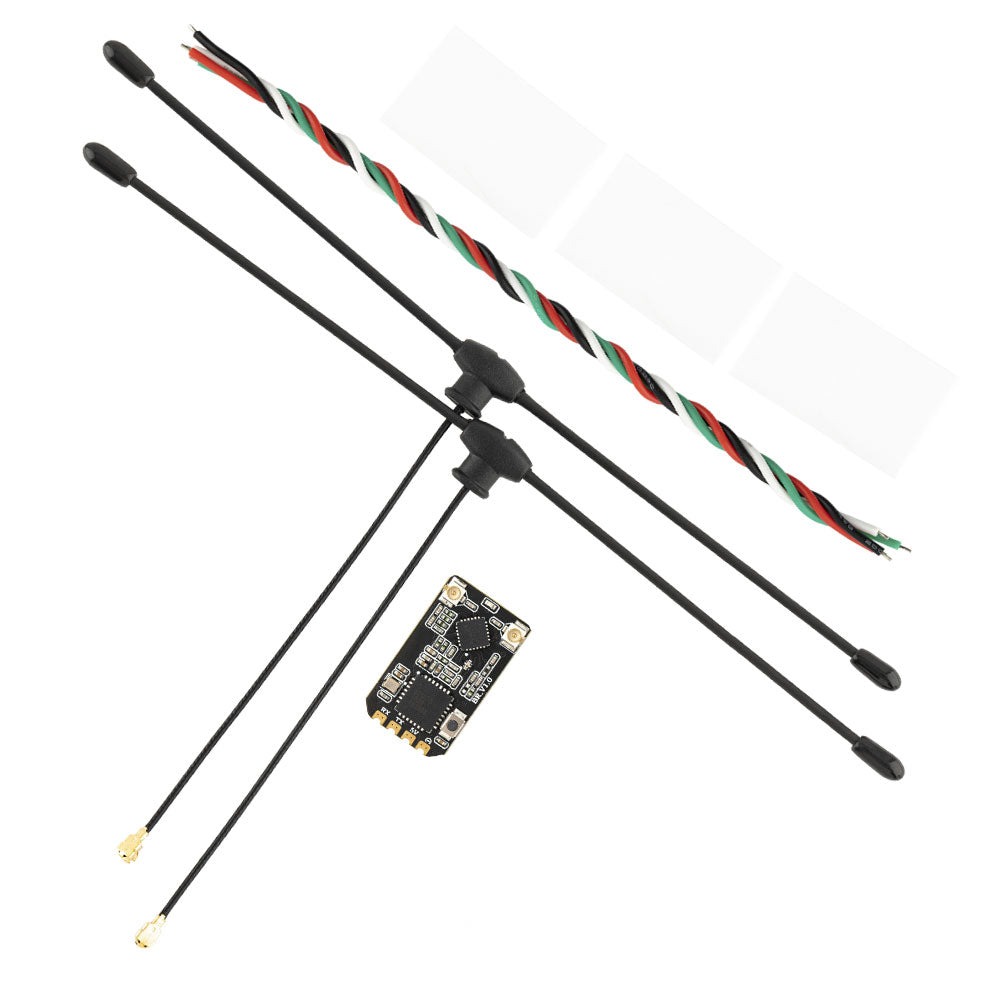

Package Includes:

• 1 x Bandit BR3 Expresslrs Receiver
• 2 x T Antenna (Installed on Receiver)
• 3 x Receiver Shrink Tube Sleeves
• 1 x CRSF Wire
• 1 x Manual
