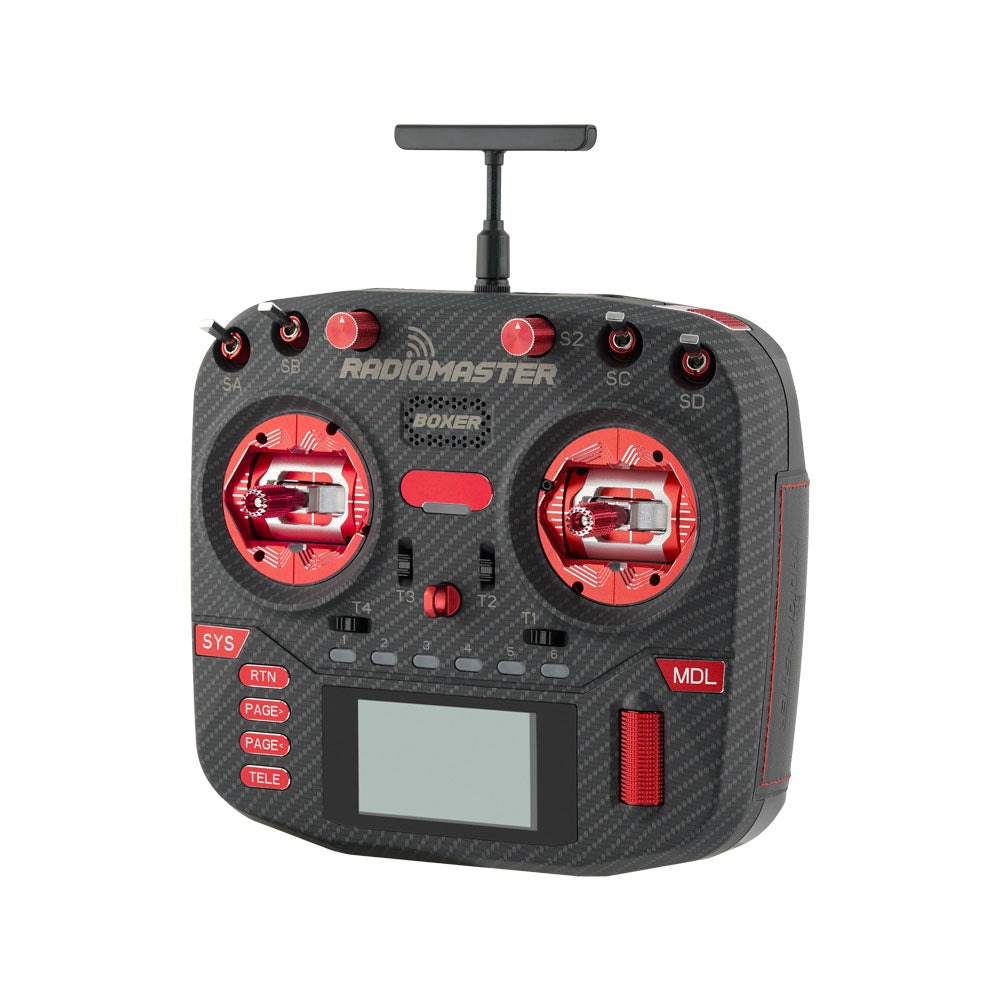

RadioMaster Boxer MAX Radio with AG01 Gimbals (ExpressLRS)

Description

The perfect combination of size and ergonomics make the BOXER an ideal choice for pilots on the go. Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.

Features

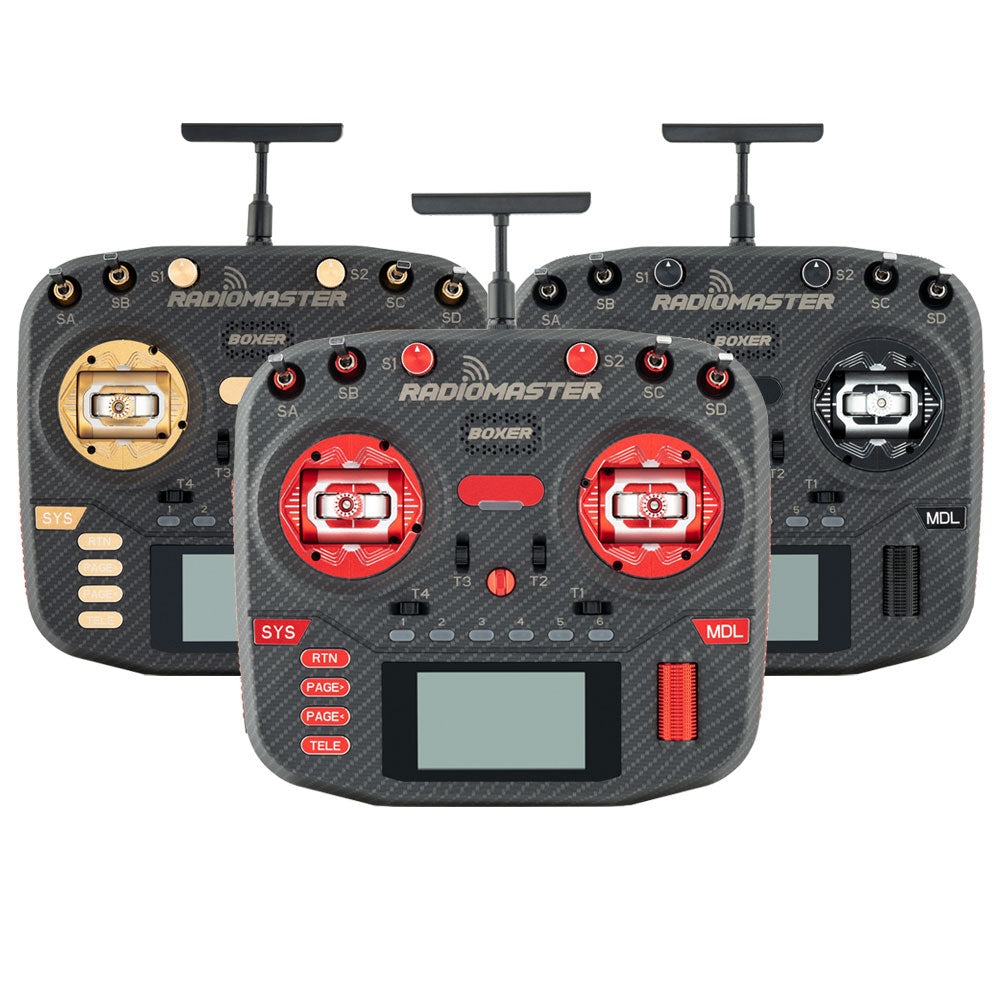

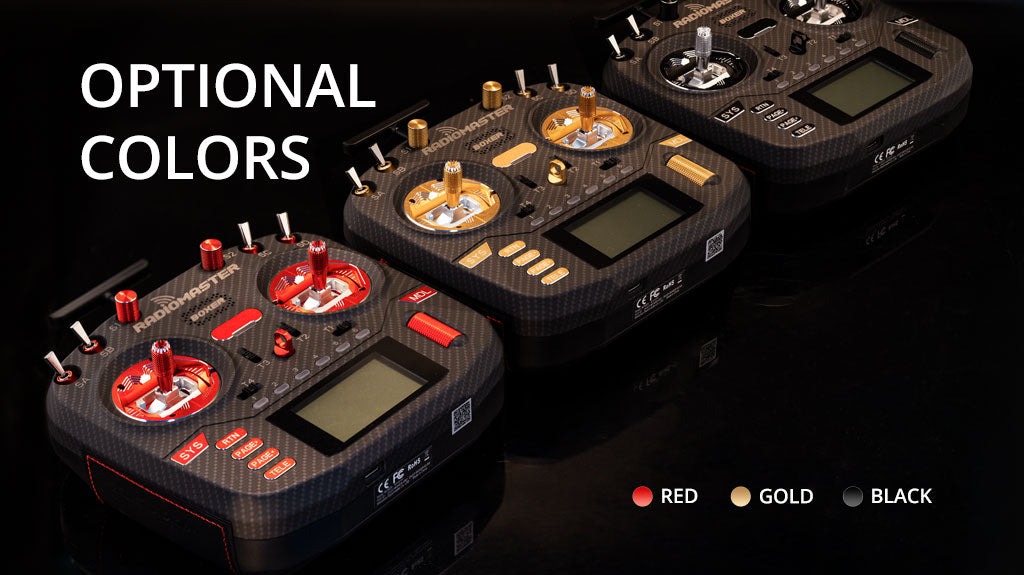

• Optional 3 colors – Black/Red/Gold

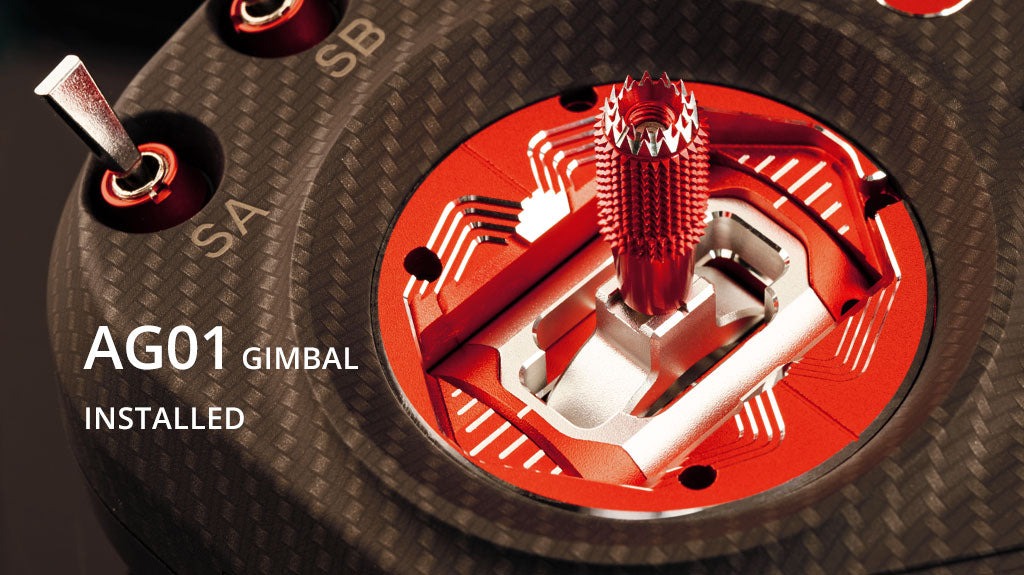

• AG01 hall gimbals installed

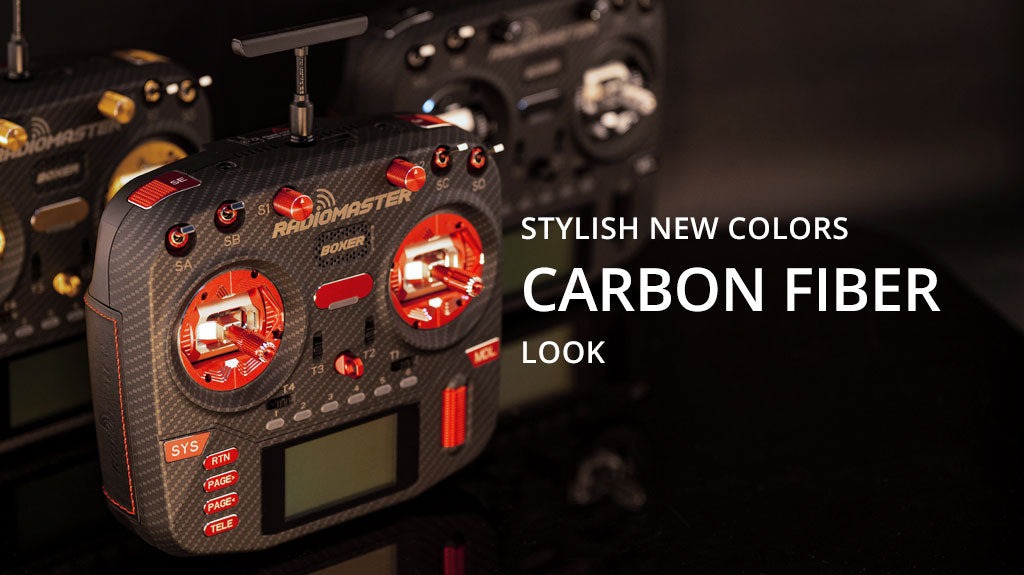

• Carbon fiber pattern case

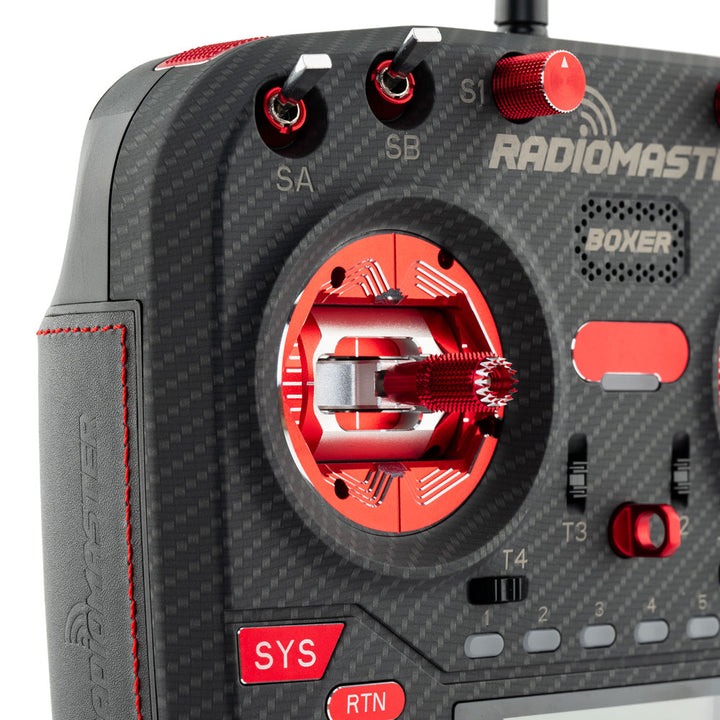

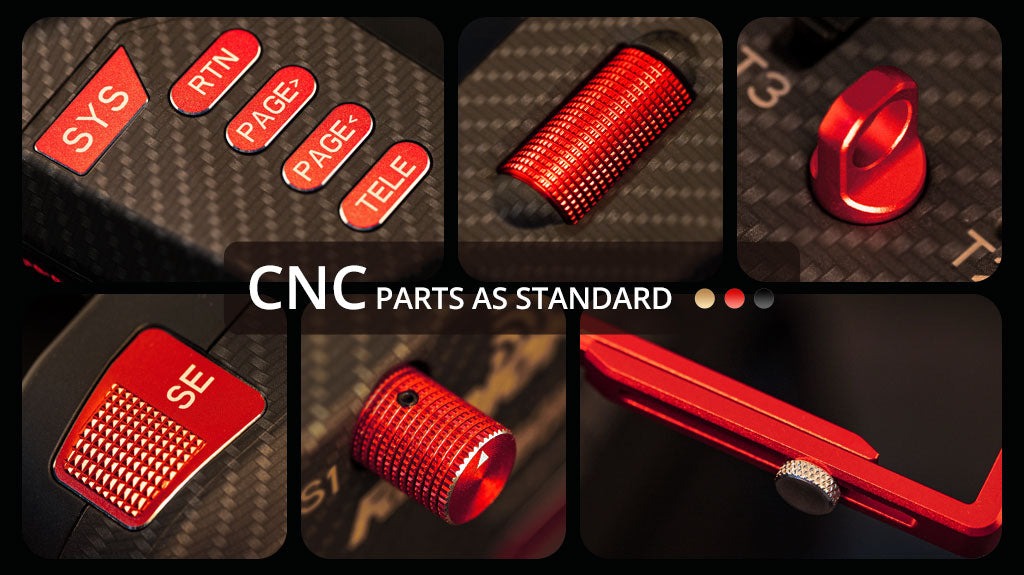

• CNC buttons and roller as standard

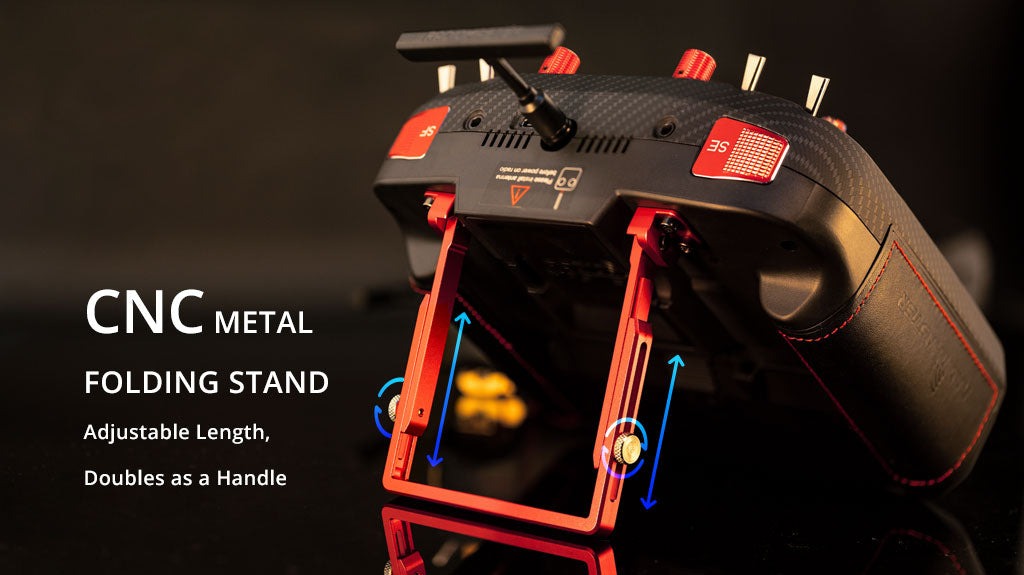

• Adjustable length CNC metal folding stand

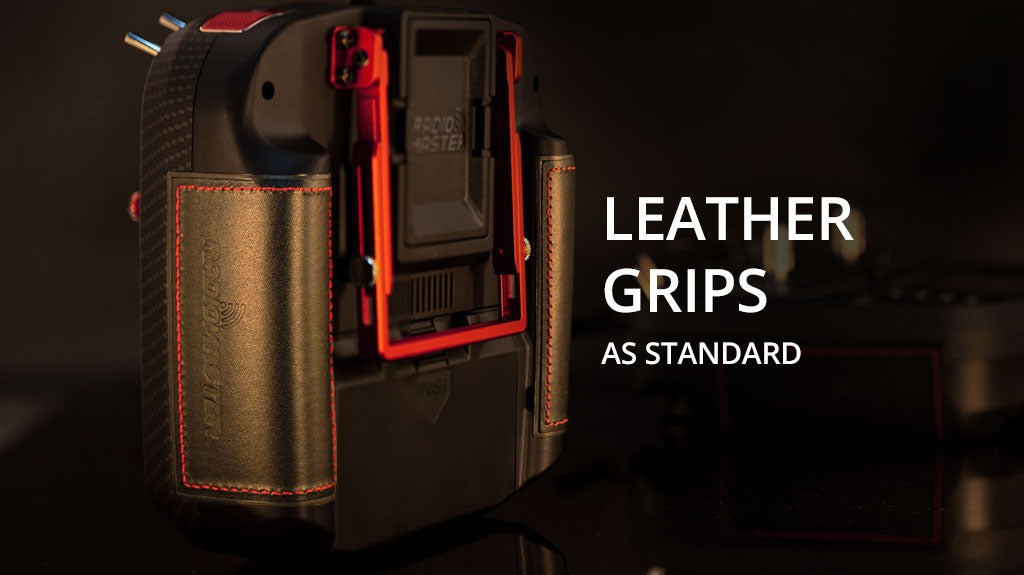

• Upgraded black leather grips
• Available with built-in ExpressLRS RF modules
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ELRS module capable of 1,000Hz refresh rate
• Adjustable ELRS RF output
• QC3.0 fast charging support 2.0A MAX
• Compact design with excellent ergonomics

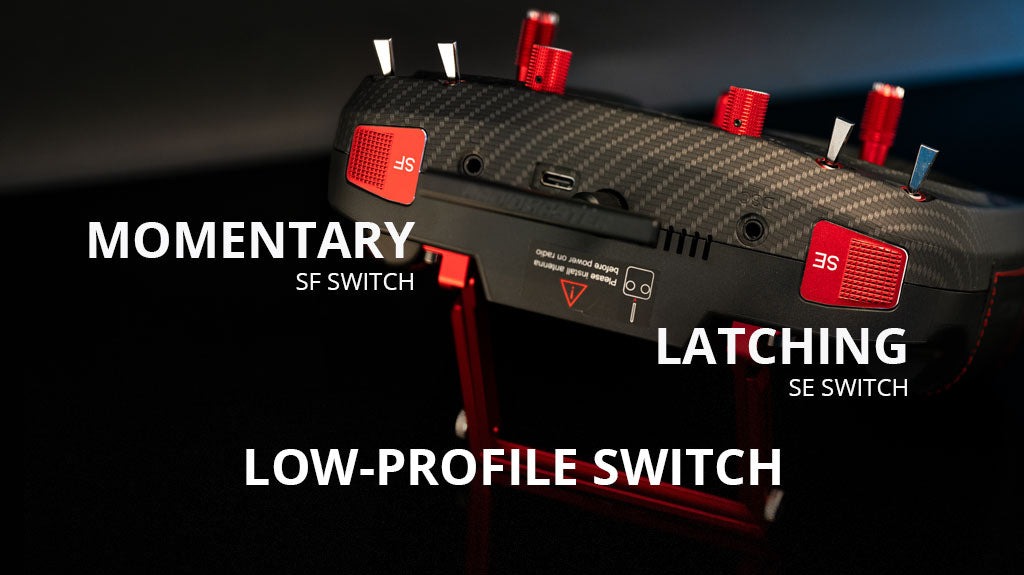

• New low-profile latching SE switch and momentary SF switch
• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Standard JR module compartment
• Internal module cooling fan built in (ELRS version)

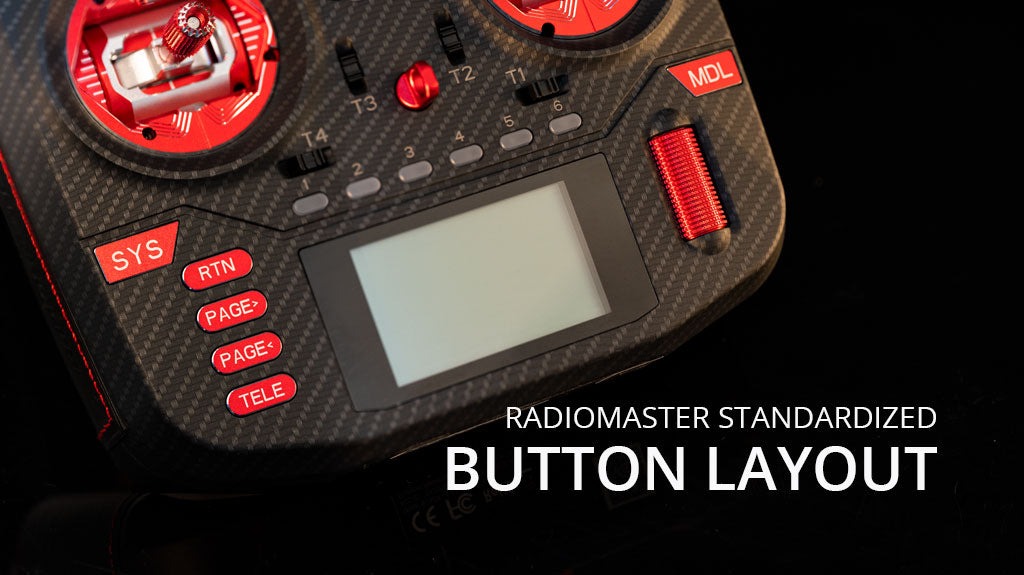

• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access

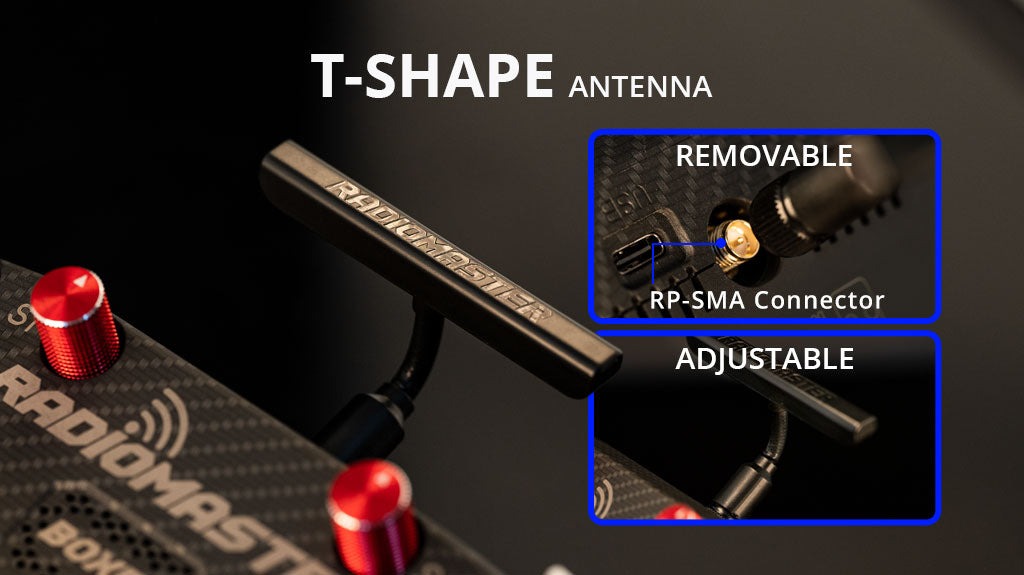

• Adjustable and Removable T-shape Antenna
• Industry first fabric handle for improved portability
• Changeable, ergonomic grips
• Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
• External module power slots in battery cover
• RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specification

• Item: BOXER Max Radio
• Colour: Black/Red/Gold
• Size: 235*178*77mm
• Weight: 532.5g
• Frequency: 2.400GHz-2.480GHz
• Internal RF Options: ELRS 2.4GHz
• Transmitting Power ExpressLRS: Max 30dBm (international)
• Cooling fan: Built in (ELRS version)
• Voltage Range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ELRS
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
• External module: JR/FrSKY/Crossfire compatible
• Upgrade Method: USB/SD card & EdgeTX Companion PC software







Accessories (not Included)

• 18650s: Samsung 30Q 18650 3000mAh 15A Battery (2 Pack)
• Lipo: GNB Battery 7.4V 6500mAh 2S for RadioMaster Boxer
• Lipo: RadioMaster Battery 7.4V 6200mAh 2S for Boxer/TX16S

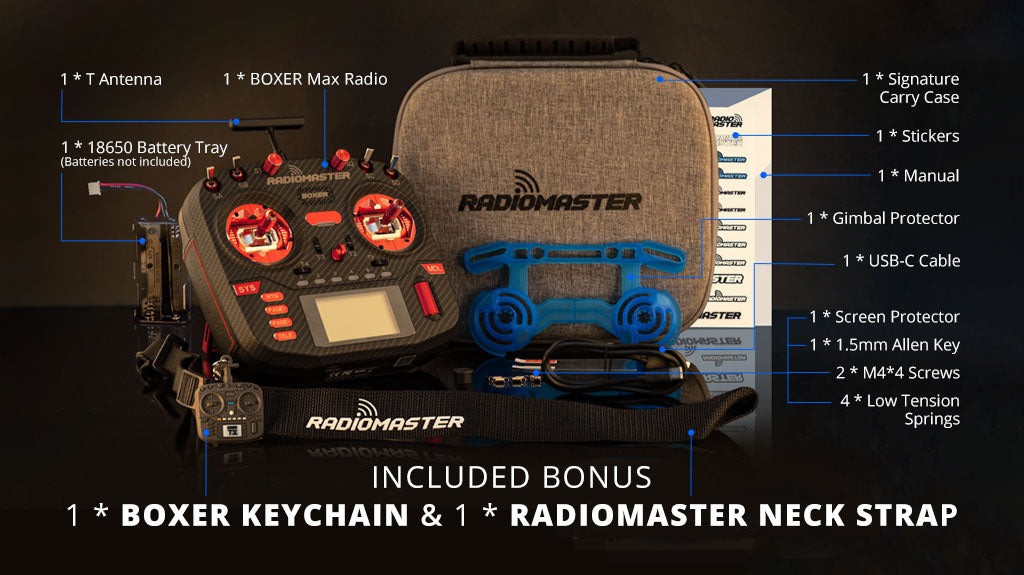

Package Includes

• 1 * BOXER Max Radio
• 1 * Signature Carry Case
• 1 * T Antenna
• 1 * USB-C Cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen Key
• 2 * M4*4 Screws
• 4 * Low Tension Springs
• 1 * Stickers
• 1 * Manual
• 1 * 18650 Battery tray (Batteries not included)
• 1 * RadioMaster Neck Strap
• 1 * Boxer KeyChain
• 1 * Screen Protector



Download

• Boxer_Radio_User_Manual
