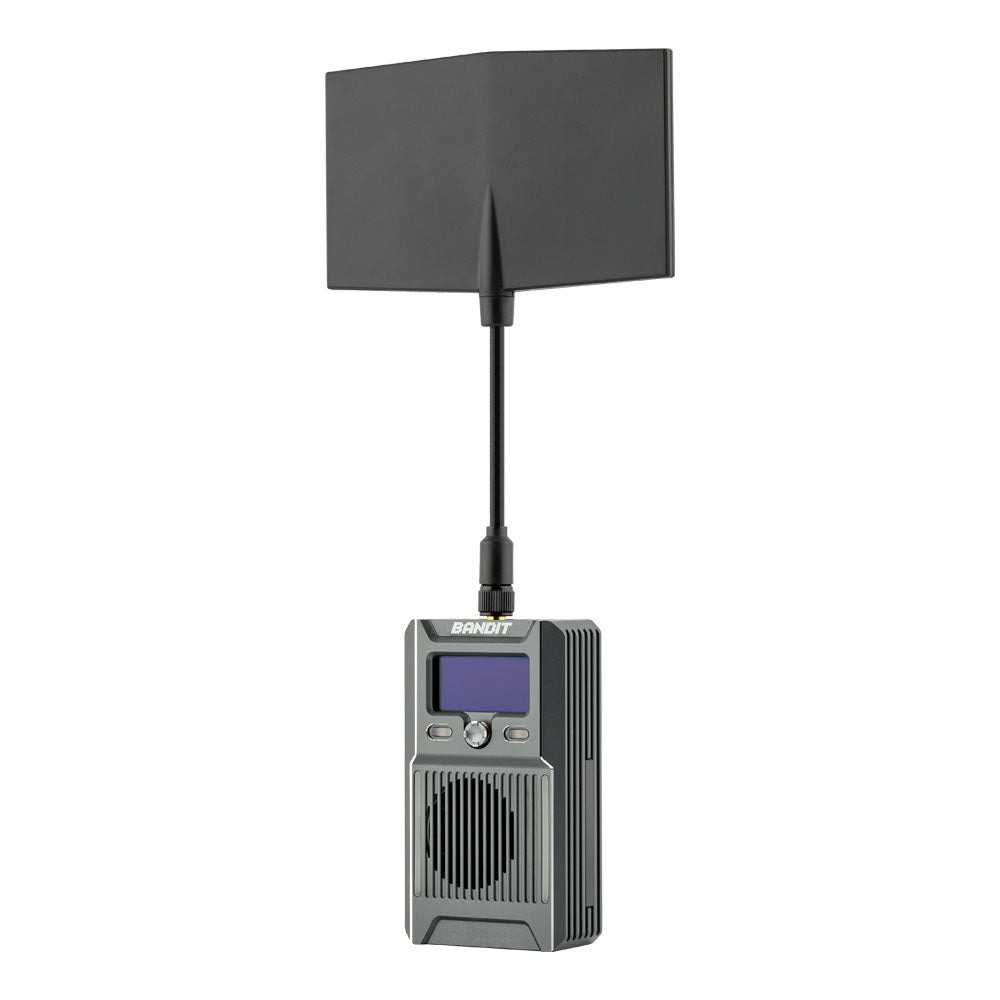

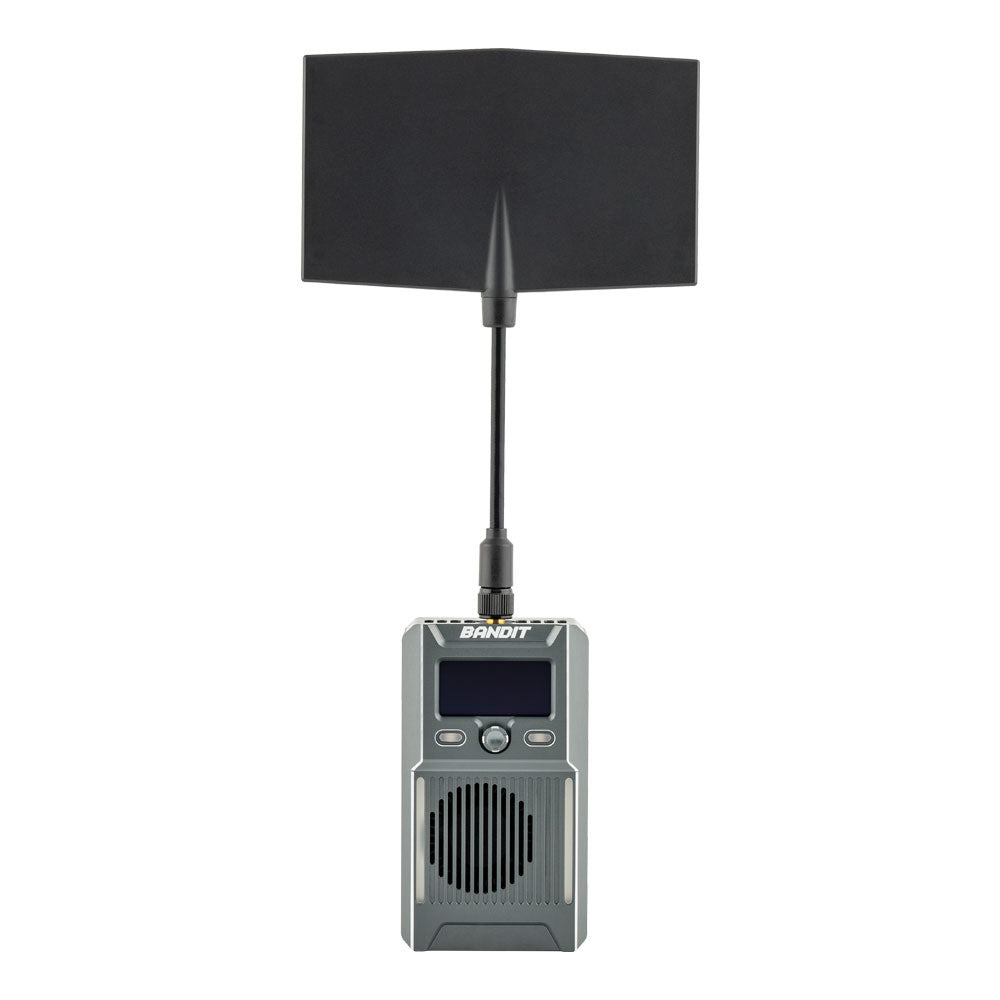

RadioMaster Bandit 915mHz ExpressLRS RF Module

Description

The RadioMaster Bandit 915mHz ExpressLRS RF Module is a cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.

Features:

• Up to 1 Watt power output
• Packet rates up to 200Hz

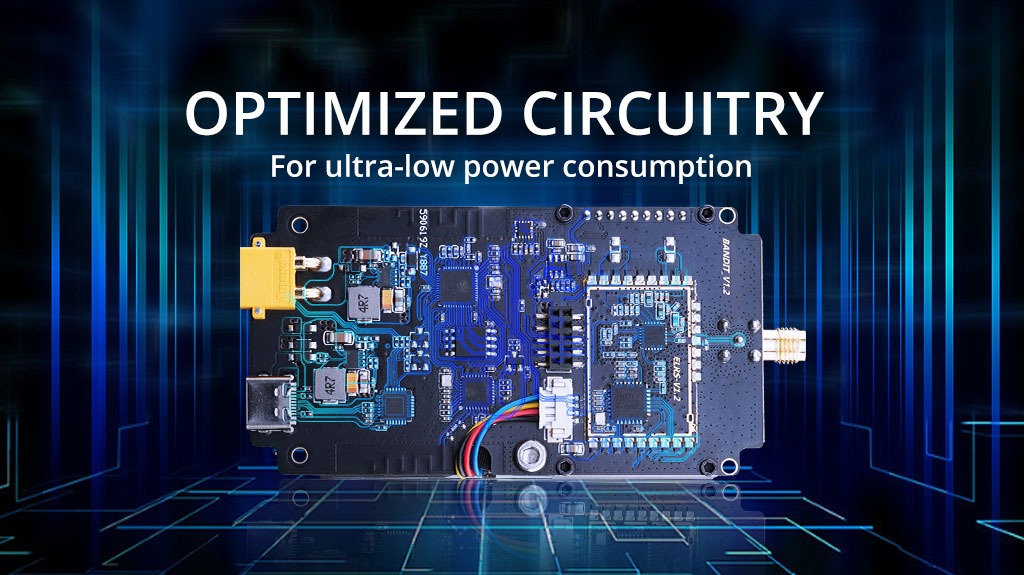

• Optimized circuitry for ultra-low power consumption

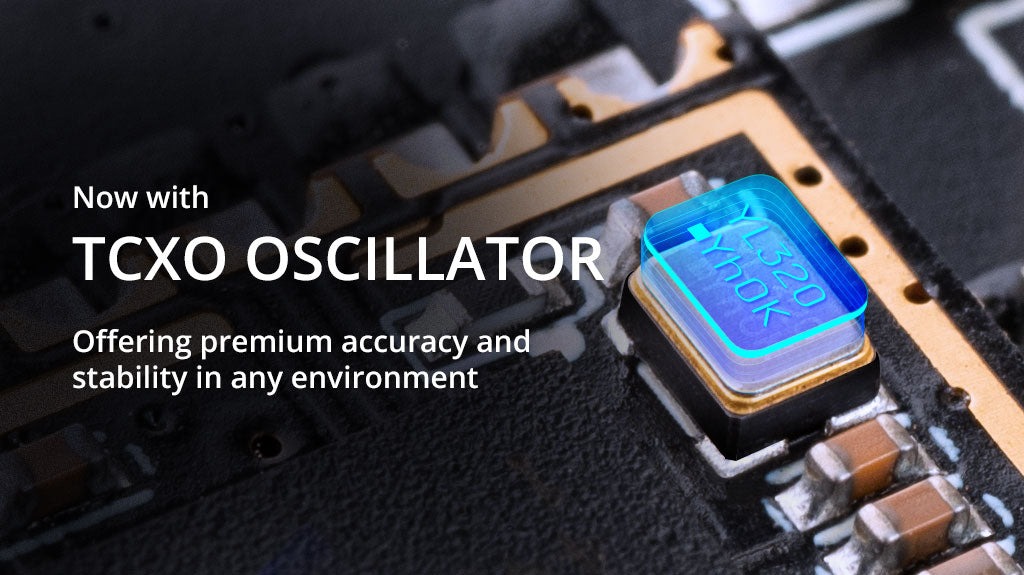

• Built-in TCXO oscillator
• Low noise, high comfort
• High contrast OLED display
• Rugged gunmetal CNC housing

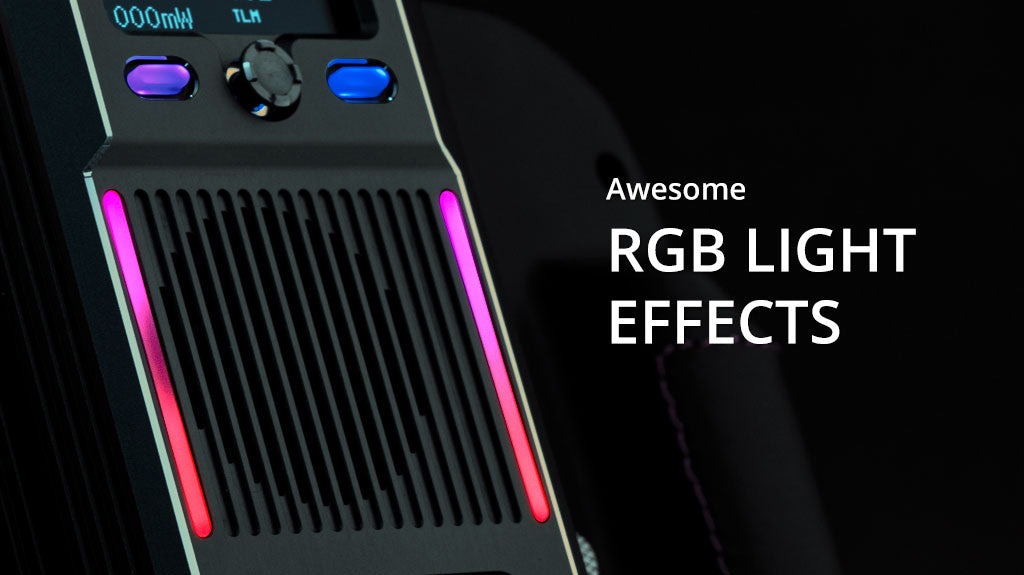

• Awesome RGB light effects

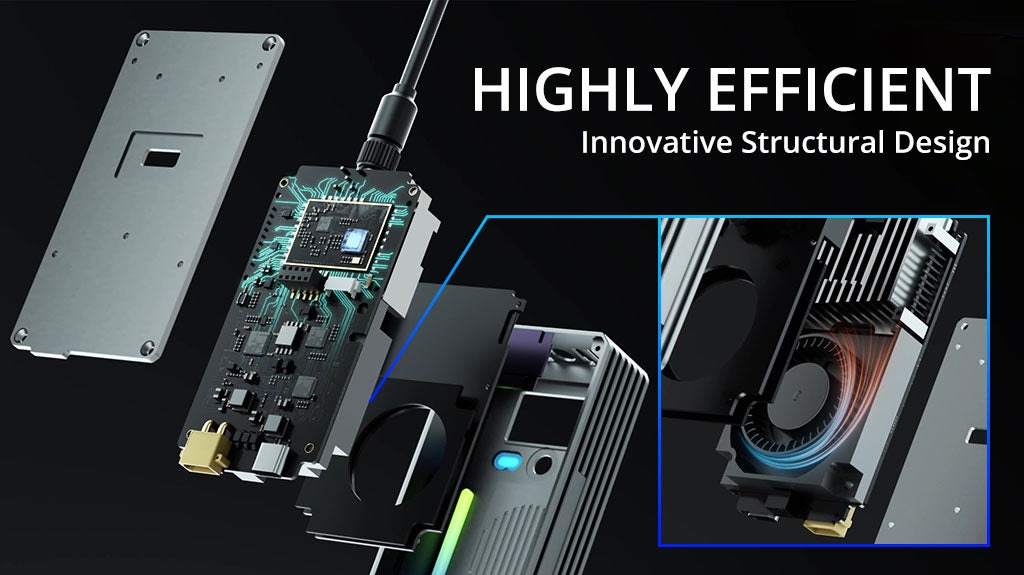

• High efficiency cooling system

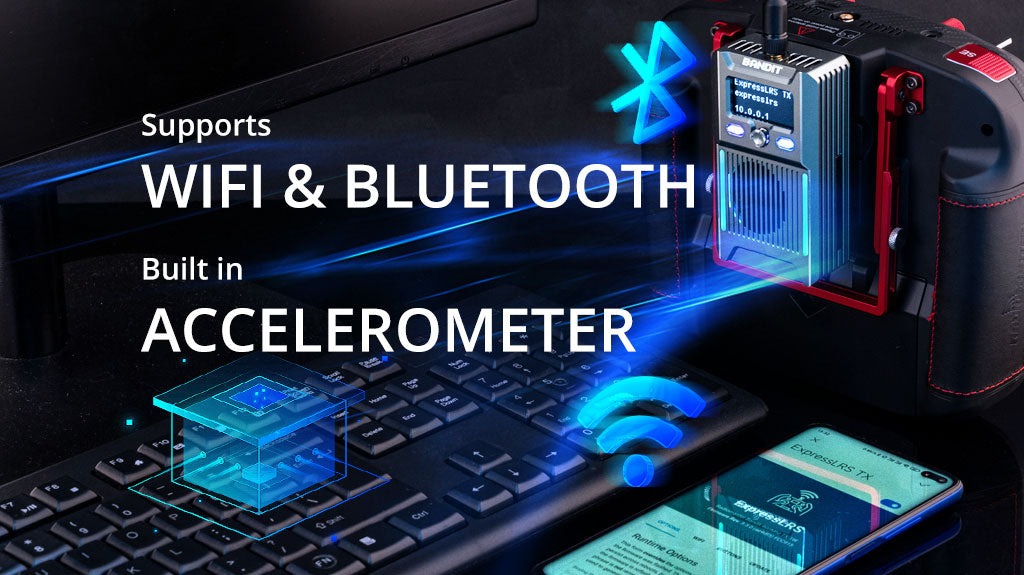

• Wifi and Bluetooth support
• Built-in ExpressLRS backpack
• Built in accelerometer

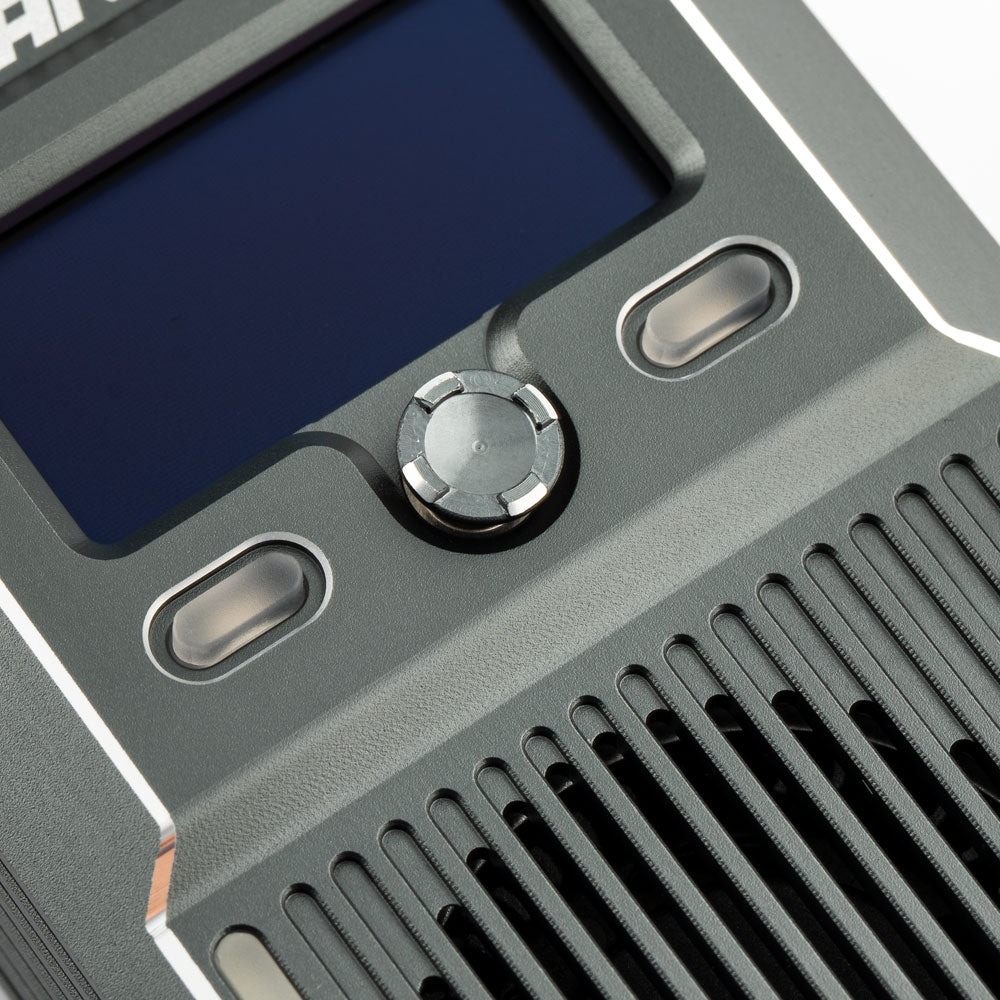

• Directional nav key and customizable shortcut buttons
• Micro and Nano adapters included

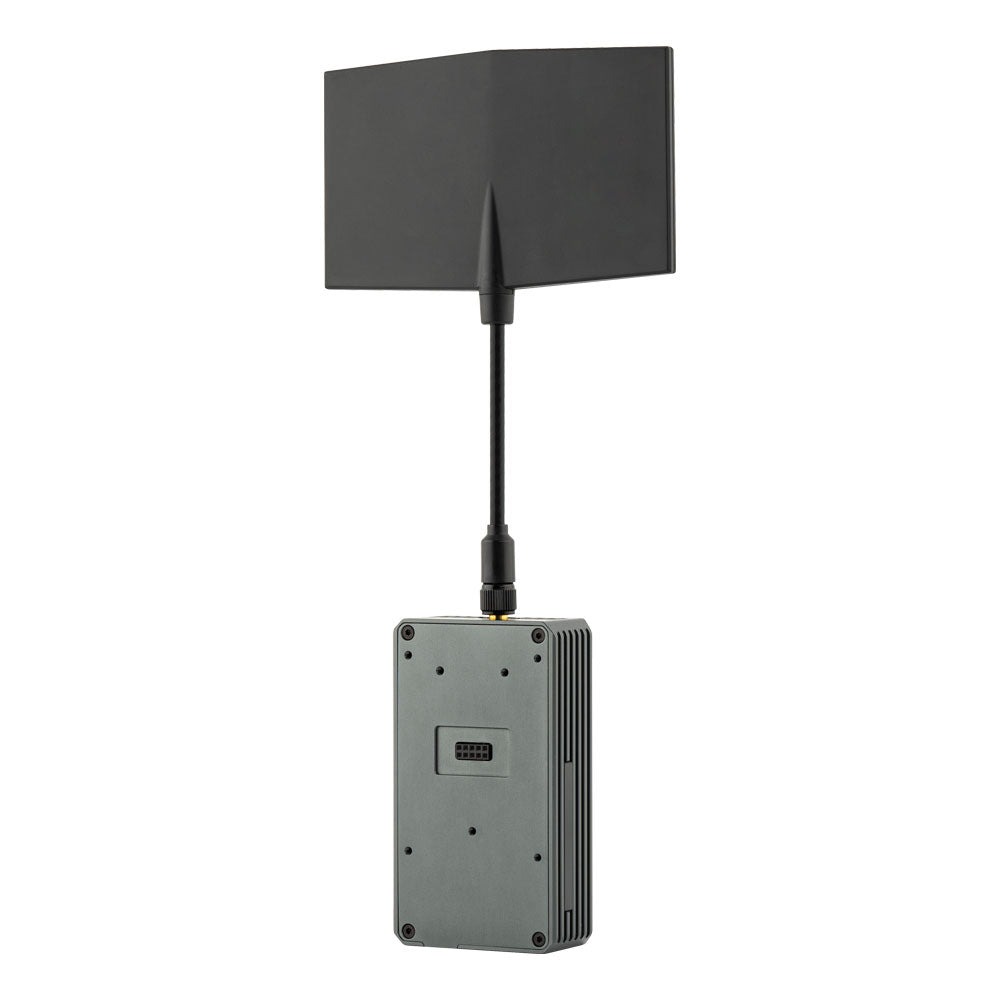

• 915/868MHz Moxon Antenna and T Antenna included
• Futaba CRSF Cable included
• UART Cable included

Specifications:

• Item: Bandit ExpressLRS RF Module
• Regulatory Domain: FCC915
• MCU: ESP32(main), ESP8285(aux, as ESP backpack)
• RF Chip: SEMTECH SX1276
• Refresh Rate Min/Max: 25Hz/200Hz
• RF Output Power: 1000mW/30dBm
• Module Bay Adapters: Micro standard 5pin socket & Nano standard 8pin socket
• Built-in RGB lights
• Built-in OLED screen
• G-sensor Support: Yes

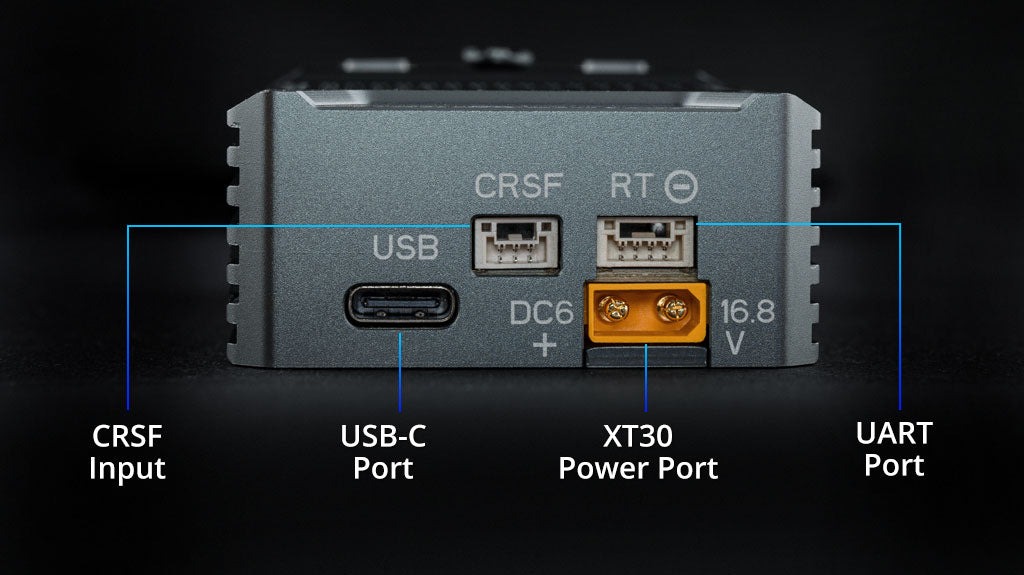

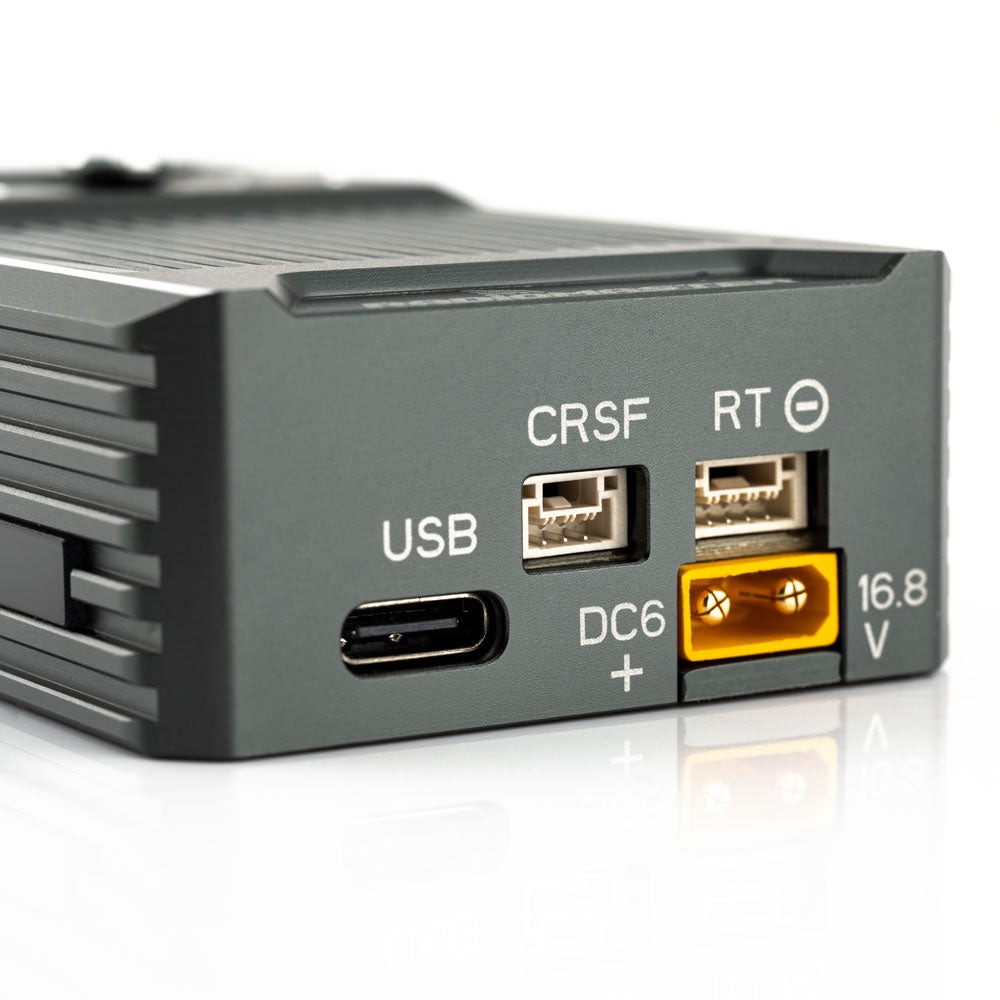

• XT30 Power Supply Voltage: DC 6V ~ 16.8V
• Weight: 155 grams (with antenna）

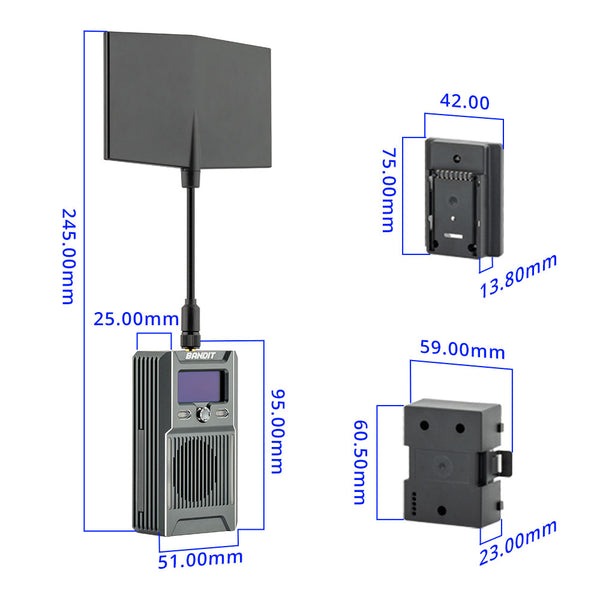

• Dimension: 90*51*24mm

The Bandit ExpressLRS is not just about performance; it’s also built to endure. Its rugged CNC machined aluminum case not only exudes a sleek and modern aesthetic but also serves as a heat sink, efficiently dissipating heat and maintaining optimal operating temperatures under even the most strenuous conditions.

Package Includes:

• 1 x Bandit ExpressLRS RF Module
• 1 x T Antenna
• 1 x Moxon Antenna
• 1 x Micro Adapter
• 1 x Nano Adapter
• 1 x Transparent Protective Cover
• 1 x UART Cable
• 1 x Futaba CRSF Cable
• 1 x 1.55mm Allen Key
• 6 x M2*6 Screws
• 1 x Manual
