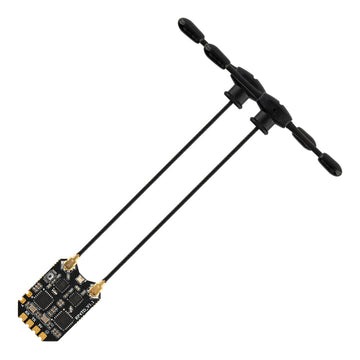

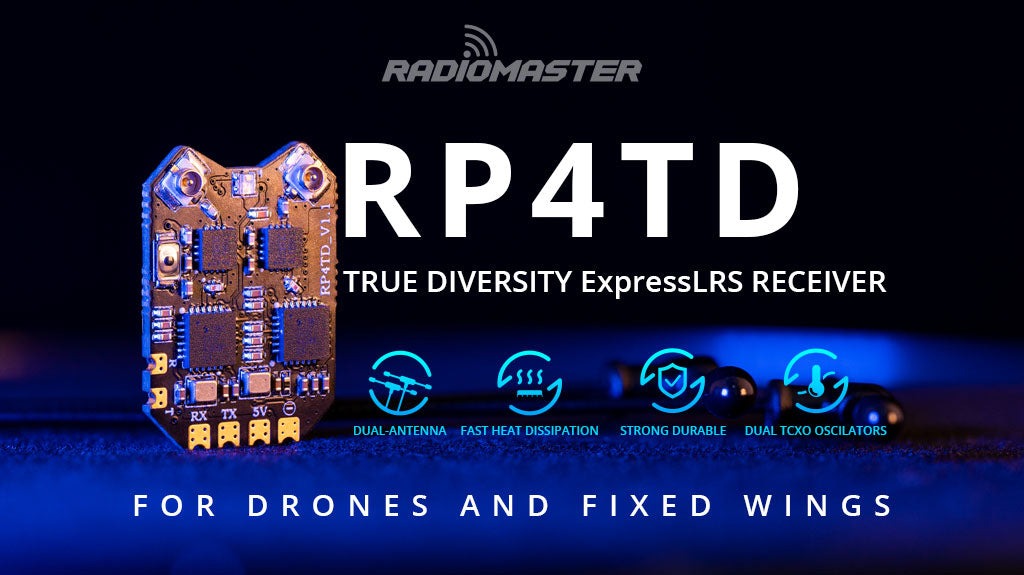

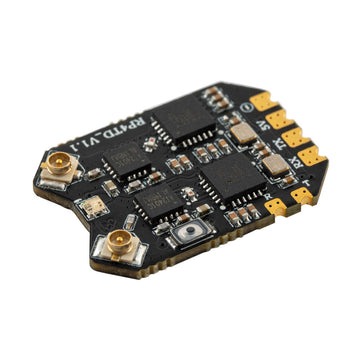

RadioMaster RP4TD ExpressLRS 2.4ghz Diversity Nano Receiver

Description

The RP4TD ExpressLRS redefines drone performance standards. With superior signal sensitivity and reliability, it ensures precise control and seamless maneuvers. Featuring dual-channel 2.4GHz radios and built-in WiFi for firmware upgrades, it’s the ultimate choice for enthusiasts seeking top-tier performance and unmatched aerial precision.

Features:

• Gemini mode compatible
• Reliable DCDC Power supply circuit
• Class leading SNR and RSSI performance
• Optimized PCB design for better heat dissipation

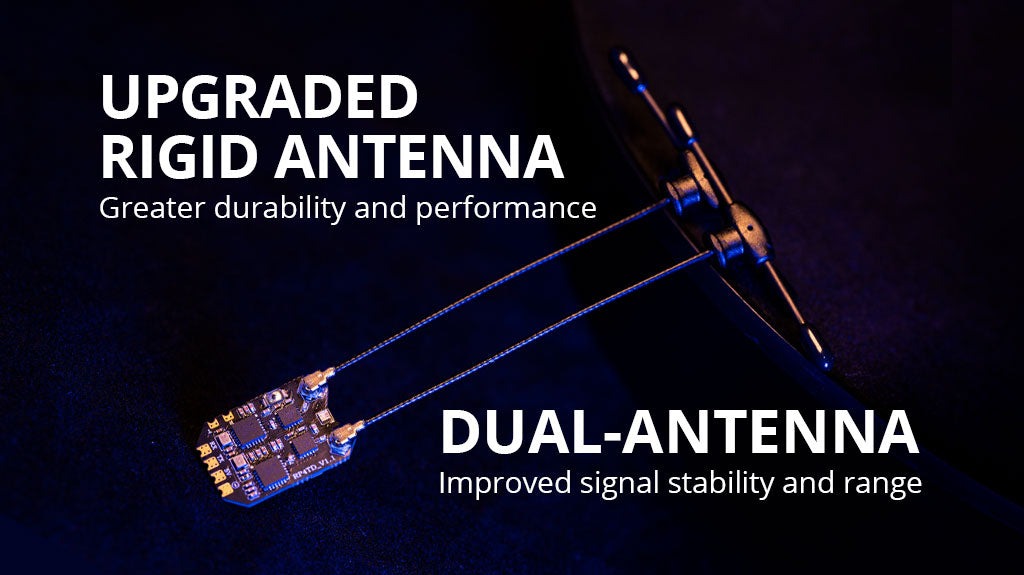

• Upgraded antenna with greater durability and performance

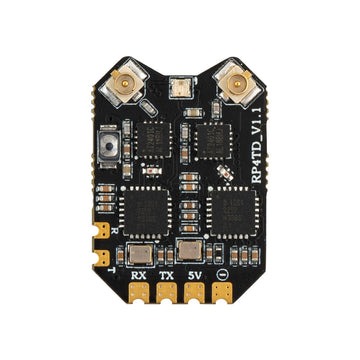

• UART pads for extended applications

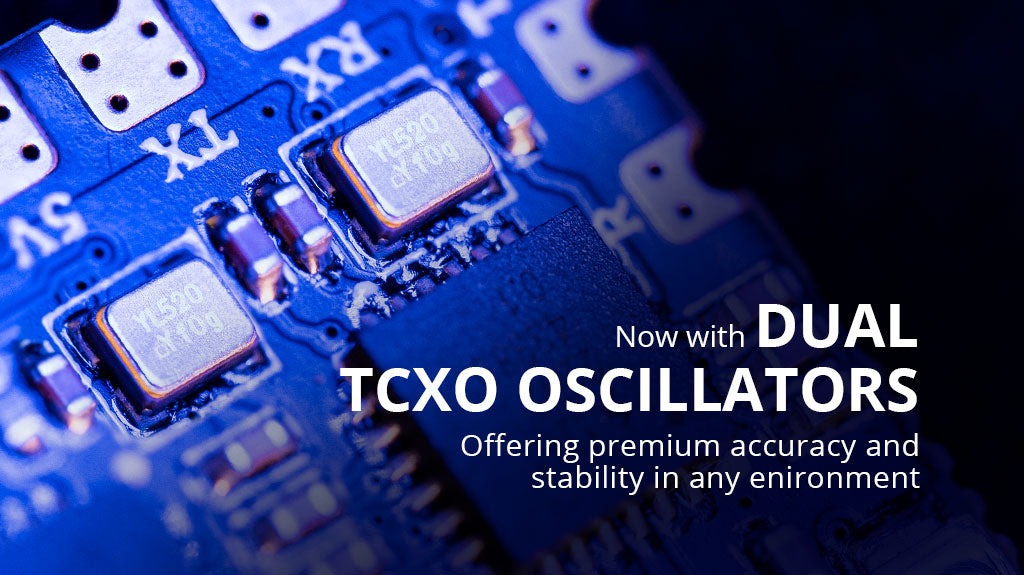

• Dual TCXO (temperature compensated crystal oscillator)
• 2x 100mw RF Telemetry power output
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification:

• Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver
• Type: ISM
• MCU: ESP32

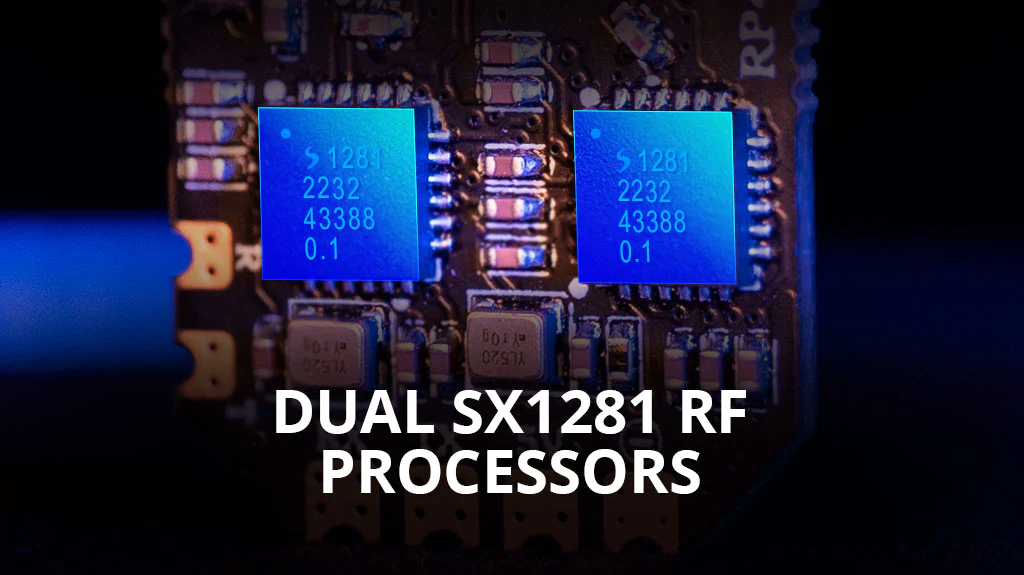

• RF Chip: SX1281 x 2
• Antenna: 65mm 2.4GHz T Antenna x 2
• Frequency Range: 2.4GHz
• Maximum Refresh Rate: 500Hz / F1000Hz
• Telemetry RF Power: Max 2x 100mW
• Working Voltage: DC 4.5-12.0V
• Weight: 1.4g (without antenna)

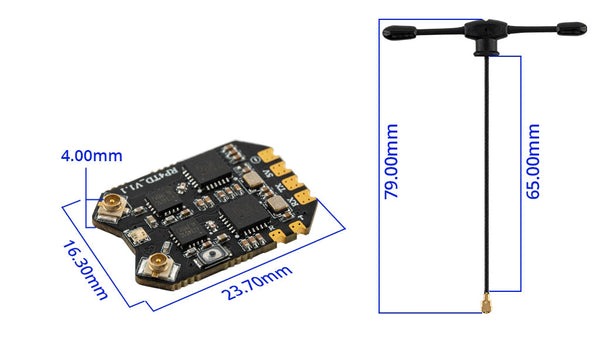

• Dimension: 23.7*16.3*4.0mm
• Firmware Version: ExpressLRS V3.3.0 pre-installed
• FW Target: RadioMaster RP4TD 2400 RX
• Bus interface: CRSF
• Extend interface: UART

Size:

Package Includes:

• 1 * RP4TD ExpressLRS 2.4GHz Diversity Receiver
• 1 * CRSF wire
• 3 * Heat-Shrinkable Tube

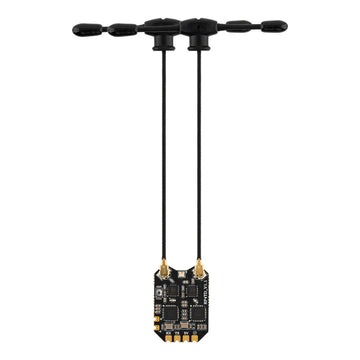

• 2 * 65mm 2.4GHz T Antenna (Installed on receiver)
• 1 * User Manual
