Jumper T20S V2 RDC90 Gimbals ExpressLRS 2.4GHz
by Jumper
Compact yet powerful, this radio offers advanced programmability, precise controls, multi-protocol compatibility, and unmatched performance for pilots.
$314.99
Out of stock
Get an alert when this product is in stock
Description

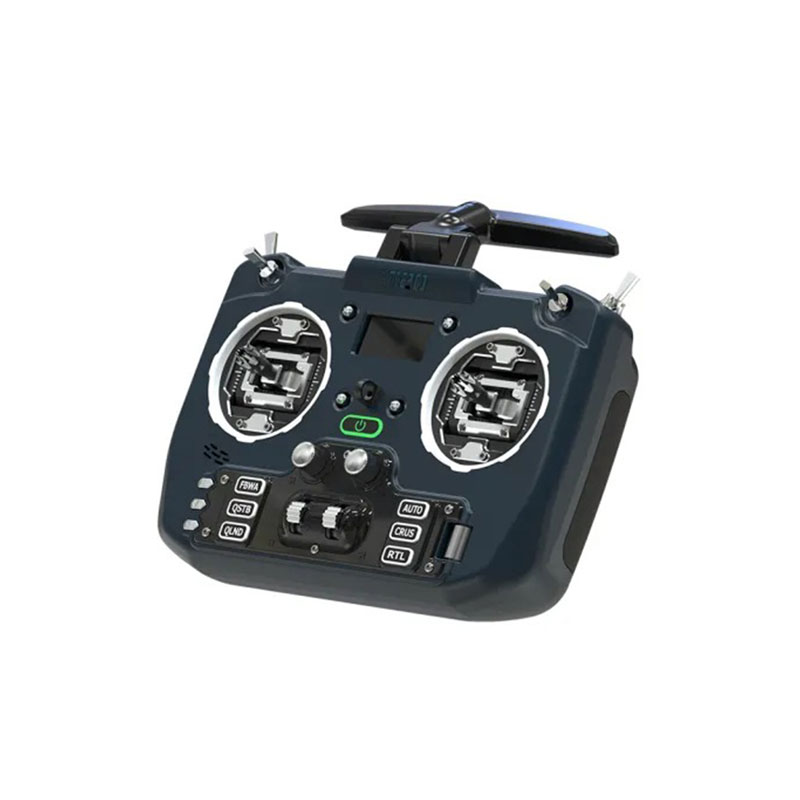

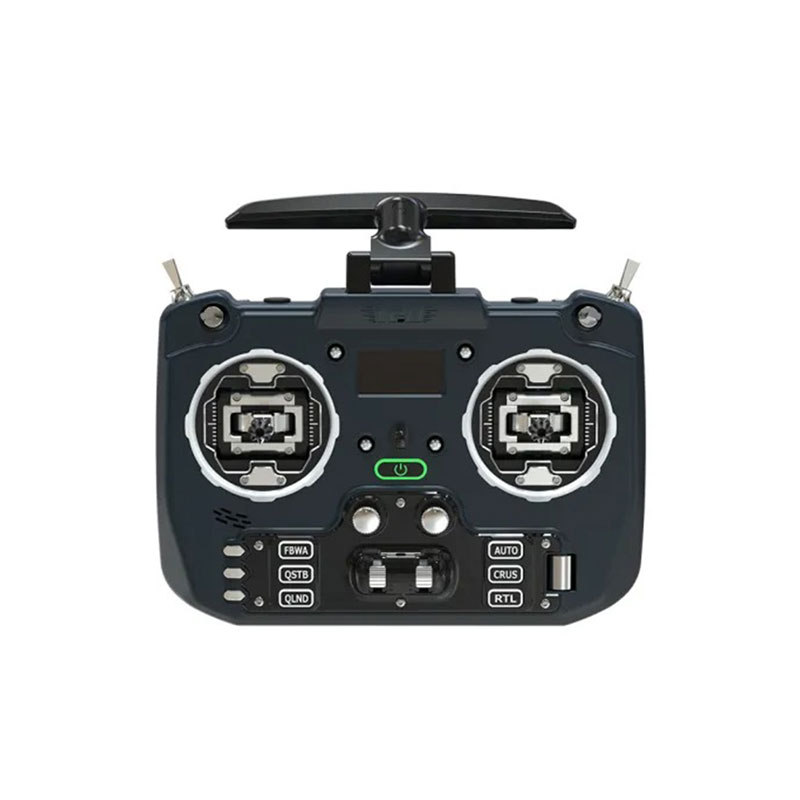

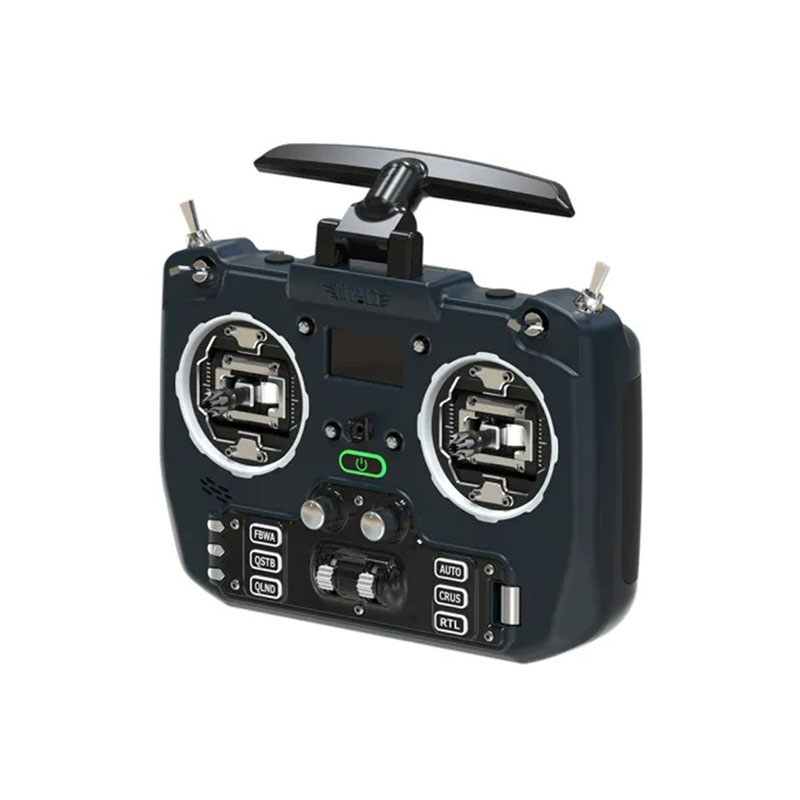

The Jumper T20S V2 RDC90 Gimbals ExpressLRS 2.4GHz redefines compact functionality with a sleek, ergonomic design. Packed with full-size RDC90 gimbals, programmable switches, and dual sliders, it’s perfect for drone and fixed-wing pilots alike. With its OLED screen, powerful 1W ELRS module, and customizable features, this radio ensures ultimate control and precision. Its compatibility with multi-protocol modules like TBS Crossfire makes it versatile, while its lightweight, rechargeable design guarantees portability.
The difference between T20 and T20S is the gimbal. The Jumper T20 V2 comes with the hall sensor gimbals, while the T20S V2 comes with the upgrade RDC90 gimbal which uses the premium ALPS RDC90 sensors.

Features:

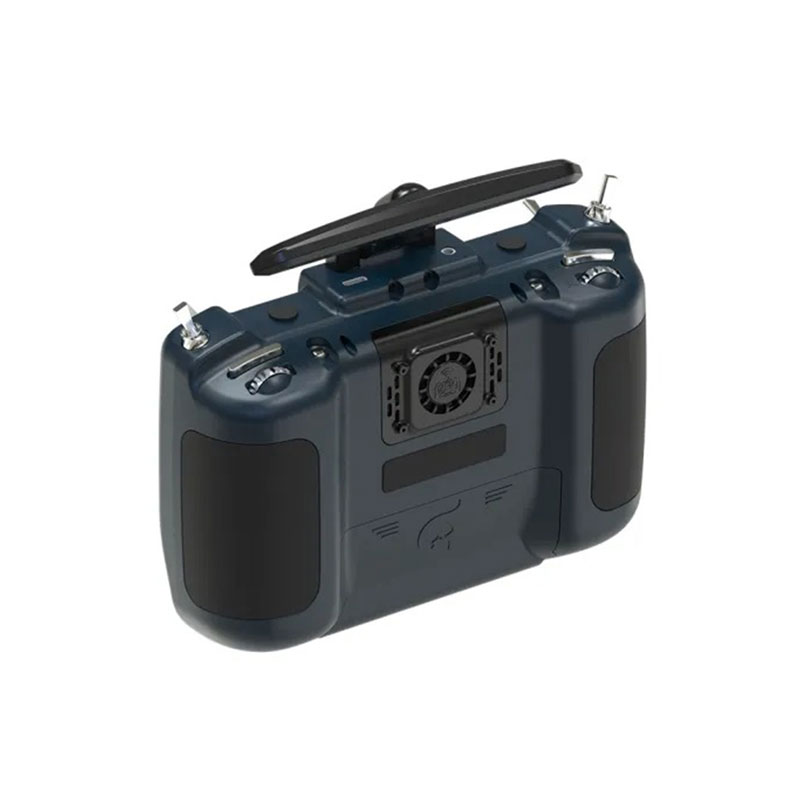

- External cooling fan to support high-power ELRS.
- Excellent anti-slip pad for a comfortable grip.
- Reserved anti-slip pad for a comfortable grip.
Specifications:
- Screen size: 1.3” (resolution 128×64)
- Display method: OLED
- Rocker Stick Size: Standard
- RDC90 gimbal which uses the premium ALPS RDC90 sensors.
- Built-in RF: ELRS (2.4GHz)
- Transmission power: max 1000mw
- Antenna interface: SMA
- External module Interface: reserved(1.25mm-5P)
- External module power supply: XT30 (2S2A output)
- TF card: built-in chip (officially recommended by EDGETX)
- Working voltage: 6-8.4v
- Batteries: 2pcs 21700 (not included)
- Size: 185x138x68
- Weight: 443g (battery not included)
Package Includes:
- 1 x Jumper T20S V2 RDC90 Gimbals ExpressLRS 2.4GHz
