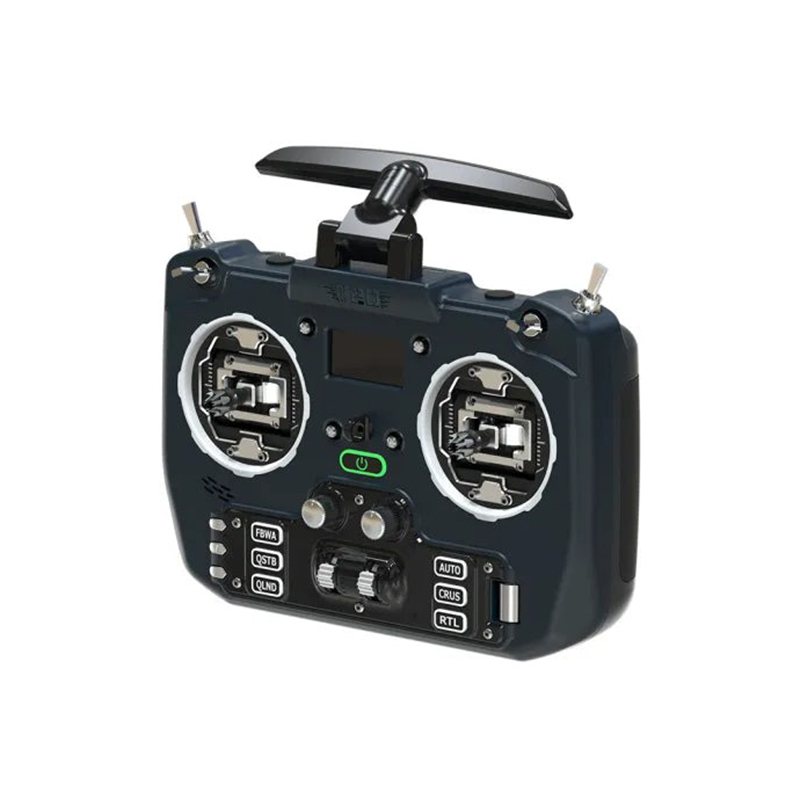

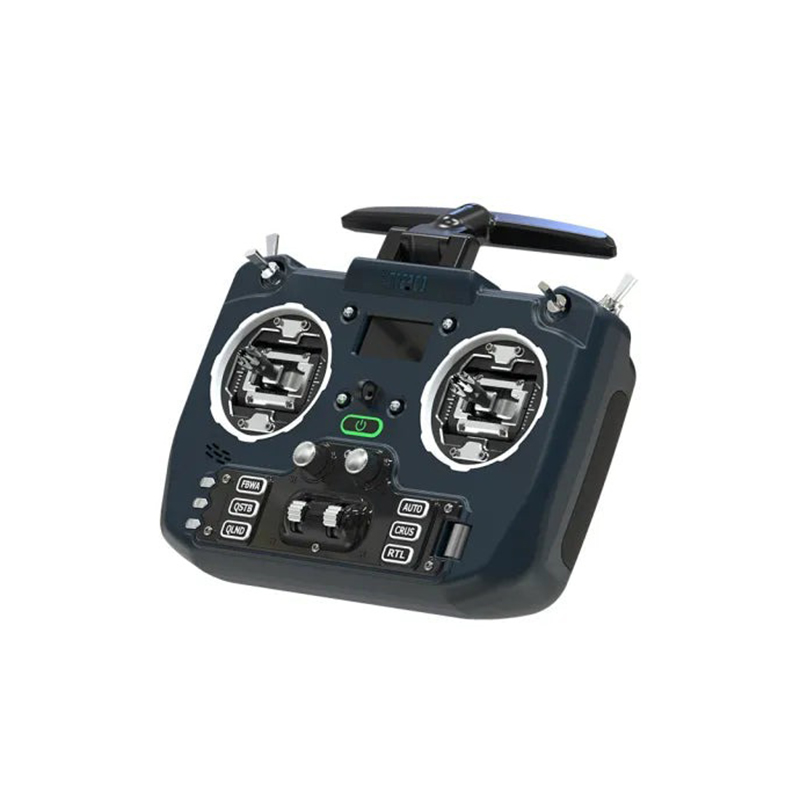

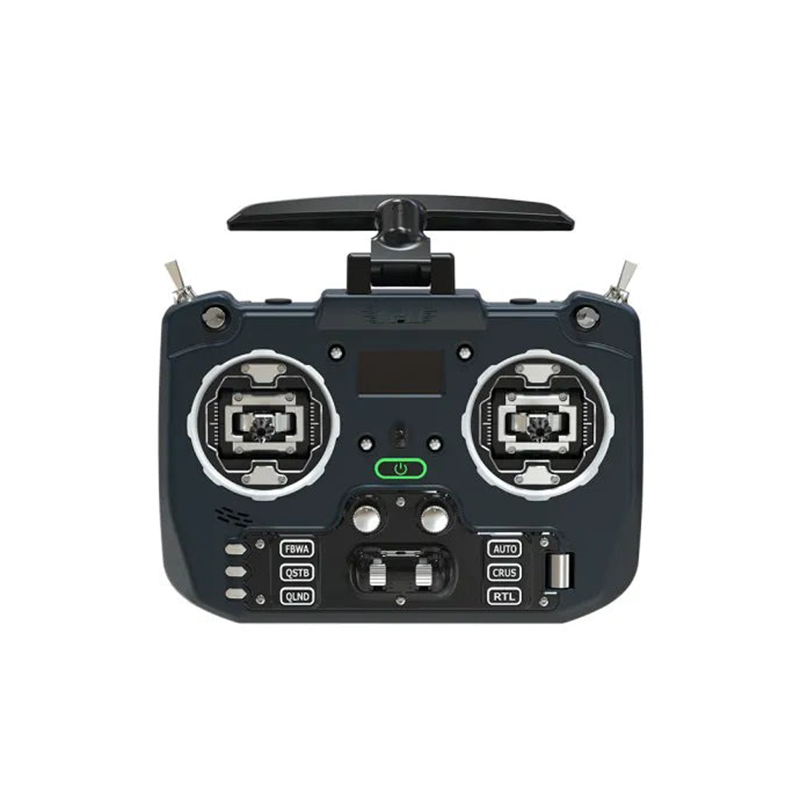

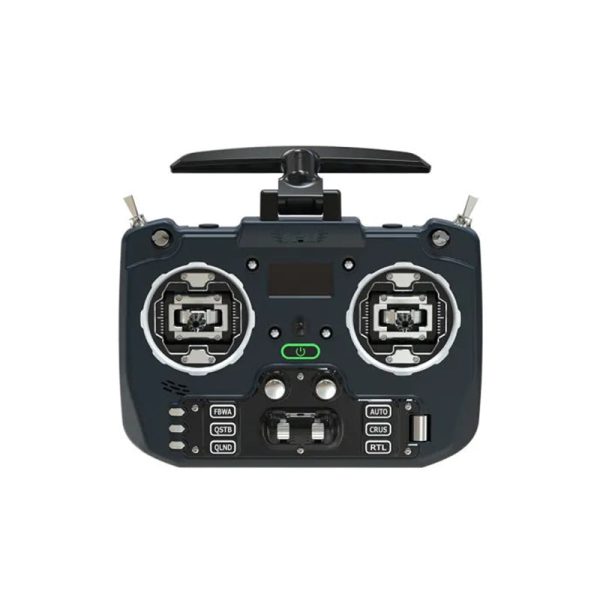

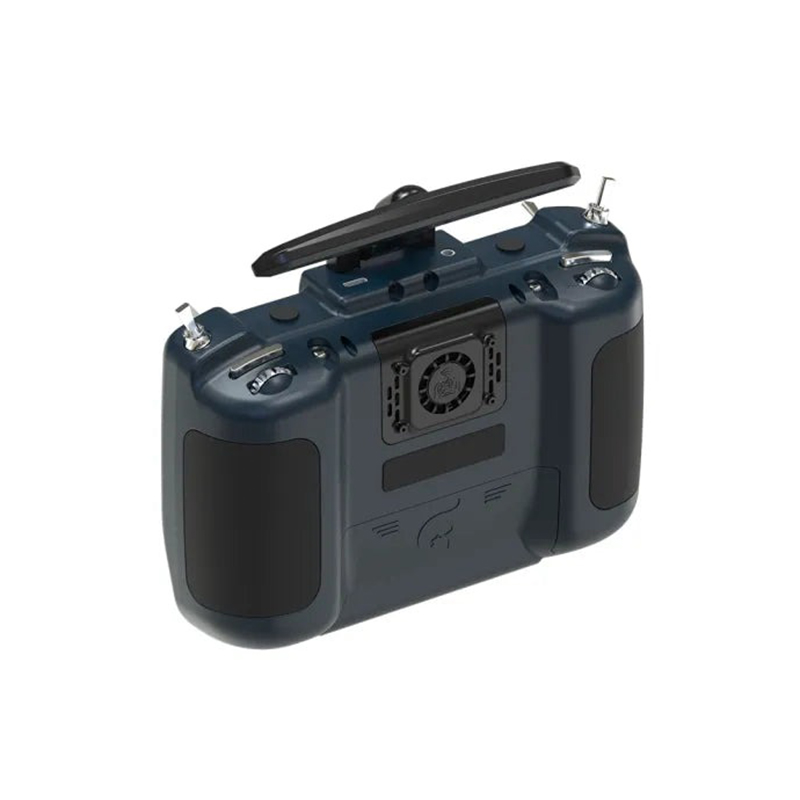

Jumper T20S V2 RDC90 Gimbals ExpressLRS Gemini

The Jumper T20 V2 RDC90 Gimbals ExpressLRS Gemini redefines compact versatility with its ALPS RDC90 sensor gimbals and OLED screen. Experience powerful ELRS 2.4GHz transmission with up to 1W output, customizable flight modes, and seamless multi-protocol compatibility. With its ergonomic design, premium gimbals, and programmable controls, this radio controller delivers precision for both drone and fixed-wing pilots. Compact, feature-rich, and ready to elevate your flights to new heights.



Features:

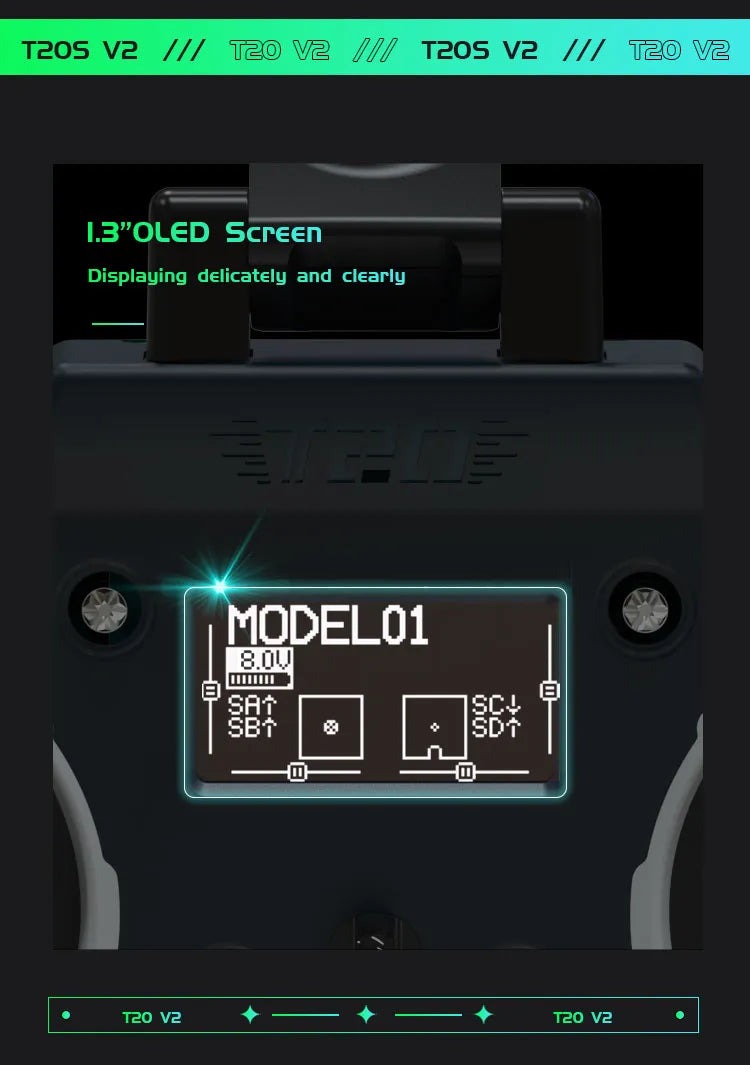

• 1.3inch OLED Screen
• ELRS 2.4GHz Module – up to 1watt output.
• Edge Tx Firmware
• Full Size Gimbals
• XT30 Output to power external modules (7.4V 1.5A)

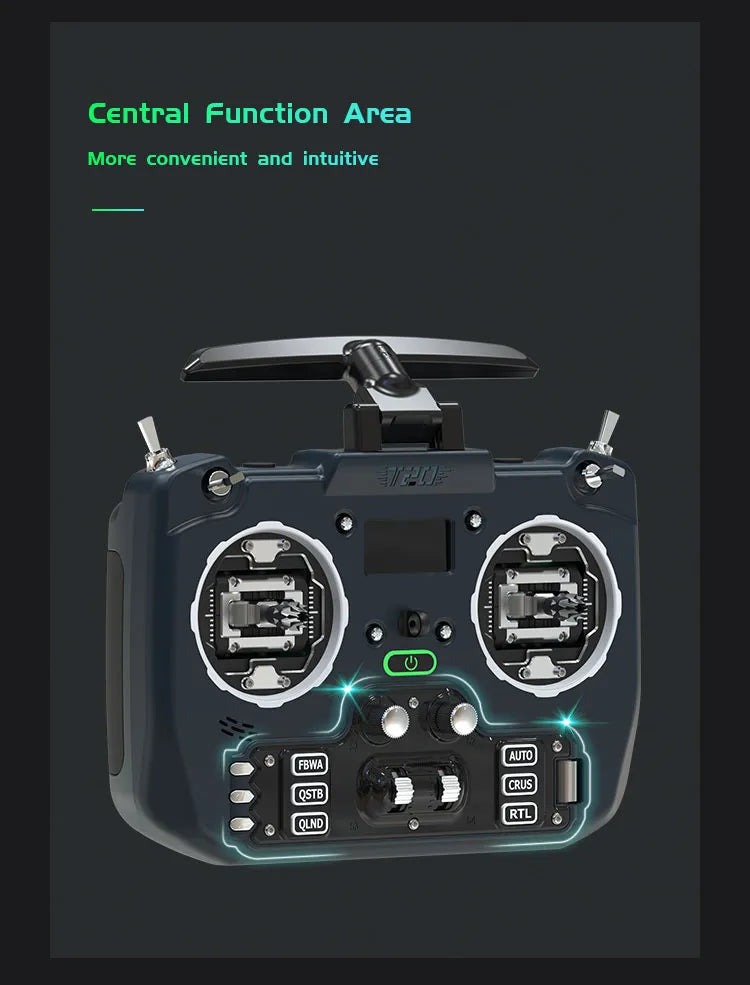

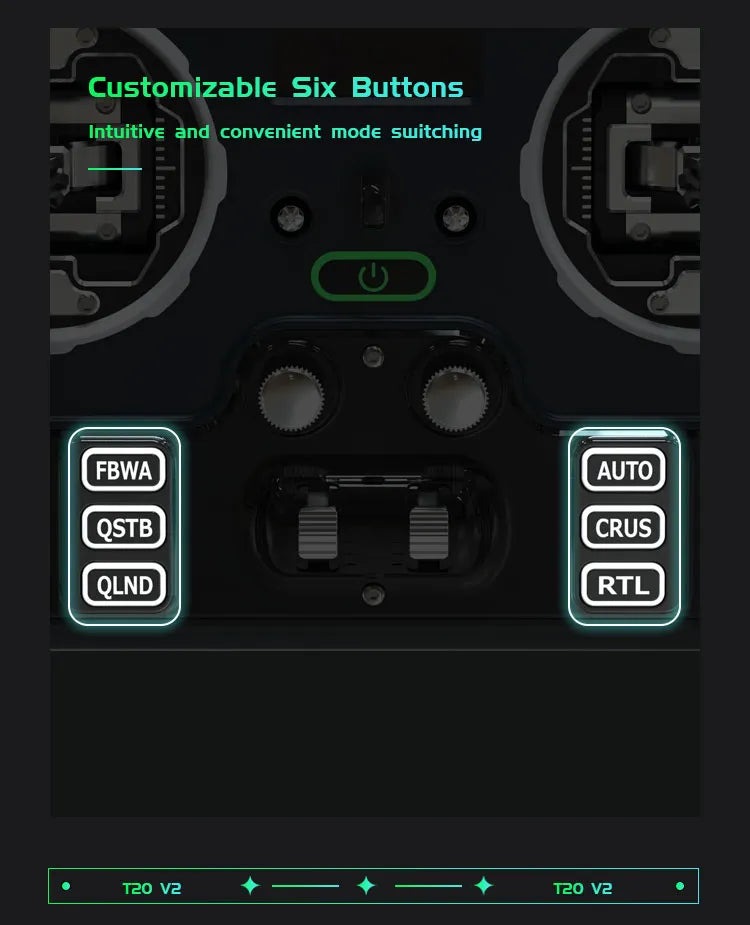

• 6 on/off programmables buttons with flight mode function stickers provided to label the radio
• Trainer Port

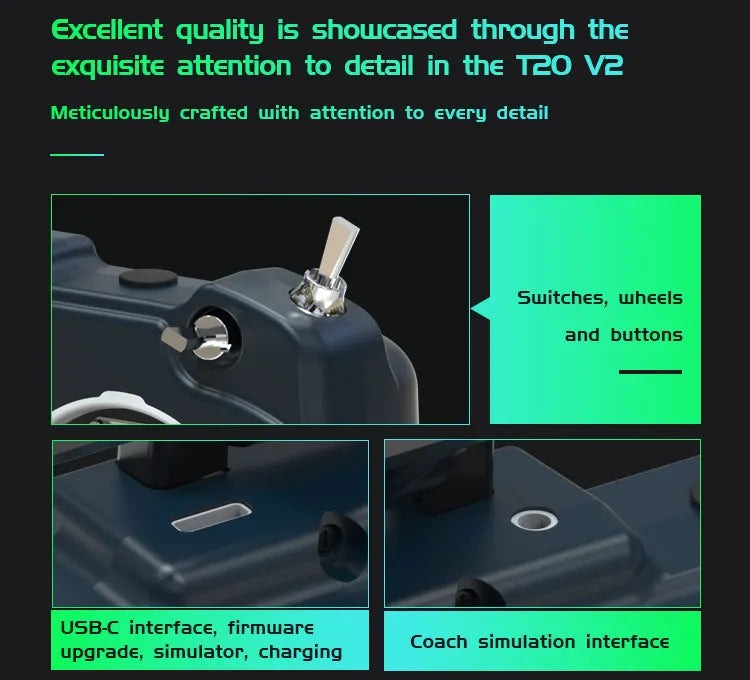

• Compatible with flight simulators (via USB-C port)​

Specifications:

• MCU:STM32F407ZGT6
• Screen size: 1.3” (resolution 128×64)
• Display method: OLED
• Rocker Stick Size: Standard

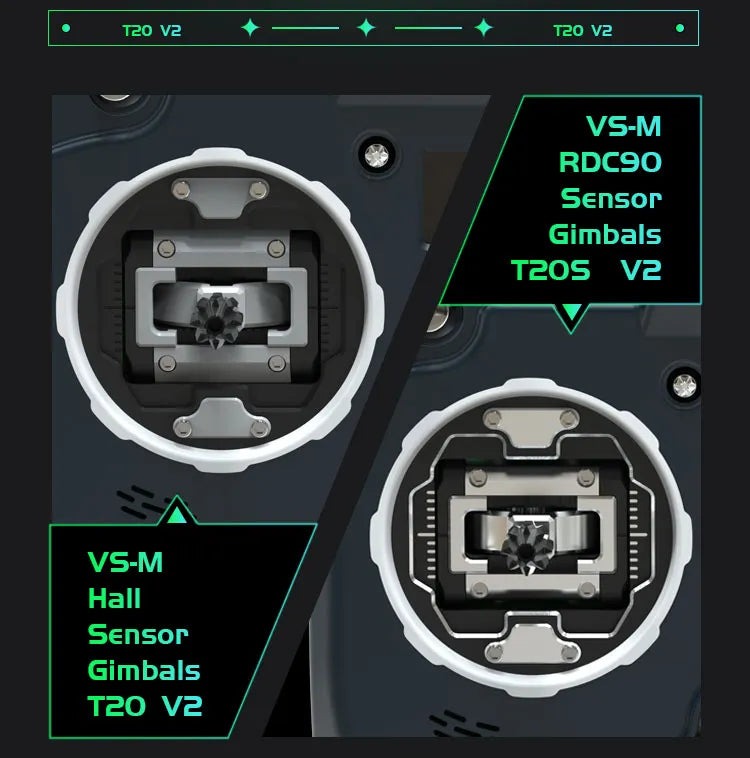

• RDC90 gimbal which uses the premium ALPS RDC90 sensors.
• Built-in RF: ELRS (2.4GHz)
• Transmission power: max 1000mw

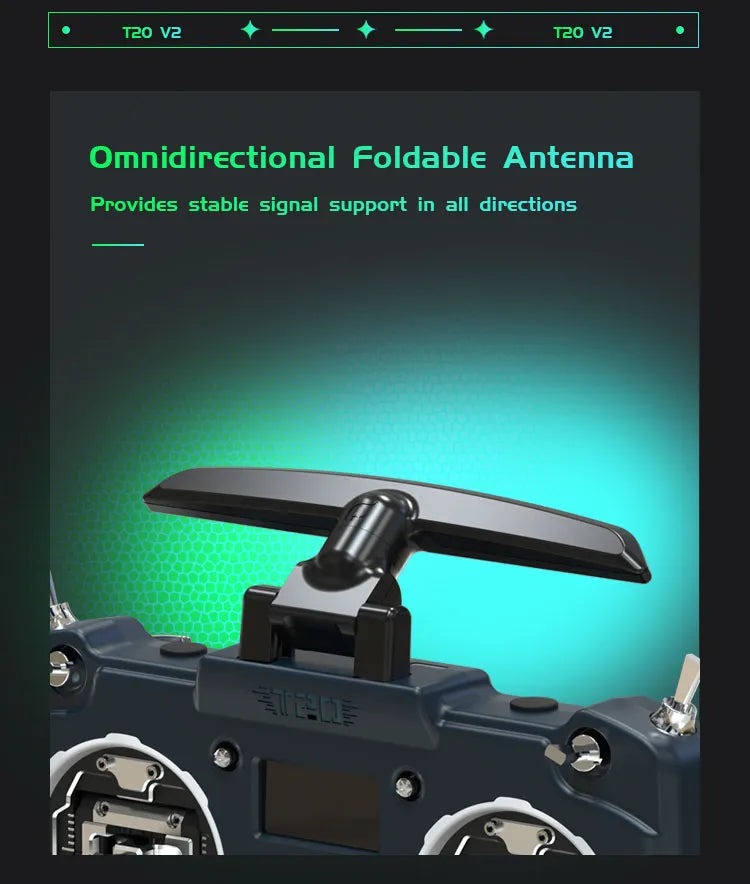

• Antenna interface: SMA

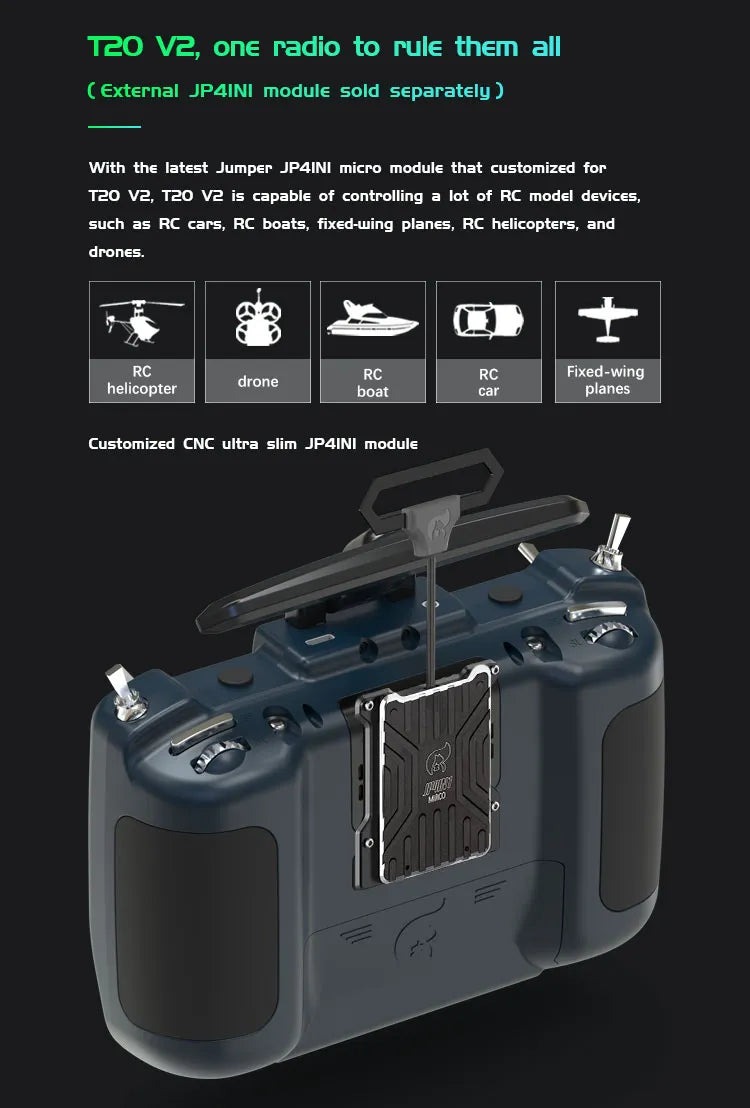

• External module Interface: reserved(1.25mm-5P)

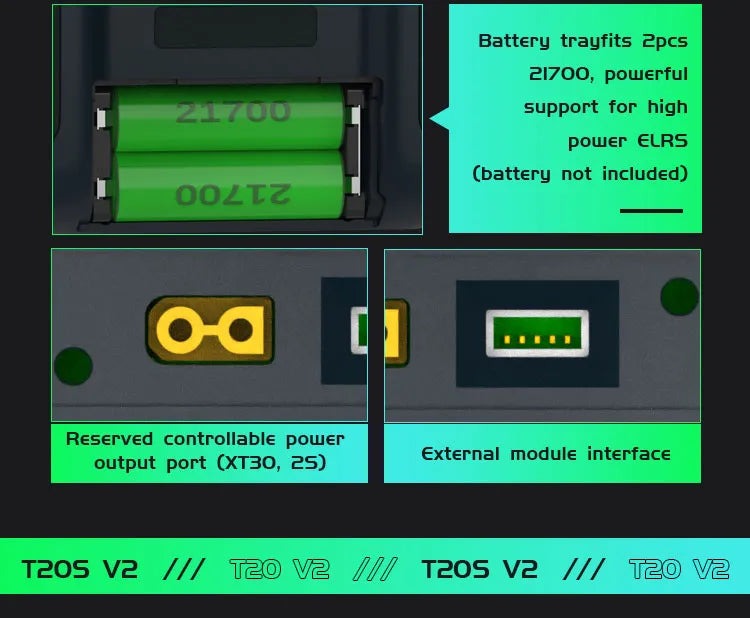

• External module power supply: XT30 (2S2A output)
• TF card: built-in chip (officially recommended by EDGETX)
• Working voltage: 6-8.4v

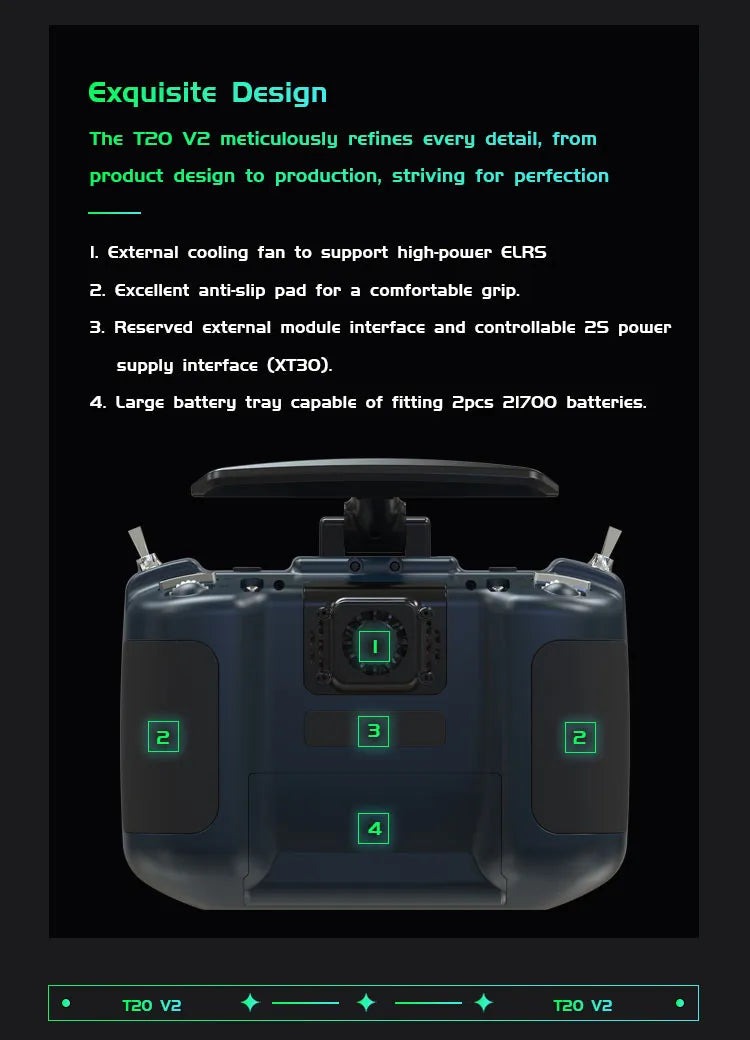

• Batteries: 2pcs 21700 (not included)
• Size: 185x138x68
• Weight: 443g (battery not included)
