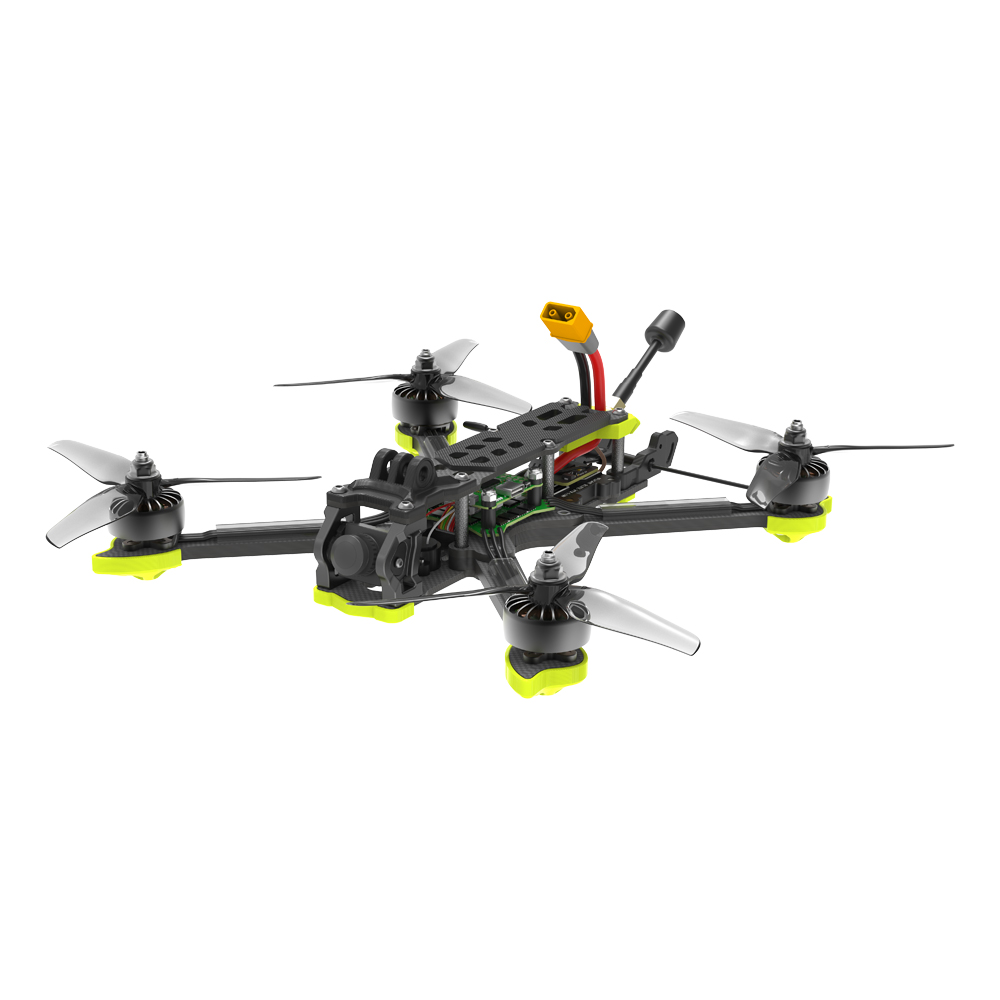

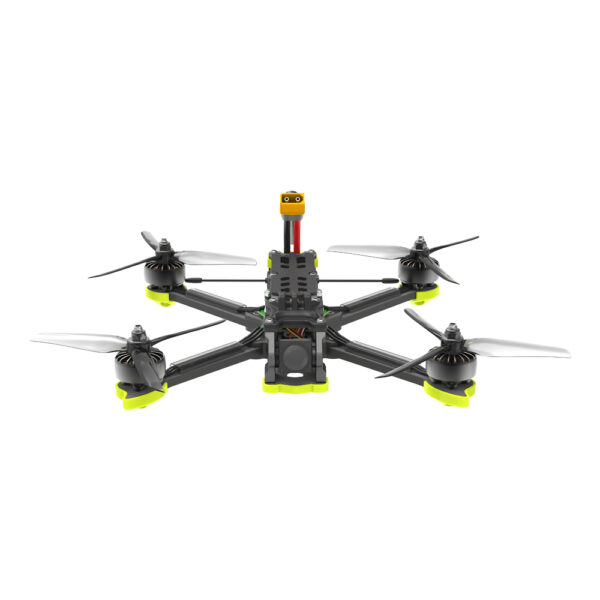

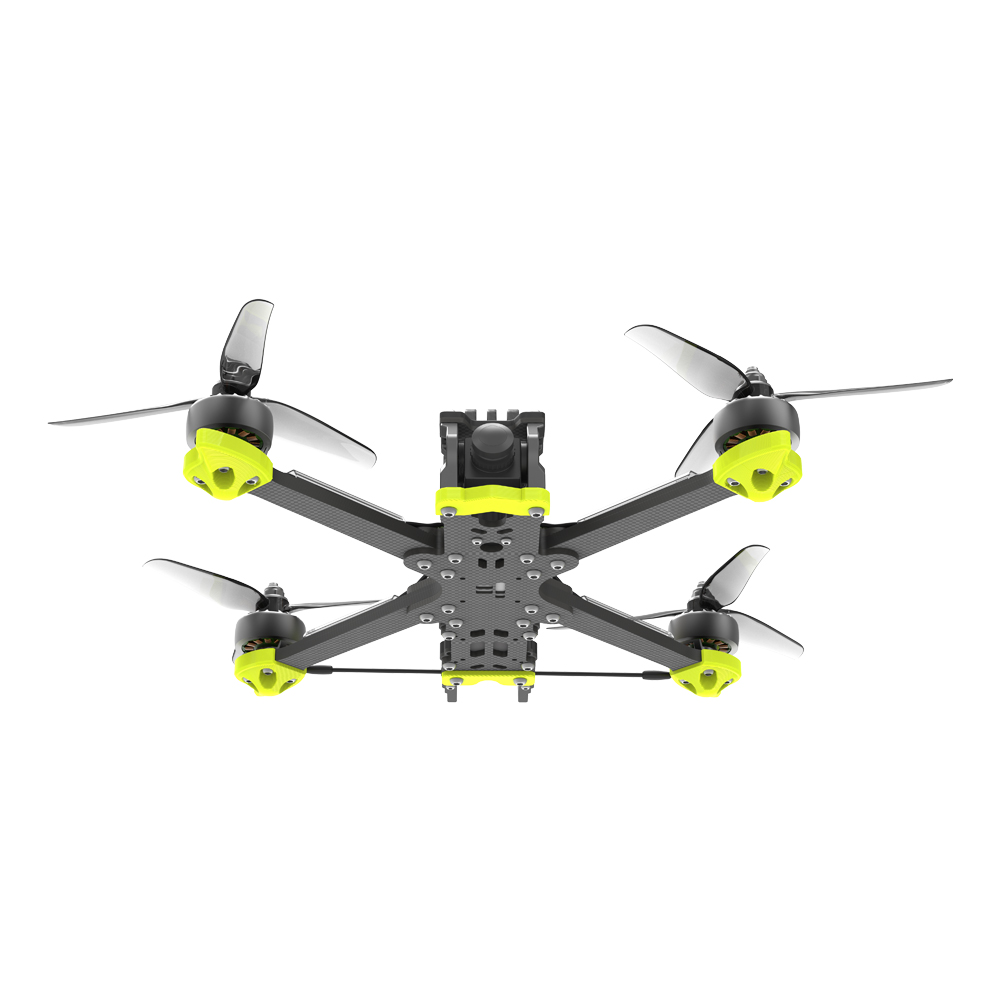

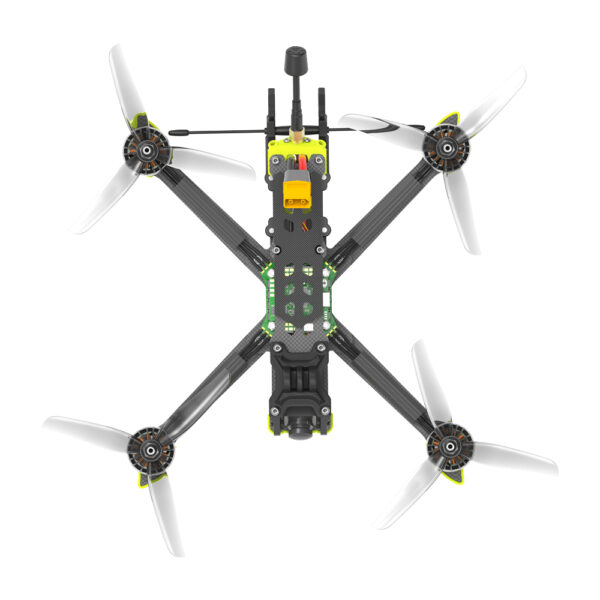

iFlight Nazgul5 V3 Analog Freestyle Quad 6S BNF ExpressLRS

This Nazgul5 V3 is a 5″ RTF/ BNF (Bind-and-Fly) quadcopter that comes with RaceCam R1 FPV Camera and Nazgul 5″ 3-blade propellers.

The Nazgul5 V3 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E Pro 2207 motors, BLITZ F7 Flight Controller, BLITZ 1.6W VTX, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC, which make this quad a must-have!

• XING-E Pro 2207 motors and NAZGUL F5 props
• 5″ version also fits 5.1″ style propellers
• Fits both 30.5×30.5 and 20×20 stacks
• 5mm arm design for more durability
• Popular True-X configuration
• LED illuminated Logo
• TPU crash-guards
• Easy-Swap arms

• Product Name：Nazgul5 V3 6S Analog
• FC: BLITZ F722 FC
• ESC: BLITZ E45S 45A 4-IN-1 ESC
• Video Transmission: BLITZ 1.6W VTX
• Frame: 245 ±2 mm wheelbase
• Motor: XING-E Pro 2207 motors
• Prop: Nazgul 5 inch propellers
• Takeoff Weight: Approx. 435g / 660±10g (With 6S 1400mAh Battery)
• Dimensions (L×W×H): 173×173×34±2 mm
• Diagonal Distance: 245mm
• Max Speed: 190 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: Single Antenna
• GNSS: N/A

Packing List:

• 1 x Nazgul5 V3 6S Analog BNF
• 1 x Antennas
• 2 x Battery pads
• 2 x Nazgul F5 Prop(Pairs)

1. Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
2. To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
3. Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
4. Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

Reccomended Batteries and Spares (Not Included)

• Spare arms: iFlight Nazgul5 V3 Spare Arms (Pair)
• Full Frame Kit: iFlight Nazgul5 V3 O3 Air Unit Frame Kit
• Original Propellor: iFlight Nazgul F5 Propellers (4 Colours)
• Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
• Value Battery: CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
• Performance Battery: GNB Battery 22.2V 120C 1300mAh 6S
• Lightweight HV Battery: GNB Battery 22.8V 120C 1300mAh 6S HV
• Premium Battery:
  • Tattu R-Line Version 5.0 22.2V 150C 1200mAh 6S Battery
  • Tattu R-Line Version 5.0 22.2V 150C 1400mAh 6S Battery
