iFlight Nazgul V3 DJI O3 Air Unit PNP

Description

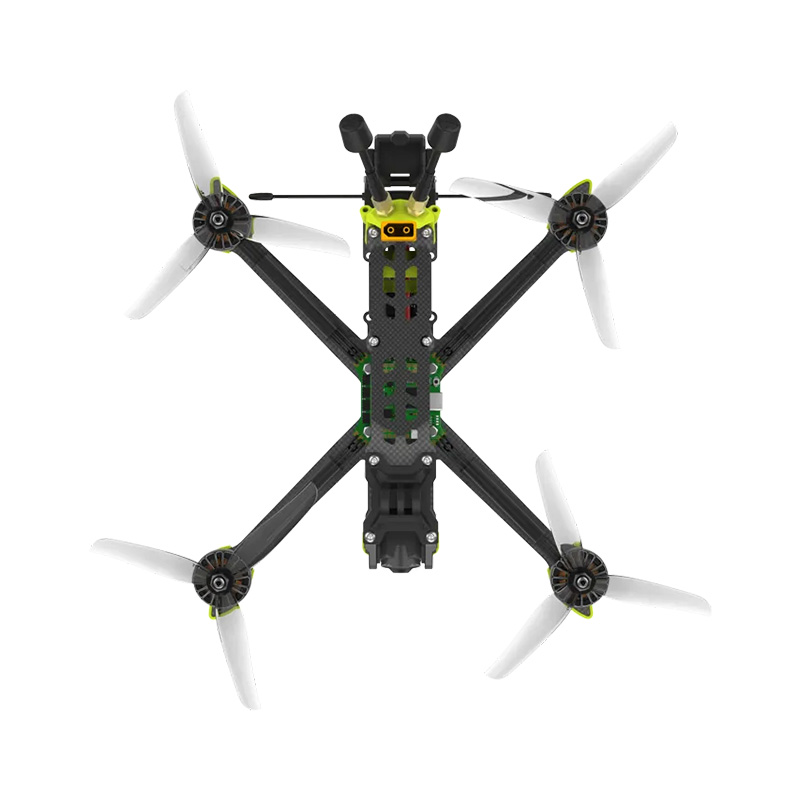

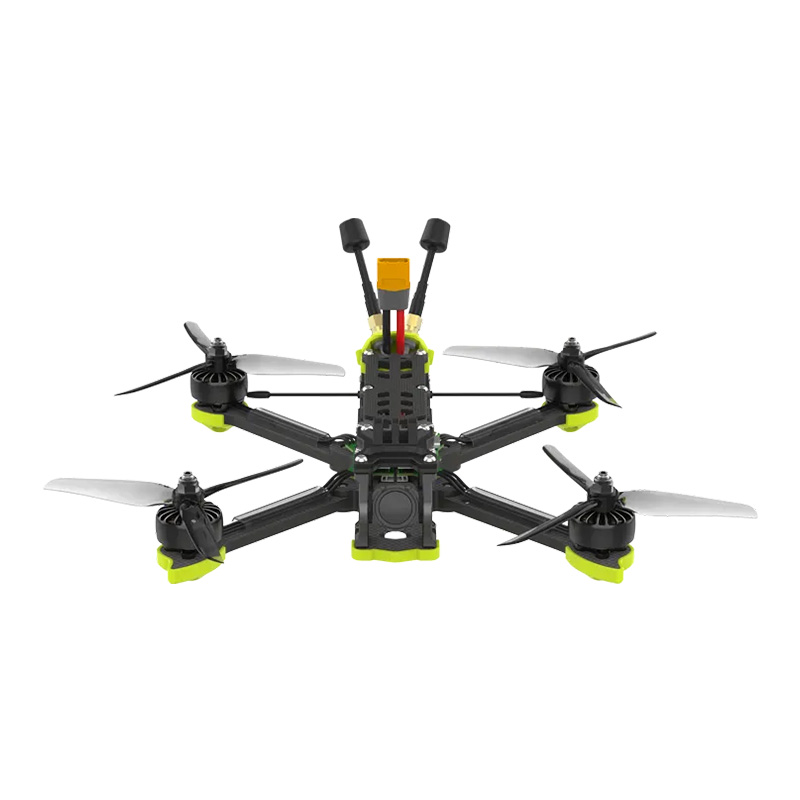

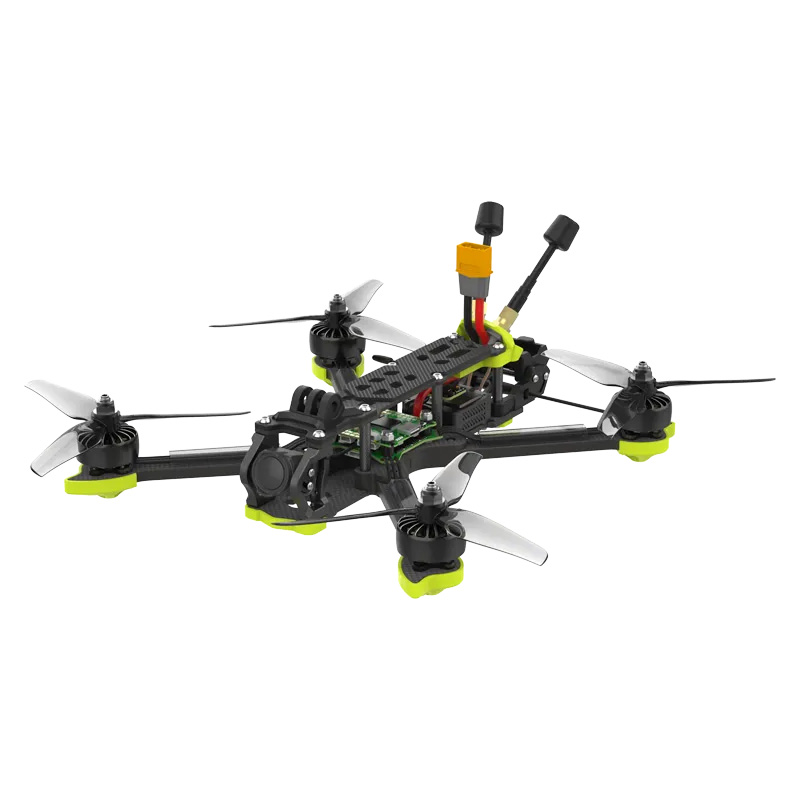

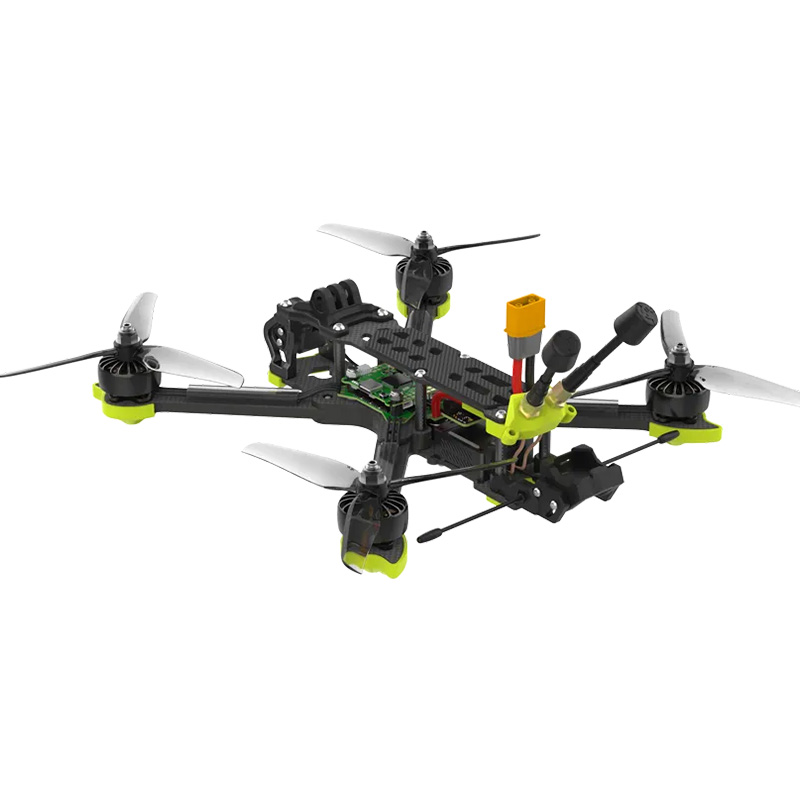

This Nazgul5 V3 HD is a 5″ RTF/ BNF (Bind-and-Fly) quadcopter that comes with the DJI Newest O3 Digital HD System, and Nazgul 5″ 3-Blade propellers. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight Controller, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC, which make this quad a must-have!

KiwiQuads also stocks a Bind-and-Fly (BNF) ExpressLRS version: iFlight Nazgul V3 DJI O3 Air Unit BNF ExpressLRS

Features:

• XING-E 2207 motors and NAZGUL 5140 props
• 5″ version also fits 5.1″ style propellers
• Fits both 30.5×30.5 and 20×20 stacks
• DJI O3 HD System
• 5mm arm design for more durability
• Popular True-X configuration
• LED illuminated Logo
• TPU crash-guards
• Easy-Swap arms

Specifications:

• Product Name：Nazgul5 V3 6S HD
• FC: BLITZ F722
• ESC: BLITZ E45S 45A 4-IN-1 ESC
• Video Transmission: DJI O3 Air Unit
• Frame: 255mm wheelbase
• Motor: XING-E Pro 2207 motors
• Prop: Nazgul 5 inch propellers
• Takeoff Weight: Approx. 620 g
• Dimensions (L×W×H): 180×180×80 mm
• Diagonal Distance: 245mm
• Max Speed: 130 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 5000 m
• Max Hover Time: Approx. 8 mins
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: 130 Km/H (Level 4)
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: 2 Antenna
• GNSS：N/A

Included Components and Parts

• 1 x Nazgul5 V3 O3 HD PNP
• 2 x Antennas
• 2 x Battery pads
• 2 x Prop(Pairs)

Reccomended Batteries:

• CNHL 6S 100C 1300mAh
• CNHL 6S 100C 1500mAh
• GNB Battery 22.2V 120C 1300mAh 6S
• GNB Battery 22.2V 130C 1500mAh 6S

Spares:

• Props:
  • OEM: iFlight Nazgul F5 Propellers (4 Colours)
  • Ethix Option: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
• Frame: iFlight Nazgul5 V3 O3 Air Unit Frame Kit

Note:

All iFlight BNF/PNPs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact KiwiQuads or iFlight customer support at [email protected] or www.iflightrc.freshdesk.com
