HappyModel TCXO ExpressLRS 2.4GHz EP2 Nano Receiver ELRS
by HappyModel

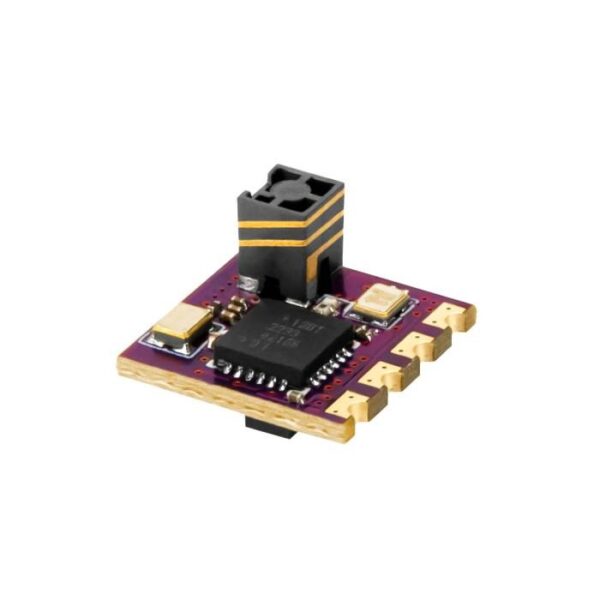

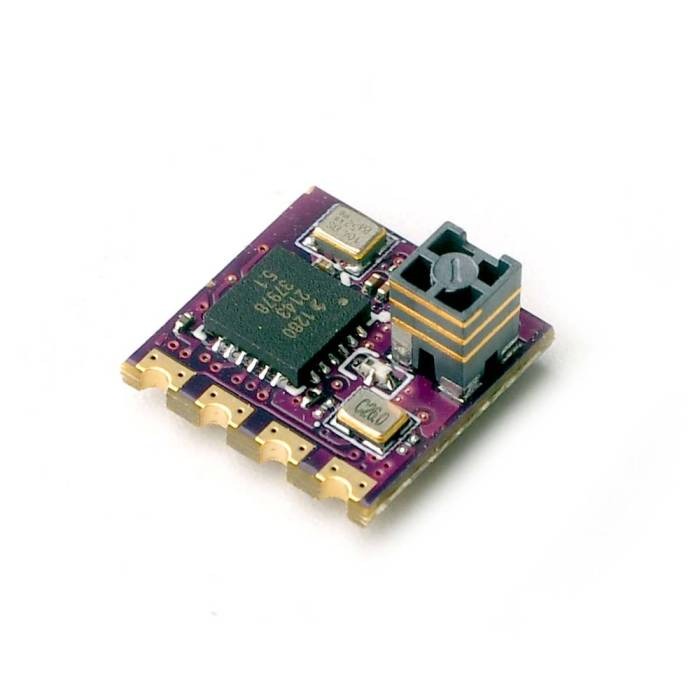

The Happymodel EP2 TCXO RX is a nano-sized true diversity 2.4GHz ELRS receiver with RF amps and comes with a built-in SMD antenna.
$27.99
Out of stock
Get an alert when this product is in stock
Description
The Happymodel 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS
This TCXO Rx receiver uses a temperature-compensated crystal oscillator to help with accurate MCU clock frequency, thus improving the performance and reliability of your RC link. The EP2 RX includes a built-in SMD antenna perfect for micro builds.
Specifications:
Item Name: EP2 Nano Receiver
- Type: ISM2.4GHz
- ESP8285 MCU
- SX1280(SX1281)IMLTRT RF Module
- SMD Ceramic antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Receive refresh rate: 25HZ~500Hz
- Working voltage: 5v
- Weight: 0.44 gram
- Dimension: 10mm*10mm*6mm
- Peak gain: 3.7dB
- https://github.com/ExpressLRS/ExpressLRS
Package Included:
- 1x Happymodel ExpressLRS Nano 2.4GHz EP2 TCXO RX
Additional information
| Brand | |
|---|---|
| Protocol |
14 reviews for HappyModel TCXO ExpressLRS 2.4GHz EP2 Nano Receiver ELRS
Only logged in customers who have purchased this product may leave a review.
