HappyModel DiamondF4 AIO 5-IN-1 Flight Controller with ExpressLRS

by HappyModel

The Diamond F4 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 5A Brushless Blheli_S ESC with ExpressLRS, this is an amazing flight controller in the tiny Diamond Format!

$124.99

or 6 weekly interest free payments of NZD $20.83 with

Hurry! Only 3 left in stock

Ships from our Tauranga warehouse
SKU: 1721 Categories: ,

Description

FIRMWARE TARGET ： Betaflight CrazybeeF4SX1280

The Diamond F4 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 5A Brushless Blheli_S ESC.
It comes with onboard SPI ELRS receiver which support ELRS TX module 2.x firmware.
This is an amazing flight controller in the tiny Diamond Format!

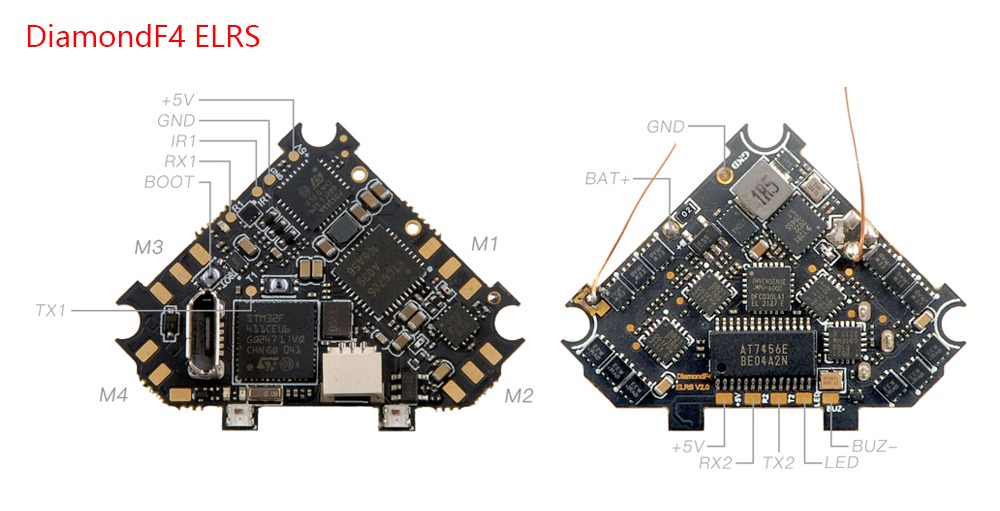

Flight controller

(ELRS SPI RX version)DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OPEN VTX
Built-in SPI ELRS V2.0/Frsky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Update log: DiamondF4FR V3.2 version already came with Built-in OPENVTX could support max 400mw output. Please use following vtxtable

# vtxtable
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 10 2 14 16 26
vtxtable powerlabels 0 RCE 25 100 400
