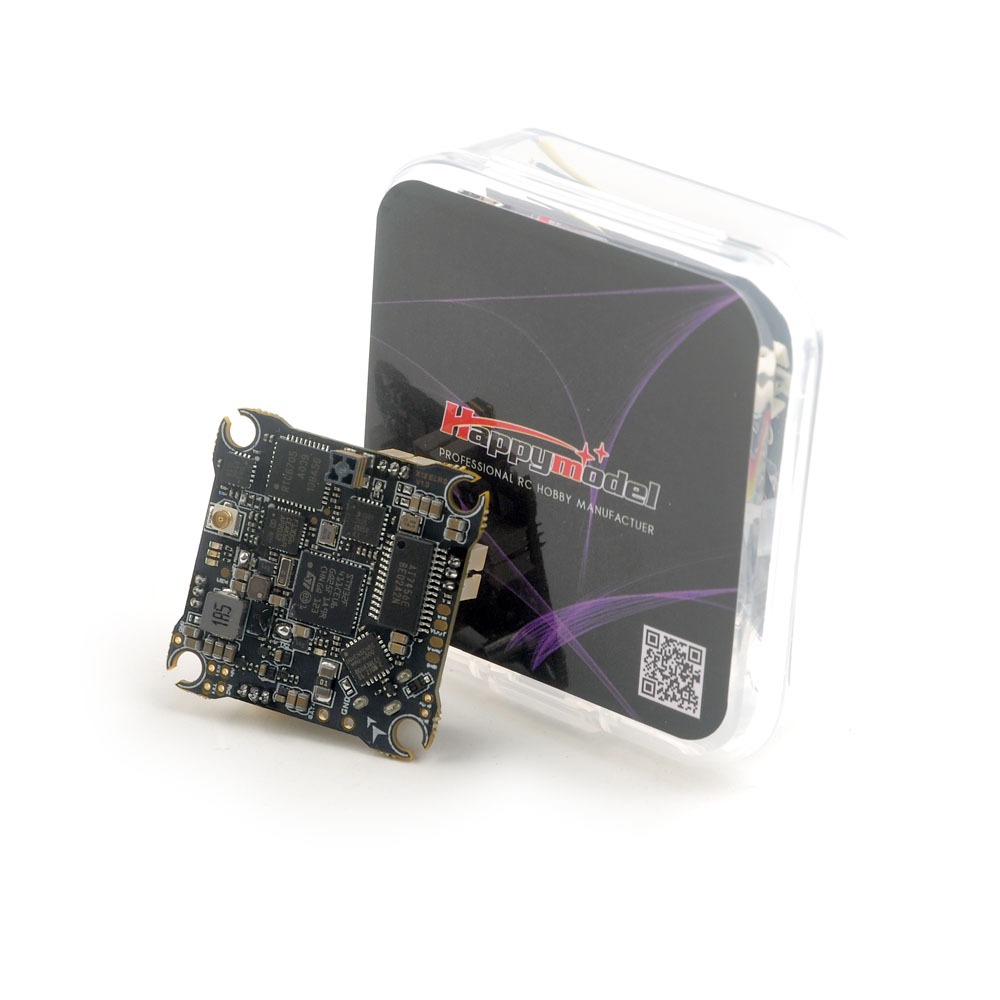

HappyModel X12 AIO 5-IN-1 Flight Controller built-in 12A for FrSky

by HappyModel
5.00 out of 5
(1 customer review)

The worlds first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently.
It comes with onboard SPI ELRS FrSky Rx.

$129.99

Out of stock

Categories: ,

Description

The worlds first 5-IN-1 AIO flight controller, OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently.
It comes with onboard SPI ELRS FrSky Rx.

This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

Specifications:

  • Brand Name: Happymodel
  • Item Name: X12 Frsky V2.1 flight controller built-in FRSKY 2.4G receiver
  • Target: CRAZYBEEF4FR
  • VTX antenna: U.FL
  • Weight: 5.1g
  • Support 1-2S Lipo/LIHV battery
  • Size: 30mm*30mm*8mm

Flight controller

X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or BMI270 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in FrSky D8/D16
Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard Frsky SPI D8/D16 receiver Version

SPI BUS receiver
CC2500 RF
Compatible Non EU transmitter D8 model Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Support Frsky D8/ D16 , Redpine , SFHSS

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL
