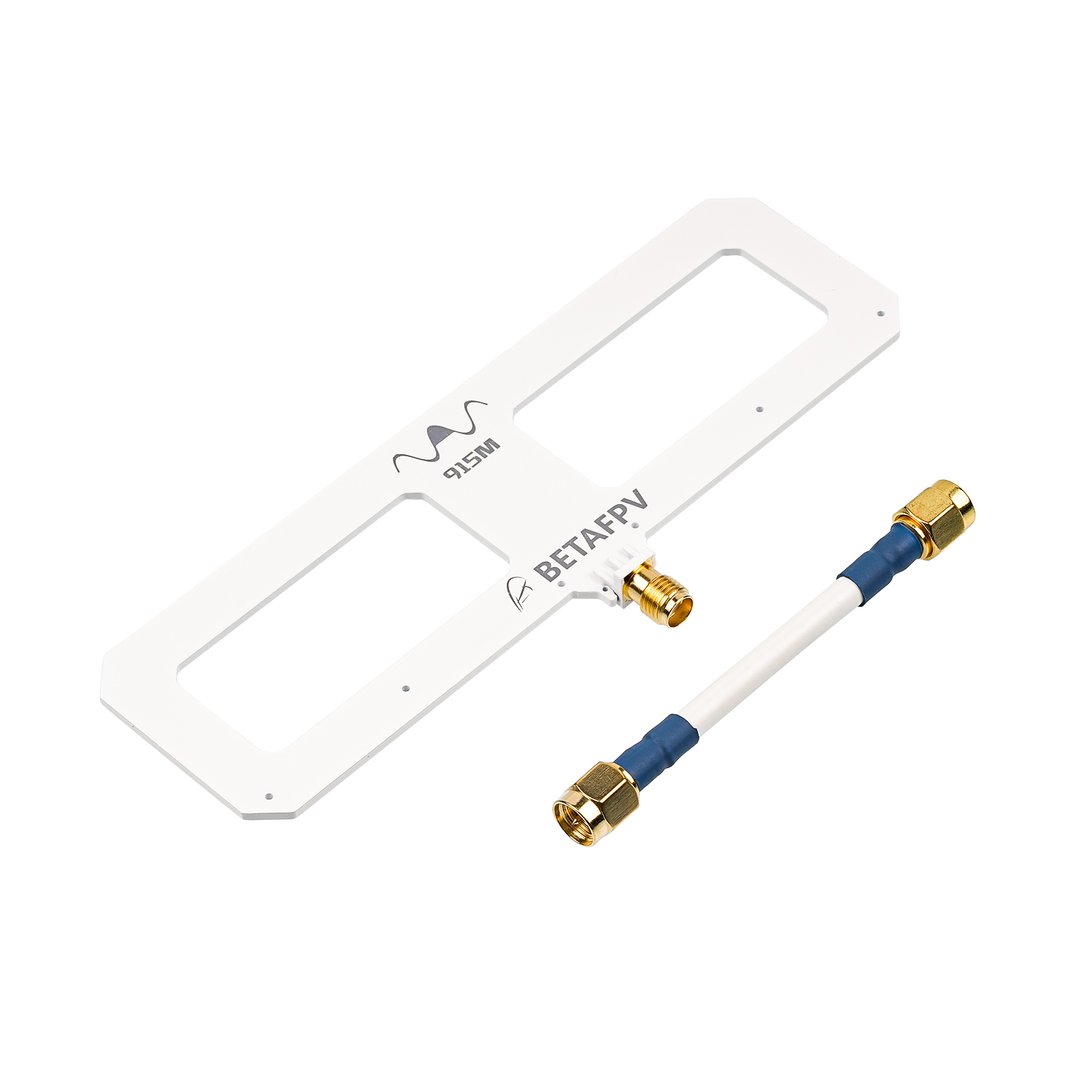

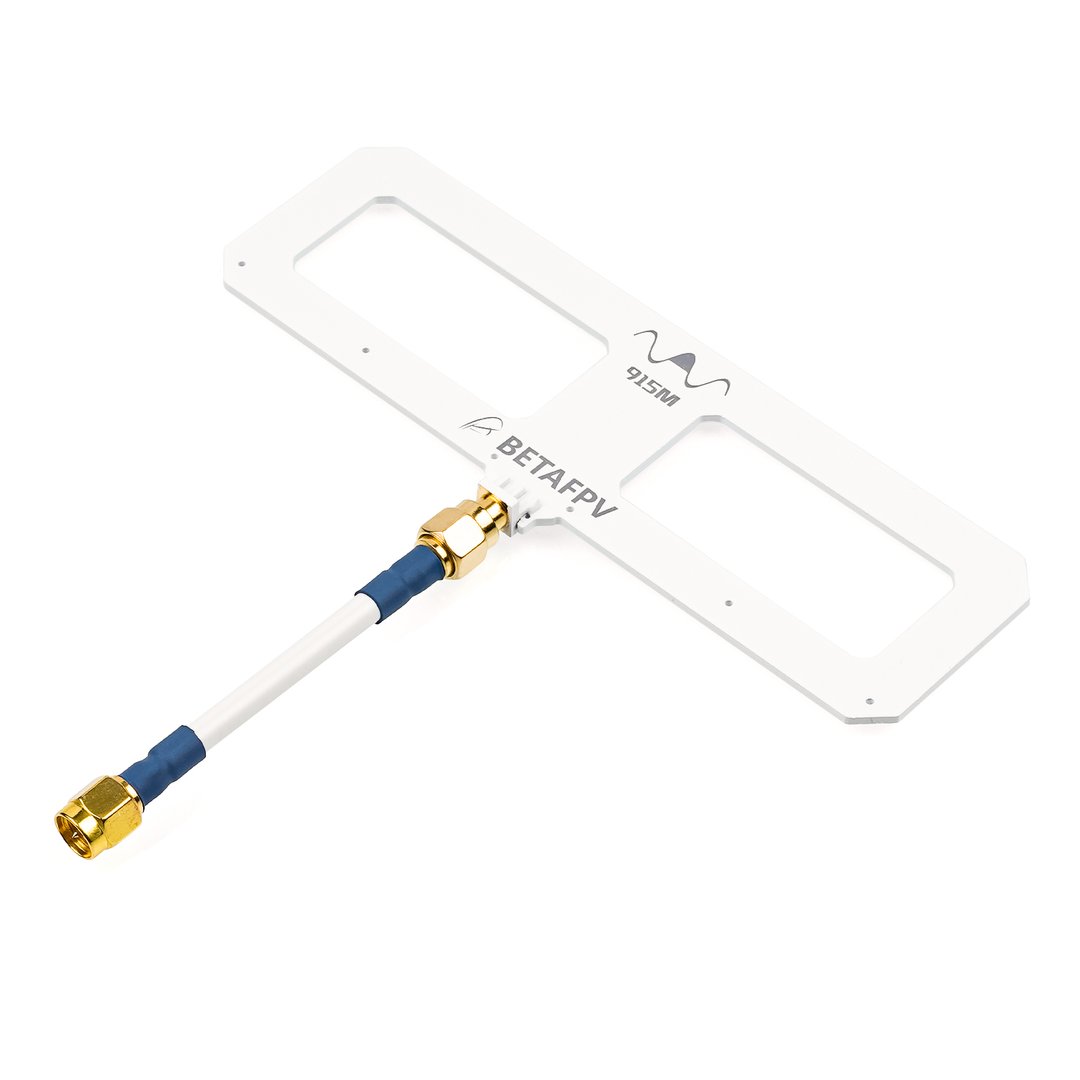

BETAFPV Moxon 915MHz Antenna for ExpressLRS (2 pack)

The Moxon antenna is designed and manufactured by BETAFPV for the 915MHz TX module. The Moxon antenna is directional antenna with a high gain of 5.5dbi to the front.

$27.99

or 6 weekly interest free payments of NZD $4.66 with

In Stock at KiwiQuads

Ships from our Auckland warehouse
SKU: 2344 Categories: ,

Description

Specification

  • Coaxial cable length: 72mm
  • Connector: SMA Male
  • Gain: 5.7dBi
  • VSWR: <1.5
  • Suggested for: Any 915MHz TX module or radios.

Which antenna should I choose?  Can it replace the stock radios antenna on the Frsky Taranis series or TBS Tango series?

Pilots would upgrade their radios that already support swappable antennas with this Moxon antenna. Note that do NOT use the antenna with the wrong frequency. Even they look almost the same outside, but they will have totally different performance in the wrong frequency point.

The BETAFPV Moxon antenna is directional to the front. Below is the antenna 3D radiation pattern image.

Package

  • 2 * BETAFPV Moxon antenna
