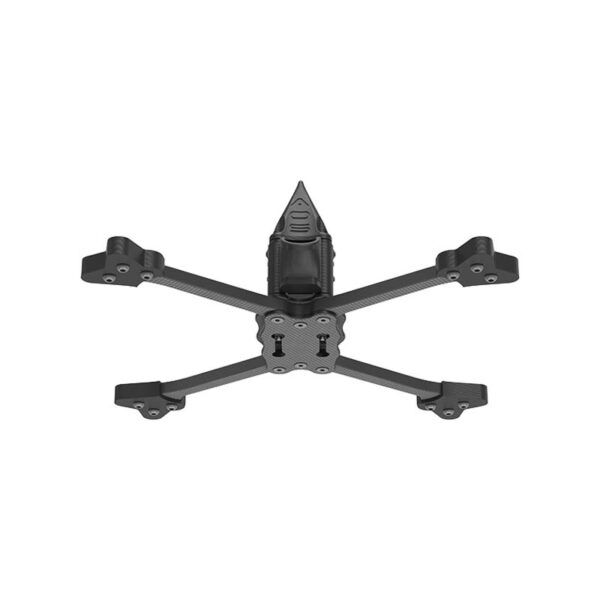

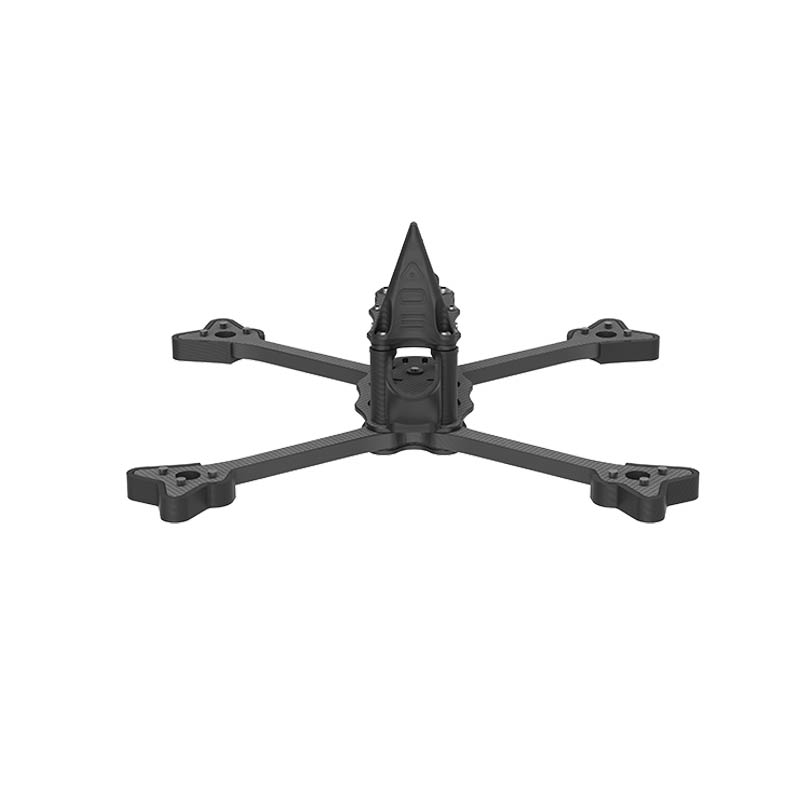

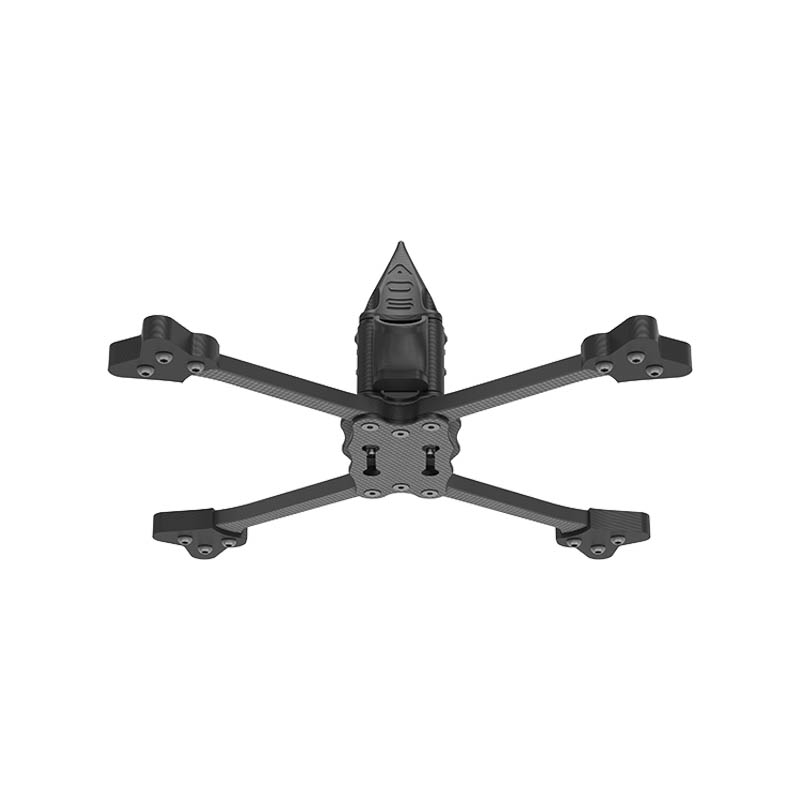

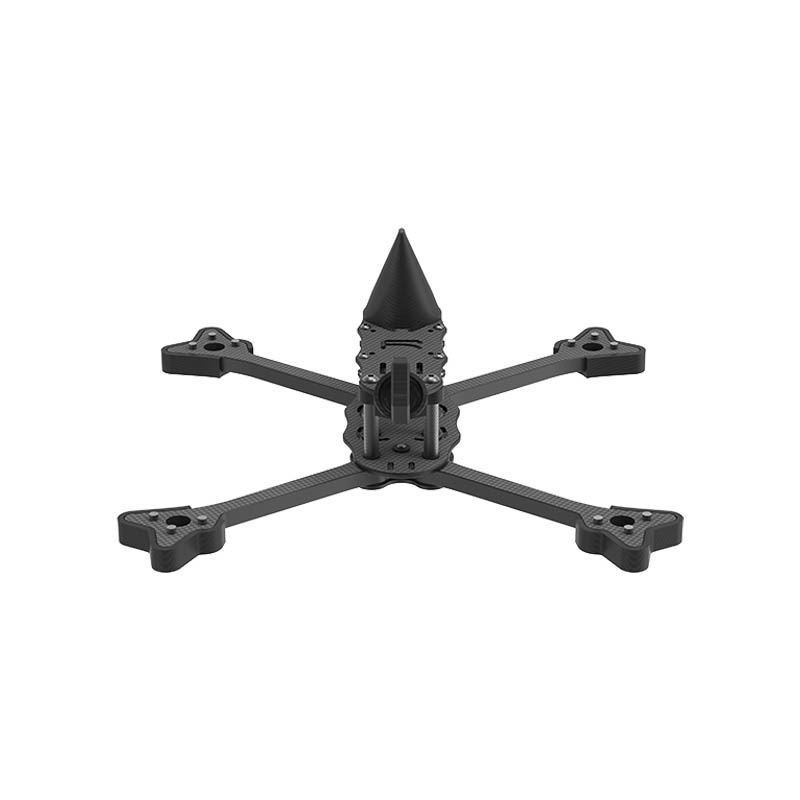

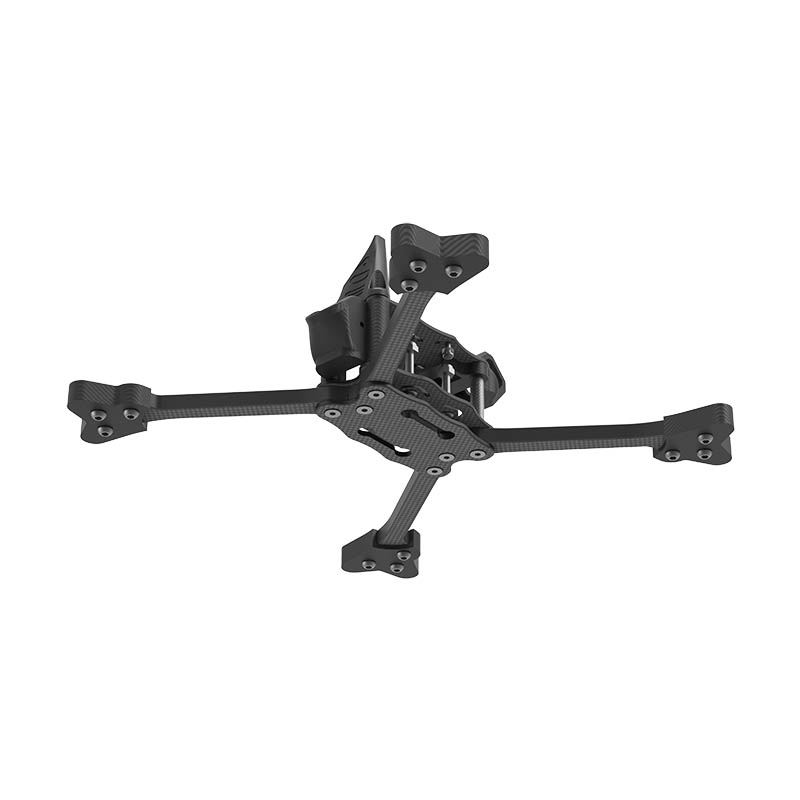

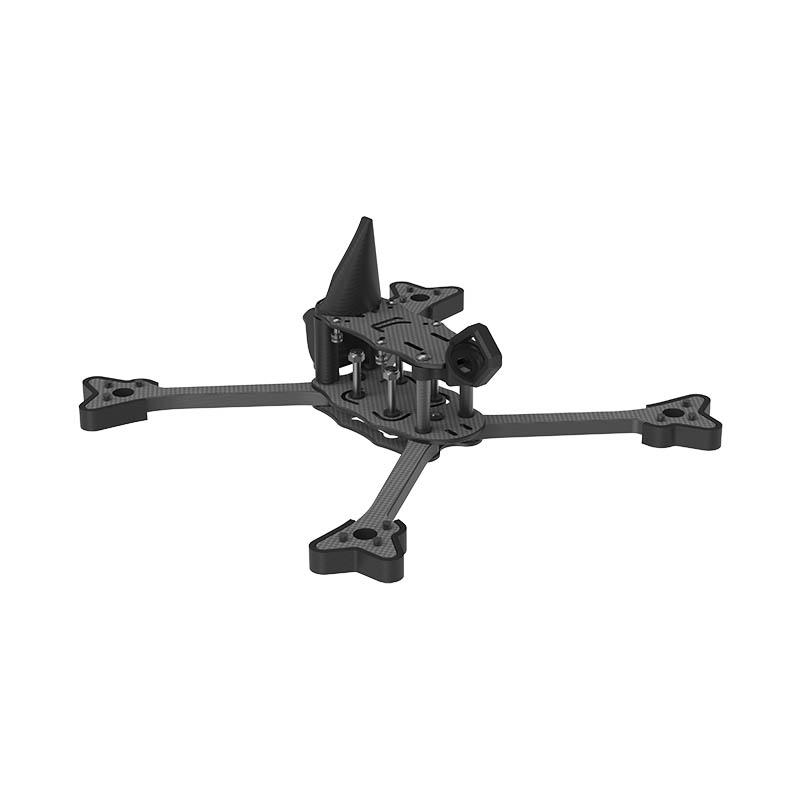

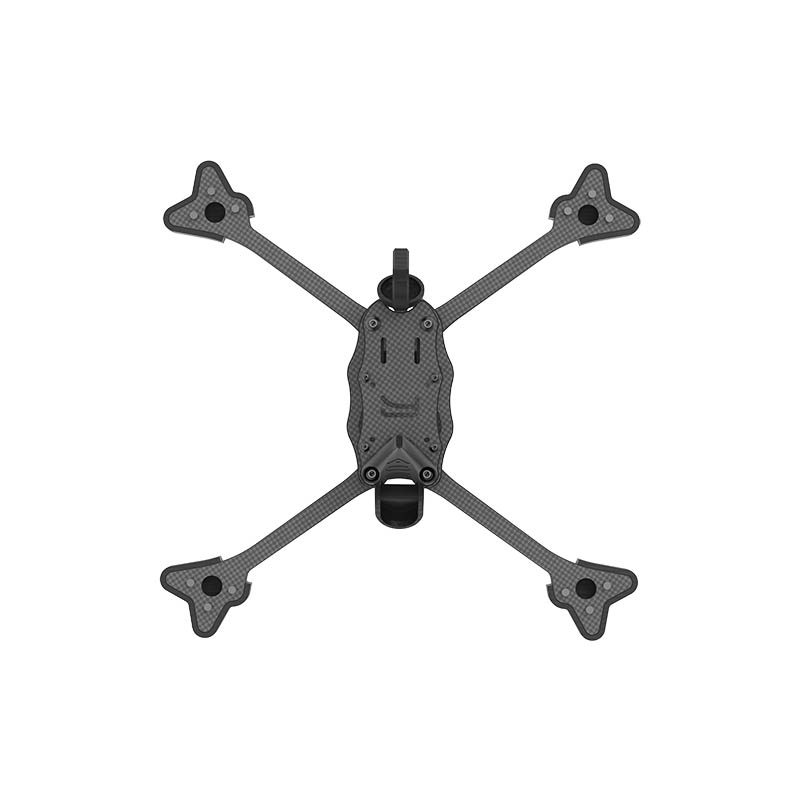

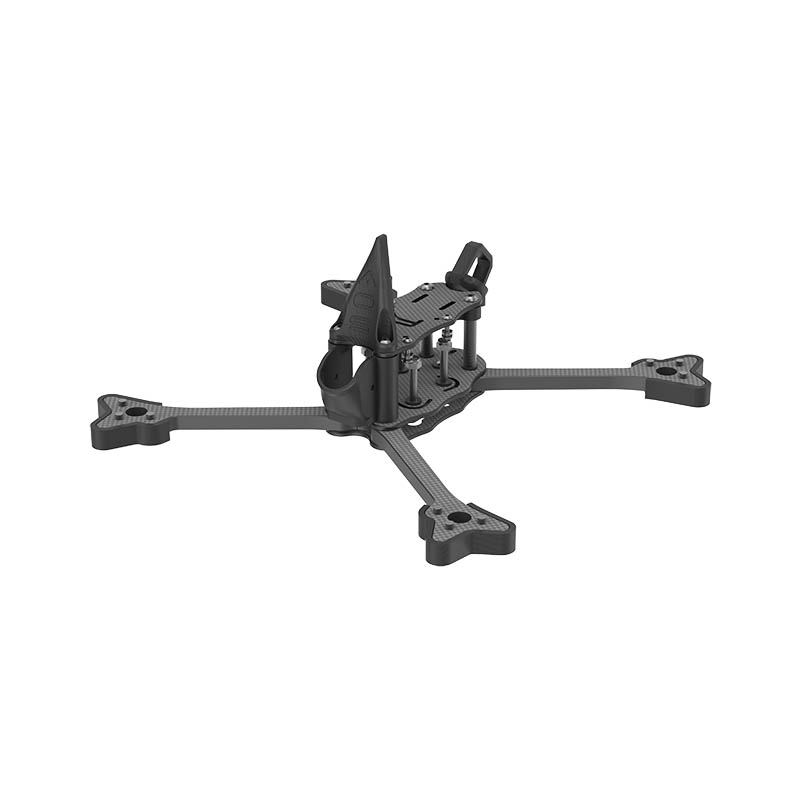

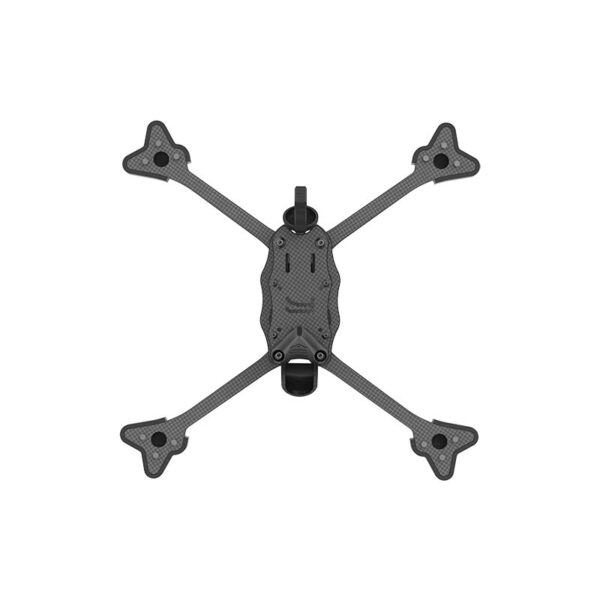

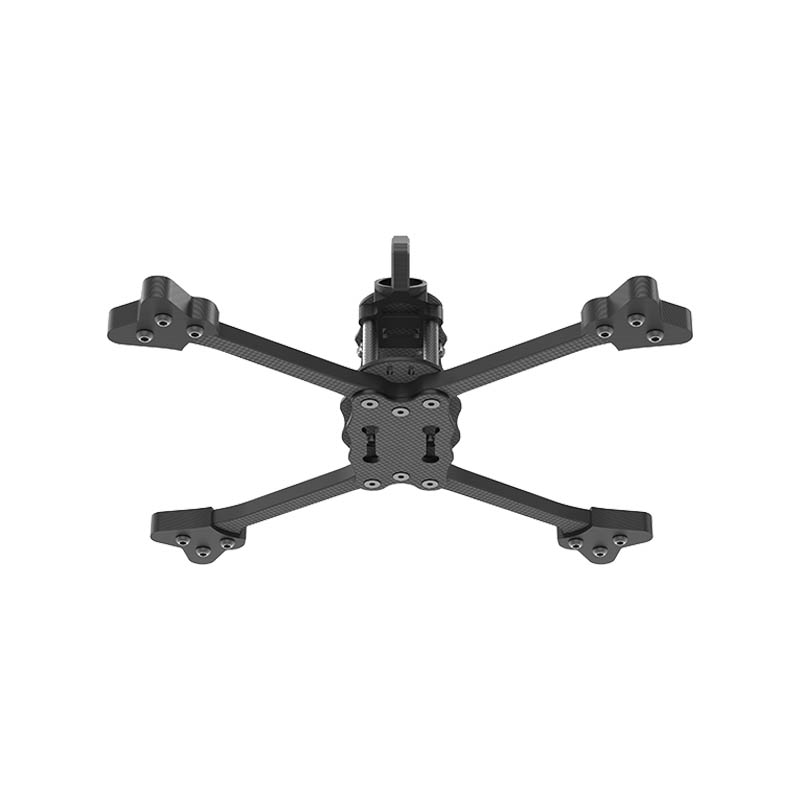

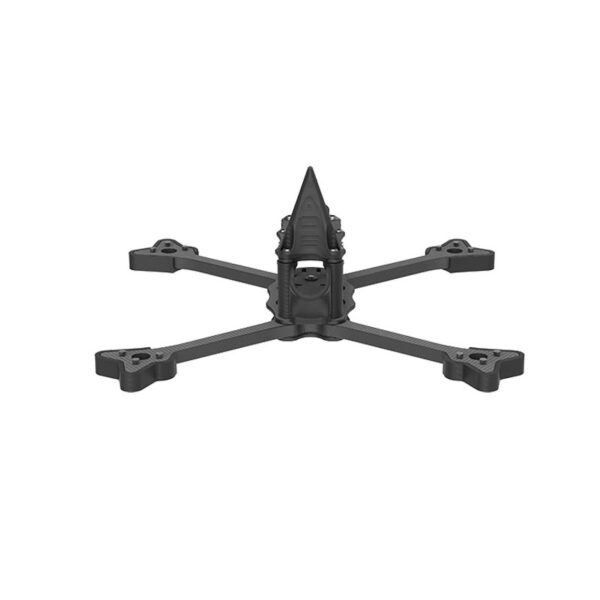

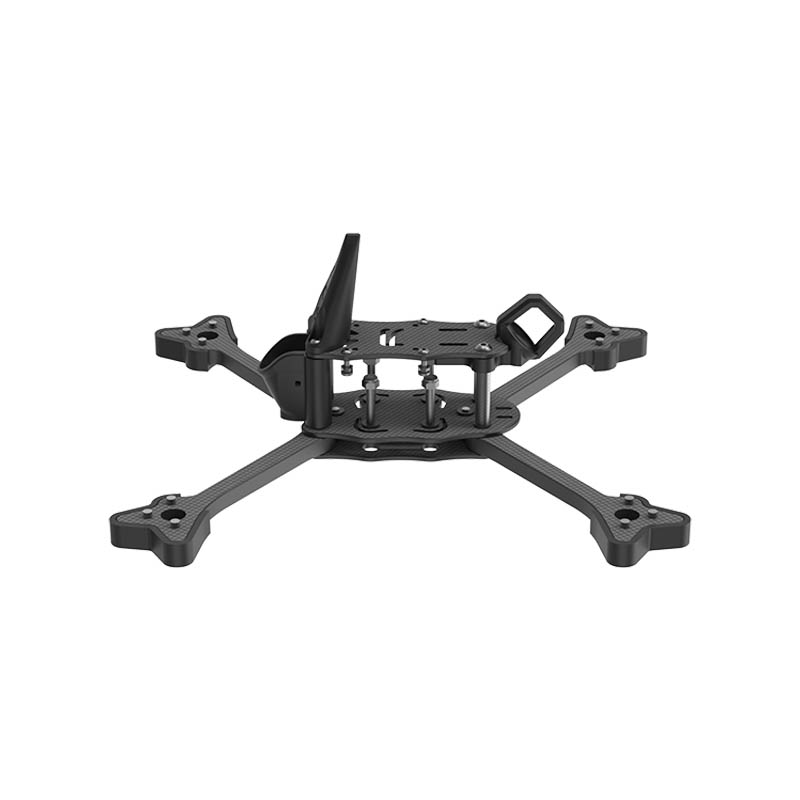

AOS 5R Racing Drone Frame Kit 5″

Race to victory with the AOS 5R V5 Racing Drone Frame – where speed meets innovation! Unleash unparalleled performance, leaving rivals in the dust.


or 6 weekly interest free payments of NZD $18.33 with

Out of stock

SKU: 7314 Category:


Unleash the power of precision with the AOS 5R Racing Drone Frame Kit 5″. Redefining FPV racing, this frame is a game-changer, featuring cutting-edge technology, 6mm arm thickness, and a versatile 20×20 mm M3 flight stack. Dominate the skies with confidence and style.


  • Supports up to 5.3″ Props
  • AOS X-Cell Anti-Vibration Technology
  • 20×20 mm M3 flight stack
  • 25.5×25.5 mm OR 20×20 mm M2 top plate mounting
  • 20mm standoff spacing fits most existing 3D prints for 14mm camera, shark fin, and VTX antenna
  • 50mm stack clearance front to rear fits even the largest 20×20 M3 ESCs
  • ⌀16mm motor mounting (supports all standard 5″ motors)


  • Product Name: AOS 5R Frame Kit
  • Frame wheelbase: 201mm
  • Frame Dimension: L142*W142*H38 mm
  • Arm Thickness: 6mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2mm
  • Upper Plate Thickness: 2mm
  • Max Flight Stack Height: 25mm
  • Max VTX Height: 25mm
  • Motor Mounting: 16×16-φ3mm
  • Flight Stack Mounting: 20*20 Φ3mm
  • VTX Mounting: 20*20/Φ2mm 25.5*25.5/Φ2mm
  • Weight: 90g
  • Compatible: Vista HD system/ BLITZ mini 1.6W VTX
