Walksnail Avatar HD Pro Kit V2 (32Gb+GyroFlow)

Description

1080P 120fps compatibility
High frame starlight
22ms low latency
Ranging Mode
4km range
Light weight design
FOV160°
Built-in 32G storage
6V-25.2V
Sony Starvis Ⅱ Technology

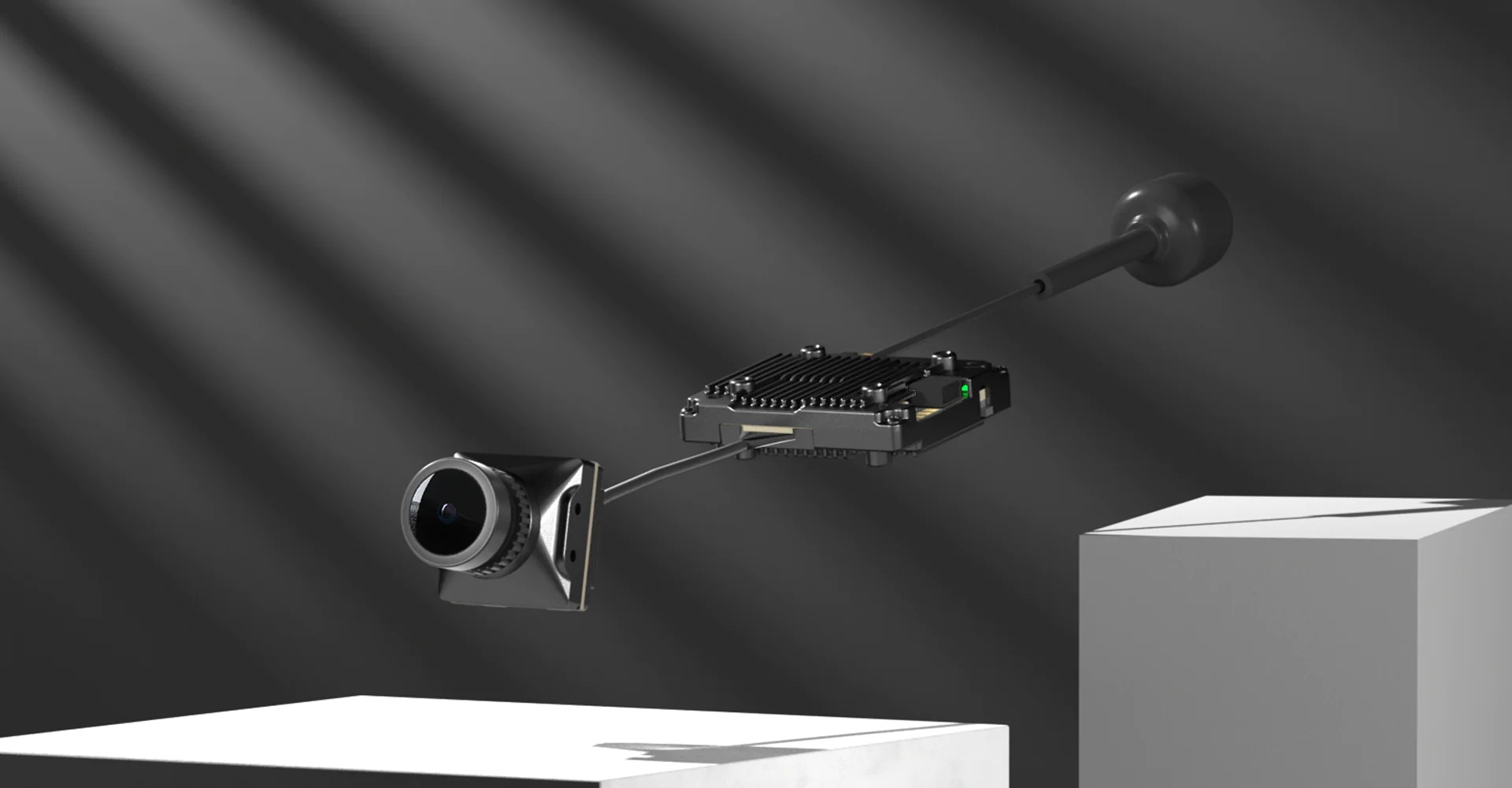

This kit Includes:

• Avatar HD Pro Camera
• Avatar V2 VTX – 32G with GyroFlow
• Avatar V2 Antenna

Camera Features:

• 1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
• Support 1080P/120fps high frame, the first high frame night vision HD camera in FPV market.

• Walksnail Avatar camera V2 has 160° wide-angle FOV, send you a more natural and real picture.

• Support Gyroflow, takes you a smooth and stabilized video quality.
• F/1.6 Large Aperture to increase the amount of incoming light, impressive low light performance!

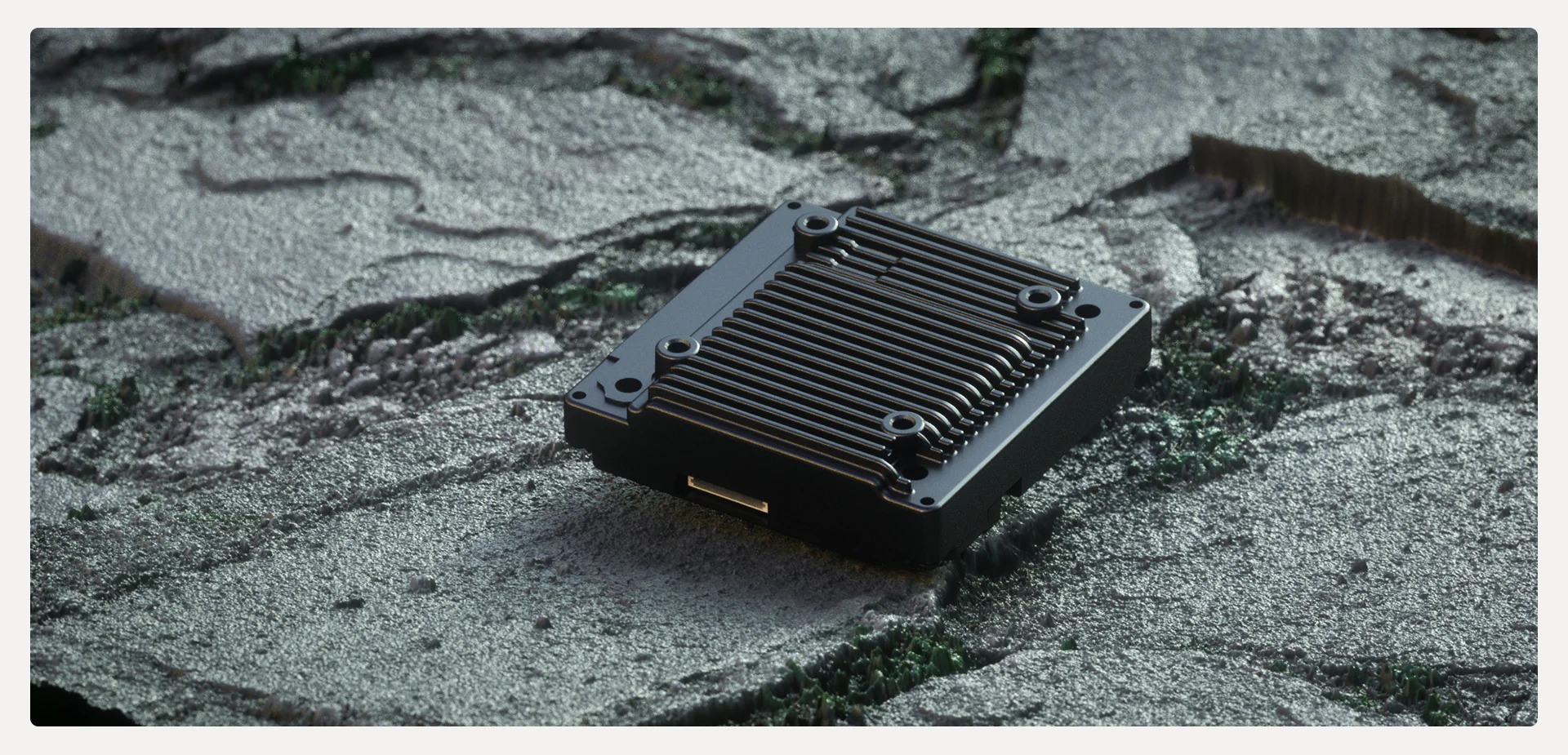

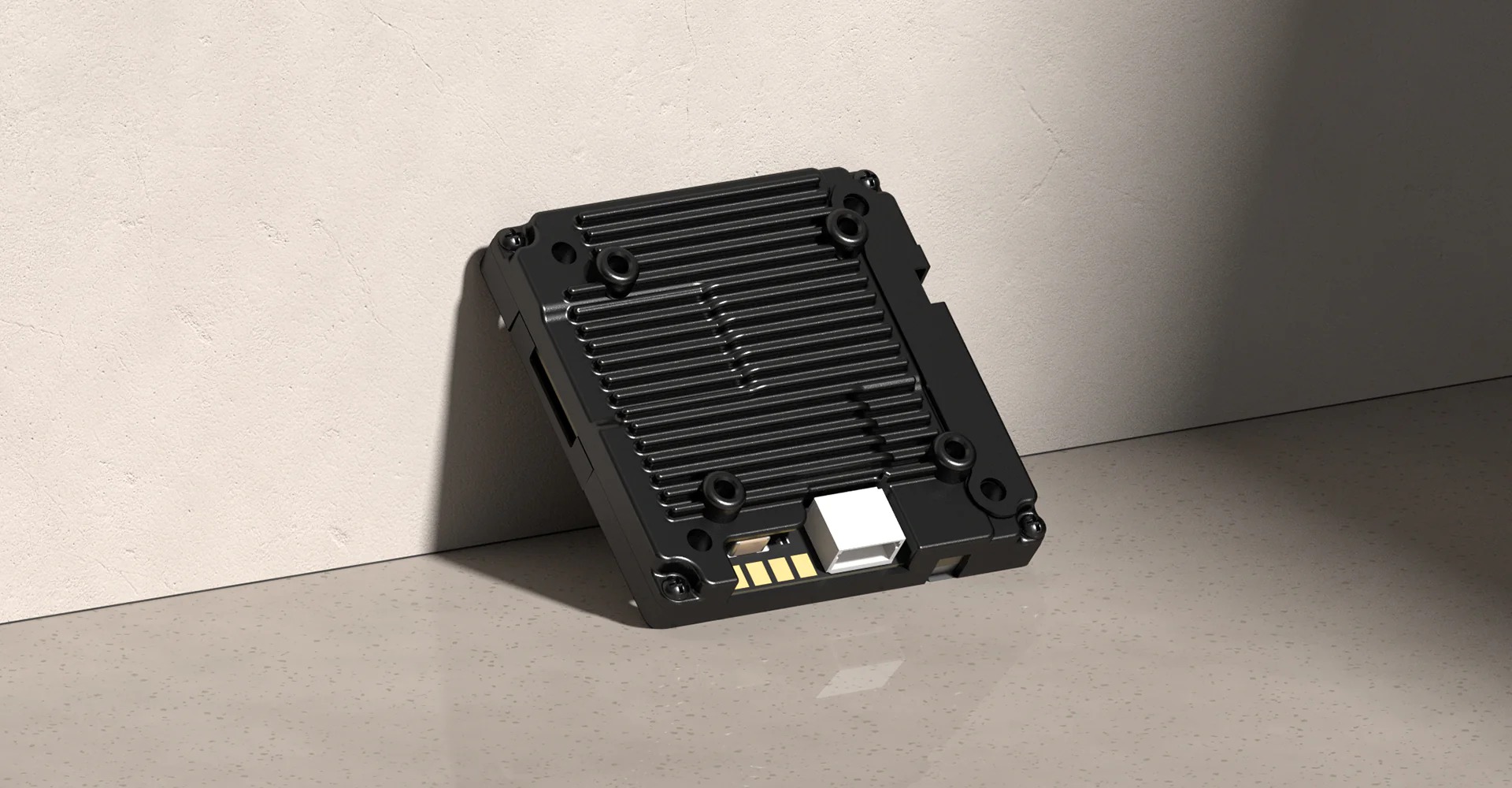

V2 VTX Features:

• In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.

Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, so as to better protect the VTX.
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
A spare pad is added to provide two power connection modes.

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.

Specifications

HD Pro Camera

• Image Sensor 1/1.8-Inch Sony Starvis Ⅱ sensor
• Resolution 1080P/60fps;720P/100fps,720P/60fps;1080P/120fps compatibility;
• Ratio 16/9; 4/3
• Lens 8Mp
• FOV 160°
• Aperture F1.6
• Shutter – Rolling shutter
• Min.Illumination 0.00001Lux
• Weight 9.5g

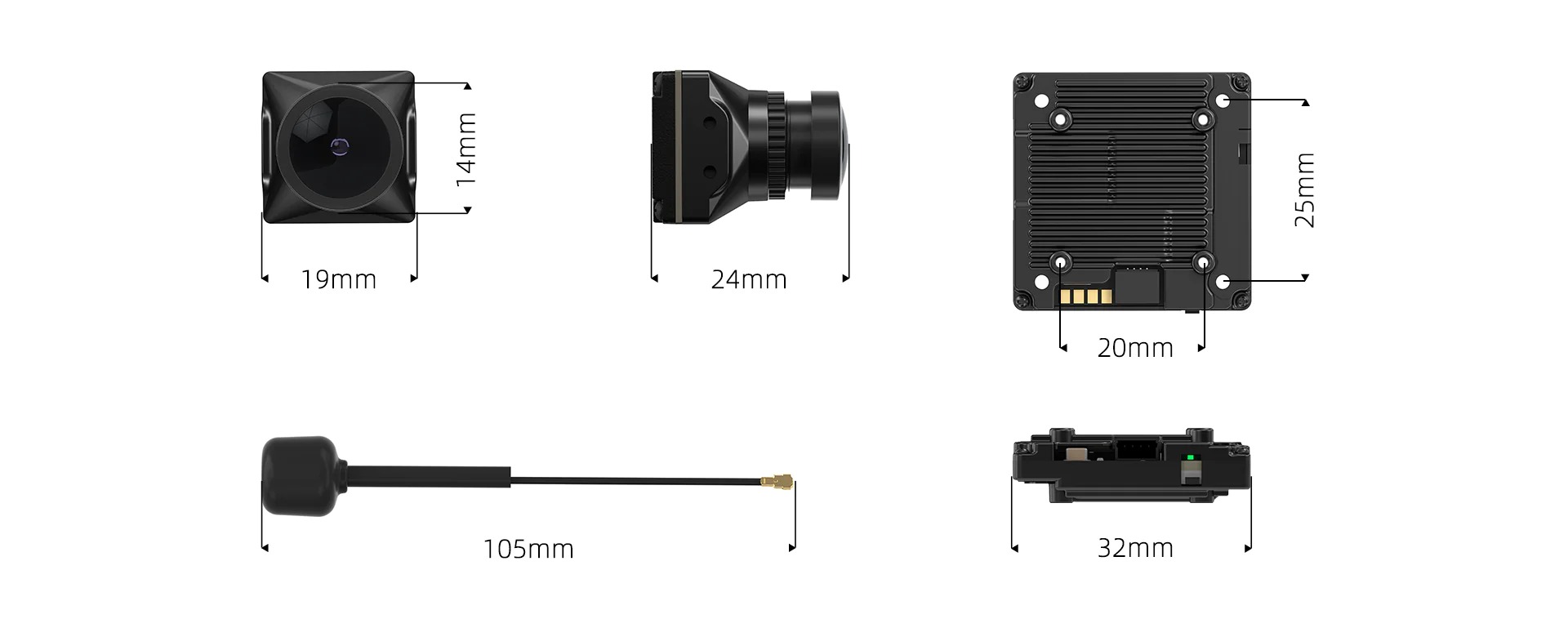

• Dimensions 19*19*24mm
• Coaxial Cable 140mm
• Gyroflow supported

Avatar V2 Module

• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
• MIC:<25dBm
• 1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
• Mounting Holes 25.5*25.5mm; 20*20mm
• Dimensions 33.5*33.5*10.5mm
• Storage 8G/32G
• Recording 1080p/720p
• Weight 17.6g
• Operating Temperature -20-40℃
• Channels 8
• Wide Power Input 6V-25.2V
• Supported FC System Betaflight; Inav; Fettec; ArduPilot;Kiss
• OSD Canvas mode
• Latency Average delay 22ms
• Antenna 1(IPEX)

Avatar V2 Antenna

• Polarization LHCP
• Frequency range 5600MHz-6000MHz
• Gain 1.9dBi
• VSWR ≤1.5
• Input Impedance 50Ω
• Interface IPEX-1
• Size R15 X 45mm(without cable)
• Weight 2g
