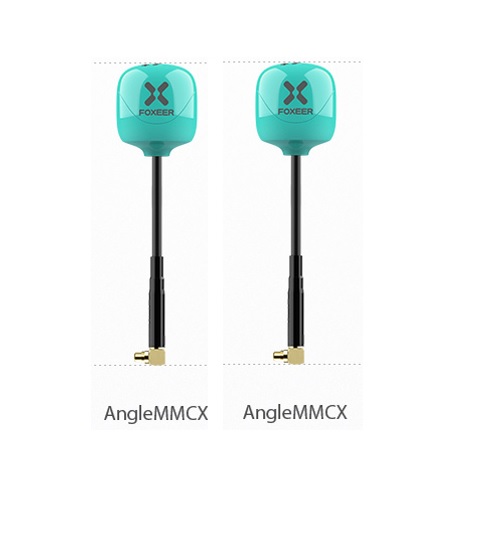

Foxeer Lollipop 4+ 5.8GHz LHCP MMCX 90° Antenna 2PCS (3 Sizes)

5.00 out of 5
(5 customer reviews)

A pair of Foxeer Lollipop 4+ high quality market leading Antennas perfect for your DJI Air Unit, 3 sizes to choose from: 60mm 95mm (with tube) 165mm long Range (with tube).

$46.99

SKU: 2206 Categories: , , Tag:

Description

Quantity 2pcs Antennas



Specifications:

Center Frequency 5.75GHz

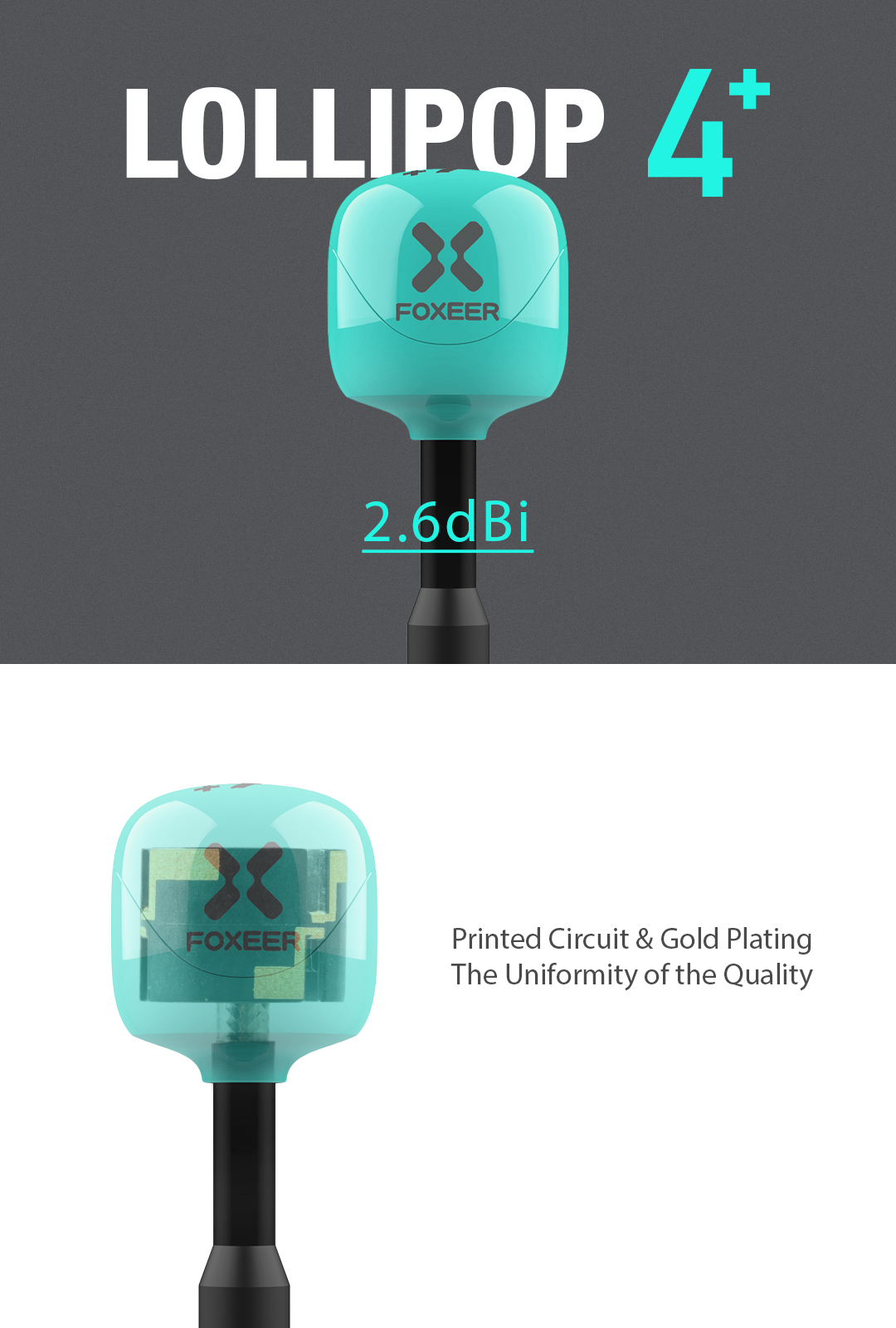

Gain 2.6dBi
Axial Ratio Close to 1
Band Width 5.5G~6GHz
Radiation Efficiency 98%

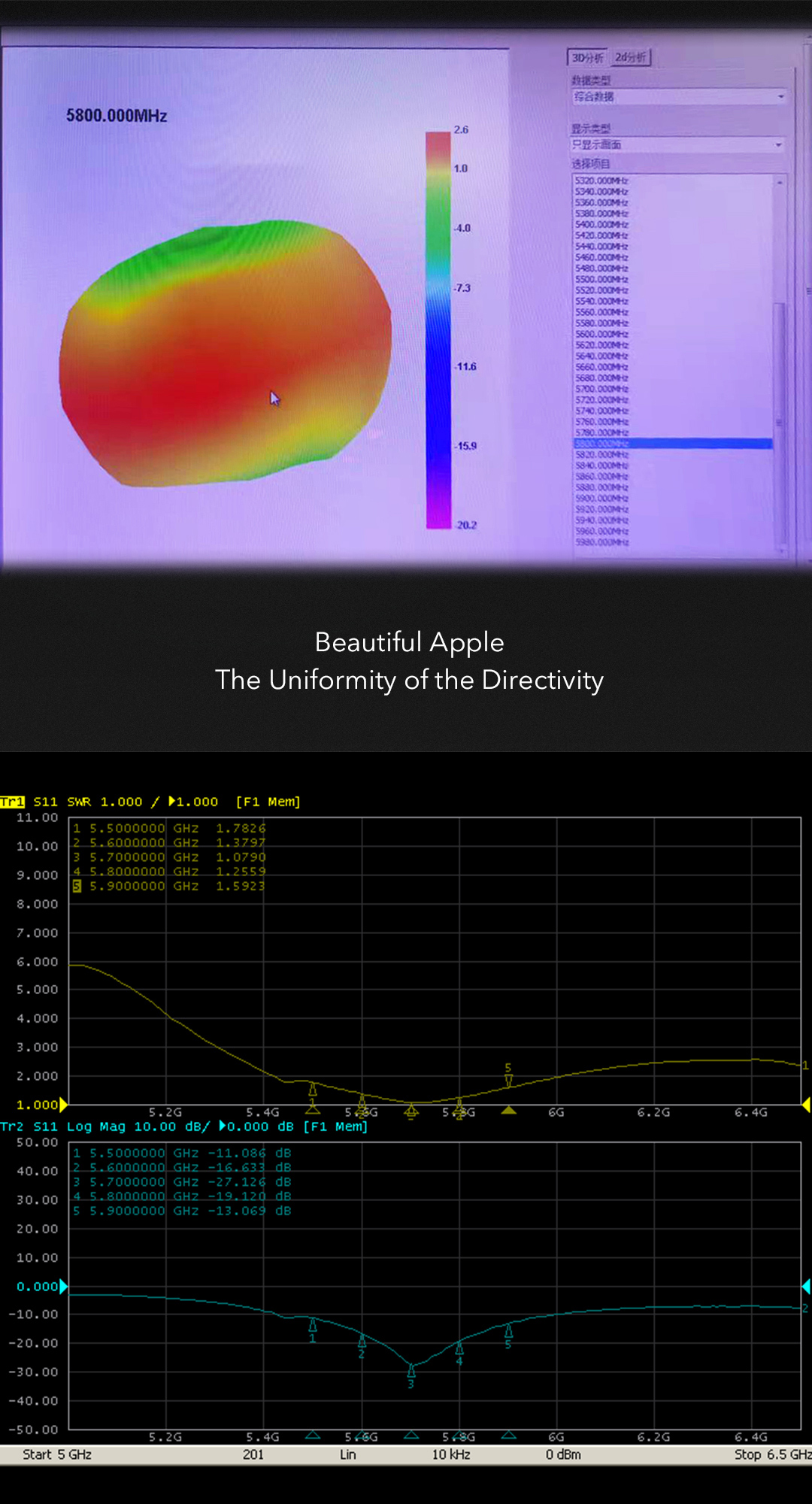

SWR 1.07 at Center Frequency
Polarization LHCP
Case Material PC+ABS

Weight

Angle MMCX: 4.5g
Angle MMCX Tube Short: 4.8g
Angle MMCX Tube Long: 6.8g

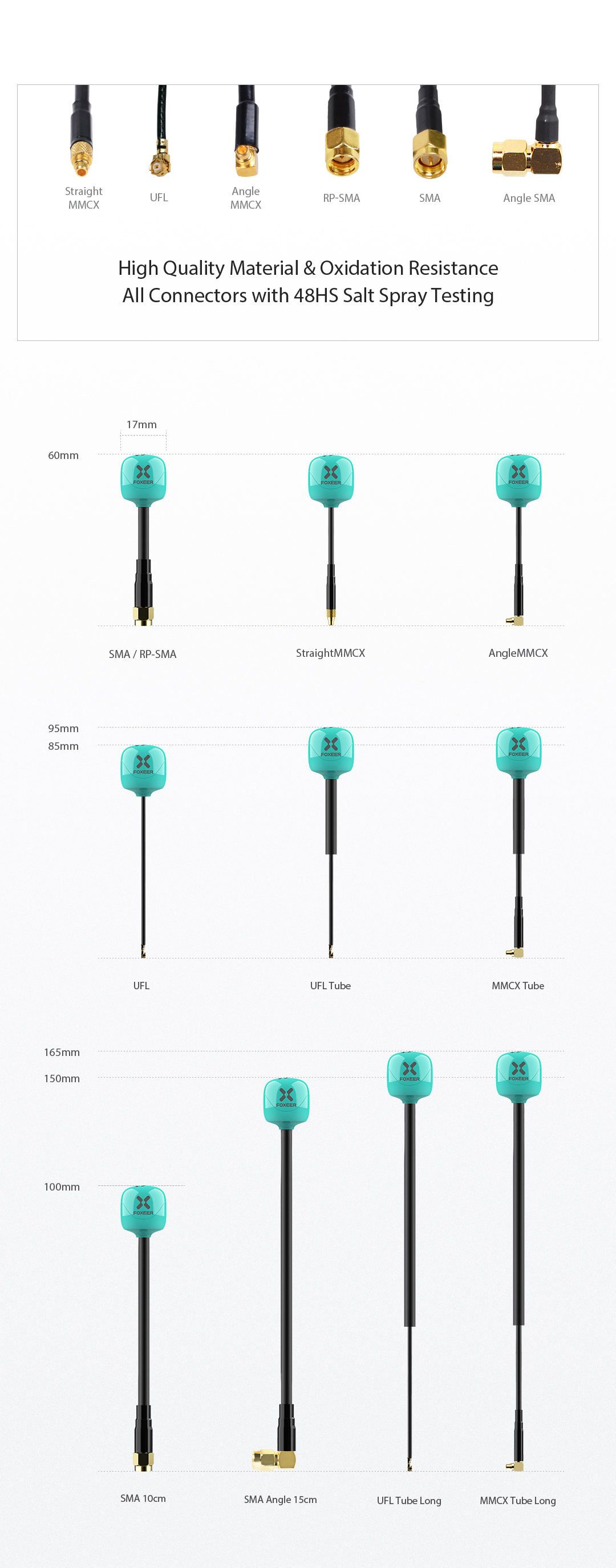

Dimensions

Angle MMCX: Φ11*60mm

Angle MMCX Tube Short: Φ11*95mm
Angle MMCX Tube Long: Φ11*165mm

Quantity 2pcs Antennas





Additional information

Brand

Size

60mm, 95mm (Tube), 165mm (Tube)

5 reviews for Foxeer Lollipop 4+ 5.8GHz LHCP MMCX 90° Antenna 2PCS (3 Sizes)

  1. 5 out of 5

    Nathan C. (verified owner)

    Really well made and great performance, just note they are slightly shorter in length than the standard DJI antennas for the air unit.

  2. 5 out of 5

    Nathan C. (verified owner)

  3. 5 out of 5

    Anonymous (verified owner)

  4. 5 out of 5

    Anonymous (verified owner)

  5. 5 out of 5

    Anonymous (verified owner)

Only logged in customers who have purchased this product may leave a review.
