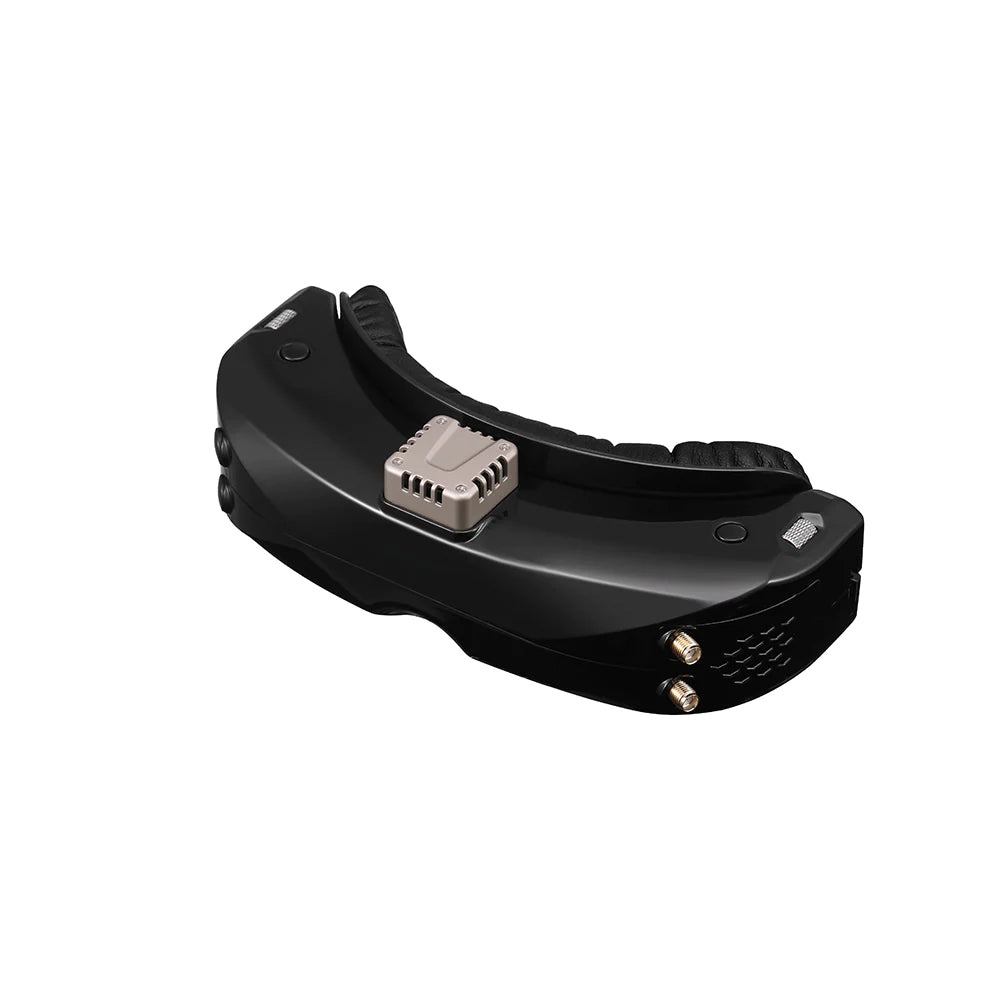

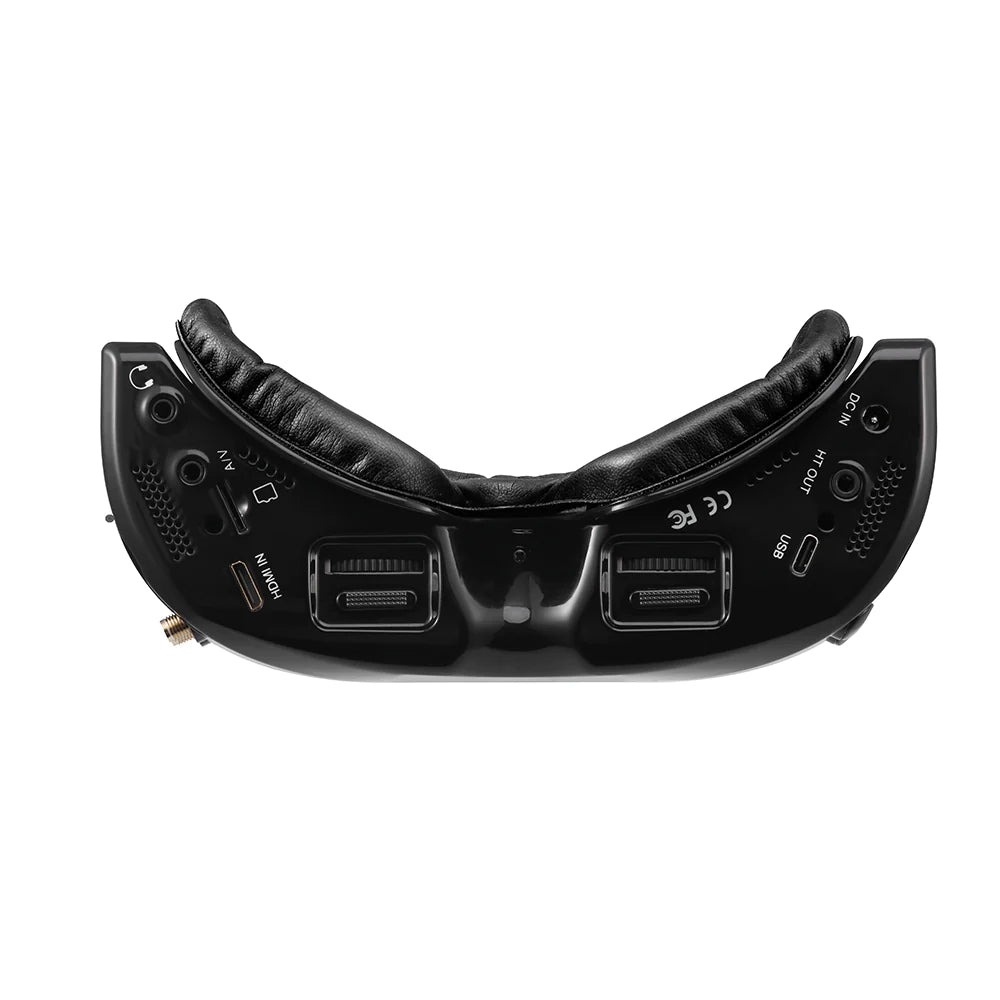

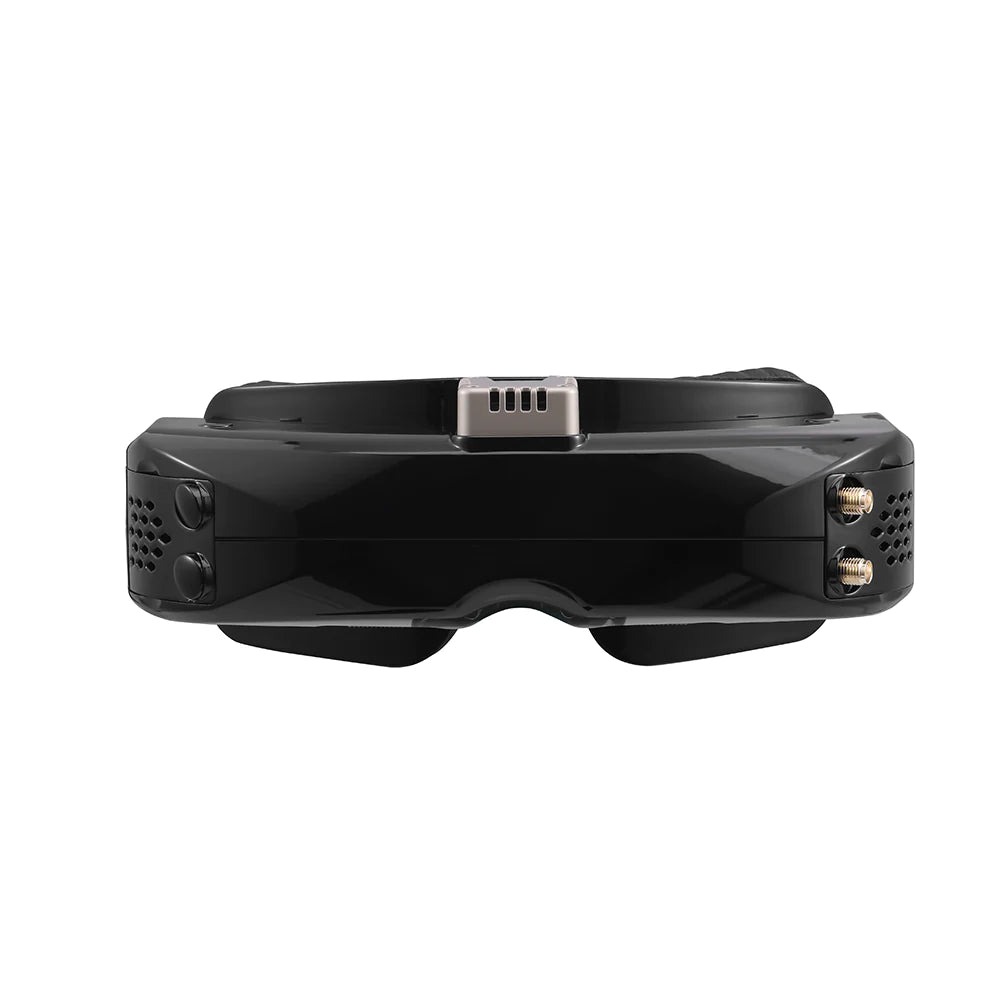

Skyzone SKY04X PRO OLED FPV Goggles

5.00 out of 5
(1 customer review)

The SKY04X Pro is Skyzones Flagship OLED goggle with SteadyView this is simply the best Analogue Goggle available


or 6 weekly interest free payments of NZD $157.99 with

Out of stock

SKU: 5028 Categories: ,


The SKY04X is the first sky zone goggle with focus adjustment, the 1280*960 high-resolution OLED screen. With Steadyview receiver, the receiver merges two signals to one, avoiding image tearing and rolling and making the image clear in challenging conditions. The newly designed optics have a focus adjustment feature and 46 degrees field of view, giving pilots a more immersive FPV experience.

The new OS with 10 languages to set select, the pilot has no trouble with the menu system, with shuttle wheel and new user interface, the pilot can set all the settings just by rolling the wheel without taking off the goggles.


  • Screen: OLED
  • Resolution: 1920*1080
  • FOV (Diagonal): 52°
  • Aspect Ratio: 4:3/16:9
  • Focus: -2~+6 adjustable
  • Interpupillary distance(IPD): 58-71mm
  • Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
  • DVR: H264, 60fps
  • Voltage Input: 2~6SLiPo
  • HDMI IN: 720P 100FPS
  • Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
  • Dimensions: 185*75*67mm
  • Weight: 267g


  • SteadyView Receiver
  • Shuttle Wheel Control
  • Focus Adjustment
  • 10 Languages
  • Advance Screen Setting
  • New UI

Package Includes:

  • 1x SKY04X Pro Goggles
  • 1x Steadyview V3.3 Receiver Module
  • 2x Faceplate (wide and narrow)
  • 1x Sponge with Velcro
  • 1x Zipper case
  • 1x Power cable
  • 1x Headtracker cable
  • 2x 5.8GHz 2dB antennas
  • 1x Video/Audio Cable
  • 1x USB-C Cable
  • 1x SKY04x Pro User Manual
