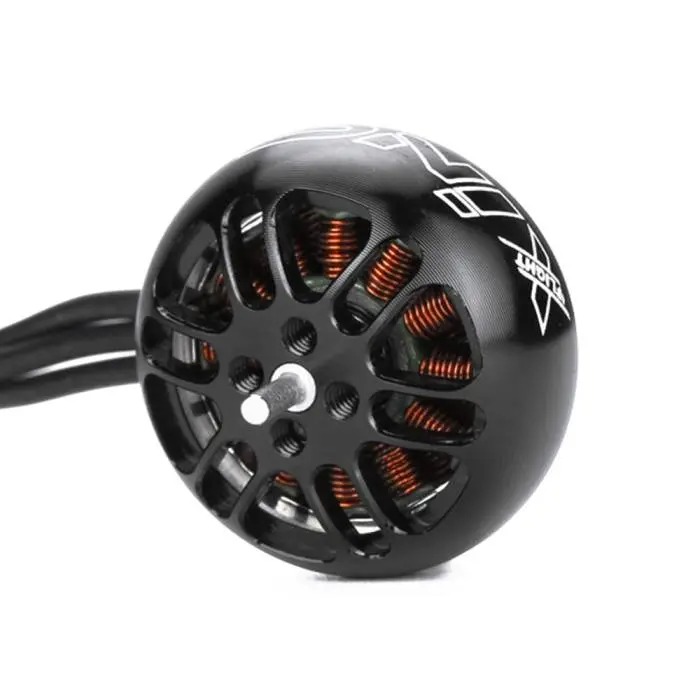

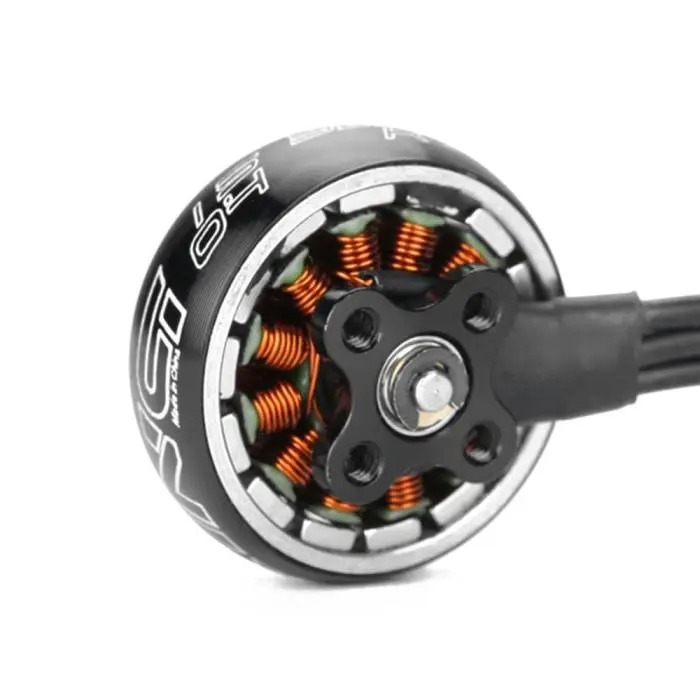

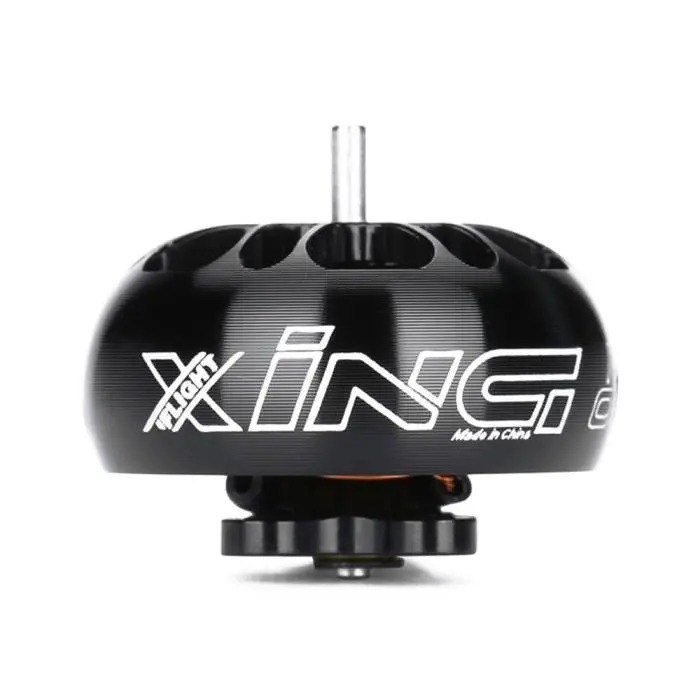

iFlight XING 1504 FPV NextGen Motor 3100Kv for iH3

5.00 out of 5
(1 customer review)

The iFlight XING 1504 Motor is perfect for your 3-4″ build running on 4S, featured in iH3 and AOS3.5 BNF models

$29.99

Hurry! Only 3 left in stock

Ships from our Tauranga warehouse
SKU: 2178 Category: Tag:

Description

The iFlight XING 1504 Motor is part of a series that was designed and named after FPV pilot & specialist Patrick Xing. Together, they have designed a one-of-a-kind motor, one that will stand out from the crowd as well as perform great.

Take the power and style of XING motors and bring them down a notch to 1504 and you get a beautiful flying 3-4″ quad!

Features:

  • 9×9 Micro Mounting Pattern
  • XING Series Micro Motor
  • 3-6S LiPo Compatibility
  • Ultralightweight 12.4g
  • 1.5mm Shaft

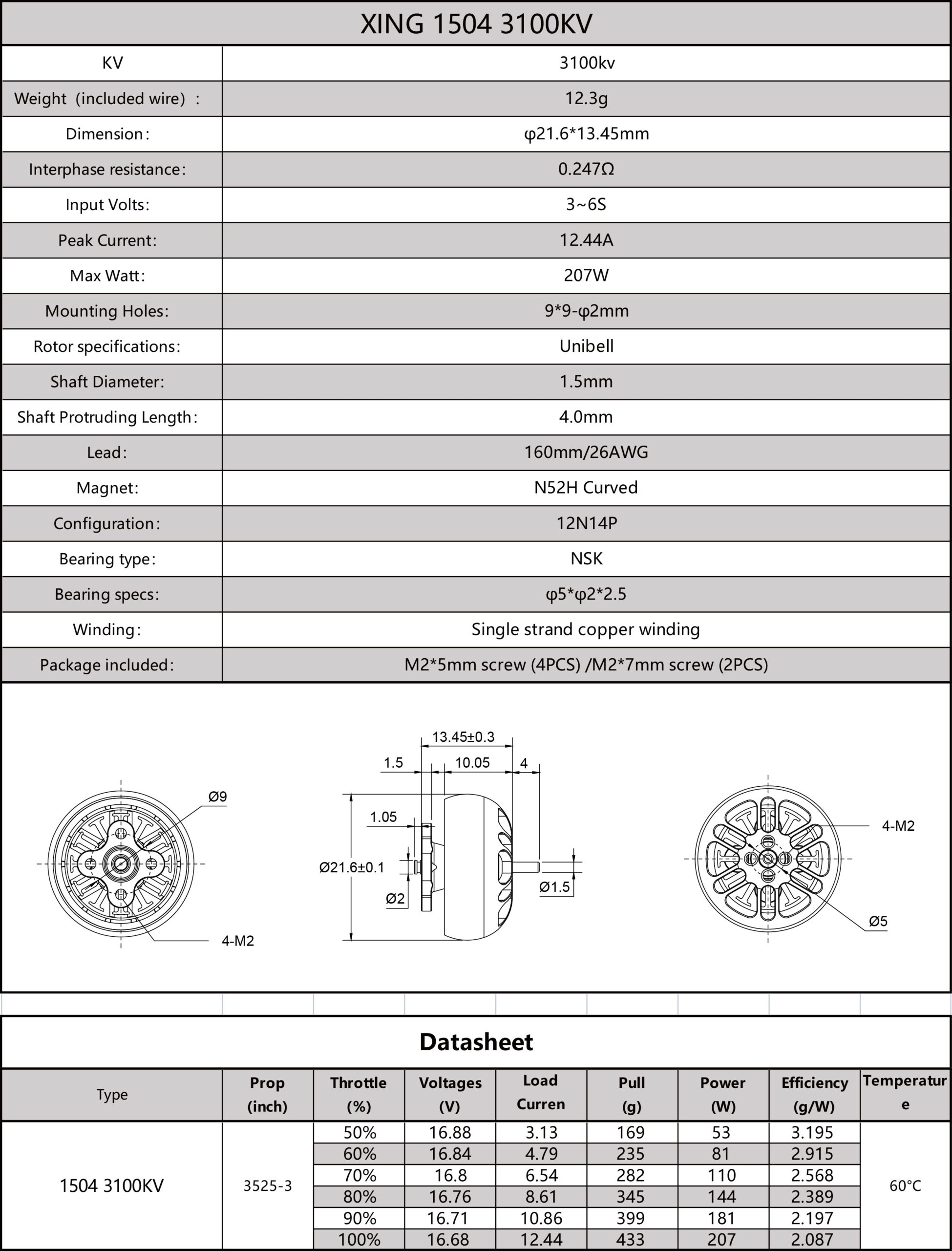

Specification:

  • Max Continuous Current: 18.96A
  • Max Continuous Power: 293.5W
  • KV: 3100KV for 4S
  • Dimension: 19.6×13.4mm
  • Mounting Pattern: 9×9 M2
  • Stator Diameter: 19.6mm
  • Internal Resistance: .247
  • Input Voltage: 3-6S Lipo
  • Shaft Diameter: 1.5mm
  • Configuration: 12N14P
  • Stator Length: 4.5mm
  • Bearing: 5x2x2.5mm
  • Model: XING 1504
  • Weight: 12.4g

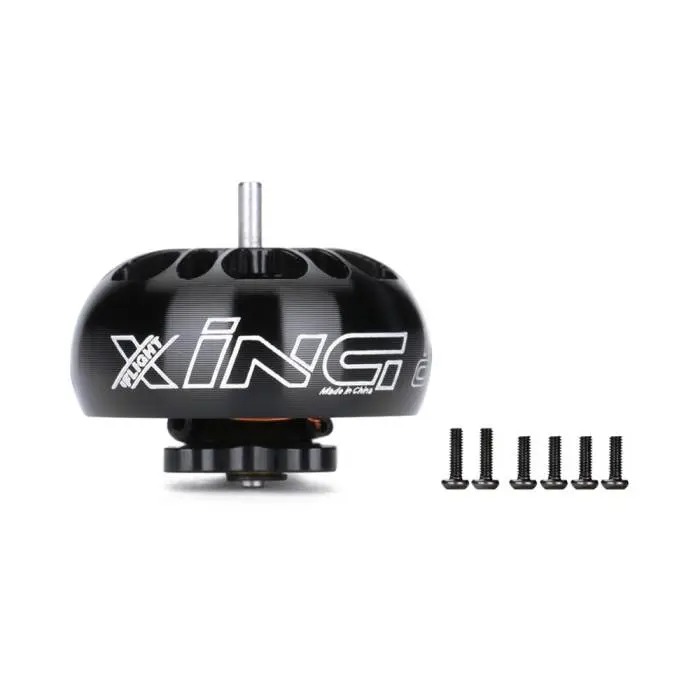

Package includes:

  • 1 x iFlight XING 1504 FPV NextGen Motor (3100KV)
  • 1 x Hardware Set



Additional information

Brand

Motor Size

KV Rating

3100Kv

Shaft Size
