Description

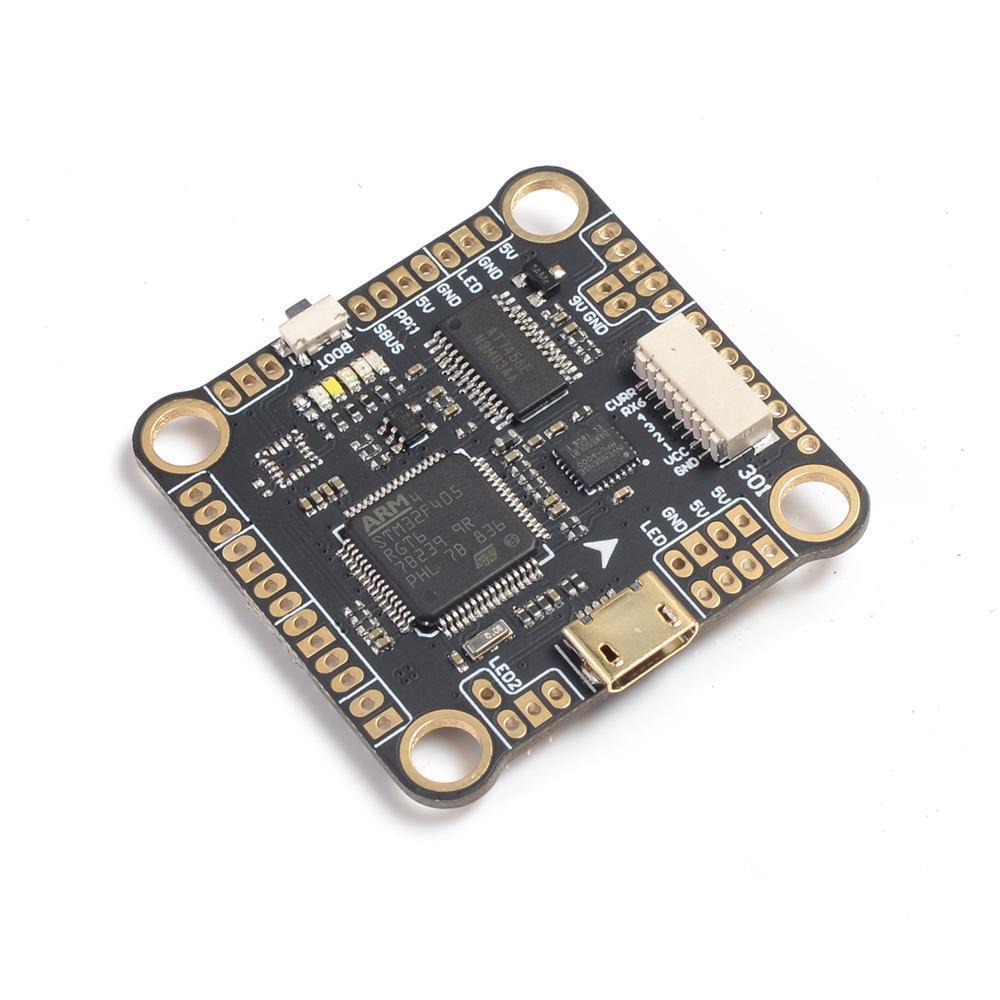

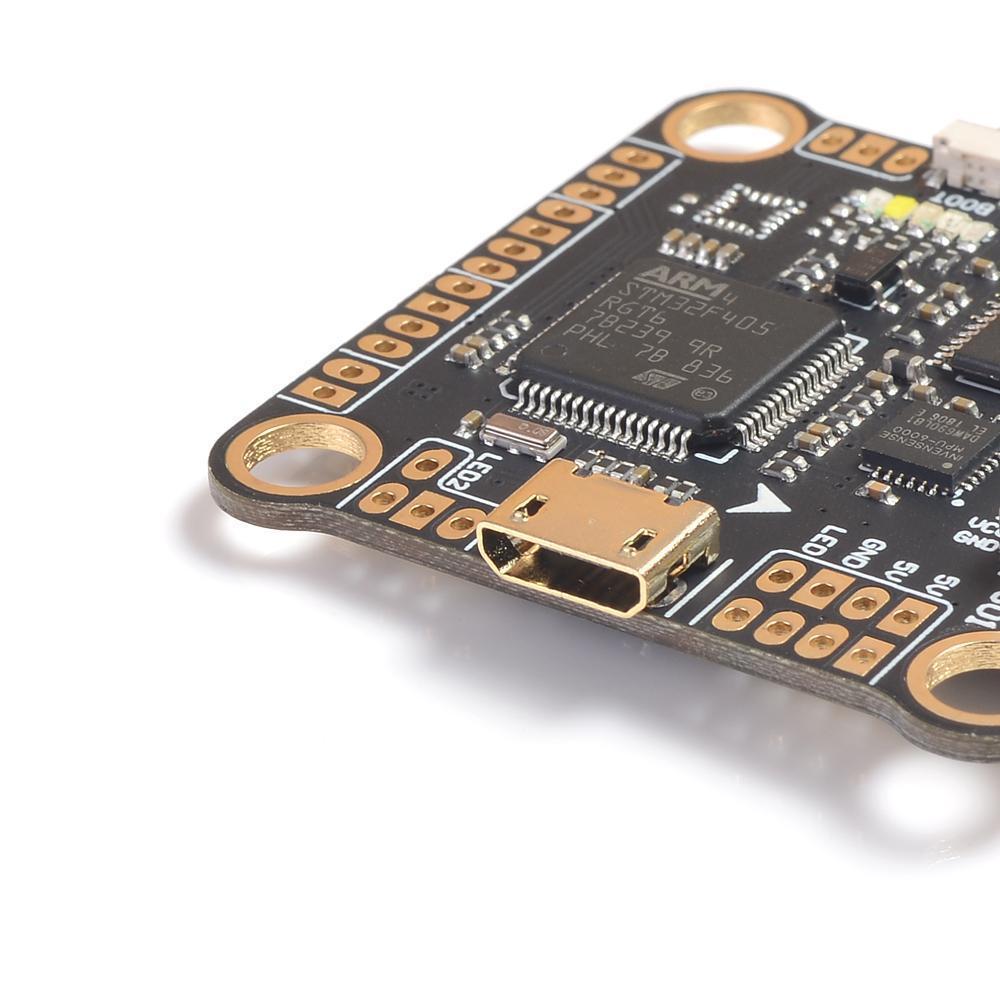

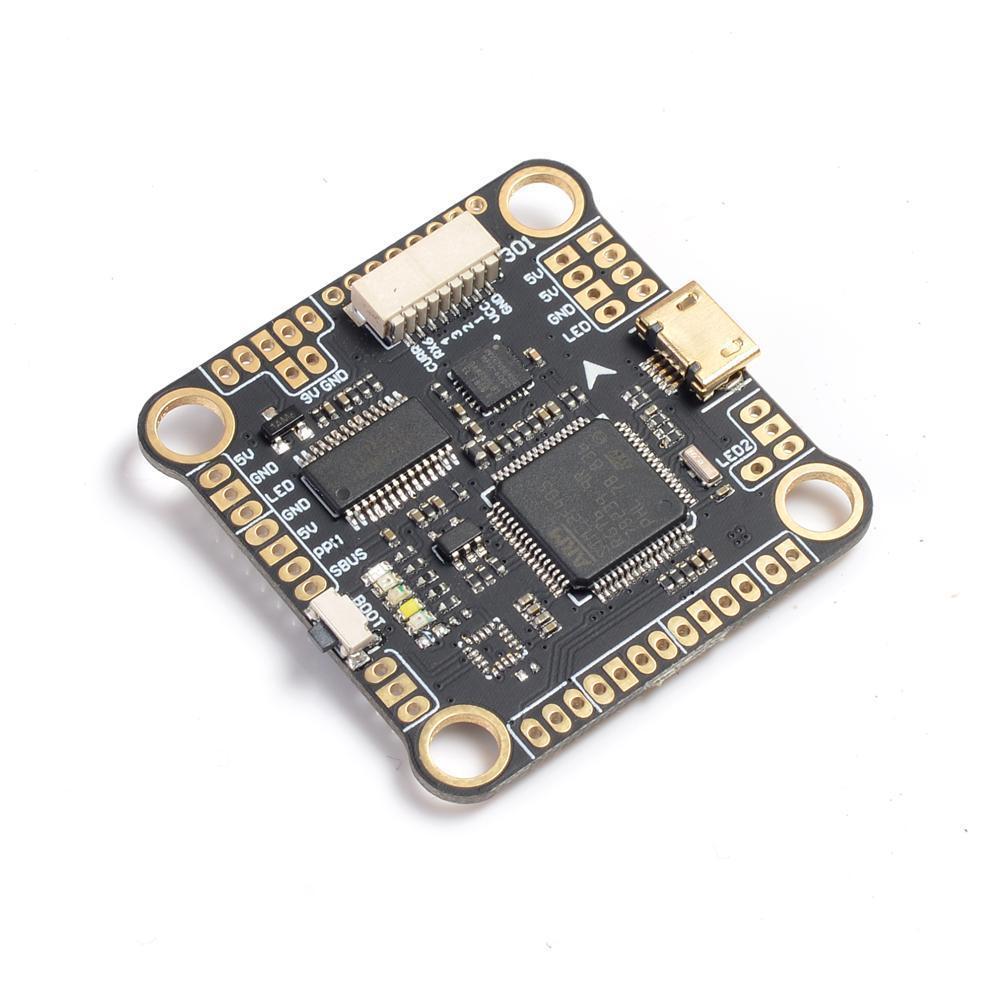

Mamba F405 Flight Controller Betaflight STM32 MPU6000 OSD Built-in 5V/2A BEC

Specifications

MCU: 168MHz STM32F405RGT6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 3Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V

WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes

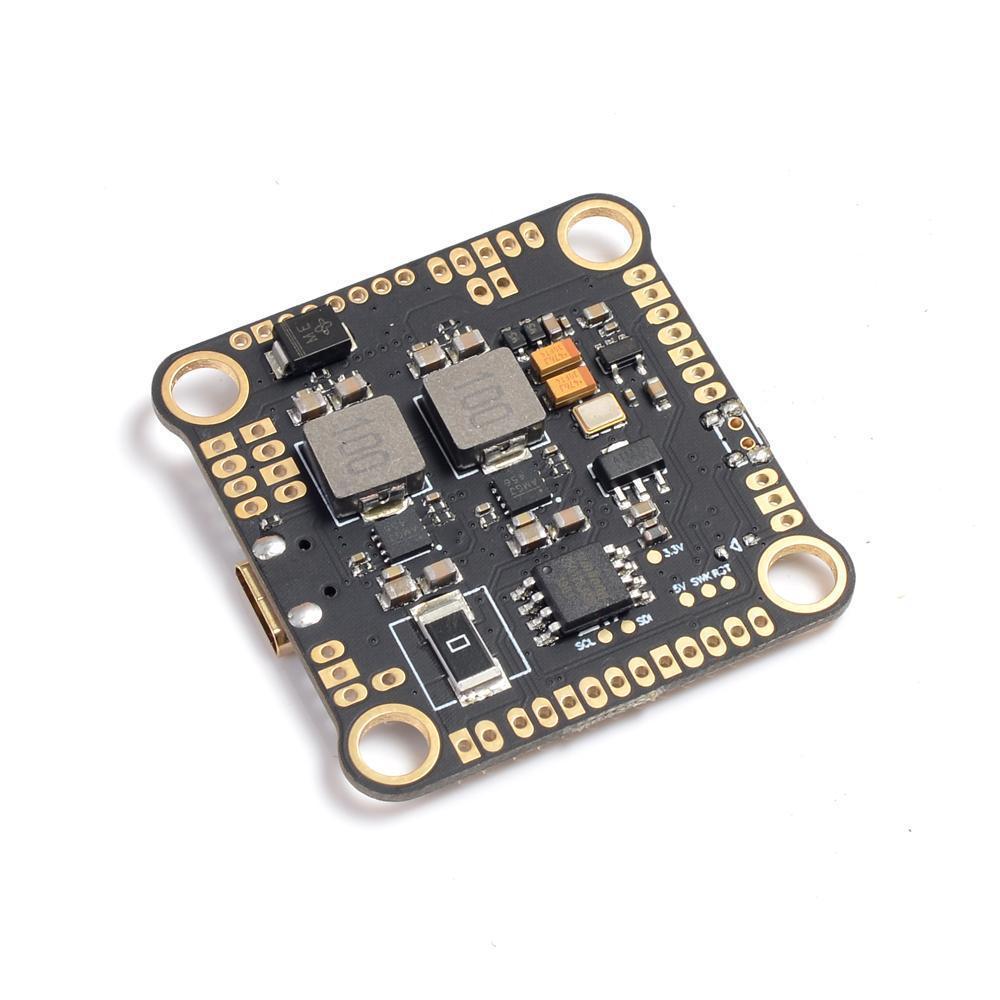

PDB Specifications

Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)

FC Firmware
BetaFlight
Target: FURYF4OSD

Physical

Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 20g

Included:

1×FC MAMBA F405 MK2
