Amass XT60 Panel Pigtail Mount (XT60E-W / XT60IE-M)
by Amass
5.00 out of 5
(1 customer review)
100% Genuine Amass Brand new XT60 panel mount pigtails
$6.99
SKU: E1148/E1156
Categories: Adapters & Connectors, Battery Accessories, Electronic Accessories
Tag: 0-10-20
Description

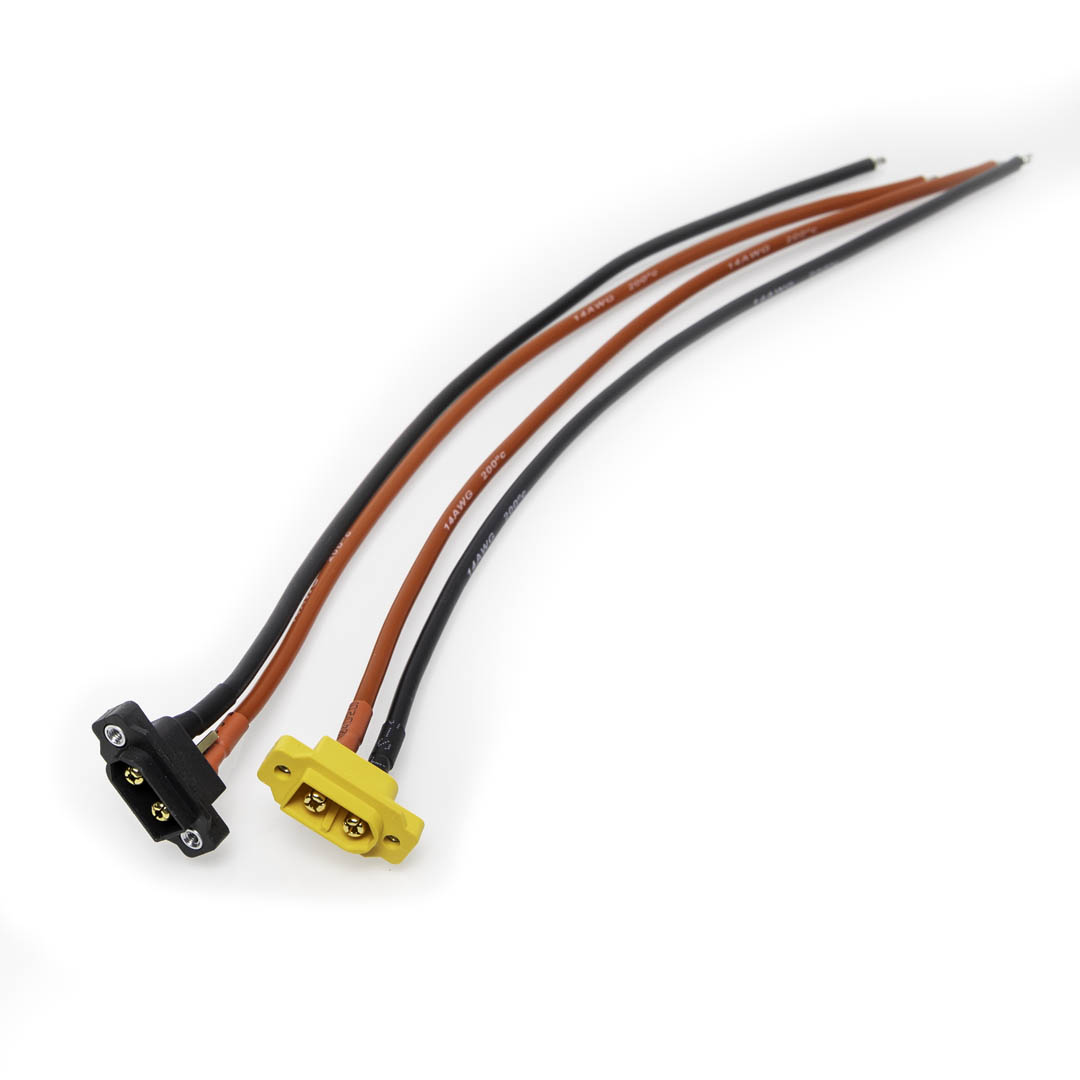

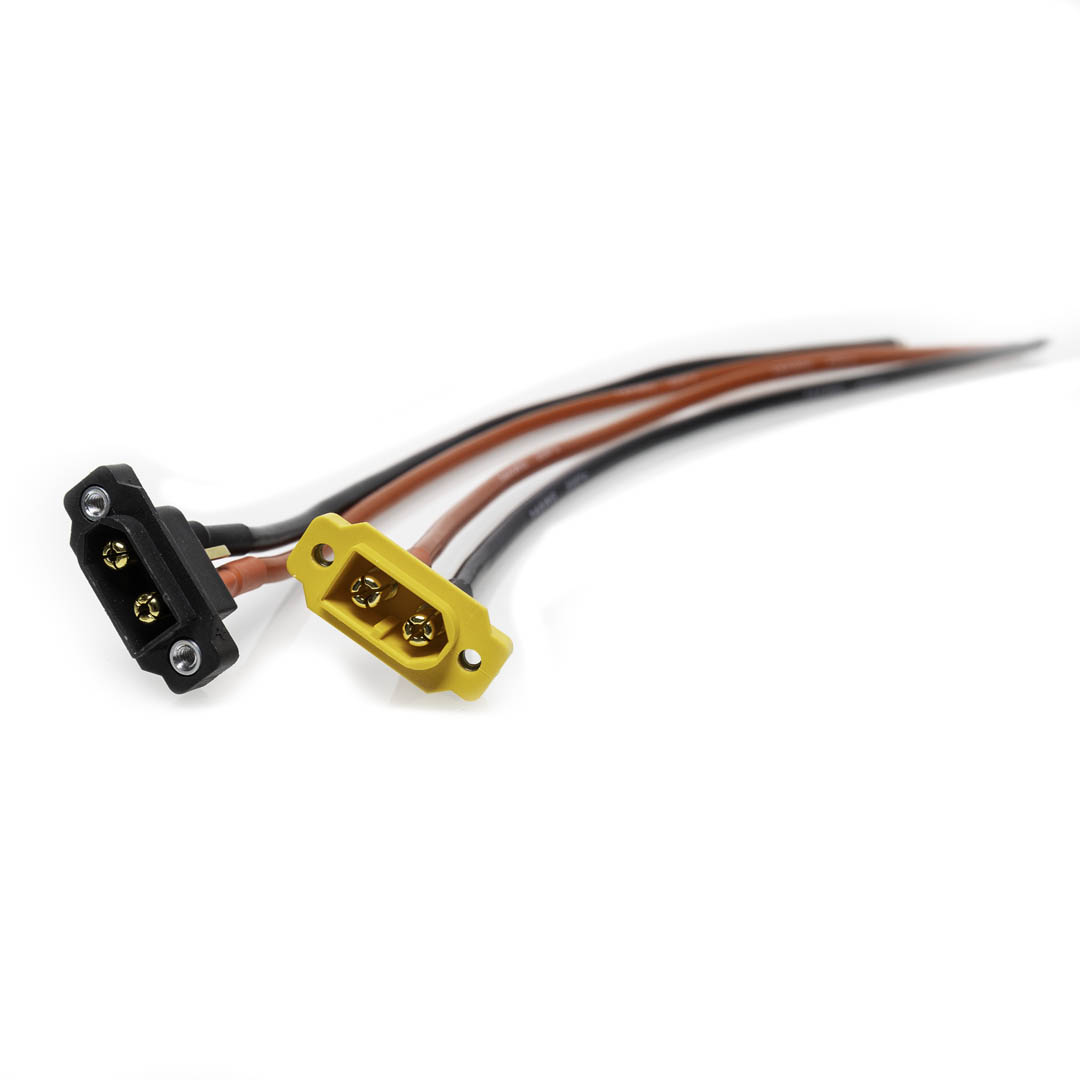

Genuine Amass XT60 panel mount connectors with pigtails.
Two Connector Options:
- XT60E-M Yellow connector – standard Yellow Panel Mount
- XT60IE-M Black connector – 2+1 pin connector for smart batteries
Both have 14AWG wire 25cm length.
Specitications:
- Brand Name: Amass
- 100% Amass Brand new and high quality.
- Model: XT60EW Male Plug
- Rated voltage: DC 500V
- Rated current: 20A/16#
- Instaneus current: 40A/16#
- Contact resistance: 0.6mΩ
- Insulation resistance: 2000mΩ
- Using times: 100 times
- Protection level: IP40
- Temperature: -20℃ to 120℃
- Recommended cable spec.: 12/14/16#
- Weight: 3.6g/pc
- Color:Black
Additional information
Brand | |
---|---|
Type | XT60E-M Yellow, XT60IE-M Black |
